The Capture w/Trace wizard in Cisco FMC allows you to capture packets on an FTD device and trace their path through the Snort engine. This can help you troubleshoot connectivity issues from an endpoint behind an FTD device and a public DNS server, as well as verify the Snort verdict for the DNS traffic. The Capture w/Trace wizard lets you specify the source and destination IP addresses, ports, and protocols for the packets you want to capture and trace, as well as the FTD device and interface where you want to perform the capture. You can also apply filters to limit the capture size and duration. After you start the capture, you can ping the DNS server from the endpoint and then view the captured packets and their Snort verdicts in the FMC web interface2.

To use the Capture w/Trace wizard in Cisco FMC, you need to follow these steps2:

In the FMC web interface, navigate to Troubleshooting > Capture/Trace.

Click New Capture.

Choose an FTD device from the Device drop-down list.

Choose an interface from the Interface drop-down list.

Enter the source and destination IP addresses, ports, and protocols for the packets you want to capture and trace. For example, if you want to capture DNS queries from an endpoint with IP address 10.1.1.100 to a DNS server with IP address 8.8.8.8, you can enter these values:

Source IP: 10.1.1.100

Source Port: any

Destination IP: 8.8.8.8

Destination Port: 53

Protocol: UDP

Optionally, apply filters to limit the capture size and duration. For example, you can set the maximum number of packets to capture, the maximum capture file size, or the maximum capture time.

Click Start.

Ping the DNS server from the endpoint and wait for some packets to be captured.

Click Stop to stop the capture.

Click View Capture to see the captured packets and their Snort verdicts.

The other options are incorrect because:

Performing a Snort engine capture using tcpdump from the FTD CLI will not allow you to trace the path of the packets through the Snort engine or verify their Snort verdicts. Tcpdump is a command-line tool that can capture packets on an FTD device, but it does not provide any information about how Snort processes those packets or what actions Snort takes on them2.

Creating a Custom Workflow in Cisco FMC will not help you troubleshoot a connectivity issue from an endpoint behind an FTD device and a public DNS server. A Custom Workflow is a user-defined set of pages that display event data in different formats, such as tables, charts, maps, and so on. A Custom Workflow does not allow you to capture or trace packets on an FTD device3.

Running the system support firewall-engine-debug command from the FTD CLI will not allow you to simulate real DNS traffic on the FTD device or verify the Snort verdict for that traffic. The firewall-engine-debug command is a diagnostic tool that can generate synthetic packets and send them through the Snort engine on an FTD device. The synthetic packets are not real network traffic and do not affect any connections or policies on the FTD device4.

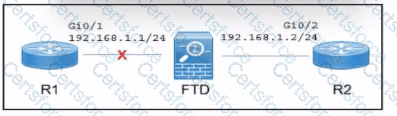

To ensure that router R2 removes the directly connected route for 192.168.1.0/24 from its routing table when the cable between router R1 and the Secure FTD device is disconnected, the network engineer must implement the " Propagate Link State " option on the Secure FTD device. This option allows the FTD to propagate the link state changes to adjacent devices, ensuring that the disconnection is recognized and the routing table is updated accordingly.

Steps:

Access the FTD device configuration via FMC.

Navigate to the interface settings for the relevant interfaces.

Enable the " Propagate Link State " option for the interfaces connected to R1 and R2.

Deploy the changes to the FTD device.

This configuration ensures that the link state changes are communicated to router R2, prompting it to remove the disconnected route from its routing table.

Transparent mode allows the FTD device to act as a “bump in the wire” that does not affect the IP addressing of the network. The end user workstations will not need any changes to their configuration, as they will still receive an IP address from the same DHCP server. However, the FTD device must allow DHCP traffic in the access control policies, otherwise it will block the DHCP requests and replies1

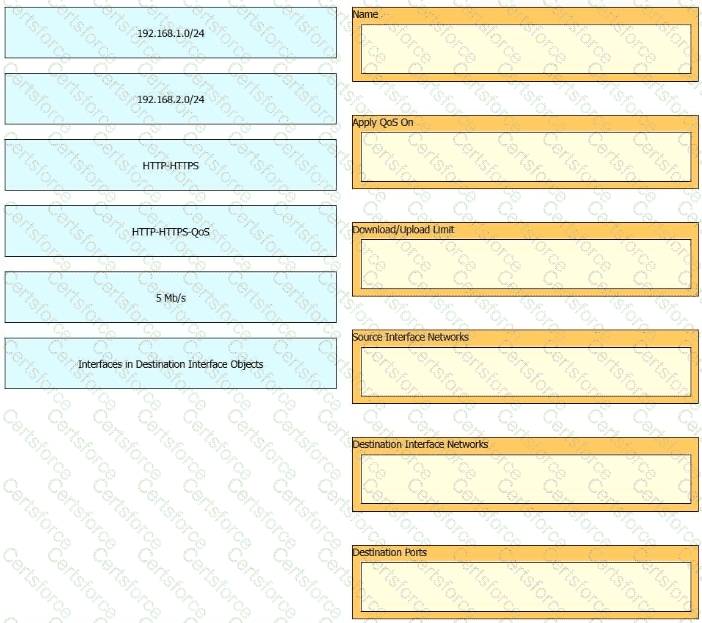

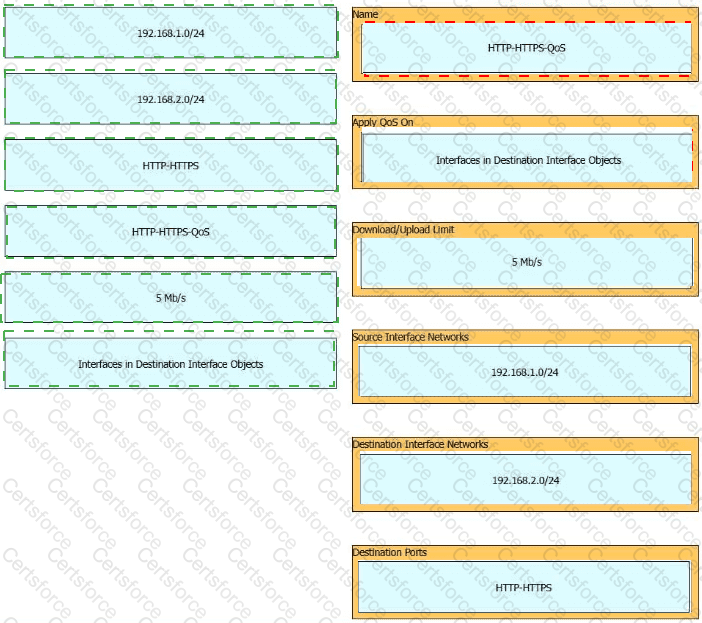

Name → HTTP-HTTPS-QoS

Apply QoS On → Interfaces in Destination Interface Objects

Download/Upload Limit → 5 Mb/s

Source Interface Networks → 192.168.1.0/24

Destination Interface Networks → 192.168.2.0/24

Destination Ports → HTTP-HTTPS

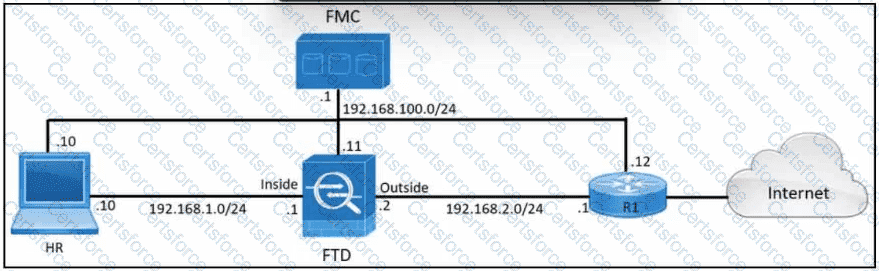

The HR workstation resides on the inside 192.168.1.0/24 network, making that subnet the source-interface network. Internet-bound traffic exits through the 192.168.2.0/24 network, which must be configured as the destination-interface network. Because rate limiting must occur as traffic leaves toward the internet, QoS is applied to interfaces in the destination interface objects. The HTTP-HTTPS object identifies the destination ports for web traffic, while HTTP-HTTPS-QoS provides a descriptive rule name. Both download and upload limits are configured as 5 Mb/s. Cisco Secure Firewall applies a QoS limit independently on each selected interface and determines upload and download direction based on the connection initiator. The Apply QoS On selection must correspond to a populated source or destination interface condition. Cisco Secure Firewall QoS configuration

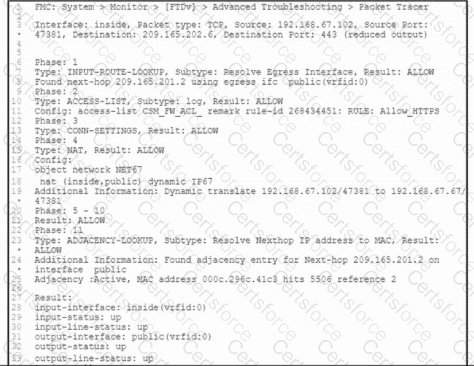

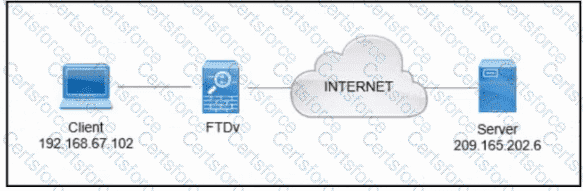

Secure Firewall access control evaluates a connection using the destination’s real, untranslated address. For an inbound static NAT connection, the Internet client sends traffic to the mapped public address, but the firewall performs NAT untranslation and evaluates the access control rule against the internal server address. Consequently, a rule containing only the public address will not match as intended. The administrator must replace that public destination with the web server’s internal IP address while retaining the required TCP port and appropriate Allow action. Changing the action to Trust does not correct an address-matching error and would also bypass additional inspection. Disabling intrusion inspection is unrelated, and translating the client’s source address is unnecessary for ordinary inbound static NAT. Therefore, the access control rule must reference the internal, real server address. Cisco NAT and real-address documentation

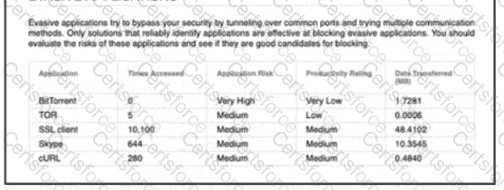

The Analysis > Hosts > Vulnerabilities page in Cisco FMC displays information about the hosts on the network and their associated vulnerabilities. The administrator can filter the hosts by impact level, which indicates how likely an attack is to succeed against a host. An impact level of 2 means that the host was attacked and is potentially vulnerable, but no exploit was confirmed. The administrator can click on a host to view more details, such as its IP address, operating system, applications, protocols, and intrusionevents. The administrator can also view the details of each vulnerability, such as its CVE ID, description, severity, and recommended actions3
