 By setting IP precedence values (using Differentiated Services Code Point - DSCP) and configuring traffic policing, the network can enforce policies to drop or mark packets based on their priority. When traffic exceeds the specified threshold, the network can take appropriate actions.

The primary role of a BR (Border Relay) router in a 6rd (IPv6 Rapid Deployment) environment is to connect the CE (Customer Equipment) routers with the IPv6 network. The BR router de-encapsulates IPv6 packets that are encapsulated in IPv4 packets from the CE routers and forwards them to the IPv6 internet. This process is stateless and allows for high availability and load balancing by potentially having more than one BR router configured with the same IPv4 address (anycast), so CE routers are routed to the closest BR router12.

To avoid advertising the same routes back to their sources when using RIP as the routing protocol between multiple PEs and CEs, the network engineer should define VRFs (Virtual Routing and Forwarding) on each device. VRFs allow for traffic separation by creating separate routing tables for different VPNs or customers. By using VRFs, each CE-PE link can be associated with a specific VRF, ensuring that routes are not inadvertently advertised back to their sources. Other options (A, B, and D) are not directly related to this specific requirement. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide.

In a multicampus network that supports video streaming, the engineer should configure the network to use IGMPv3. IGMPv3 is the version of IGMP that supports Source-Specific Multicast (SSM). SSM allows the receiver to specify the source of the multicast stream, which is particularly useful for video streaming applications. By using SSM, the network can efficiently deliver the video content from the specified source to the receivers without unnecessary traffic from other sources. References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.01.

 In XML, a self-closing tag such as  indicates that the element does not contain any data, hence the data field is considered blank. This is a common way to represent empty elements in XML documents.

The command “traceroute mpls ipv4 10.20.0.1/32 ttl 4” is used to trace the route that packets take to get from the source to the destination in an MPLS network, specifically for IPv4 addresses with a maximum of 4 hops (Time To Live). This command will provide information on all labels and hop-by-hop IP addresses for the specified destinations, meeting the requirements stated in the question.

References := For more detailed information, you can refer to the Implementing and Operating Cisco Service Provider Network Core Technologies training, which covers the configuration, verification, troubleshooting, and optimization of Service Provider IP network infrastructures, including MPLS operations

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/cether/configuration/xe-3s/asr903/16-12-1/b-ce-xe-16-12- asr900/m_ce_802_1ad_900.html

The configuration in Option A is correct for enabling dial-out telemetry streams using gRPC on devices with TLS disabled.

It uses model-driven telemetry (MDT), which is a new method of monitoring network devices. Unlike traditional methods that pull data from the device, MDT pushes data from the device to the collector.

In this configuration:

Telemetry is model-driven.

It specifies a destination group with an IP address and port number where the telemetry data will be sent.

The encoding is self-describing-gpb (Google Protocol Buffers).

The protocol used is TCP.

This setup ensures that telemetry data is sent to the specified collector without requiring TLS encryption.

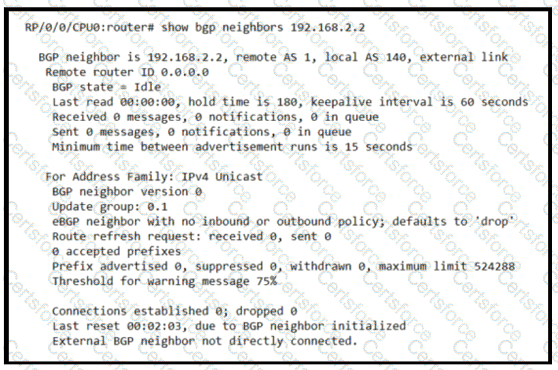

 The show command output indicates that the BGP neighbor is in an Idle state, which means the BGP session has not been established. Additionally, it mentions “eBGP neighbor with no inbound or outbound policy; defaults to ‘drop’”. This implies that in the absence of specific policies for route advertisement and acceptance, the default action is to drop all routes. Therefore, no routes are accepted from the neighbor 192.168.2.2, nor are any routes advertised to it, aligning with option C. References: = Implementing and Operating Cisco Service Provider Network Core Technologies course materials.

The URL in the exhibit is used with REST API to send a message to the APIC (Application Policy Infrastructure Controller) to perform an operation on a managed object or class operator. In Cisco’s ACI (Application Centric Infrastructure), REST API requests are used for managing, configuring, and retrieving data from the APIC. The URL structure typically includes the IP address of the APIC and specific paths that refer to objects or classes within the ACI fabric. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

To configure multi-topology IS-IS for IPv6, the router must be configured with the ipv6 router isis command under the interface configuration mode. This command enables IS-IS for IPv6 on the interface. The ipv6 router isis command is used to enable IS-IS for IPv6 on an interface. The multi-topology keyword specifies that the interface will participate in multiple topologies. The level-1 and level-2 keywords specify the IS-IS levels for which the interface will participate. In this case, we want the interface to participate in both Level 1 and Level 2 topologies, so we use both keywords.
