Cisco 200-301 Exam Questions Free Practice Test

Viewing page 10 out of 14 pages

Viewing questions 181-200 out of questions

Questions # 181:

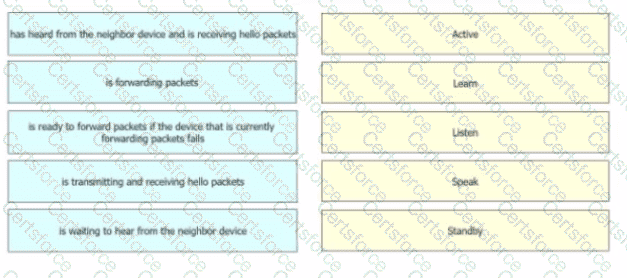

Drag and drop the device behaviors from the left onto the matching HSRP slate on the right.

Question # 181

Expert Solution

Questions # 182:

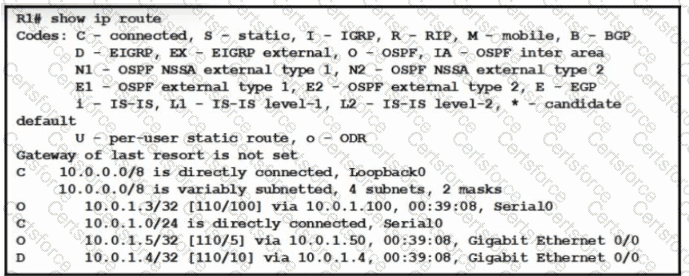

Refer to the exhibit.

Question # 182

What does route 10.0.1.3/32 represent in the routing table?

Options:

a single destination address

the source 10.0.1.100

all hosts in the 10.0.1.0 subnet

the 10.0.0.0 network

Expert Solution

Questions # 183:

Which two VPN technologies are recommended by Cisco for multiple branch offices and large-scale deployments? (Choose two.)

Options:

site-to-site VPN

IDMVPN

IGETVPN

IPsec remote access

clientless VPN

Expert Solution

Questions # 184:

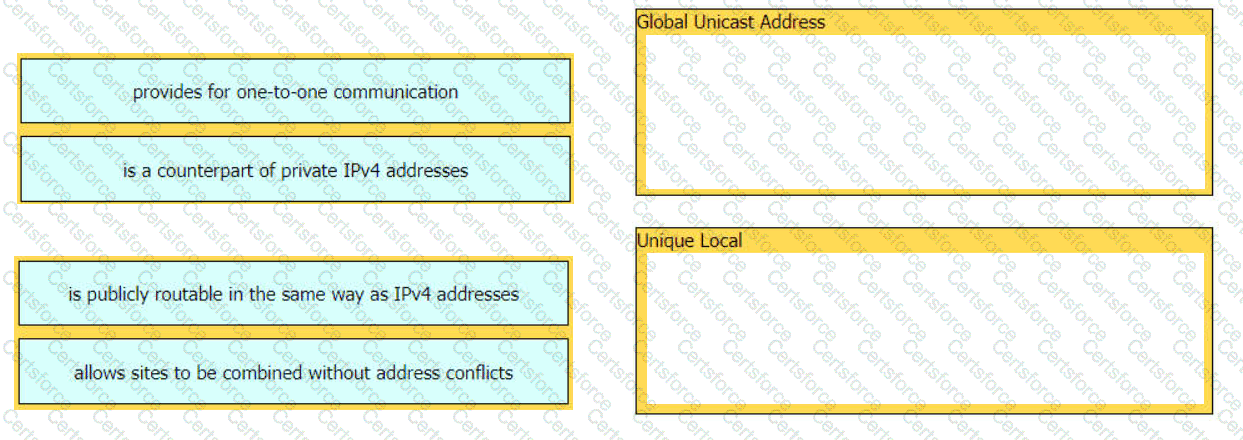

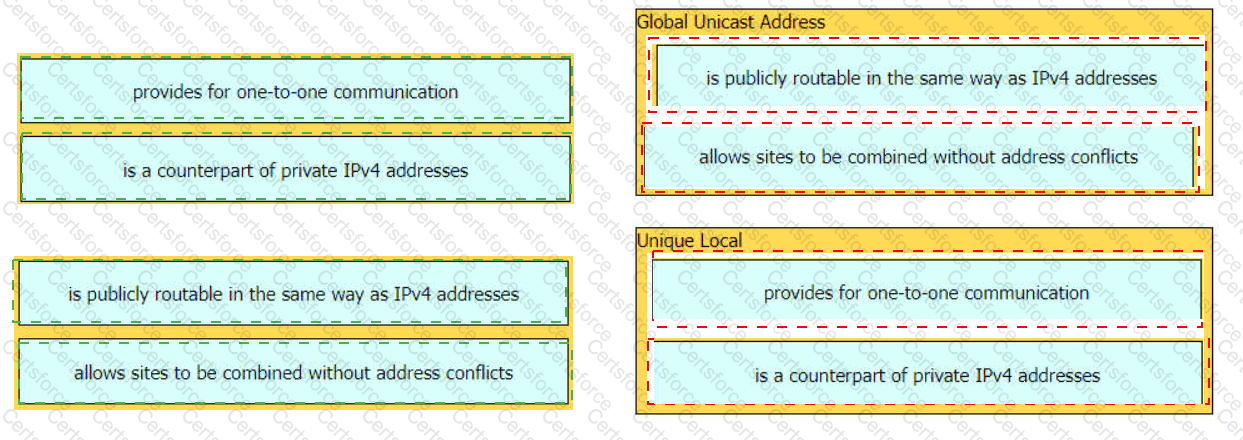

Drag and drop the characteristic from the left onto the IPv6 address type on the right.

Question # 184

Expert Solution

Questions # 185:

What is the primary purpose of private address space?

Options:

conserve globally unique address space

simplify the addressing in the network

limit the number of nodes reachable via the Internet

reduce network complexity

Expert Solution

Questions # 186:

What is the role of nonoverlapping channels in a wireless environment?

Options:

to reduce interference

to allow for channel bonding

to stabilize the RF environment

to increase bandwidth

Expert Solution

Questions # 187:

Which two IPv6 addresses are used to provide connectivity between two routers on a shared link? (Choose two)

Options:

::ffif 1014 1011/96

2001 7011046:1111:1/64

;jff06bb43cd4dd111bbff02 4545234d

2002 5121204b 1111:1/64

FF02::0WlFF00:0l)00/104

Expert Solution

Questions # 188:

What is an enhancement implemented in WPA3?

Options:

employs PKI and RADIUS to identify access points

applies 802.1x authentication and AES-128 encryption

uses TKIP and per-packet keying

defends against deauthentication and disassociation attacks

Expert Solution

Questions # 189:

Refer the exhibit.

Question # 189

What is the cause of poor performance on router R19?

Options:

excessive collisions

speed and duplex mismatch

port oversubscription

excessive CRC errors

Expert Solution

Questions # 190:

To improve corporate security, an organization is planning to implement badge authentication to limit access to the data center. Which element of a security program is being deployed?

Options:

user training

user awareness

vulnerability verification

physical access control

Expert Solution

Questions # 191:

A HCP pool has been created with the name CONTROL. The pool uses the next to last usable IP address as the default gateway for the DHCP clients. The server is located at 172.16 32.15. What is the step in the process for clients on the 192.168.52.0/24 subnet to reach the DHCP server?

Options:

ip forward-protocol udp 137

ip default-network 192.168.52.253

ip helper-address 172.16.32.15

ip default-gateway 192.168.52.253

Expert Solution

Questions # 192:

Question # 192

Refer to the exhibit. Drag and drop the subnet masks from the left onto the corresponding subnets on the right. Not all subnet masks used.

Question # 192

Expert Solution

Questions # 193:

Which REST method updates an object in the Cisco DNA Center Intent API?

Options:

CHANGE

UPDATE

POST

PUT

Expert Solution

Answer

Explanation

PUT is most-often utilized for **update** capabilities, PUT-ing to a known resource URI with the request body containing the newly-updated representation of the original resource.

However, PUT can also be used to create a resource in the case where the resource ID is chosen by the client instead of by the server. In other words, if the PUT is to a URI that contains the value of a non-existent resource ID. Again, the request body contains a resource representation. Many feel this is convoluted and confusing. Consequently, this method of creation should be used sparingly, if at all.

Alternatively, use POST to create new resources and provide the client-defined ID in the body representation—presumably to a URI that doesn’t include the ID of the resource (see POST below).

On successful update, return 200 (or 204 if not returning any content in the body) from a PUT. If using PUT for create, return HTTP status 201 on successful creation. A body in the response is optional—providing one consumes more bandwidth. It is not necessary to return a link via a Location header in the creation case since the client already set the resource ID.

PUT is not a safe operation, in that it modifies (or creates) state on the server, but it is idempotent. In other words, if you create or update a resource using PUT and then make that same call again, the resource is still there and still has the same state as it did with the first call.

If, for instance, calling PUT on a resource increments a counter within the resource, the call is no longer idempotent. Sometimes that happens and it may be enough to document that the call is not idempotent. However, it’s recommended to keep PUT requests idempotent. It is strongly recommended to use POST for non-idempotent requests.

Examples:

https://www.restapitutorial.com/lessons/httpme thods.html

Questions # 194:

A network architect is deciding whether to implement Cisco autonomous access points or lightweight access points. Which fact about firmware updates must the architect consider? Unlike lightweight access points, which require

Options:

Unlike lightweight access points, which require redundant WLCs to support firmware upgrades, autonomous access points require only one WLC.

Unlike autonomous access points, lightweight access points store a complete copy of the current firmware for backup.

Unlike lightweight access points, autonomous access points can recover automatically from a corrupt firmware update.

Unlike autonomous access points, lightweight access points require a WLC to implement remote firmware updates.

Expert Solution

Questions # 195:

Why would a network administrator choose to implement automation in a network environment?

Options:

To simplify the process of maintaining a consistent configuration state across all devices

To centralize device information storage

To implement centralized user account management

To deploy the management plane separately from the rest of the network Answer: A

Expert Solution

Questions # 196:

Why is a first-hop redundancy protocol implemented?

Options:

to protect against default gateway failures

to prevent loops in a network

to enable multiple switches to operate as a single unit

to provide load-sharing for a multilink segment

Expert Solution

Questions # 197:

Which advantage does machine learning offer for network security?

Options:

It improves real-time threat detection.

It manages firewall rule sets.

It enforces password complexity requirements.

It controls VPN access permissions.

Expert Solution

Questions # 198:

Which syslog severity level is considered the most severe and results in the system being considered unusable?

Options:

Alert

Error

Emergency

Critical

Expert Solution

Questions # 199:

What should a network administrator consider when deciding to implement automation?

Options:

Automated systems may have difficulty expanding network changes at scale.

Network automation typically is limited to the configuration and management of virtual devices within a network.

Network automation typically increases enterprise management operating costs.

Manual changes frequently lead to configuration errors and inconsistencies.

Expert Solution

Questions # 200:

A router has two static routes to the same destination network under the same OSPF process. How does the router forward packets to the destination if the next-hop devices are different?

Options:

The router chooses the route with the oldest age.

The router load-balances traffic over all routes to the destination.

The router chooses the next hop with the lowest MAC address.

The router chooses the next hop with the lowest IP address.

Expert Solution

Viewing page 10 out of 14 pages

Viewing questions 181-200 out of questions
