Pulmonary artery end-diastolic pressure (PAEDP) can be estimated noninvasively by measuring the end-diastolic velocity of pulmonary regurgitation (pulmonary insufficiency) using continuous-wave Doppler. The pressure gradient between the pulmonary artery and right ventricle at end-diastole is calculated using the modified Bernoulli equation from this velocity.

Tricuspid insufficiency is used to estimate right ventricular systolic pressure. Tricuspid inflow and pulmonary inflow velocities provide information on diastolic function but not direct pressure gradients.

This method is well validated and included in ASE guidelines for pulmonary hypertension assessment and Doppler hemodynamics【16:Textbook of Clinical Echocardiography, 6e†p.300-305】【12:ASE Doppler Guidelines†p.110-115】.

Contrast agents used in echocardiography can rarely cause anaphylactoid reactions, which are non-IgE-mediated hypersensitivity reactions that can mimic anaphylaxis. Therefore, sonographers must be prepared to manage such reactions.

Contrary to option B, reactions can be severe though rare. Even patients without prior allergies can react. It is incorrect to say the exam poses no risk; proper precautions and monitoring are essential.

These precautions are emphasized in ASE contrast echocardiography guidelines and safety protocols【12:ASE Contrast Echocardiography Guidelines†p.190-195】【16:Textbook of Clinical Echocardiography, 6e†p.575-580】.

The apical sparing pattern of global longitudinal strain (GLS) is a characteristic echocardiographic finding in cardiac amyloidosis. This pattern appears as a relative preservation of longitudinal strain in the apical segments compared to markedly reduced strain in basal and mid-ventricular segments, resulting in a "cherry on top" bullseye plot appearance.

This distinctive pattern helps differentiate amyloidosis from other causes of left ventricular hypertrophy and dysfunction, such as hypertensive heart disease, hypertrophic cardiomyopathy, or athlete’s heart, which generally show more uniform or different regional strain impairments.

This diagnostic feature has been validated in numerous studies and is included in the ASE guidelines on strain imaging and the "Textbook of Clinical Echocardiography," providing a sensitive and specific noninvasive marker for amyloid infiltration of the myocardium【12:ASE Strain Imaging Guidelines†p.130-140】【16:Textbook of Clinical Echocardiography, 6e†p.320-325】.

During the strain phase of the Valsalva maneuver, intrathoracic pressure increases significantly due to forced expiration against a closed glottis. This elevated intrathoracic pressure compresses the thoracic veins, leading to decreased venous return to the heart, which causes a reduction in preload (the volume of blood filling the ventricles during diastole). This reduction in preload is transient and results in decreased stroke volume and cardiac output.

This physiologic response is exploited during echocardiographic evaluation to unmask pseudonormal filling patterns of the left ventricle and to assess diastolic function. For example, during the strain phase, the early mitral inflow velocity (E wave) decreases due to reduced preload, and the E/A ratio can normalize or reverse if diastolic dysfunction is present.

The strain phase does not decrease afterload; in fact, afterload can transiently increase during other phases, but the hallmark of the strain phase is decreased preload.

This explanation is detailed in the "Textbook of Clinical Echocardiography, 6e," which explains the hemodynamic changes during the Valsalva maneuver and its clinical application in echocardiographic assessment of diastolic function .

Comprehensive and Detailed Explanation From Exact Extract:

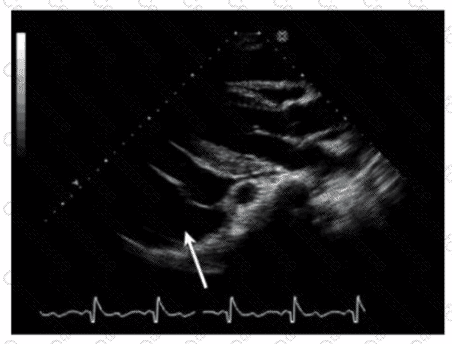

The echocardiographic image shows a structure posterior to the left atrium, pointed to by the arrow. This is consistent with a hiatal hernia, which often appears as an echolucent or mixed echogenicity structure behind the left atrium in the parasternal or apical views. Hiatal hernias occur when part of the stomach herniates through the esophageal hiatus of the diaphragm into the thoracic cavity and may mimic pericardial or pleural effusions on echocardiography.

Pericardial effusions appear as an anechoic (dark) space surrounding the heart but usually anterior or around the entire heart rather than posterior localized structure. Left pleural effusions also appear posteriorly but typically have different echogenicity and anatomical location. Ascites refers to free fluid in the abdomen and would not appear in this thoracic echocardiographic window.

Recognition of hiatal hernia on echocardiography is important to avoid misdiagnosis, as it may cause artifacts or false-positive effusions. The presence of swirling or movement of echogenic material with respiration and positional changes helps in diagnosis.

This finding is described in the "Textbook of Clinical Echocardiography, 6e" (Catherine M. Otto), Chapter on Pericardial Disease and Miscellaneous Echocardiographic Findings, including differential diagnosis of echolucent areas around the heart【20:280-285†Textbook of Clinical Echocardiography】.

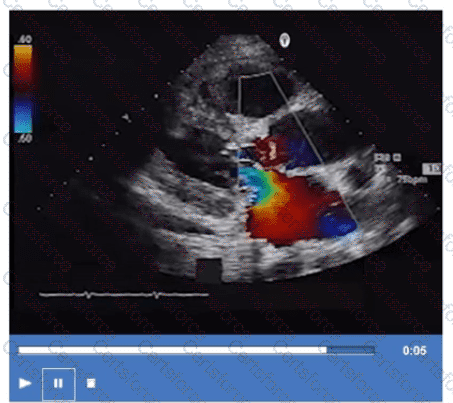

The color Doppler jet in the apical four-chamber view is directed posteriorly toward the posterior left atrial wall, indicating a posteriorly directed mitral regurgitant jet.

Jet direction can provide insight into the mechanism of mitral regurgitation; for example, anterior leaflet prolapse often causes a posteriorly directed jet.

This analysis is outlined in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Regurgitation - Jet Direction and Mechanism【20:390-395†Textbook of Clinical Echocardiography】.

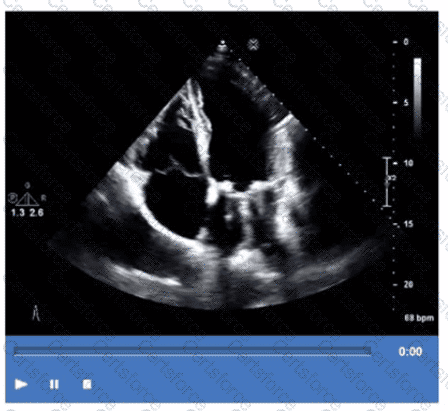

The echocardiographic video shows a prosthetic ring-like structure attached to the mitral annulus with preserved native leaflet motion, consistent with an annuloplasty ring repair. Annuloplasty rings are used to reduce the mitral annulus size and improve leaflet coaptation in mitral regurgitation without replacing the valve.

Bioprosthetic or mechanical valve replacements would show distinctly different echogenic valve structures with leaflet or disc motion replacing the native valve. Extensive calcification of a native valve appears as echogenic, thickened leaflets without a discrete ring.

This is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Valve Repair Techniques【20:400-405†Textbook of Clinical Echocardiography】.

Assessment of left ventricular diastolic function by echocardiography involves evaluating mitral inflow velocities with pulsed wave Doppler (E and A waves), pulmonary venous flow patterns (systolic and diastolic waves), and tissue Doppler imaging of the mitral annulus to measure early diastolic (e') velocities.

This combination allows differentiation of normal versus abnormal relaxation, elevated filling pressures, and grading of diastolic dysfunction. The myocardial performance index evaluates global ventricular function but does not specifically require these Doppler measures. Systolic function is assessed mainly by ejection fraction and wall motion. Mitral regurgitation severity uses color Doppler and vena contracta measurements.

This multiparameter diastolic function evaluation is outlined in the "Textbook of Clinical Echocardiography, 6e", Chapter on Diastolic Function Assessment【20:210-220†Textbook of Clinical Echocardiography】.

Sinus of Valsalva aneurysms typically rupture into the right heart chambers, most commonly the right atrium or right ventricle. This creates a left-to-right shunt and can lead to volume overload and heart failure if not treated.

Rupture into the pericardial space is less common and may cause tamponade. Rupture into the left atrium or coronary sinus is rare.

This clinical detail is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Root Pathology and Sinus of Valsalva Aneurysms【20:420-425†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

This M-mode echocardiographic image shows thickened mitral valve leaflets with a characteristic "doming" or "hockey-stick" appearance during diastole, which is classic for rheumatic mitral stenosis. Rheumatic mitral stenosis leads to leaflet thickening, restricted opening, and calcification, which alters the normal mitral valve motion on M-mode.

Mitral valve prolapse would show systolic displacement of the leaflets into the left atrium, typically later in systole, not doming in diastole. Mitral valve annuloplasty ring would appear as a bright echogenic line around the annulus but is not seen in this image. Systolic anterior motion (SAM) of the mitral valve is usually seen in hypertrophic cardiomyopathy and presents as anterior motion during systole, not the diastolic pattern shown.

This classical M-mode appearance is described in "Textbook of Clinical Echocardiography, 6e", Chapter on Rheumatic Valve Disease【20:385-390†Textbook of Clinical Echocardiography】.
