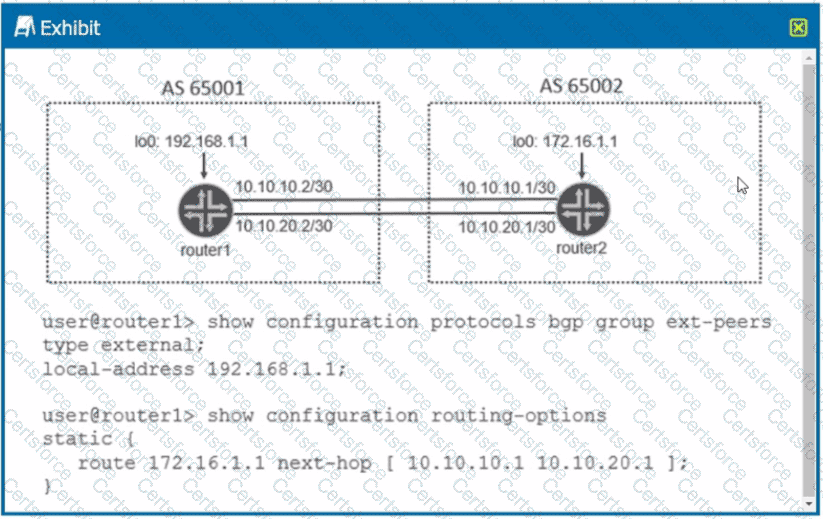

In this scenario, router1 (AS 65001) is attempting to establish an External BGP (EBGP) peering with router2 (AS 65002) using their loopback (lo0) interface addresses (192.168.1.1 and 172.16.1.1).

According to the Junos OS 24.4 documentation on BGP peering sessions:

EBGP TTL Default: By default, EBGP packets are sent with a Time-to-Live (TTL) value of 1. This assumes the peer is directly connected on a shared physical subnet.

Loopback Peering Challenge: When peering between loopback addresses, the destination IP is not on the same subnet as the physical ingress interface. Even if the routers are directly connected physically, the router treats the loopback interface as an additional " hop " . With a TTL of 1, the BGP packet expires before it can be processed by the peer ' s routing engine.

The Multihop Solution (Option D): To allow this session to form, you must configure the multihop statement under the BGP neighbor hierarchy. This tells Junos to increase the TTL (the default becomes 64 when multihop is enabled) and allows the session to establish even though the peer ' s address is not directly connected.

Target Neighbor: The neighbor address specified in the configuration on router1 must be the remote loopback address of router2 (172.16.1.1).

Option A (Multipath) is incorrect because it is used for load balancing across multiple active BGP paths, not for initial session establishment.

Options B and C are incorrect because they reference physical interface addresses (10.10.20.1 or 10.10.10.1) which are not the addresses being used for the loopback-based BGP session.

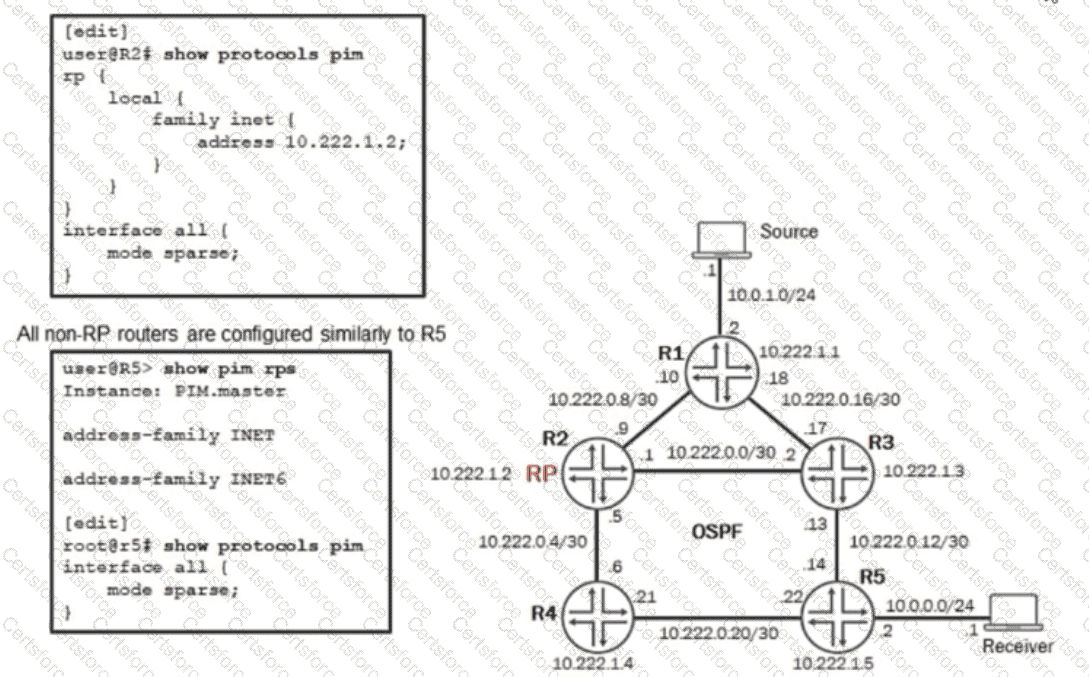

The exhibit shows a multicast network running PIM Sparse Mode where R2 is configured as a local Rendezvous Point (RP). However, the non-RP routers (like R5) show no learned RP in their show pim rps output. To resolve this using standard protocols for dynamic RP discovery, you must implement a mechanism that automates the distribution of RP information across the PIM domain.

Bootstrap Router (BSR) (Option B): BSR is the industry-standard (RFC 5059) mechanism for dynamically electing an RP and distributing that information throughout a PIM-SM domain.

It uses two roles: Candidate-RPs (C-RPs), which announce their desire to be an RP, and Candidate-BSRs (C-BSRs), which collect these announcements and flood them to all other routers in the network via PIM bootstrap messages.

BSR is a " standard protocol " as it is part of the PIMv2 specification. Once configured on R2 (as C-RP) and potentially R1 or R2 (as C-BSR), all other routers will dynamically learn that R2 is the RP for the specified group ranges.

Auto-RP (Option D): While this also provides dynamic RP discovery, it is a proprietary Cisco protocol. Although Junos supports it for interoperability, the question specifically asks for " standard protocols only, " making BSR the preferred choice.

MSDP (Option A): Multicast Source Discovery Protocol (MSDP) is used to share information about active sources between different PIM domains or for Anycast-RP. It does not handle the initial discovery of an RP within a single domain for standard PIM-SM operations.

Anycast RP (Option C): This is a technique used for RP redundancy and load balancing. While it can use BSR or MSDP for synchronization, it is a design architecture rather than a standalone " standard protocol " for the basic dynamic discovery of an RP in the manner requested here.

Configuration Example for BSR in Junos OS 24.4: To enable this, you would add the following to the RP (R2):

set protocols pim rp bootstrap-discovery

set protocols pim rp candidate-rp 10.222.1.2 group-ranges 224.0.0.0/4

set protocols pim rp candidate-bsr 10.222.1.2

When a peer incorrectly floods your router with an excessive number of routes, it can exhaust system resources and crash the routing engine.

Prefix-Limit (Option B): The prefix-limit (or accepted-prefix-limit) parameter is the primary defense against such " route leaks " .

You can set a maximum threshold for the number of prefixes allowed from a specific BGP neighbor or group.

When the limit is reached, Junos can be configured to either just log a warning or tear down the BGP session entirely (using the teardown keyword) to protect the router.

This prevents the " hundreds of thousand routes " from ever being fully processed or installed into the main routing table.

Damping (Option A): Damping is used to suppress unstable, " flapping " routes, but it does not limit the total volume of stable routes received.

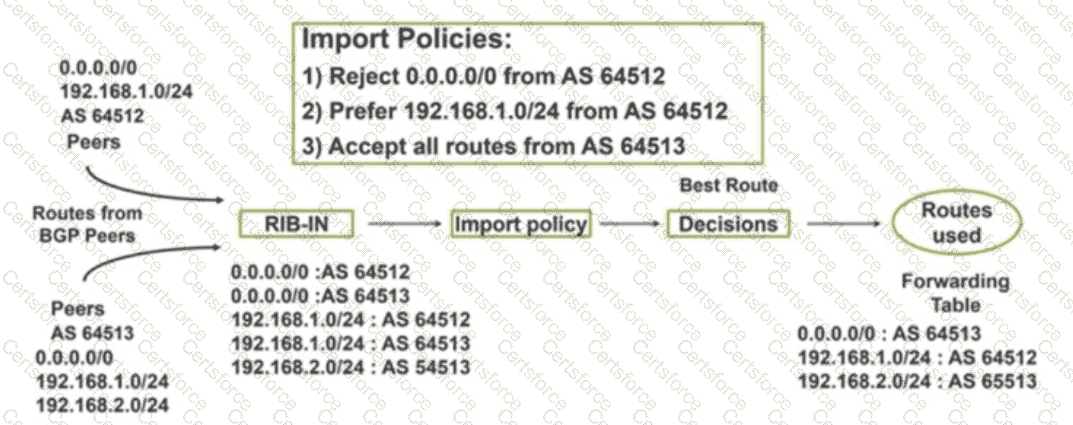

The exhibit shows a BGP routing process where an Import Policy is being applied to routes received in the RIB-IN. Specifically, Policy 1 states: " Reject 0.0.0.0/0 from AS 64512. "

In Junos OS, when a routing policy rejects a route, that route is not placed in the main routing table (inet.0) for active use. Instead, it becomes a hidden route. To verify that a specific peer is actually sending a route that is subsequently being rejected by your policy, you must use specific diagnostic commands:

Understanding " Hidden " Routes: When a BGP route is received but fails to meet policy requirements (or has an unreachable next-hop), Junos keeps it in the BGP RIB-IN but marks it as " hidden. " It will not appear in a standard show route command.

Command Logic (Option D): The command show route receive-protocol bgp < peer ip > hidden allows an administrator to view all routes received from a specific neighbor, including those that were rejected by import policies.

show route receive-protocol bgp < peer ip > : Shows only the routes that passed the import policy and were accepted into the table. Since the 0.0.0.0/0 route from AS 64512 is explicitly rejected in the exhibit, it would not show up here.

Adding the hidden keyword is the essential step to see the rejected default route and verify that AS 64512 is indeed sending it before the policy drops it.

Other Options:

Option A is incorrect because it only shows accepted routes.

Option B and C are used to filter the existing active routing table based on gateway or next-hop attributes, but they cannot show routes that have been rejected and excluded from that table.

Junos OS 24.4 on EX Series switches provides robust support for LLDP (Link Layer Discovery Protocol) and its extension, LLDP-MED (Media Endpoint Discovery).

LLDP-MED Power Negotiation: This feature allows a switch (Power Sourcing Equipment or PSE) and a connected device (Powered Device or PD), such as an IP phone or access point, to negotiate power requirements beyond the standard IEEE 802.3af/at classes. The switch can dynamically allocate the exact amount of power the device needs (in 0.1W increments), which optimizes the power budget of the switch.

LLDP Scope: LLDP is a Link Layer protocol (Layer 2), but it is not restricted to Layer 2 interfaces; it can also operate on Layer 3 interfaces to advertise system identity and capabilities. This makes Option A incorrect.

Link-Local Protocol: LLDP frames use a specific multicast MAC address (01:80:c2:00:00:0e) that is not flooded or forwarded by switches. They are strictly link-local between two directly connected neighbors. This makes Option B incorrect.

Endpoint Focus: LLDP-MED is specifically designed for Media Endpoint Devices (like VoIP phones), providing TLVs for network policy (VLAN/QoS), location identification, and inventory management. Standard LLDP is used for discovering network connectivity devices. This makes Option D incorrect.

OSPF (Open Shortest Path First) is a standards-based Link-State Interior Gateway Protocol (IGP) implemented within Junos OS 24.4:

Intra-AS Routing: OSPF is designed to distribute routing information and perform neighbor discovery within a single Autonomous System (AS). It divides the AS into areas to localize Link-State Advertisements (LSAs) and reduce the size of the Link-State Database (LSDB) on each router. (Option B)

Algorithm: OSPF uses the Shortest Path First (SPF) or Dijkstra algorithm, not a distance vector algorithm (which would be RIP or BGP). This makes Option A incorrect.

Directly Connected Routes: In Junos OS, you must explicitly configure an interface under the [edit protocols ospf] hierarchy to include it in the OSPF process. Once an interface is added, its prefix is automatically advertised to neighbors via Router (Type 1) LSAs. This makes Option C technically inaccurate in the context of interfaces participating in the protocol.

Scope: Protocols used between multiple autonomous systems are External Gateway Protocols (EGPs), such as BGP. This makes Option D incorrect.

When 802.1X server fail fallback is enabled with the vlan-name feature, the switch provides a specific survival mechanism for both existing and new sessions when the RADIUS server becomes unreachable.

Existing Clients (Statement B): Clients that have already successfully authenticated are unaffected by the server ' s unavailability in the short term. They maintain their current network access until their specific re-authentication timer expires. Only then will the switch attempt to contact the server again and trigger the fallback action if the server remains down.

New Clients (Statement D): For any new device attempting to connect while the RADIUS server is down, the switch cannot perform a standard authentication. Under the vlan-name fallback configuration, these new clients are automatically placed into the specified fallback VLAN and granted access based on the local policy defined for that VLAN.

Why others are incorrect: Statement A is incorrect because disconnecting active users would cause unnecessary service disruption. Statement C is incorrect because new clients cannot " request " a VLAN during the 802.1X handshake; the switch assigns it based on the fallback configuration.

In OSPF, the election of a Designated Router (DR) and a Backup Designated Router (BDR) is mandatory on broadcast and non-broadcast multi-access (NBMA) network types to manage link-state database synchronization efficiently.

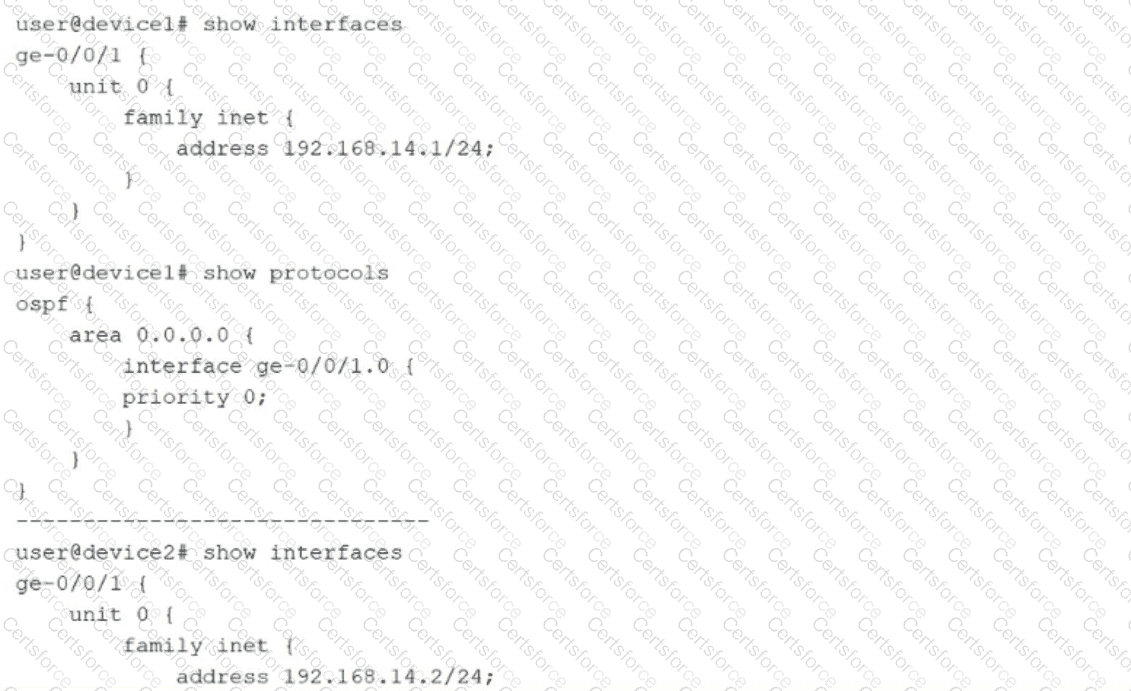

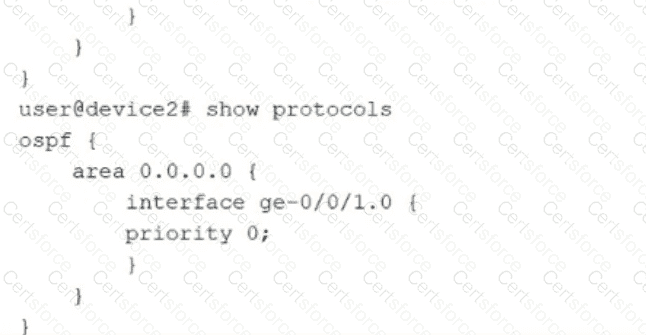

The exhibit shows that both device1 and device2 have their OSPF interface priority explicitly set to 0. According to the Junos OS 24.4 OSPF implementation:

Ineligibility (Priority 0): A router with a priority of 0 is strictly ineligible to be elected as a DR or BDR for that segment.

No Election Possible: When every router on a broadcast segment has a priority of 0, the election process cannot complete because there are no eligible candidates to fill the required roles.

State Behavior (Stuck in 2-Way): In OSPF adjacency formation, the 2-Way state indicates that bidirectional communication has been established (each router has seen itself in the other ' s Hello packets). However, to progress to the Exstart and Exchange states on a multi-access network, routers must first identify a DR and BDR.

Result: Since neither router can become the DR, they both wait indefinitely for a third party (with priority > 0) to take the lead. Consequently, the OSPF adjacency will be stuck in the 2-Way state. Adjacencies only reach the Full state with the DR and BDR; routers in a " DROther " role remain in 2-Way with each other.

Option A and D are incorrect because the router ID (IP address) only acts as a tiebreaker if priorities are equal and greater than 0. Option B is incorrect because routers cannot reach the Exstart state (where they negotiate master/slave for database exchange) without first having a DR/BDR elected.

Private VLANs (PVLANs) allow for granular port isolation within a single broadcast domain. When extending a PVLAN across multiple switches (S1 to S2), the secondary VLANs (Community or Isolated) must be preserved across the trunk links.

802.1Q Tagging (Option B): For traffic from a Community VLAN (RND) to reach members on a different switch, the Community VLAN must have its own 802.1Q VLAN tag (VLAN ID) associated with it. When a frame from a community port on S1 traverses the trunk to S2, it is tagged with this specific secondary VLAN ID. S2 receives the tagged frame, identifies it as belonging to the RND community, and forwards it to the appropriate community or promiscuous ports.

Why it fails without a tag: If the RND community is only defined locally on S1 without a global VLAN ID, the trunk port will not know how to distinguish that traffic from the Primary VLAN or other communities.

Incorrect Options: Option A is incorrect because the community VLAN must have a different tag than the parent (Primary) VLAN to maintain the internal PVLAN logic. Option C is incorrect because stripping tags would lead to the traffic being merged into the native VLAN or dropped. Option D is incorrect because RND is a community VLAN; changing it to an isolated VLAN would change its behavior (preventing communication between members of that same group).

To simplify VLAN management and automate the creation and pruning of VLANs across a network, Juniper utilizes the Multiple VLAN Registration Protocol (MVRP).

MVRP on Trunk Interfaces (Option C): MVRP is the IEEE 802.1ak standard that replaces the older, proprietary GVRP. It is designed to run on trunk interfaces between switches.

Dynamic Creation: When a VLAN is added to one switch, MVRP advertises its existence to neighboring switches. If those switches need to reach that VLAN, they can dynamically create it in their database.

Pruning: If a switch no longer has any active ports or downstream neighbors interested in a specific VLAN, it stops advertising that VLAN on its trunks. This " prunes " the VLAN traffic from those links, saving bandwidth.

Incorrect Options: Option A and B are incorrect because GVRP is legacy and no longer the recommended protocol for modern Junos deployments. Option D is incorrect because MVRP is meant for inter-switch trunk links to manage the fabric, not for edge access ports where VLAN membership is usually static.
