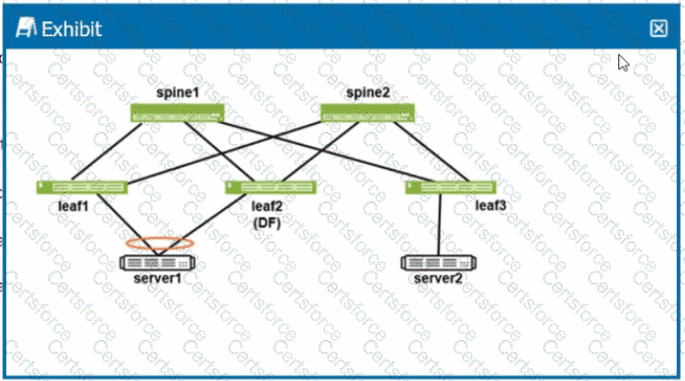

The exhibit illustrates anEVPN-VXLANfabric using multi-homing. Server1 is dual-homed to Leaf1 and Leaf2 using anEthernet Segment Identifier (ESI)in an active-active or active-standby configuration. Server2 is single-homed to Leaf3.
In EVPN environments, specific mechanisms are used to prevent loops and duplicate traffic when dealing with Broadcast, Unknown Unicast, and Multicast (BUM) traffic:
Broadcast Propagation (Option A):When Server2 (connected to Leaf3) generates a broadcast frame, Leaf3 encapsulates this traffic into a VXLAN tunnel and forwards it to all other VTEPs (Virtual Tunnel End Points) that participate in that specific Virtual Network Instance (VNI). Therefore, both Leaf1 and Leaf2 will receive the broadcast frame from the core fabric.
Designated Forwarder (DF) Election (Option C):To prevent a multi-homed device (like Server1) from receiving duplicate copies of the same broadcast frame from multiple leaf switches, EVPN utilizes aDesignated Forwarder (DF). For a given ESI, only one leaf switch is elected as the DF.
The exhibit explicitly states thatLeaf2 is the Designated Forwarder.
According to the Junos EVPN implementation, only the DF is responsible for decapsulating BUM traffic received from the core and forwarding it to the local access segment.
While Leaf1 receives the frame (Option A), it will see that it is not the DF for that segment and will drop the frame rather than forwarding it to Server1. This ensures Server1 receives exactly one copy of the broadcast, delivered by Leaf2.
Option B is incorrectbecause in a standard ingress replication or multicast-based underlay, all VTEPs in the VNI receive the broadcast.
Option D is incorrectbecause Leaf1 is the non-designated forwarder (non-DF) for this segment and is prohibited from forwarding BUM traffic to the ESI.
