The script shown in the exhibit is a REST API call that adds a user with the last name ‘CiscoTest’ to the AAA database on the server located at the IP address 192.168.201.10. This is achieved through a POST request, which is typically used to create or update resources on a server. The script specifies the user details in JSON format, which is a common data format used for API calls.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

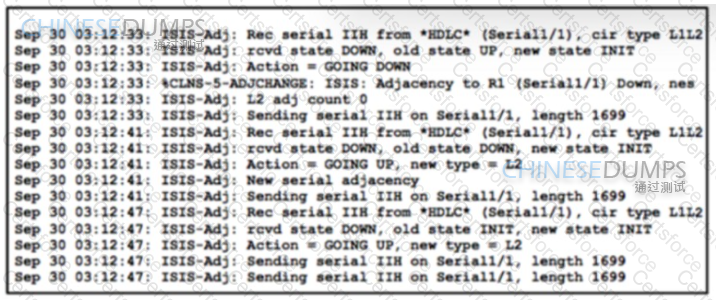

The disruption in IS-IS connectivity between R1 and R2, despite the interfaces being up, suggests an issue with packet handling or MTU configuration. Action A, disabling padding for hello packets under the serial interface on R2, is necessary because excessive padding can lead to issues in processing hello packets effectively. Action C, changing the MTU to 1500 bytes on R2, addresses potential MTU mismatch issues. MTU mismatches are common problems that can interrupt connectivity in networks using routing protocols like IS-IS; ensuring both routers operate at the same MTU can resolve this issue.

References := The explanation is derived from the principles outlined in Cisco’s Implementing and Operating Cisco Service Provider Network Core Technologies, which emphasizes the importance of proper packet handling and MTU configuration for maintaining IS-IS connectivity.

 RFC 5305 extends the IS-IS protocol for traffic engineering by specifying new information that an Intermediate System (router) can place in Link State Protocol Data Units (LSPs). Sub-TLV type 10 of the extended IS-IS reachability TLV type 22 is used to specify the maximum reservable link bandwidth. This is an important parameter for traffic engineering as it defines the amount of bandwidth that can be reserved by traffic engineering algorithms for use in constrained-path computations for MPLS traffic engineering Label Switched Paths (LSPs). References: RFC 53051.

The PSID plays a crucial role in segment routing, allowing efficient forwarding of packets along predefined paths.

For more detailed information, please refer to the official Cisco documentation on Segment Routing and IPv6. Unfortunately, I cannot directly cite specific pages from the provided resources, but you can find relevant details in the Cisco documentation.

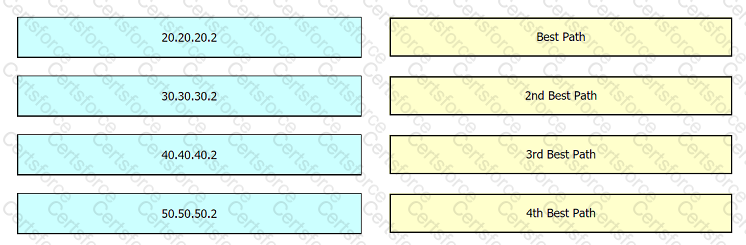

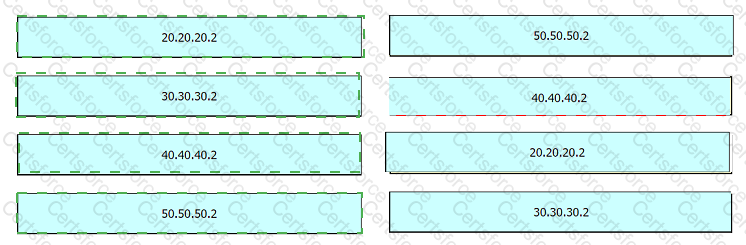

Best – 50.50.50.2

2nd Best – 40.40.40.2

3rd Best – 20.20.20.2

44th Best – 30.30.30.2

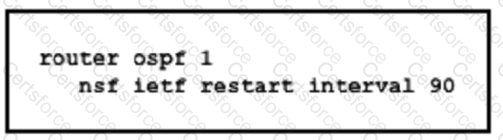

 The configuration in the exhibit shows the implementation of Nonstop Forwarding (NSF) with OSPF. NSF is used to minimize the downtime of neighbor relationships during a Route Processor (RP) switchover. The nsf command enables NSF, and ietf specifies the use of the IETF standard for graceful restart in OSPF. The restart interval 90 sets the time, in seconds, within which the restarting router should complete its restart, helping to maintain uninterrupted forwarding despite the switchover.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR v1.0); Cisco SPCOR Training & Certification.

 In XML, a self-closing tag such as  indicates that the element does not contain any data, hence the data field is considered blank. This is a common way to represent empty elements in XML documents.

References: For further details, you can refer to XML-related sections in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) materials, which explain the structure and usage of XML in network configurations.

In MPLS Layer 3 VPNs, shared services such as Internet access can be provided through the use of a shared services VRF (Virtual Routing and Forwarding). The customer VRF uses route targets to import routes from the shared services VRF, which contains the routes to the Internet. This allows the customer sites to access the Internet without compromising the isolation of their private networks. References: The concept of shared services VRF and the use of route targets for importing and exporting routes are common practices in MPLS VPN implementations.
