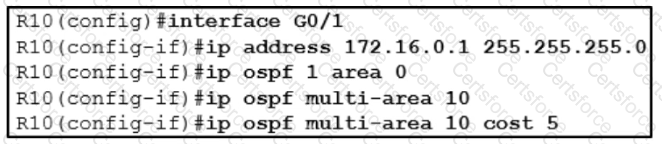

In the context of OSPF multiarea implementation, adjacency issues can often be resolved by specifying the type of network on the interface. In this case, option B “ip ospf network point-to-point” is appropriate as it helps in forming OSPF adjacency over point-to-point links by allowing OSPF to use a simpler neighbor discovery process, which can resolve adjacency issues. References := Implementing and Operating Cisco Service Provider Network Core Technologies

RSVP tear messages are used to clear the PATH or RESERVATION states on a router instantaneously, which enables the reuse of resources on the router for other requests. This is essential in MPLS Traffic Engineering where efficient resource management is crucial for maintaining network performance and stability.

References: The explanation is based on the information provided in the Cisco Press article on MPLS TE Theory

: In the context of telemetry for data analytics, a destination (such as a collector or monitoring system) initiates a session to a router. This session allows the router to send telemetry data to the destination for analysis.

References: Implementing and Operating Cisco Service Provider Network Core Technologies.

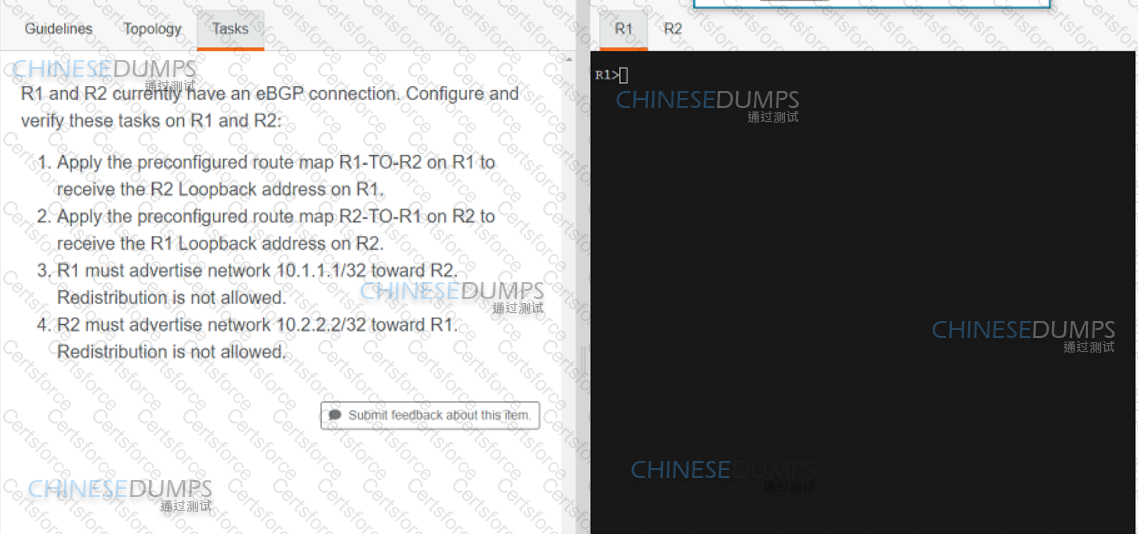

R1

router bgp 100

address-family ipv4

nei 172.16.0.2 route-map R1-TO-R2 in

network 10.1.1.1 mask 255.255.255.255

copy run start

R2

router bgp 200

address-family ipv4

network 10.2.2.2 mask 255.255.255.255

nei 172.16.0.1 route-map R2-TO-R1 in

copy run start

The RPL script in the image is used to filter BGP routes based on the AS path. The script includes a condition that checks if the AS path contains ‘7077’ using a regular expression (ios-regex ‘777$’). If this condition is met, the route is passed; otherwise, it would be denied by default. Therefore, this script allows routes from AS 7077 and denies others.

References := For specific references, please consult the Implementing and Operating Cisco Service Provider Network Core Technologies source book or study guide, as I am unable to provide direct links or access content from external websites.

In a multivendor network environment, it is essential to configure OSPF NSF with the IETF standard to ensure compatibility across different vendor devices. The command router ospf 1 nsf ietf enables OSPF NSF capability using the IETF standard, which facilitates uninterrupted forwarding during a route processor switchover.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - OSPF Nonstop Forwarding section.

RSVP-TE Fast Reroute (FRR) is a mechanism that provides protection switching for MPLS TE LSPs. The Point of Local Repair (PLR) will prefer to use a next-hop (NHOP) backup tunnel over a next-next-hop (NNHOP) backup tunnel when both are available. This preference is due to the fact that NHOP backup tunnels can provide faster rerouting around the failure point, minimizing traffic disruption and packet loss.

References: The information is based on the RSVP-TE FRR deployment considerations from the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.

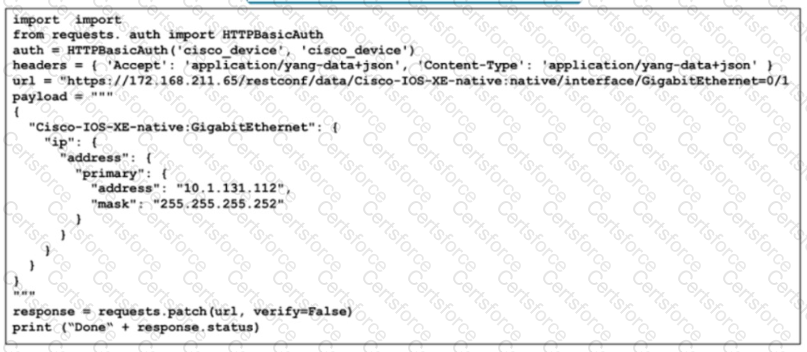

The script is designed to leverage REST API calls for network configuration tasks. It uses the requests library in Python to send a PATCH request to the device with IP address 172.168.211.65. The script includes RFC 2617-based authentication, which is used for HTTP, indicating that it’s not using SSH for login. The payload of the REST API call specifies the configuration for the interface GigabitEthernet0/1 with the IP address 10.1.131.112/30. Therefore, the script is performing option B, configuring the interface via REST API calls.

References: The explanation is based on general knowledge of Python scripting for network automation and REST API interactions as typically covered in network automation sections of Cisco Service Provider courses and documentation.
