 The requirement is for R2 to delay sending BGP updates to R5 for multicast traffic by 30 seconds. This can be achieved by configuring the advertisement interval for IPv4 multicast traffic on R2, which controls the frequency of sending BGP updates for multicast routes. References := Cisco SPCOR

The core component of MDT that describes the data streamed to a collector is the encoder. In the context of Microsoft Deployment Toolkit (MDT), the encoder is not explicitly mentioned; however, the concept aligns with the process of creating and capturing images of operating systems, which involves encoding or compiling the necessary data into a deployable image.

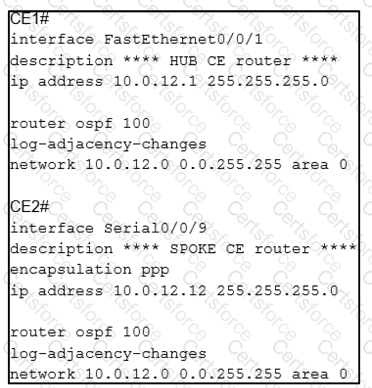

In the context of configuring L2VPN over MPLS, the xconnect statement is essential. It specifies the peer router and virtual circuit ID, creating the connection between two customer edge routers over the service provider’s MPLS network. Without the xconnect statement, there’s no association between the attachment circuits and pseudowire, leading to the failure of the L2VPN service.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification

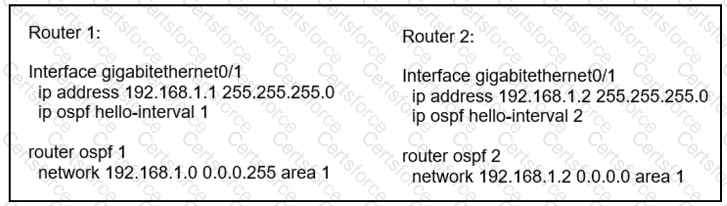

 In OSPF (Open Shortest Path First), the Hello interval is a critical parameter for OSPF neighbor formation. It defines the frequency at which Hello packets are sent on an OSPF interface. For two OSPF routers to become neighbors, they must have matching Hello and Dead intervals. In the provided configuration, Router 1 has a hello-interval of 1 second while Router 2 has a hello-interval of 2 seconds. Adjusting them to match will reestablish the OSPF neighbor relationship between Router 1 and Router 2. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco

 In BGP, the Local Preference attribute is used to influence the exit point from an AS (Autonomous System). A higher local preference value is preferred, and all routes received inherit the local preference value of the route that is installed in the IP routing table. So, configuring a higher local preference outbound will make specific BGP speakers as preferred exit points for customer AS. References := Cisco

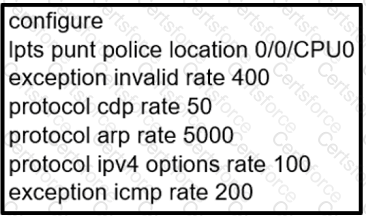

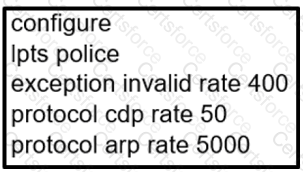

This configuration sets up policing rules for different protocols including CDP (Cisco Discovery Protocol) and ARP (Address Resolution Protocol), with specific rate limits for invalid packets as well as CDP and ARP protocols. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

 In Cisco IOS XR software, the keychain management for BGP is done in the routing configuration mode. This mode allows you to configure keychain parameters such as the key identifier, cryptographic algorithm, and other related settings. The keychain is essential for authentication and secure communication between BGP peers. By configuring the keychain in the routing context, you ensure that BGP sessions use the specified keys for authentication and integrity protection1.

References:

Implementing Keychain Management - Cisco IOS XR Routing Configuration Guide

BGP Configuration Guide for Cisco NCS 540 Series Routers, IOS XR Release 7.8.x - Master Key Tuple Configuration

 The control plane protocol used between Cisco SD-WAN routers and vSmart controllers is the Overlay Management Protocol (OMP). OMP is a proprietary protocol of Cisco SD-WAN that facilitates the exchange of routing, policy, and management information across the network. It operates within the secure environment provided by the Datagram Transport Layer Security (DTLS) or Transport Layer Security (TLS) control connection, ensuring that the communication between the routers and controllers is encrypted and authenticated1.

References := Cisco 300-415: Cisco SD-WAN vSmart-WAN Edge Router Control Plane Protocol
