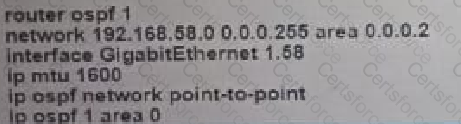

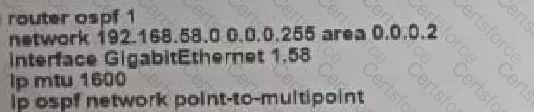

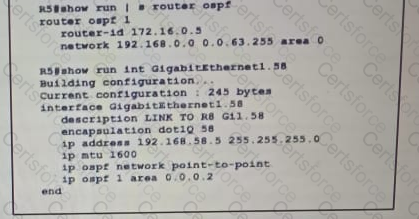

OSPF adjacency is established when two OSPF routers have matching interface parameters. This includes the OSPF router ID, network address, area ID, and other OSPF-specific configurations such as MTU size and network type. For example, the configuration commands provided in the image description suggest setting the OSPF router ID, network address with a wildcard mask, and specifying the OSPF area. Additionally, the interface is set to a point-to-point network type with a specific MTU size, which is important for OSPF adjacency as mismatched MTU sizes can prevent OSPF neighbors from forming an adjacency.

References: For a comprehensive understanding, refer to the “Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)” official Cisco documentation and study guide,

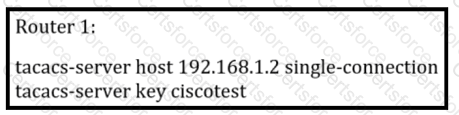

 In the given configuration, “tacacs-server host 192.168.1.2 single-connection” indicates that Router 1 will maintain a single connection to the TACACS+ server at IP address 192.168.1.2 for multiple authorization requests instead of opening a new connection for each request. This can be efficient in scenarios where there are frequent authorization requests as it reduces the overhead associated with establishing a new TCP connection each time.

References := Implementing and Operating Cisco Service Provider Network Core Technologies

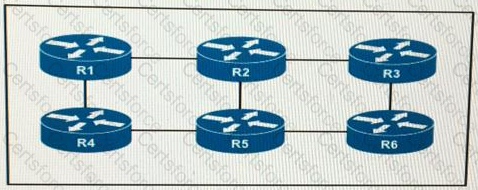

 In IS-IS, Level 2 peers must have matching authentication settings to ensure security and integrity of the routing domain. The hello timer setting must also match to ensure that the peers can maintain a consistent adjacency state. Mismatched hello timers could lead to adjacency flaps or failure to form an adjacency.

References: The information is based on the IS-IS protocol’s use of TLVs (Type-Length-Value) which makes it highly extensible. As new features come in, they can be added to the protocol with TLVs. This includes authentication mechanisms and timer settings that ensure secure and stable adjacencies between Level 2 peers

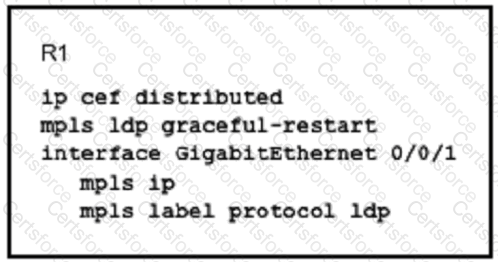

The configuration shown indicates that R1 has been configured to support Label Distribution Protocol (LDP) graceful restart. This means that R1 will maintain the forwarding state during an LDP restart, allowing it to continue forwarding packets along known routes while it re-establishes LDP neighbors/peers. This ensures minimal disruption to traffic flow during such events. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

In the context of VPLS (Virtual Private LAN Service) configuration, the engineer should perform additional configurations to enable the virtual switch instance. The correct answer is Option A, which likely involves configuring interface VLAN and associating it with xconnect vfi to establish end-to-end LAN connectivity between customer’s remote offices. This is essential for enabling VPLS, which allows geographically dispersed sites to be connected over a service provider’s network as if they were on the same local area network.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification

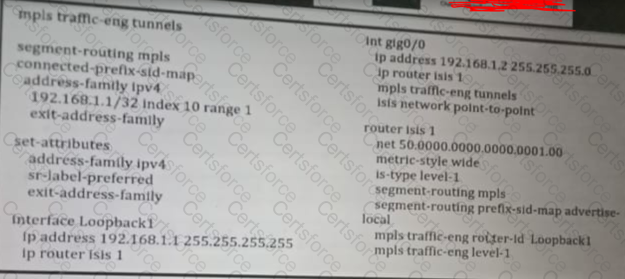

The configuration shown is for the head-end router of a Cisco MPLS TE tunnel with segment routing. This setup involves commands related to segment routing and MPLS traffic engineering tunnels, such as “mpls traffic-eng tunnels”, “segment-routing mpls”, and “segment-routing prefix-sid-map advertise-local”. These commands configure the head-end router to effectively create and manage TE tunnels using segment routing. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification.

 BSR (Bootstrap Router) is used in PIM-SM networks to automate the distribution of group-to-RP mappings. In this scenario where devices need to dynamically learn about Rendezvous Points (RPs), BSR would be appropriate as it allows routers to automatically discover RP candidates and convey that information throughout the PIM domain. References := Cisco

 OSPFv3 is designed to support both IPv4 and IPv6. The message “IPv6 routing not enabled” indicates that IPv6 has not been configured on the router, but this does not prevent OSPFv3 from running for IPv4. The OSPFv3 configuration for IPv4 will still function on the interface FastEthernet0/0 as intended.
