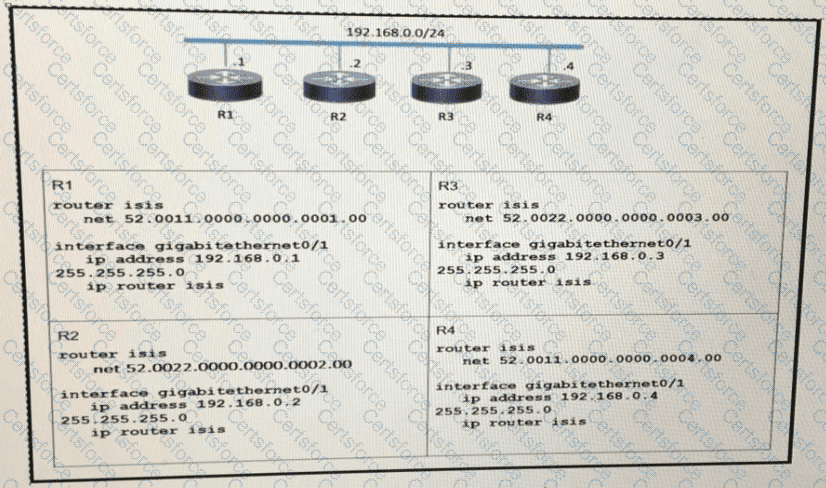

The ISIS topology exhibit indicates that all four routers are configured as Level 1-2 routers, which means they can operate in both Level 1 and Level 2 IS-IS areas. This is evident from the net addresses that show a mix of area addresses, allowing for intra-area (Level 1) and inter-area (Level 2) routing. Additionally, R1 and R2 are Level 2 neighbors because they have different area addresses, allowing them to form Level 2 adjacencies and route between different areas.
[: = Implementing and Operating Cisco Service Provider Network Core Technologies course materials. , ]
