According to the National Institute of Standards and Technology (NIST), a hybrid cloud is a cloud computing deployment model that describes a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability. Hybrid clouds allow organizations to leverage the advantages of multiple cloud environments, such as combining the scalability and cost-efficiency of public clouds with the security and control of private clouds. This model facilitates flexibility and dynamic scalability, supporting diverse workloads and business needs while ensuring that sensitive data and applications can remain in a controlled private environment.

References

NIST Definition of Cloud Computing

Hybrid Cloud Overview and Benefits

The most performant way to handle intermittent network issues with vendor applications and ensure successful transaction reprocessing is to use a combination of the Scatter-Gather scope and the Until-Successful scope. Here’s how it works:

Scatter-Gather Scope: This scope allows you to send requests to multiple endpoints (in this case, the two vendor applications) simultaneously. This ensures that both vendors are queried at the same time, reducing overall processing time.

Until-Successful Scope: This scope is used to implement a retry mechanism. By wrapping each route to the vendor applications with an Until-Successful scope, the flow can automatically retry the request if a timeout error occurs. This scope retries the request until it succeeds or until a specified number of retries is reached.

Implementation Steps:

Configure a Scatter-Gather scope in your Mule application.

Inside each route of the Scatter-Gather scope, place an Until-Successful scope.

Configure the Until-Successful scope with appropriate retry policies, such as retry count and delay between retries.

Inside the Until-Successful scope, configure the HTTP request to the vendor application.

This approach ensures that:

Both vendor applications are queried in parallel.

Each request is retried upon timeout errors, ensuring eventual success without manual intervention.

References:

MuleSoft Documentation: Scatter-Gather

MuleSoft Documentation: Until-Successful Scope

A defining characteristic of an Integration-Platform-as-a-Service (iPaaS) is that it is cloud-based. iPaaS provides a cloud-based platform to enable integration of applications and data across various environments. This approach leverages the scalability, flexibility, and accessibility of the cloud to facilitate seamless integrations, reduce on-premises infrastructure requirements, and improve the speed of deployment and maintenance of integration solutions.

References:

What is iPaaS?

Benefits of iPaaS

Explanation

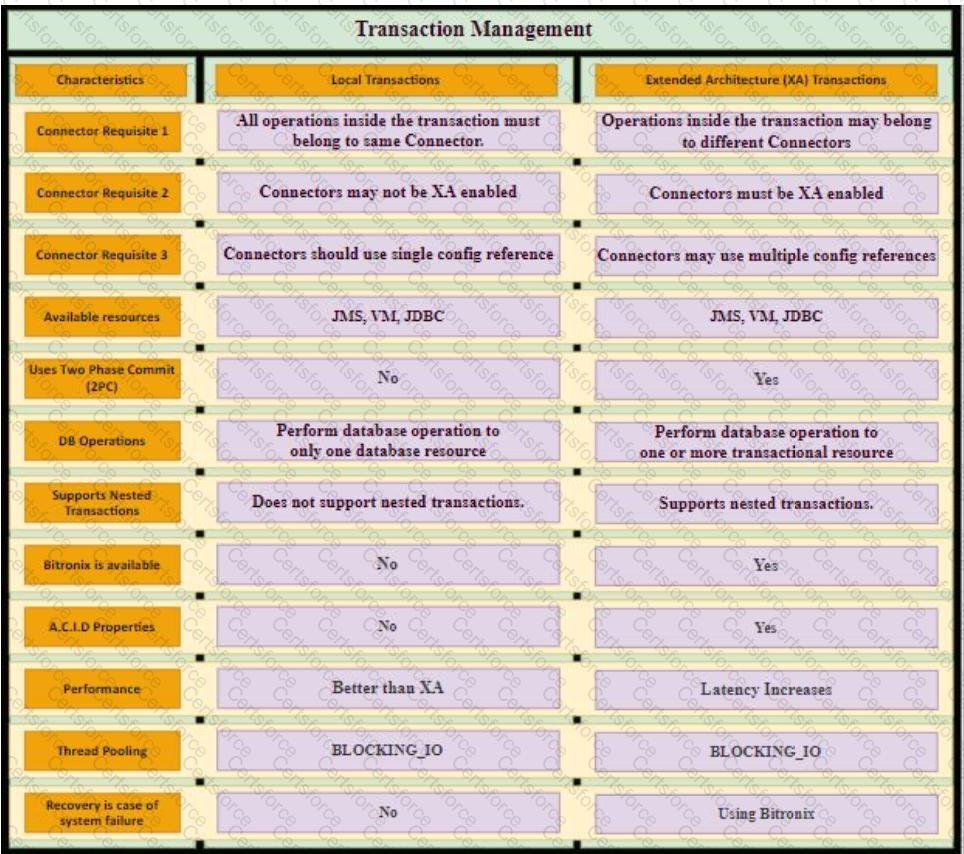

Correct answer is Consistency as XA transactions are implemented to achieve this. XA transactions are added in the implementation to achieve goal of ACID properties. In the context of transaction processing, the acronym ACID refers to the four key properties of a transaction: atomicity, consistency, isolation, and durability. Atomicity : All changes to data are performed as if they are a single operation. That is, all the changes are performed, or none of them are. For example, in an application that transfers funds from one account to another, the atomicity property ensures that, if a debit is made successfully from one account, the corresponding credit is made to the other account. Consistency : Data is in a consistent state when a transaction starts and when it ends.For example, in an application that transfers funds from one account to another, the consistency property ensures that the total value of funds in both the accounts is the same at the start and end of each transaction. Isolation : The intermediate state of a transaction is invisible to other transactions. As a result, transactions that run concurrently appear to be serialized. For example, in an application that transfers funds from one account to another, the isolation property ensures that another transaction sees the transferred funds in one account or the other, but not in both, nor in neither. Durability : After a transaction successfully completes, changes to data persist and are not undone, even in the event of a system failure. For example, in an application that transfers funds from one account to another, the durability property ensures that the changes made to each account will not be reversed. MuleSoft reference: https://docs.mulesoft.com/mule-runtime/4.3/xa-transactions

To extend Mule APIs to the Europe region and ensure minimal latency between APIs and target users and systems in Europe, it is important to set the region property correctly and update the naming convention. Here’s the detailed approach:

Setting the Region Property:

Runtime Manager Configuration: In MuleSoft’s Runtime Manager, you can deploy Mule applications to specific regions. For the European deployment, set the region property to Europe (eu-de) for all Mule applications. This ensures that the applications are physically hosted in the European data centers, reducing latency for European users.

Go to Runtime Manager in Anypoint Platform.

Select the application to deploy.

Choose the Region setting and select Europe (eu-de).

Updating Naming Convention:

Naming Convention Update: Change the naming convention to include the region in the application names. The new convention should be {API name}-{environment}-{region} (e.g., Orders-SAPI-dev-eu, Orders-SAPI-prod-eu). This helps in distinguishing applications deployed in different regions.

Update the naming convention during deployment.

Ensure the new naming convention is documented and communicated to all stakeholders.

Communicating the Change:

Stakeholder Communication: Inform all consuming applications and users about the updated naming convention. This ensures that they update their references and configurations accordingly to avoid any disruptions in service.

Documentation: Update any internal documentation to reflect the new naming convention and deployment regions.

Benefits:

Reduced Latency: By deploying the applications in the Europe region, the data proximity to European users will be improved, resulting in lower latency.

Clear Identification: The updated naming convention helps in easily identifying the environment and region of deployment, making management and troubleshooting easier.

References:

MuleSoft Documentation on Deploying to CloudHub

MuleSoft Documentation on Managing Applications in Runtime Manager

Anypoint Exchange is the Anypoint Platform component that helps integration developers discover and share reusable APIs, connectors, and templates. It acts as a central repository where developers can publish and access various assets, facilitating reuse and collaboration within the organization. By using Anypoint Exchange, developers can reduce duplication of effort, speed up development processes, and ensure consistency across integrations.

Other components like API Manager, Anypoint Studio, and Design Center serve different purposes, such as managing APIs, developing Mule applications, and designing API specifications, but they are not specifically focused on discovering and sharing reusable assets.

References

MuleSoft Documentation on Anypoint Exchange

Best Practices for Asset Reuse on Anypoint Platform

* "100% increase in the throughput of the API" might look correct, as the number of requests processed per second might increase, but is it guaranteed to increase by 100%? Using 4 nodes will definitely increase throughput of system. But it is cant be precisely said if there would be 100% increase in throughput as it depends on many other factors. Also it is nowhere mentioned in the description that all nodes have same CPU/memory assigned. The question is about the guaranteed behavior * Increasing number of nodes will have no impact on response time as we are scaling application horizontally and not vertically. Similarly there is no change in JVM heap memory usage. * So Correct answer is 50% reduction in the number of requests being received by each node This is because of the two reasons. 1) API is mentioned as stateless 2) Load Balancer is used

Explanation

Correct answer is When a Mule runtime on a given customer-hosted server is experiencing high memory consumption during certain periods Using Anypoint Monitoring, you can configure two different types of alerts: Basic alerts for servers and Mule apps Limit per organization: Up to 50 basic alerts for users who do not have a Titanium subscription to Anypoint Platform You can set up basic alerts to trigger email notifications when a metric you are measuring passes a specified threshold. You can create basic alerts for the following metrics for servers or Mule apps: For on-premises servers and CloudHub apps: * CPU utilization * Memory utilization * Thread count Advanced alerts for graphs in custom dashboards in Anypoint Monitoring. You must have a Titanium subscription to use this feature. Limit per organization: Up to 20 advanced alerts

In this business scenario, the supplier needs to deliver two fundamental integration use cases to provide an end-to-end solution:

A. Synchronized data transfer: This involves ensuring that the customer’s purchase orders (sent using ANSI X12 EDI standard) are accurately and timely transferred and reflected in the supplier’s ERP system. This synchronization ensures data consistency between the EDI transactions and the ERP system.

B. Sharing data with external partners: This involves providing the customer with a RESTful API to access current product inventory levels from the supplier’s ERP system. Sharing data through a RESTful API allows the customer to retrieve up-to-date inventory information as needed.

References:

EDI Integration with APIs

Integrating with External Partners Using APIs
