The 1/2-inch lag screws attaching the structural steel ledger require fire protection, making option D correct. These fasteners are structural components of the ledger-to-CLT connection and therefore form part of the connection whose fire performance must be maintained for the required duration.

AWC Technical Report 10 states that wood structural connections—including their connectors, fasteners, and participating members—must be protected from fire exposure for the required fire-resistance time . Protection may be provided by wood cover, fire-rated gypsum board, other approved materials, or a combination.

TR10 distinguishes structural connection fasteners from small fasteners used merely to hold sacrificial protection in place. The report specifically explains that fasteners attaching protective wood strips need not themselves be protected, provided they are sufficiently long to keep the protection in position throughout the required exposure.

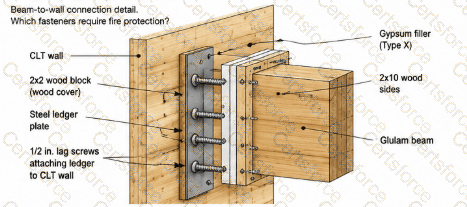

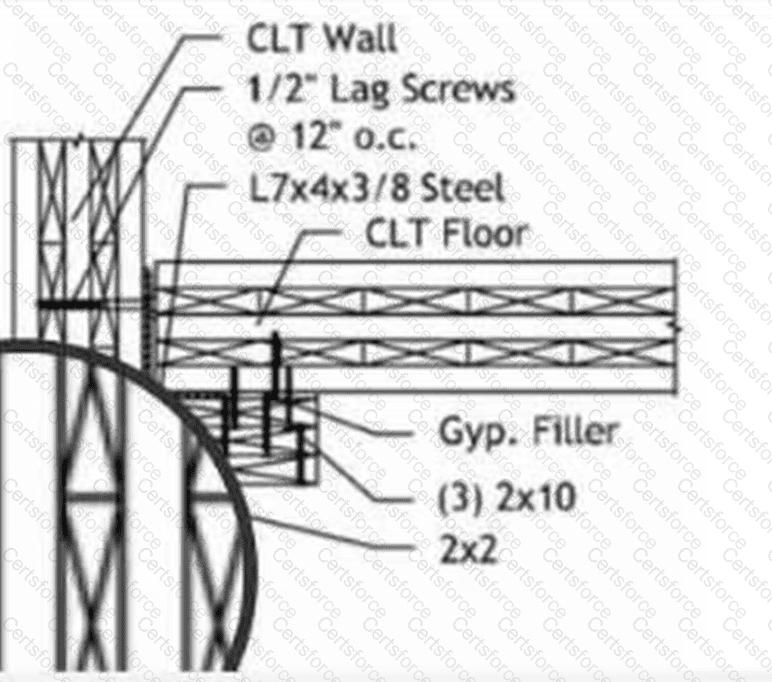

In the illustrated ledger connection, the 1/2-inch lag screws transfer structural load between the steel ledger and CLT wall. Their thermal protection is therefore integral to maintaining connection capacity.

References/Topics: AWC Technical Report No. 10 Sections 4.5 and connection examples; thermal protection of structural connectors and fasteners.

===============

IBC Table 601, Footnote “a,” permits a one-hour reduction in the required fire-resistance rating of the primary structural frame and bearing walls where those elements support a roof only. Option C is therefore correct.

For Type IV-C construction, the normal Table 601 requirement for bearing walls is two hours. Where a bearing wall qualifies as supporting only roof construction, application of the footnote permits that rating to be reduced from two hours to one hour.

The limitation “supporting a roof only” is critical. The reduction cannot be applied simply because a wall is located at the uppermost occupied level. If the wall carries a floor, mezzanine, transfer load, occupied rooftop structure, or another structural element beyond qualifying roof construction, the condition for the reduction is not satisfied.

Options A and B are not reductions prescribed by Table 601. Option D would effectively eliminate the entire normal two-hour Type IV-C bearing-wall rating, which the footnote does not permit.

For inspection purposes, the approved construction documents and structural load path must substantiate use of the reduction. The fire-protection installation should then be checked against the actual reduced rating specifically authorized by the design.

References/Topics: 2021 IBC Table 601, Footnote “a”; Type IV-C bearing walls supporting roof construction only.

===============

IBC Section 722.7 establishes the governing calculation principle for protected mass timber. The required fire resistance consists of the inherent fire resistance of the unprotected mass timber element plus the protection time contributed by the noncombustible protection . Therefore, option D is correct.

This approach recognizes two sequential protective mechanisms. First, the noncombustible covering delays heating and charring of the timber. After the credited protection period, the remaining mass timber cross section provides structural fire resistance through predictable charring behavior and residual section capacity. Section 722.7.1 further requires the contribution of the covering material to comply with the prescribed protection times or to be established under Section 703.6.

Option A ignores the contribution of the protective membrane. Option B ignores the inherent structural fire resistance of the timber. Option C incorrectly substitutes a finish rating for the code-recognized protection contribution. A finish rating is a separate temperature-based performance concept and is not automatically additive as the protection time used by Section 722.7.

References/Topics: 2021 IBC Sections 602.4, 703.6, 722.7 and 722.7.1; calculation of protected mass timber fire resistance.

===============

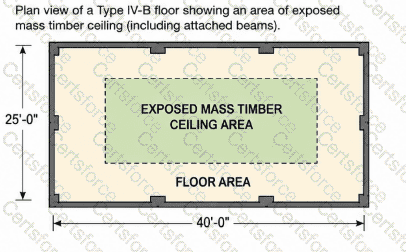

The figure depicts an unprotected portion of the mass timber ceiling . For Type IV-B construction, Section 602.4.2.2.2, Exception 1.1, limits unprotected ceiling areas—including attached mass timber beams—to 20 percent of the floor area of the applicable dwelling unit or fire area. Option B is therefore correct.

The percentage is based on floor area rather than total ceiling surface area. For example, where the associated fire area contains 1,000 square feet of floor area, the maximum ceiling exposure permitted under this particular exception would be 200 square feet, subject to the additional separation and mixed-exposure provisions.

The 40-percent value in option D applies to mass timber walls, including attached columns , rather than ceilings. The 15-percent and 30-percent values are not the prescribed Type IV-B ceiling exposure limitations in the 2021 IBC.

The inspector must additionally determine whether another exposed wall or ceiling region exists nearby. Section 602.4.2.2.4 imposes a 15-foot separation requirement, and Section 602.4.2.2.3 controls situations where both wall and ceiling surfaces are intentionally exposed.

References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B ceiling exposure limitations.

===============

Section 602.4.2.2.2 permits unprotected mass timber ceilings in Type IV-B construction to equal no more than 20 percent of the floor area , and the code expressly states that attached beams are included when determining that exposed ceiling area.

The floor area is 900 square feet:

20% × 900 = 180 sq. ft. maximum exposed area .

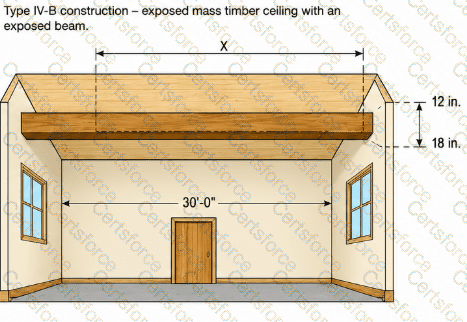

The exposed 12-inch × 18-inch beam extends across the 30-foot room. Its three exposed surfaces consist of the 12-inch-wide bottom and two 18-inch-deep sides:

30 ft × (1 ft + 1.5 ft + 1.5 ft) = 120 sq. ft.

Because the attached beam counts against the ceiling exposure allowance, only:

180 − 120 = 60 sq. ft.

remains available for the exposed ceiling itself.

The exposed ceiling extends across the 30-foot room width, so:

30 ft × X = 60 sq. ft.

Therefore:

X = 2 ft .

Option A is correct. Ignoring the beam surfaces would overstate the permitted ceiling exposure and would contradict the explicit IBC requirement that attached beams be included in the exposed ceiling calculation.

References/Topics: 2021 IBC Section 602.4.2.2.2, Exception 1.1; Type IV-B exposed ceiling and attached-beam area calculations.

===============

The required minimum fire flow is 500 gallons per minute , making option C correct.

2021 IFC Section 3313.1 requires an approved temporary or permanent water supply for fire protection to become available at specified stages of construction, including when combustible building materials arrive on the site. Section 3313.2 then establishes the specific requirement: when combustible building materials for the building under construction are delivered, a minimum fire flow of 500 gpm must be provided.

The hydrant supplying this flow must be located within 500 feet of the combustible building materials as measured along an approved fire apparatus access lane. If a single hydrant cannot provide the required coverage because of site configuration, additional hydrants are required.

The 500-gpm value in this question is the construction-stage minimum associated with combustible-material delivery. It should not be mistaken for the final required fire flow of the completed building. Depending on construction type, fire separation distance, building area, and subsequent phases of vertical construction, the required available water supply can be greater.

For mass timber projects, verifying this water supply before large timber packages arrive is a critical construction-phase fire-safety control.

References/Topics: 2021 IFC Sections 3313.1 and 3313.2; combustible building materials; minimum construction fire flow.

===============

Option A is the incorrect statement and therefore the required answer. Under 2021 IBC Table 601, an exterior bearing wall in Type IV-C construction requires a two-hour fire-resistance rating , not one hour.

The tall mass timber classifications progressively vary the degree of noncombustible protection and allowable exposure, but the structural fire-resistance requirements remain substantial. Type IV-A exterior bearing walls require three hours. Type IV-B exterior bearing walls require two hours. Type IV-C exterior bearing walls also require two hours. Thus, options B, C, and D correctly reproduce the Table 601 values.

The special inspector must also recognize that Table 601 is not necessarily the only rating criterion affecting an exterior wall. Exterior walls are additionally subject to the requirements associated with fire separation distance, particularly Table 705.5. Where another IBC provision requires a higher rating, that more restrictive condition controls.

For mass timber construction, compliance also depends on the prescribed protective system, member dimensions, connections, joints, intersections, and exterior-side protection. A wall cannot be accepted as compliant solely because the timber cross section appears substantial; it must conform to the approved rated design.

References/Topics: 2021 IBC Section 601; Table 601; Section 602.4; Table 705.5.

===============

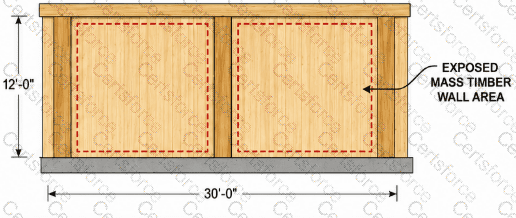

The highlighted exposed surfaces in this figure are mass timber wall surfaces . Under 2021 IBC Section 602.4.2.2.2, Exception 1.2, unprotected portions of Type IV-B mass timber walls, including attached columns, are permitted up to an area equal to 40 percent of the floor area in the applicable dwelling unit or fire area. Option D is therefore correct.

This should be distinguished from the corresponding ceiling limitation. Unprotected mass timber ceilings, including attached beams, are limited to 20 percent of floor area. The larger 40-percent allowance applies specifically to wall exposure.

Where only wall surfaces are exposed, the allowable wall area is calculated directly from the base floor area. For example, a 1,000-square-foot fire area would permit up to 400 square feet of exposed wall surface under this exception. However, Section 602.4.2.2.4 additionally requires unprotected wall portions to maintain the prescribed 15-foot separation from other applicable exposed wall or ceiling portions.

Where exposed walls and exposed ceilings occur together, the individual 40- and 20-percent limits cannot simply be maximized simultaneously; the mixed-exposure equation in Section 602.4.2.2.3 governs.

References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B wall exposure.

===============

Option B is correct because the required protection time placed over a mass timber structural connection may be established through a code-recognized fire-resistance evaluation of that protective construction under standard fire exposure.

IBC Section 2304.10.1 regulates connections in Types IV-A, IV-B, and IV-C. The code allows connection fire performance to be demonstrated through testing where the connection is incorporated into the fire-resistance test or through an approved engineering analysis. AWC further clarifies that the protection applied over the connection must provide the necessary protection time and that its performance may be established using the methods recognized by IBC Section 703.3, including testing and engineering analysis based on ASTM E119 or UL 263 performance.

Option A is too narrow: testing an isolated fastener does not establish the fire protection of the entire connection. Options C and D also use the wrong temperature location. Where an engineering-analysis route is used, the temperature criterion applies to the connection itself , including connectors, fasteners, and portions of wood incorporated into the structural connection—not simply to the protected structural element or supported member.

References/Topics: 2021 IBC Section 2304.10.1; Section 703.3; AWC guidance on fire resistance of mass timber connections.

===============

Mass timber can be incorporated into all five principal IBC construction types, although the extent and permitted application vary substantially. Therefore, option D is the technically complete answer.

Types III, IV and V provide the broadest opportunities for mass timber structural systems. Type III permits combustible interior building elements, Type IV is specifically organized around mass timber or noncombustible structural elements, and Type V permits structural elements of any material allowed by the code. Type IV includes the tall mass timber classifications IV-A, IV-B and IV-C, together with Type IV-HT.

Types I and II are predominantly noncombustible construction, but they are not absolute prohibitions against every wood or mass timber application. IBC Section 603 identifies permitted combustible materials in Types I and II. In addition, Table 601, Note c, permits heavy timber complying with Section 2304.11 for roof construction—including applicable primary structural frame members—where the required fire-resistance rating is one hour or less.

Consequently, the answer does not mean that a Type I or Type II building may be framed entirely with exposed mass timber. It means that code-compliant mass timber elements can be used in defined applications within each construction type.

References/Topics: 2021 IBC Sections 602.1–602.5 and 603.1; Table 601, Note c; Section 2304.11.

===============
