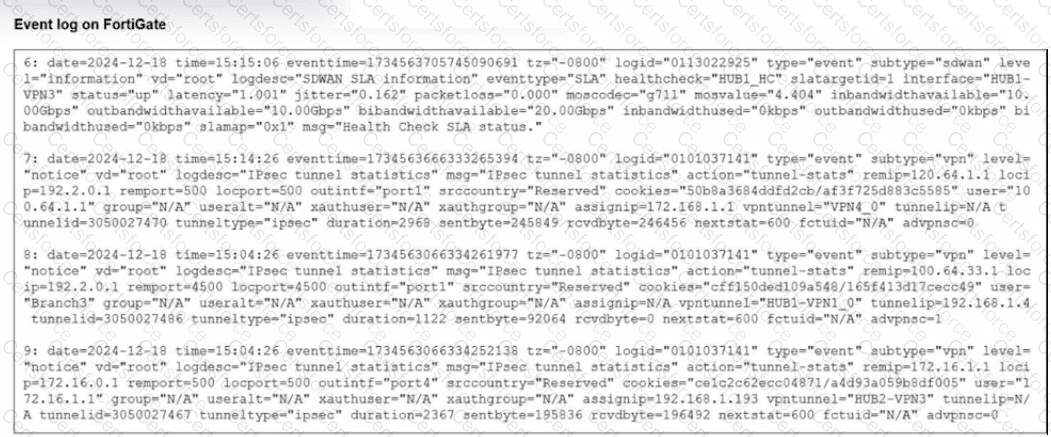

The event-log field advpnsc establishes whether the logged VPN tunnel is an ADVPN shortcut. The value advpnsc=1 identifies a shortcut, whereas advpnsc=0 identifies a non-shortcut event. The log for HUB1-VPN1_0 contains advpnsc=1, making the shortcut identification the directly supported conclusion. A different tunnel showing advpnsc=0 does not prove that its master tunnel cannot accept shortcuts. Application steering cannot be inferred from a VPN statistics event without the corresponding SD-WAN rule and session evidence. For ADVPN diagnostics, correlate vpntunnel, tunnelid, advpnsc and status messages. Reference: FortiOS 7.6 — ADVPN Shortcut Paths; Fortinet VPN log-field reference. FortiManager templates reduce repetitive work but must resolve to valid, device-specific configurations at installation time. Device assignments, metadata mappings, ADOM scope, policy-package interfaces and provisioning order should be inspected together rather than troubleshooting any one object in isolation. A successful management connection does not guarantee a successful configuration installation. Review the installation preview and task log, then validate the resulting device configuration and operational diagnostics. This separates a deployment-time validation failure from a live tunnel, routing or SLA fault.

For a large-scale SD-WAN deployment (such as 1000 spokes) where ADVPN shortcut routing is required and some remote sites connect via FortiSASE, the recommended overlay routing configuration is BGP running on loopback interfaces, combined with dynamic BGP for ADVPN shortcut routing. This design leverages the scalability and resilience of BGP, allowing dynamic discovery and route exchange necessary for shortcut tunnels between spokes in ADVPN environments. Using loopback interfaces for BGP peering is considered best practice because it decouples routing protocol stability from physical link status, ensuring that if a physical underlay interface fails, the BGP session remains up as long as there’s an alternate path. With dynamic BGP, each spoke can efficiently learn the routes to other spokes and dynamically establish shortcuts, which is critical at this scale. This method also integrates smoothly with FortiSASE for remote connectivity to the SD-WAN hub, providing flexibility and centralized management.References: A deployment should preserve the distinction between the physical or logical WAN underlay, the IPsec overlay and the SD-WAN zone that groups forwarding members. These layers can have different routing and security-policy requirements. The configured architecture must also allow the required traffic paths and failover behavior rather than assuming every available interface is interchangeable.

FortiGate SD-WAN traffic steering depends on both service-rule matching and routing-table reachability. A matching SD-WAN rule identifies eligible interfaces, but the selected member must also have a usable route toward the destination.

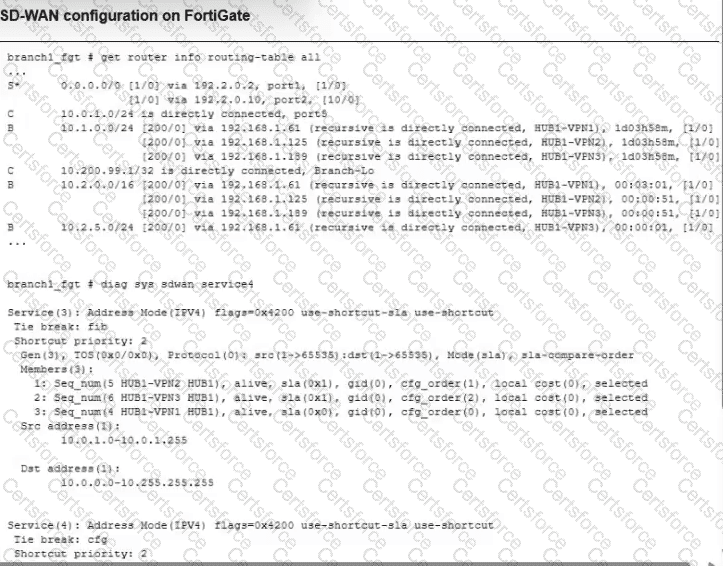

Option A is correct because service rule 3 matches the specified source and destination address ranges, and the routing table identifies HUB1-VPN3 as the route toward the corporate server subnet.

The source address 10.0.1.0/24 falls within the source range 10.0.0.0/8 , while destination 10.2.5.254 also falls within the configured destination range.

The exhibit identifies service rule 3 as an SLA-based service with multiple available overlay members. However, the route to 10.2.5.0/24 identifies HUB1-VPN3 as the reachable next-hop interface.

Although HUB1-VPN2 appears in the service ' s eligible member list, it does not provide the matching destination route shown in the routing table. Therefore, option B is incorrect.

Options C and D reference service rule 4 and physical WAN interfaces. They do not represent the selected corporate overlay path for the stated source and destination.

This demonstrates a fundamental SD-WAN behavior: matching a service rule does not eliminate the requirement for valid route resolution through its forwarding member.

FortiOS ADVPN 2.0 incorporates edge discovery and path management to establish dynamic spoke-to-spoke shortcuts while considering network transport compatibility and SD-WAN performance information.

Option C is the best-supported answer, provided the corresponding Branch-B interface TA belongs to transport group 1 and is enabled for compatible ADVPN shortcut establishment.

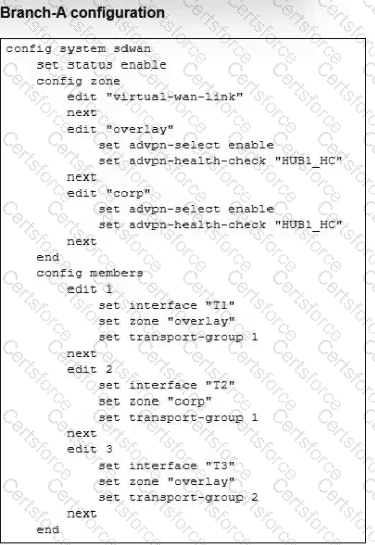

The visible Branch-A configuration establishes that T1 belongs to the overlay SD-WAN zone and uses transport-group 1 . The overlay zone also has advpn-select enable , allowing FortiOS to perform ADVPN-aware path selection.

The transport-group parameter identifies interconnected WAN transport networks. FortiOS exchanges transport-group information during ADVPN edge discovery and uses it to avoid establishing shortcuts across incompatible underlay networks.

Option A is incorrect because membership in an overlay zone does not make every interface pairing eligible for ADVPN shortcuts.

Option B is not supported by the transport and overlay conditions shown. Option D is incorrect because zone membership alone does not establish underlay compatibility or satisfy shortcut-selection requirements.

The defining principle is that ADVPN shortcut candidates must use compatible transport groups, with link health and path-selection criteria governing the final choice.

The video does not expose Branch-B ' s configuration, so option C remains a technically supported determination rather than a fully exhibit-verified result.

FortiGate SD-WAN evaluates traffic against configured service rules and uses eligible member interfaces to determine the forwarding path. In this scenario, the destination is an internal corporate server accessible through the SD-WAN overlay.

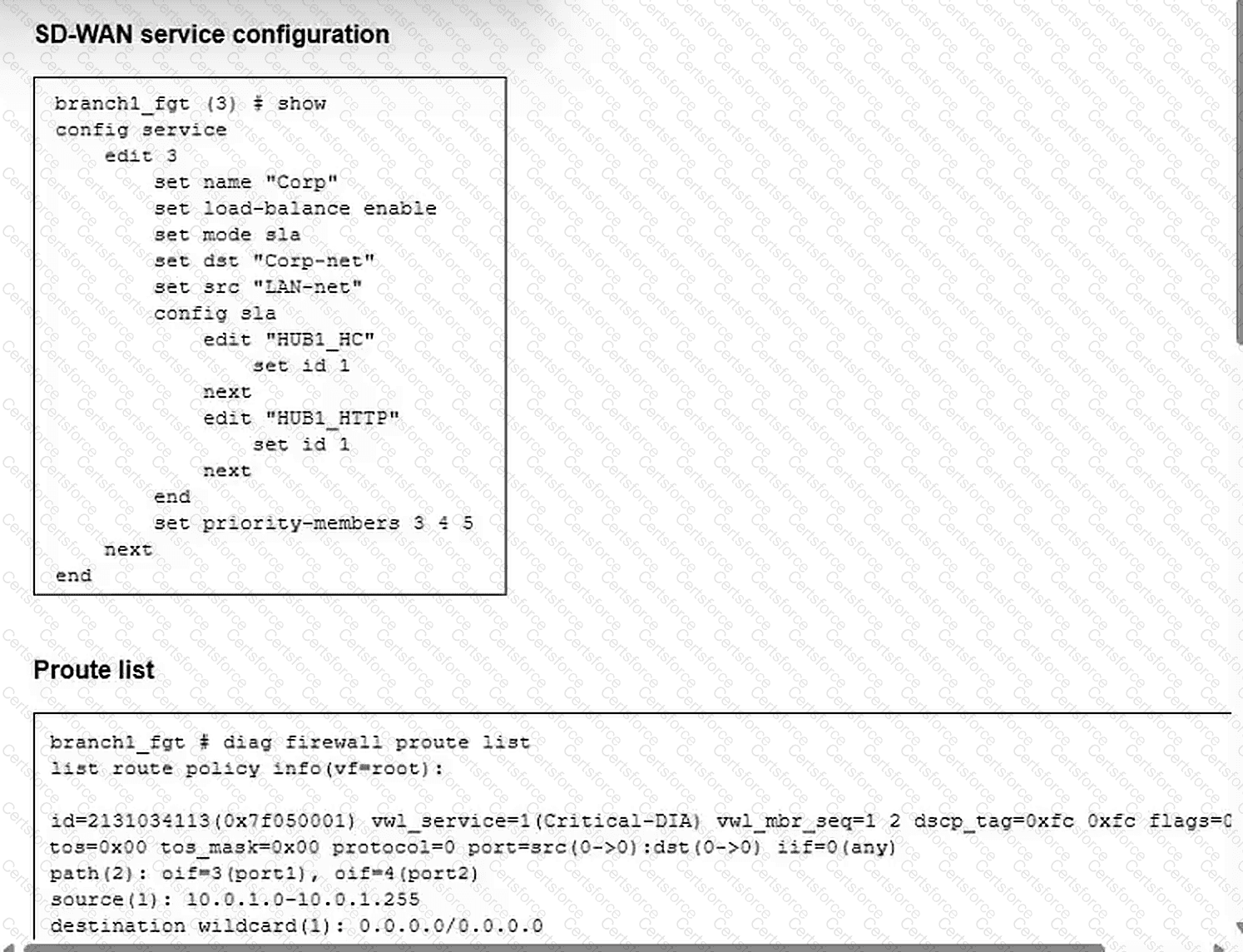

The exhibit identifies SD-WAN service rule 3, named Corp , with the following configuration:

set load-balance enable

set mode sla

set dst " Corp-net "

set src " LAN-net "

set priority-members 3 4 5

Option D is correct because the rule enables SLA-based load balancing across three overlay members corresponding to HUB1-VPN1, HUB1-VPN2, and HUB1-VPN3.

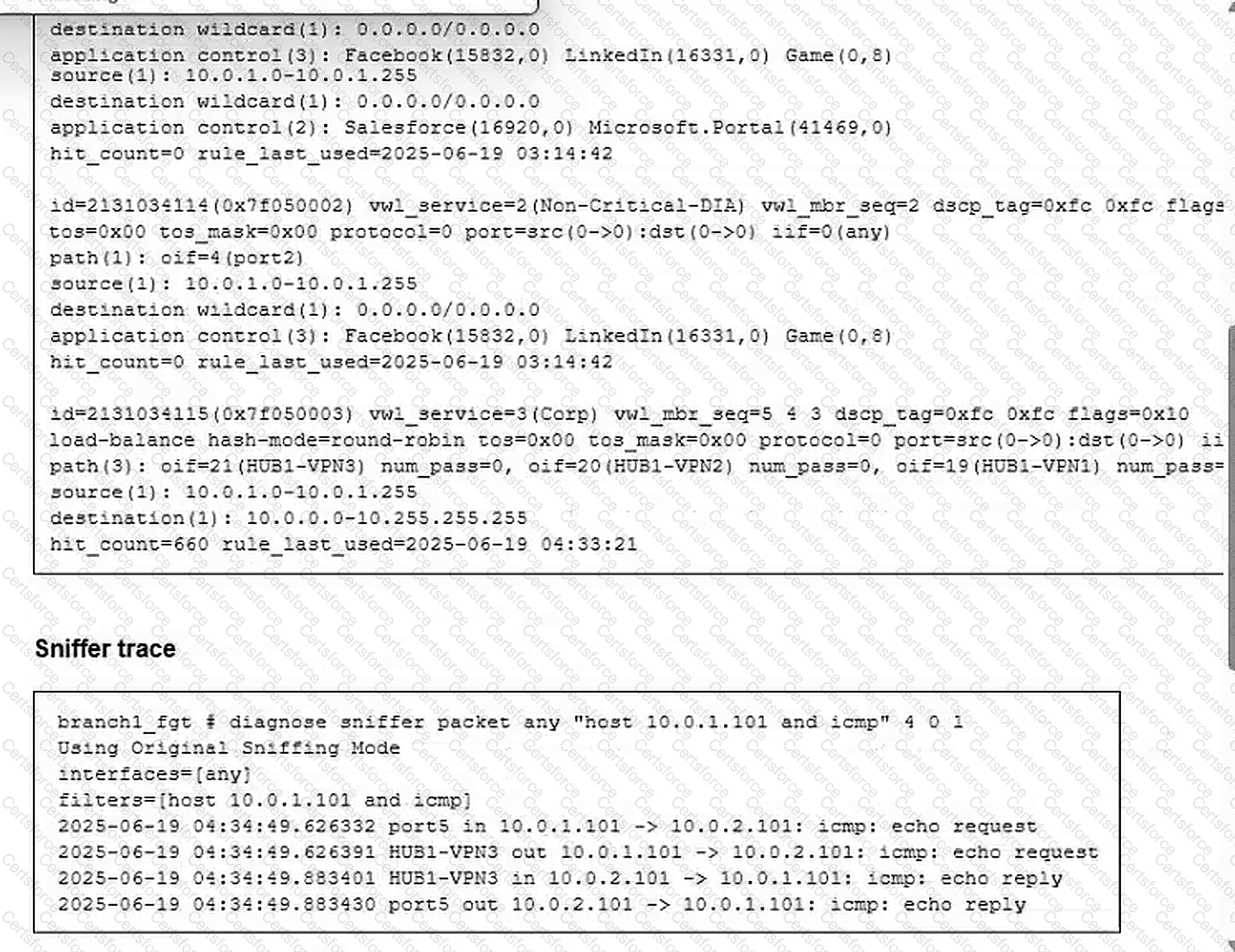

The route-list output confirms that the corporate service rule has three available paths. Provided the members remain healthy, meet the applicable SLA requirements, and have valid destination reachability, FortiGate can distribute qualifying sessions among these interfaces.

Option B incorrectly assumes that the interface observed in the packet-sniffer output must carry every subsequent session. The displayed ICMP traffic uses HUB1-VPN3, but this observation does not establish exclusive forwarding for HTTP sessions.

Options A and C identify physical WAN interfaces rather than the eligible corporate VPN overlay members.

FortiGate applies the configured load-balancing algorithm when selecting an eligible member for a new session. The original question establishes that all SD-WAN links are stable, supporting the use of the available overlay paths.

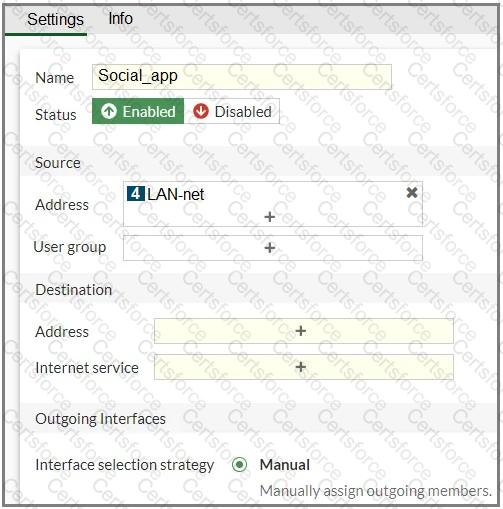

In an SD-WAN rule, you can steer application traffic by using Internet Service Database (ISDB) entries. Facebook and LinkedIn are predefined ISDB objects in FortiGate, so the correct way is to select them in the Internet service field under Destination. This ensures that all traffic to these applications is matched and routed through the chosen (less costly) link. An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow. When troubleshooting, correlate the configured SD-WAN service with diagnose sys sdwan service4, the live session entry and the routing table. An application signature, an IP route and a health-check result describe different decision stages; treating them as interchangeable can produce incorrect conclusions about the egress interface.

Fortinet ' s unified SASE architecture supports multiple methods of securing private application access, including identity-based Zero Trust Network Access and connectivity through Secure SD-WAN.

Option B is correct because ZTNA provides an application-centric alternative to traditional remote-access VPN architectures. Instead of providing broad network connectivity, ZTNA authenticates users, evaluates device security posture, and grants access only to explicitly authorized applications.

Fortinet ZTNA integrates identity verification, endpoint posture assessment, and application-specific security policies to reduce implicit trust.

Option C is correct because Secure SD-WAN enables encrypted and centrally managed connectivity between enterprise locations, cloud environments, and private resources. When integrated with FortiSASE, existing SD-WAN hubs can provide secure private application access through cloud security points of presence.

Option A is incorrect in this scenario because SD-WAN Branch On-ramp is primarily an ingress method for connecting branch networks to FortiSASE. Although it can participate in a broader private-access architecture, it is not the general VPN-replacement technology being tested.

Option D is incorrect because SWG and CASB primarily address internet and SaaS application security rather than providing the private network connectivity and application-specific access control required here.

ZTNA delivers granular access enforcement, while Secure SD-WAN supplies resilient and secure enterprise connectivity.

FortiSASE Secure Private Access enables remote users and branch networks to connect securely to applications hosted behind on-premises FortiGate devices or within enterprise private networks.

Option D is correct because Fortinet ' s documented SPA deployment workflow supports configuring up to 12 SPA service connections.

Each service connection represents a configured FortiGate SPA hub that establishes IPsec connectivity with FortiSASE security points of presence. These connections enable the exchange of routing information between FortiSASE and corporate networks through supported BGP routing designs.

The 12-connection limit provides capacity for connecting multiple enterprise locations, including branch networks, private data centers, and hybrid cloud environments.

Option A is incorrect because four connections do not represent the documented maximum. Option B is incorrect because 16 is not the stated limit for SPA service connections in the referenced FortiSASE configuration. Option C similarly understates the supported maximum.

A separate SPA Service Connection subscription is required for each applicable FortiGate hub. Licensing and operational limits should be considered independently: the number of available service connections does not automatically determine aggregate bandwidth, individual hub throughput, or the number of remote users.

The administrator configures these connections through FortiSASE Secure Private Access service-connection management after completing the required SPA network and BGP settings.

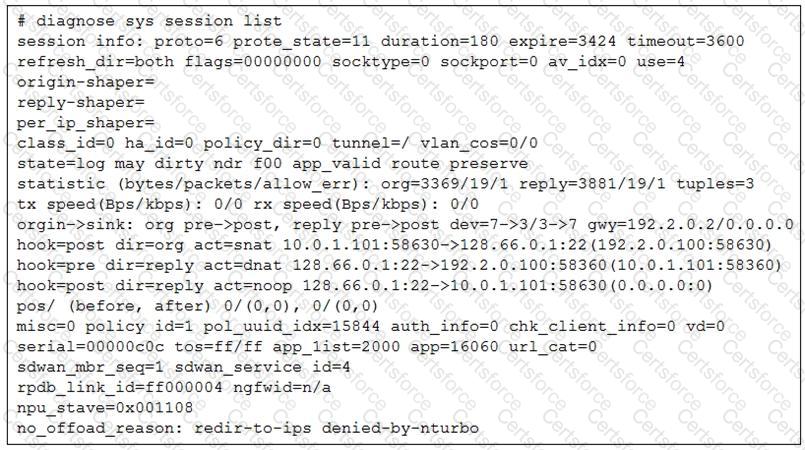

The line sdwan_mbr_seq=1 sdwan_service_id=4 indicates that this session is part of an SD-WAN rule. sdwan_service_id=4 confirms that the session is being handled by SD-WAN rule ID 4. This directly links the flow to the SD-WAN configuration. The line no_offload_reason: redir-to-ips denied-by-nturbo shows that the session is not offloaded to the NPU (Network Processing Unit) and is being processed by the main CPU. A session that is not offloaded can be re-evaluated. If the outgoing interface (the one currently being used) goes down, the FortiGate will re-evaluate the session against the SD-WAN rules to find a new active member to steer the traffic through. This is a fundamental behavior of SD-WAN, which ensures network resilience. An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow.

After using the SD-WAN overlay template, two mandatory post-run tasks remain: " First, administrators must create and assign policy packages to branch devices, as security and access policies are not included in overlay templates. Second, SD-WAN rules must be configured so that traffic can be matched and steered appropriately through the established overlays. Neglecting either task results in ungoverned traffic or inefficient routing, undermining the benefits of SD-WAN. " Templates automate topology, but policy and rule definition are critical for operational effectiveness.References: FortiManager templates reduce repetitive work but must resolve to valid, device-specific configurations at installation time. Device assignments, metadata mappings, ADOM scope, policy-package interfaces and provisioning order should be inspected together rather than troubleshooting any one object in isolation. A successful management connection does not guarantee a successful configuration installation. Review the installation preview and task log, then validate the resulting device configuration and operational diagnostics. This separates a deployment-time validation failure from a live tunnel, routing or SLA fault.
