Secure Access Service Edge combines enterprise network connectivity with cloud-delivered security services to provide consistent protection and optimized application access across distributed environments.

Option B is correct because Software-Defined WAN represents the networking component of SASE. It provides intelligent WAN connectivity, application-aware path selection, transport abstraction, and centralized traffic steering.

Security Service Edge, by contrast, focuses specifically on delivering security services from distributed cloud enforcement points. It does not inherently include the SD-WAN networking functions that form part of the broader SASE architecture.

Option A is incorrect because SWG is a core SSE capability that protects users against malicious websites, unwanted content, and web-based attacks.

Option C is incorrect because ZTNA is another fundamental SSE component. It implements explicit, identity-based access to authorized applications rather than granting unrestricted network connectivity.

Option D is incorrect because CASB provides visibility, governance, and security controls for cloud applications, making it part of SSE.

Fortinet implements the networking portion of unified SASE through FortiGate Secure SD-WAN and delivers SSE capabilities through FortiSASE.

Together, they provide secure internet access, secure private access, and secure SaaS access while maintaining consistent enterprise security policies across users and branch locations.

FortiGate first establishes destination reachability and then evaluates the eligible members of the matching SD-WAN service. The exhibit reports that traffic for the corporate network is reaching HUB1-VPN3 even though HUB1-VPN1 appears earlier in member preference. Option C is supported if HUB1-VPN1 has no valid route for the exact destination prefix. An SD-WAN service cannot force traffic through an overlay member that does not provide reachability. The candidate ' s second answer, D, is less precise: the exhibit presents SD-WAN member preference or priority values, whereas the wording says ' route priority ' . FortiOS distinguishes route priority in the FIB from the preference order defined in an SD-WAN service. A smaller numerical member preference can influence forwarding, but it should not be described as proof of a more-preferred static route. Option A reverses the ranking, and option B invents an overriding conventional policy route not established by the diagnostic output. As presented, C is secure but the complete C,D pair depends on interpreting D as member priority rather than routing-table priority. Validate the actual route entries, their administrative distance and priority, and ' diagnose sys sdwan service4 ' before treating D as conclusive.

Verification qualification: The choice concerning route priority is imprecisely worded; displayed member priority is not necessarily static-route priority.

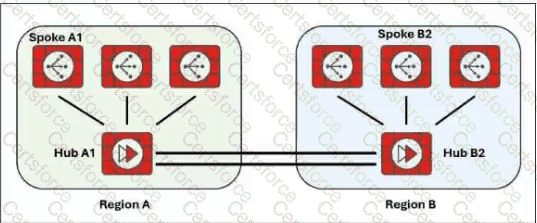

ADVPN enables dynamic spoke-to-spoke IPsec shortcuts that eliminate unnecessary transit through hub devices after the initial discovery and negotiation process. In this scenario, spokes A1 and B2 belong to separate hub-and-spoke groups, interconnected through redundant IPsec tunnels.

Option A is correct because spoke devices use auto-discovery-receiver on their hub-facing IPsec Phase 1 interfaces. This enables the spokes to receive ADVPN shortcut discovery information needed to establish a direct tunnel to another spoke. Fortinet ' s ADVPN configuration examples explicitly demonstrate this receiver role.

Option D is correct because the interconnected hubs must forward the relevant ADVPN discovery messages across their inter-hub IPsec tunnels. Enabling auto-discovery-forwarder allows discovery signaling to traverse the hub-to-hub connections so that spokes belonging to different regions can discover one another.

Option B reverses the standard spoke and hub discovery roles. The hub normally performs the sender role on its spoke-facing tunnels, whereas the spoke uses the receiver role.

Option C similarly assigns the receiver role to the wrong side of the hub-to-spoke relationship.

The essential distinction is between receiving shortcut discovery at the spokes and forwarding discovery information between the hubs.

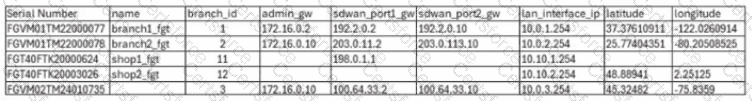

The CSV import process for FortiManager model devices requires the fields ' Serial Number ' , ' Device Blueprint ' , and ' Name ' . These are the mandatory identifiers used to create model devices and apply the appropriate initial provisioning configuration. In the exhibit, the missing device-blueprint field and an empty name for one device prevent a complete import. Options A and B are therefore the required corrections. Metadata values for addresses or user-defined variables may be included as additional columns, but they are not universally mandatory to import a model device. Consequently, options C and D impose requirements that depend on a subsequent provisioning template, not the CSV import itself. The selected blueprint must also be compatible with the target hardware platform. When deploying large numbers of devices, administrators should ensure serial numbers are unique, device names are valid and blueprint assignments resolve to templates and packages within the correct ADOM. The definitive FortiManager 7.6 import specification lists precisely those three required CSV columns; it does not impose a blanket requirement for every metadata variable to contain a value at import time.

FortiSASE Secure Private Access (SPA) integrates with FortiGate SD-WAN hubs through IPsec overlays and Border Gateway Protocol routing. This enables FortiSASE security points of presence to advertise endpoint networks and learn routes to corporate applications.

Option A is correct because FortiSASE supports two principal BGP routing designs: BGP per overlay and BGP on loopback. Both designs support appropriate iBGP and eBGP peering arrangements.

With BGP per overlay, routing adjacencies use addresses associated with individual IPsec tunnel interfaces. This approach establishes BGP sessions over each configured overlay.

With BGP on loopback, routing adjacencies terminate on logical loopback interfaces rather than individual tunnel interfaces. This separates BGP session establishment from the underlying IPsec transport and provides improved routing stability when overlay paths change.

iBGP is used when FortiSASE and the connected FortiGate hub belong to the same autonomous system. eBGP enables interconnection when different autonomous systems are involved.

Option B incorrectly excludes BGP on loopback. Option C incorrectly excludes eBGP.

Option D incorrectly presents Dynamic BGP as an independently selectable FortiSASE SPA routing design. Although Dynamic BGP is supported in FortiOS SD-WAN architectures, the FortiSASE SPA configuration identifies BGP per overlay and BGP on loopback as its two routing-design choices.

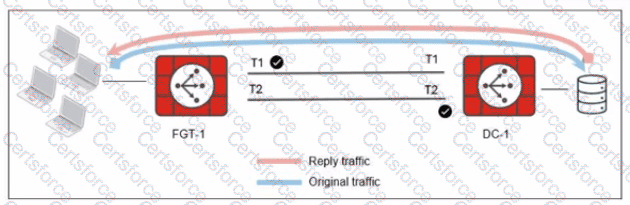

When asymmetric routing is observed (such as reply traffic not following the optimal path), the solution is: " The auxiliary-session feature, enabled under config system settings, allows FortiGate to consider multiple egress interfaces for reply traffic, not just the original ingress interface. This is crucial for SD-WAN environments where the best path may differ between forward and return directions, especially when performance or policy rules are dynamically evaluated. " Activating this ensures reply traffic is always sent on the member with the best real-time metrics.References: An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow. When troubleshooting, correlate the configured SD-WAN service with diagnose sys sdwan service4, the live session entry and the routing table. An application signature, an IP route and a health-check result describe different decision stages; treating them as interchangeable can produce incorrect conclusions about the egress interface.

According to the Fortinet SD-WAN 7.6 Core Administrator Study Guide, Routing and Sessions, page 193, FortiOS supports static routes referencing SD-WAN zones and individual member interfaces. However, duplicate destination routes cannot simultaneously reference a zone and one of its individual member interfaces.

Option A is correct: FortiOS requires the two static routes to have different destination prefixes. When a static route references an SD-WAN zone, FortiGate creates forwarding entries for the members belonging to that zone. Configuring an additional route with the identical destination prefix through an individual member creates a conflicting route definition.

Overlapping destination networks are permitted when their prefixes differ. For example, a zone-based route could reference 10.0.0.0/8, while a member-specific route references 10.2.0.0/16.

Option B is incorrect: Equal administrative distance does not resolve the duplicate-route restriction. ECMP is not a substitute for valid route configuration.

Option C is incorrect: FortiOS supports default static routes (0.0.0.0/0) referencing SD-WAN zones.

Option D is incorrect: SD-WAN members can include physical interfaces, VLAN interfaces, IPsec tunnels, and other supported interface types.

Therefore, the two static routes must have different destination prefixes, although overlapping networks are allowed.

Exact Source References:

Fortinet SD-WAN 7.6 Core Administrator Study Guide, pages 192–193 — Routing and Sessions.

FortiOS 7.6 Administration Guide — Adding a Static Route and SD-WAN Members and Zones.

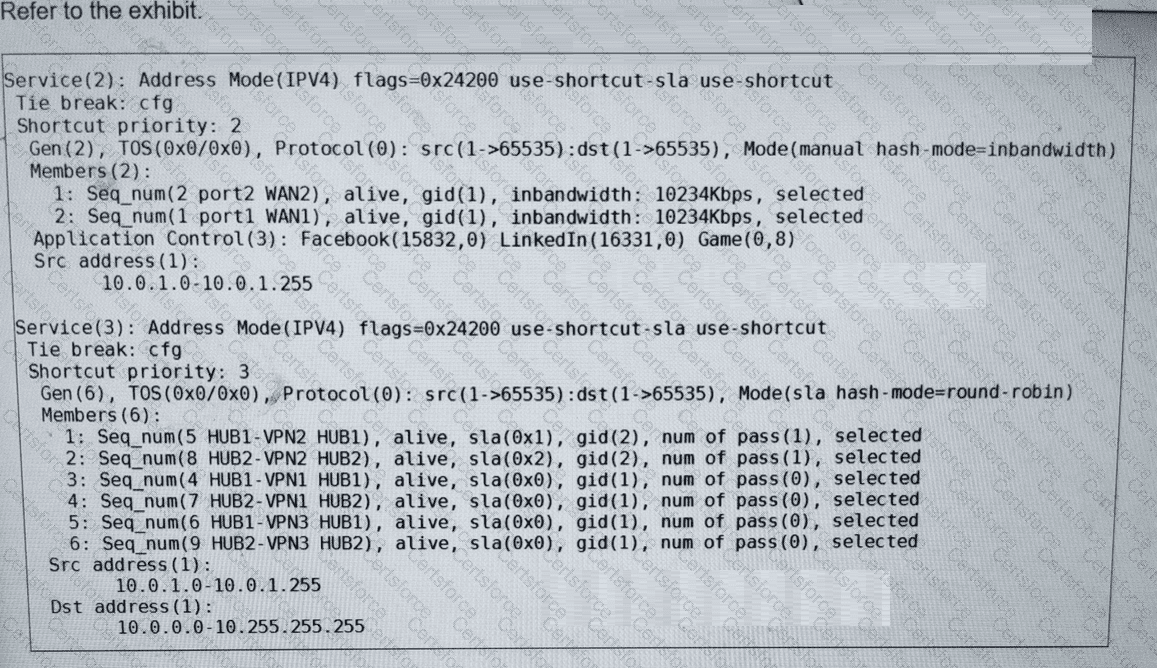

The exhibit shows the runtime details of two SD-WAN services (rules): Service(2) Service(3) Traffic from 10.0.1.124 to 10.0.0.254 matches Service(3) because the destination IP 10.0.0.254 falls within the destination range 10.0.0.0– 10.255.255.255. Within Service(3), the member list shows SLA results per interface: This indicates that, for Service(3), only HUB1-VPN2 and HUB2-VPN2 are currently meeting the SLA requirements (passing), and because the rule uses hash-mode=round-robin, FortiGate load-balances sessions across the passing members. Therefore, FortiGate will steer the traffic using HUB1-VPN2 or HUB2-VPN2, which corresponds to Option B. An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow. When troubleshooting, correlate the configured SD-WAN service with diagnose sys sdwan service4, the live session entry and the routing table. An application signature, an IP route and a health-check result describe different decision stages; treating them as interchangeable can produce incorrect conclusions about the egress interface.

Verification qualification: SLA eligibility and routing-table reachability need confirmation; the two-member outcome depends on those conditions.

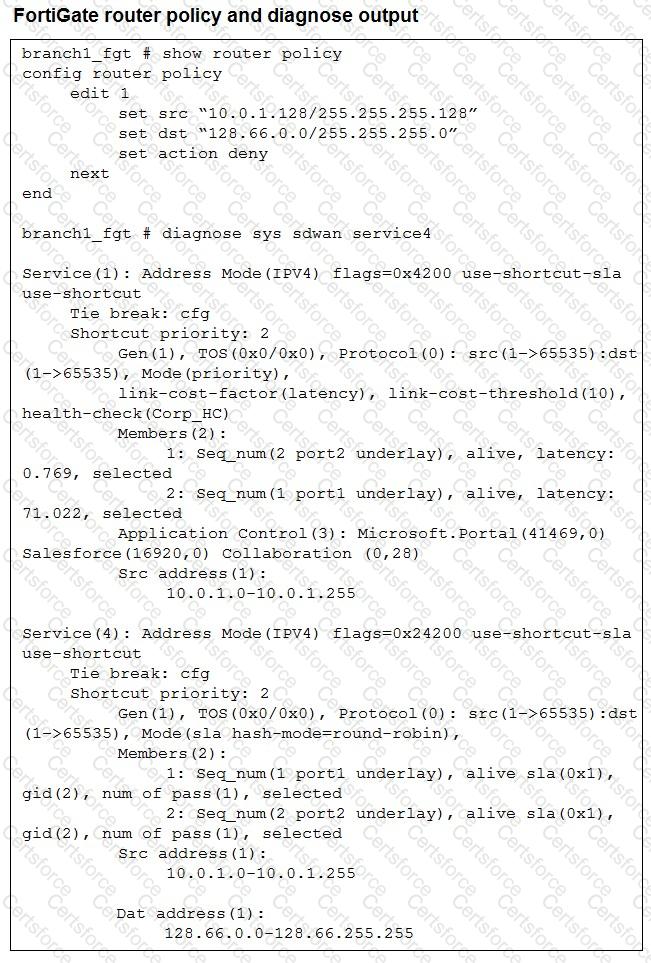

The matching router policy uses set action deny, which is not equivalent to a firewall security-policy deny. Within config router policy, the deny action stops policy-route processing and returns the packet to normal forwarding-information-base route evaluation. Both source 10.0.1.130 and destination 128.66.0.125 match the configured policy-route ranges. FortiGate therefore uses the FIB to select forwarding, subject to a valid route and an accepting firewall policy. The candidate answer key incorrectly claims SD-WAN load balancing, and its explanation incorrectly claims the traffic is dropped. Both contradict FortiOS policy-route semantics. Reference: FortiOS 7.6 CLI Reference — config router policy, action deny; Fortinet Technical Tip — Stop Policy Route. An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow.

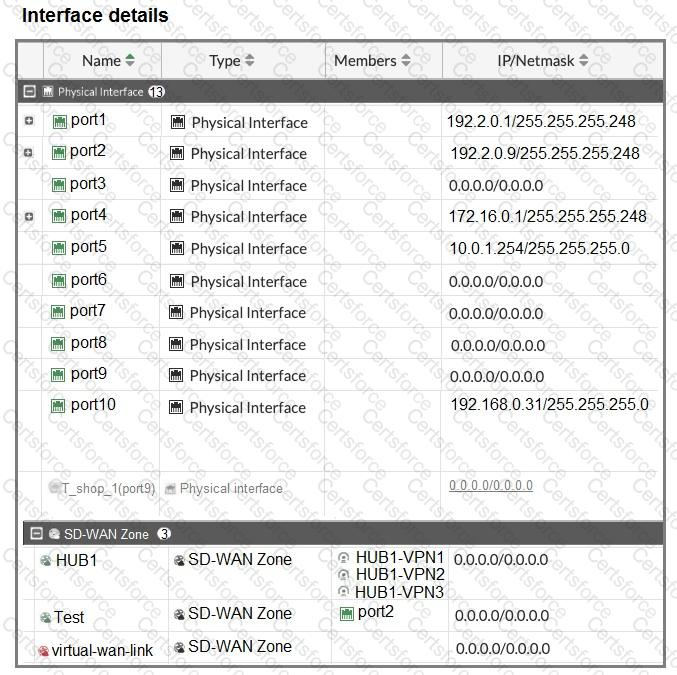

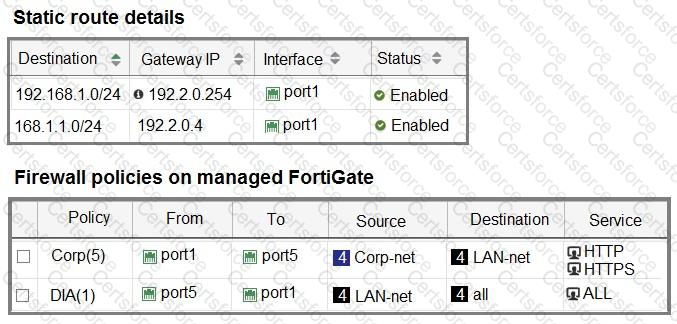

The question asks what must be done first before two existing physical interfaces can be moved into an SD-WAN zone. The exhibit shows firewall policies referencing port1 directly, and FortiOS does not permit firewall policies to continue referring to interfaces after those interfaces become SD-WAN members. Option D is therefore a reasonable practical first action: remove or modify the direct-interface firewall-policy references. However, the screenshot also shows static routes referencing the same interface. Those route references can likewise require adjustment. FortiOS does not establish a universal ordering that says firewall policies must always be modified before static routes; both changes may be required to complete the migration. Thus the single-answer design is ambiguous even though D is the preferred remediation in the previous review. The administrator should perform an interface-reference audit, move firewall policies to the intended SD-WAN zone, recreate appropriate zone-based static routes, and then configure the SD-WAN members. The default virtual-wan-link zone and other user-defined zones need not be deleted merely because an interface changes membership. The FortiOS 7.6 Members and Zones documentation establishes the relevant referencing restriction.

Verification qualification: Both firewall policy references and static-route dependencies may need changes; the mandated first action is ambiguous.
