 ACL Number Ranges

Basic ACLs: Numbered from 2000 to 2999.

Advanced ACLs: Numbered from 3000 to 3999.

Layer 2 ACLs: Numbered from 5000 to 5999.

User-defined ACLs: Numbered from 4000 to 4999.

 HCIP-Datacom-Core Reference

ACL classifications and their number ranges are covered in the ACL principles and configuration chapters​​.

 Edge Port Behavior

An edge port transitions directly to the Forwarding state but reverts to participating in RSTP calculations if it receives a valid configuration BPDU. Thus, statement C is false.

 HCIP-Datacom-Core Reference

The behavior of edge ports and their transitions are discussed in the RSTP enhancement sections​​.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is VRF (Virtual Routing and Forwarding)?

VRF is a network virtualization technology that enables multiple isolated routing tables to coexist on a single physical device.

Each VRF instance is independent, which ensures separation between different VPNs or users.

2. Resources That VRF Can Independently Own:

Option A: Interface

Correct.

Each VRF instance can have its own set of interfaces. These interfaces are bound to a specific VRF, isolating traffic at the physical or logical port level.

Option B: Routing table

Correct.

VRF instances maintain independent routing tables. This ensures that routes for one VPN do not overlap or interfere with routes of another VPN.

Option C: MAC address table

Incorrect.

The MAC address table is part of Layer 2 operations and is shared by all VRF instances on the device. VRF operates at Layer 3 and does not isolate MAC address tables.

Option D: Routing protocol process

Correct.

Each VRF instance can run its own routing protocol processes (e.g., OSPF, BGP), and these processes are completely independent of other VRF instances.

3. Summary:

The correct resources that can be independently owned by a VRF instance areInterface,Routing Table, andRouting Protocol Process.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

To establish an OSPF neighbor relationship, the following conditions must be met:

The routers must share a common network segment.

Their Hello and Dead intervals must match.

Their OSPF network types must be compatible.

The IP subnet masks must match.

If two OSPF routers are ondifferent network segmentsand havedifferent subnet masks, one solution is to change the OSPFnetwork typetoPoint-to-Point (P2P)on both interfaces.

Point-to-Point (P2P):

In a P2P network type, OSPF ignores the subnet mask mismatch and establishes the neighbor relationship regardless of the network mask.

This is ideal for directly connected links between two routers.

NBMA (Non-Broadcast Multi-Access):

This network type is used for networks like Frame Relay or ATM, where a single physical interface connects to multiple neighbors.

It is not applicable to solving subnet mask mismatches for a single link.

P2MP (Point-to-Multipoint):

This type treats the link as multiple P2P links. It is mainly used in hub-and-spoke topologies.

While it can be configured to solve subnet mask mismatches, it is more complex and less commonly used compared to the P2P type.

Broadcast:

This type requires all routers on the same segment to agree on subnet masks, so it cannot resolve the subnet mask mismatch issue.

Therefore, the correct answer isA. Point-to-point.

Comprehensive and Detailed Step-by-Step Explanation:

Portal Authentication:

Portal authentication uses a web-based mechanism where clients are redirected to a login page.

Communication between the access device and Portal server uses HTTP or HTTPS protocols.

Correct Statements:

Option A:HTTP or HTTPS is used for Portal authentication.

Option D:Portal protocol packets are transmitted overTCPfor reliable communication.

Incorrect Statements:

Option B:Port 2000 is not the default for processing Portal packets.

Option C:The default destination port for communication with the Portal server is not 50100.

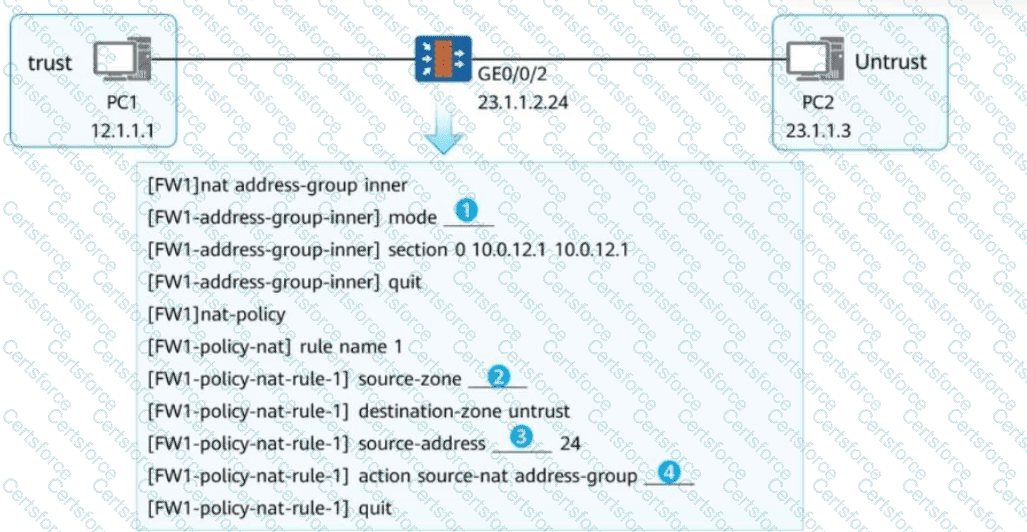

 pat

 trust

 12.1.1.0

 inner

Comprehensive and Detailed Step-by-Step Explanation:

Definition of the Origin Attribute:

The Origin attribute is a well-known mandatory attribute used to indicate the source of a route. It has three possible values:

i (IGP):The route was injected into BGP using the network command.

e (EGP):The route was learned from an EGP protocol (not commonly used now).

? (Incomplete):The route was redistributed into BGP from another routing protocol.

Analysis of Each Option:

Option A:Correct. When the network command is used, the Origin is set toi (IGP).

Option B:Incorrect. Routes learned from EGP have the Origin attribute set toe (EGP), not? (Incomplete).

Option C:Correct. BGP prefers routes with the Origin attribute in the order:IGP > EGP > Incomplete.

Option D:Correct. The Origin attribute is a well-known mandatory attribute.

Comprehensive and Detailed In-Depth Explanation:

BGP does not support automatic summarization for IPv6 networks.

InIPv4, BGP could performautomatic summarizationatclassful boundaries, but this feature isnot supported for IPv6.

Manual summarizationcan be configured usingaggregate IPv6 addresses(e.g., using the aggregate-address command).

Since the statement incorrectly claims thatBGP supports automatic summarization for IPv6, it isfalse.

????Reference:Huawei HCIA-Datacom Study Guide, BGP Route Summarization for IPv4 and IPv6.

Goal Analysis:

Requirement:

The route to192.168.3.0/24must exist in R1's and R3's routing tables.

The route mustnot exist in R2's routing table.

This requires filtering to ensure the route is either:

Blocked on R2's routing table (via filtering on R2), or

Blocked before it is advertised to R2.

Analysis of Each Option:

Option A (Filter-policy on R2 for filtering received routes):

Applying a filter-policy on R2 to filter received routes will block the route from entering R2's routing table but still allow it to propagate to R3.

This meets the requirement.

Option B (Filter-policy on R2 for filtering the routes to be advertised):

Blocking the advertisement of routes from R2 to other routers does not affect the routes received by R2 itself.

This does not meet the requirement but does not affect the propagation to R3.

This is valid if the received route is blocked.

Option C (Filter-policy on R1 for filtering the routes to be imported):

If the route is filtered on R1 during the import phase, the route will not exist in R1’s routing table and thus cannot be advertised to either R2 or R3.

This fails to meet the requirement because the route must exist in R1's and R3's routing tables.

Option D (Filter-policy on R1 for filtering the imported routes to be advertised):

Filtering routes on R1 before advertising to R2 will prevent R2 from receiving the route but allow R1 to advertise the route to R3.

This meets the requirement.

Correct Option:

C (Filter-policy on R1 for filtering the routes to be imported):This will prevent the route from existing in both R1 and R3, violating the stated requirement.

The command output confirms that the VLANs with IDs 2 and 4 are part of the VLAN pool named "STA." The VLAN pool concept is used to allocate VLANs dynamically to devices or subnets, which reduces broadcast domain size and improves network efficiency. The total number of VLAN pools is unrelated to this output, and the assignment algorithm (hash or even) is not explicitly mentioned in the output. Huawei VLAN pool management references align with this analysis ​.
