Pass the Huawei HCIP-Datacom H12-821_V1.0 Questions and answers with CertsForce

A is true– MAC authentication often usesPAP or CHAPfor basic password exchange.

B is false– Bydefault, both theusername and password are set to the full MAC addressof the terminal, not just the last 6 digits.

C is true– MAC authentication istransparentto the user and requiresno client softwareon the terminal.

D is true– The authentication system includes:

Terminal(user device),

Access device(AP or switch), and

Authentication server(e.g., RADIUS).

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“MAC authentication does not require client-side software. By default, both the user name and password are the complete MAC address in lowercase without delimiters.”

(Chapter: WLAN Security – Section: MAC Authentication Mechanism)

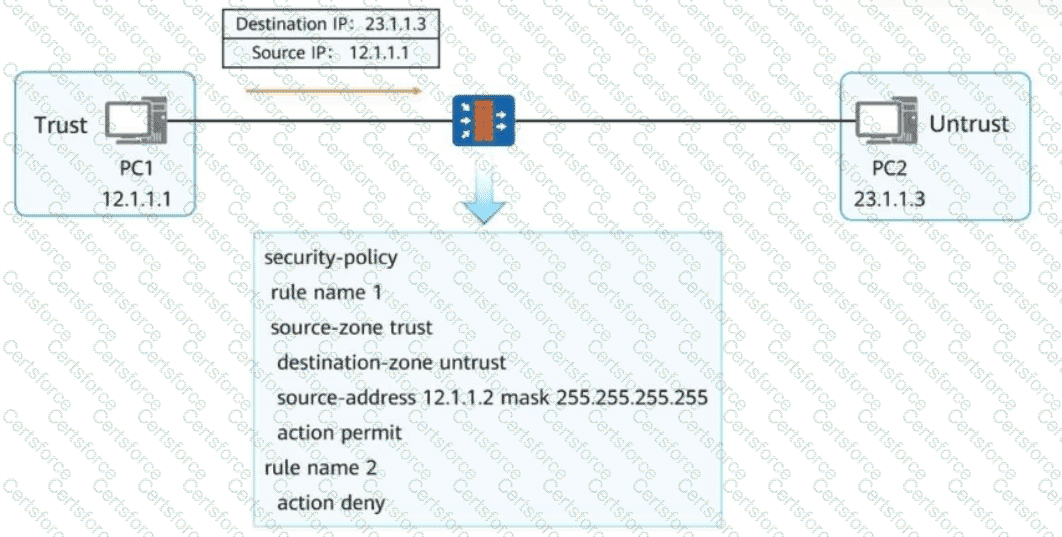

The security policy specifies that traffic originating from12.1.1.2and destined for the untrust zone is permitted. Since the source address of the packet (12.1.1.1) does not match this rule, thepacket matches the default implicit deny rule. However, rule 1 does not deny all other traffic explicitly, so the packet is forwarded based on further configurations ​.

After Layer 3 roaming, the STA’s traffic is forwarded from the Foreign AP (FAP) to the Foreign AC (FAC), and then to the Home AC (HAC) before reaching the upper-layer network. This ensures that the STA remains on the same subnet without breaking existing sessions ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is the BFD Echo Function?

BFD (Bidirectional Forwarding Detection) is used to detect link failures.

TheEcho functionis an optional feature that tests link connectivity by looping back packets sent from the local device through the forwarding path.

2. Analysis of Each Statement:

Option A: If URPF is enabled on the peer end, BFD packets may be incorrectly discarded on the peer end.

Correct.

URPF (Unicast Reverse Path Forwarding) checks whether the source IP address of an incoming packet is reachable via the interface it was received on. Since the Echo function uses loopback packets, this can conflict with URPF, causing the packets to be dropped.

Option B: In the BFD Echo function, the device uses the IP address of the outbound interface as the source IP address by default.

Correct.

By default, the outbound interface's IP address is used as the source address for BFD Echo packets.

Option C: The BFD Echo function applies only to single-hop BFD sessions.

Incorrect.

The BFD Echo function can be used for both single-hop and multi-hop BFD sessions.

Option D: When configuring a BFD session supporting the BFD Echo function, you need to configure both the local and remote discriminators.

Incorrect.

The BFD Echo function is locally configured and does not require setting remote discriminators. The function operates independently of the remote device's configuration.

3. Summary:

The correct statements areAandB.

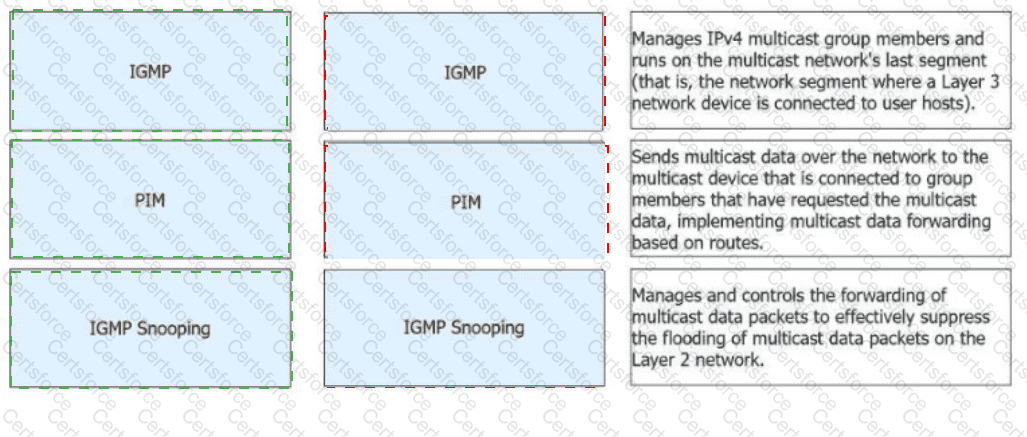

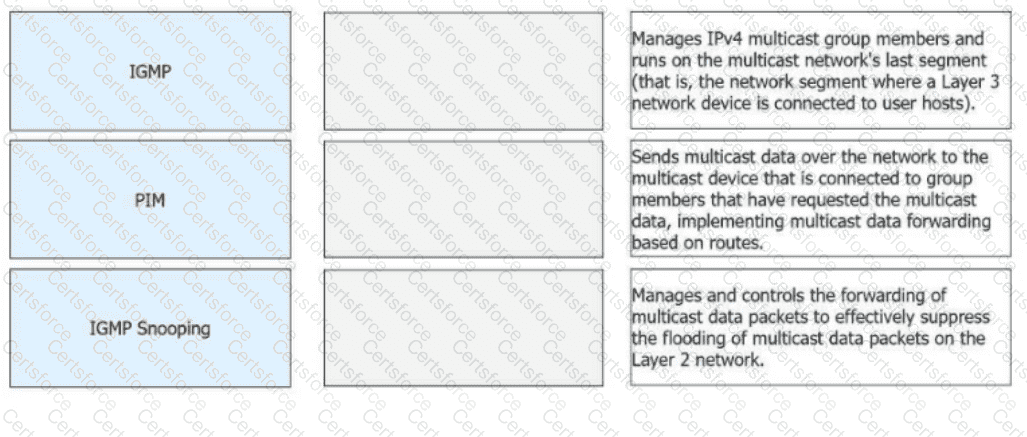

 IGMP:Manages IPv4 multicast group members and runs on the multicast network's last segment (that is, the network segment where a Layer 3 network device is connected to user hosts).

 PIM:Sends multicast data over the network to the multicast device that is connected to group members that have requested the multicast data, implementing multicast data forwarding based on routes.

 IGMP Snooping:Manages and controls the forwarding of multicast data packets to effectively suppress the flooding of multicast data packets on the Layer 2 network.

 IGMP (Internet Group Management Protocol):

IGMP is used by hosts and adjacent multicast routers to establish and maintain multicast group memberships on a local subnet.

It allows a host to inform a multicast router of its desire to receive multicast traffic for a specific group.

It operates at Layer 3 and runs on the last segment of the network.

HCIP-Datacom-Core Technology Training Material (Multicast Fundamentals)​.

 PIM (Protocol Independent Multicast):

PIM is a routing protocol designed for efficient routing of IP multicast traffic. It determines the paths over which multicast packets should be forwarded.

PIM is "protocol-independent" because it uses the underlying unicast routing table for RPF (Reverse Path Forwarding) checks.

It is responsible for distributing multicast data throughout the network.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

In an Intermediate System to Intermediate System (IS-IS) network, aDesignated Intermediate System (DIS)is elected on broadcast networks to perform the following functions:

Represent the broadcast network as a pseudonode.

Generate and update the Link State Protocol Data Units (LSPs) for the pseudonode.

The DIS is elected based on theDIS priorityvalue, which is configured on IS-IS interfaces. If two routers have the same priority, the router with the higher MAC address becomes the DIS.

Thedefault DIS priorityfor IS-IS interfaces is64, which can be modified depending on the network requirements.

Option A (200):Incorrect. This is not the default value.

Option B (64):Correct. This is the default DIS priority value.

Option C (1):Incorrect. This is not the default value.

Option D (100):Incorrect. This is not the default value.

OSPF process IDs are locally significant and do not need to match between routers to form neighbor relationships. The other statements correctly describe the behavior of OSPF multi-instances, making Option C false ​.

SSL VPN and Its Functionality:

SSL VPN (Secure Sockets Layer Virtual Private Network) provides secure remote access to a network using SSL/TLS protocols.

SSL VPN operates at theApplication Layerof the OSI model. It enables secure communication for applications like web browsers, email clients, and file sharing.

Unlike IPsec VPN, which operates at the Network Layer, SSL VPN focuses on application-specific encryption and authentication.

HCIP-Security Training Material (VPN Basics and SSL VPN Configuration)​​.

BGP does not advertise all routes learned from peers to other peers. By default, only the best (optimal) routes selected by BGP are advertised to other peers. Additionally, routes learned from IBGP peers are not forwarded to other IBGP peers unless a route reflector or confederation setup is used. The statement claiming all learned routes are advertised is false ​.

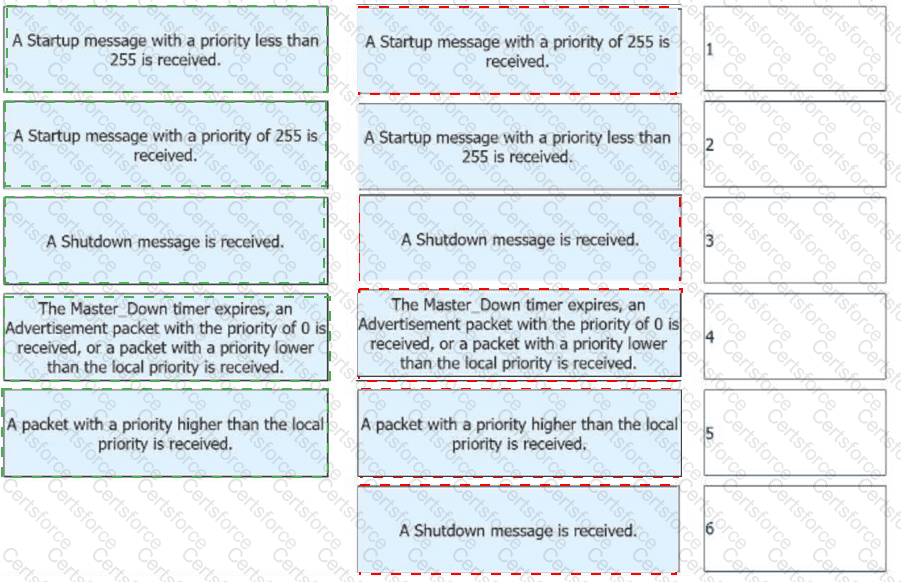

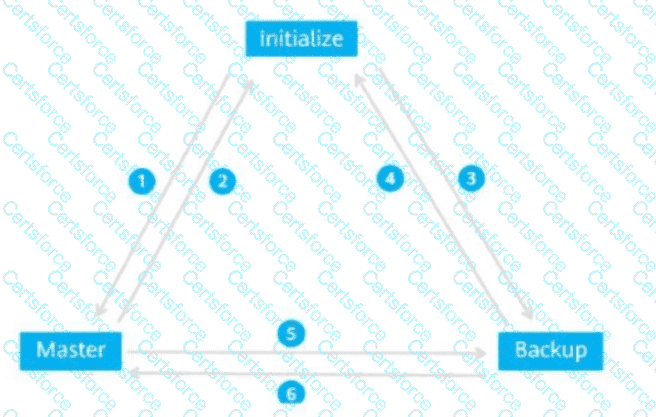

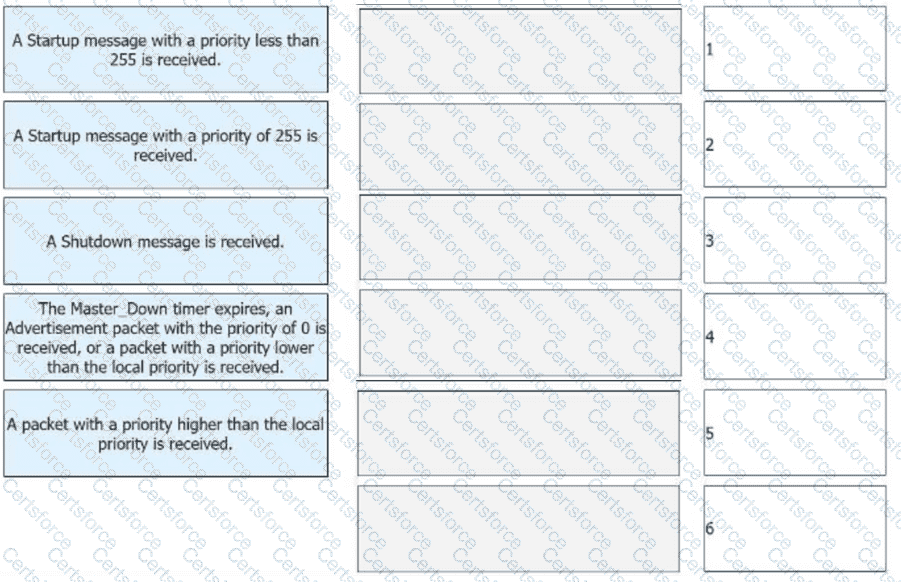

1 → A Startup message with a priority of 255 is received.

2 → A Startup message with a priority less than 255 is received.

3 → A Shutdown message is received.

4 → The Master_Down timer expires, an Advertisement packet with the priority of 0 is received, or a packet with a priority lower than the local priority is received.

5 → A packet with a priority higher than the local priority is received.

6 → A Shutdown message is received.

????Reference:Huawei HCIA-Datacom Study Guide, VRRP Status Transitions.
