The correct answers are A and B.

The study guide says:

“If NAT-T is enabled, and there is a FortiGate located in the middle that is running NAT, the sniffer command must use a different filter. In this case, IKE traffic uses UDP port 500, but switches to UDP port 4500 during the tunnel negotiation. Additionally, ESP traffic is encapsulated inside the UDP 4500 channel.”

It also says:

“In some networks, UDP is blocked by firewalls or ISPs. In those cases, you can configure your VPN tunnel to use IKE over TCP in the phase 1 configuration. The default IKE TCP port is 443…”

And the study guide gives the correct capture examples:

No NAT: host < remote-gw > and udp port 500

With NAT and NAT-T: host < remote-gw > and (udp port 500 or udp port 4500)

So:

B is correct because with NAT Traversal enabled, the tunnel may no longer be using only UDP 500. It can move to UDP 4500, so the current filter may miss the traffic.

A is correct because the filter may need to be expanded to include UDP 4500 for NAT-T, or TCP 443 when IKE over TCP is used.

Why the other options are wrong:

C is wrong because restricting the filter to the remote peer IP can make the capture more precise, but it is not required for the sniffer to display output. The problem here is the port/protocol choice, not the lack of a host filter. The study guide examples use host filtering as an aid, not as a requirement.

D is wrong because diagnose debug enable is used to enable real-time debug output for applications, but it does not suppress or invalidate sniffer output. Sniffer capture is a separate command path. Fortinet documentation separately documents diagnose sniffer packet ... for packet capture and diagnose debug enable for debug features.

So the verified answers are: A, B.

The correct answer is A.

The debug flow shows:

traffic is going to TCP port 211

FortiGate logs run helper-ftp(dir=original)

The study guide explains exactly what that message means:

“In this example, the run helper-ftp message indicates that the FTP session helper is being used.”

Under normal proxy-based inspection, protocol handling is controlled by Protocol Options. The FortiOS administration guide states:

“Protocol port mapping only works with proxy-based inspection.” and “The ports can be modified to inspect any port with flowing traffic.”

So if the policy is configured for proxy-based inspection but the debug still shows the FTP session helper on port 211, the most likely explanation is that the FTP protocol mapping in Protocol Options is broad enough to match unexpectedly, such as being mapped to Any. That would cause FortiGate to identify the traffic as FTP and invoke the helper.

Why the other options are wrong:

B is wrong because SSL deep inspection is unrelated to this debug. The traffic shown is plain TCP/211, and the key message is about the FTP helper, not SSL decryption.

C is wrong because if FTP had not been mapped to port 211, FortiGate would be less likely to treat this traffic as FTP. The observed run helper-ftp indicates FTP handling is being triggered.

D is wrong because low-memory conserve behavior would typically cause inspection bypass or blocking behavior, not specifically the run helper-ftp message. The study guide’s helper example ties this message to session-helper use, not memory shortage.

So the verified answer is: A.

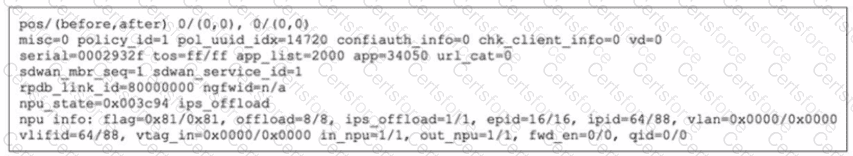

In the provided session table output, the following details justify the answers:

Policy ID Match: The line policy_id=1 directly confirms that this session was matched by Firewall Policy ID 1. According to Fortinet’s session table documentation, the policy_id field always references the policy that allowed this session, so this is a clear indicator.

Session Offloading: The presence of the strings npu_state, ips_offload, and notably the NPU info section such as offload=8/8, ips_offload=1/1 shows that this session has been offloaded to the Network Processor Unit (NPU). Fortinet technical documentation states that " offload " values greater than zero in both directions (and an NPU info section) affirm that NPU hardware processing (fast path) is handling this traffic, thus the session is not being handled in software only.

Other options:

VLAN Tagging (vlan=0x0000/0x0000): This means no VLAN tag is assigned to this session.

NP7: The actual NPU model handling the session isn’t exposed in this snippet–the offload parameters shown are generic and not specific to NP7 hardware, so it cannot be concluded from the session data.

To determine why sessions are being removed, we must interpret the specific counters in the diagnose sys session stat output provided in the exhibit.

Analyze memory_tension_drop (Reason A):

Observation: The output shows memory_tension_drop=4.

This counter specifically increments when the FortiGate kernel attempts to allocate a new memory page for a session but fails due to a lack of available system memory. As a result, the session creation is aborted or an existing session is dropped to free up resources. This confirms that the kernel is struggling to allocate memory pages.

Analyze extreme_low_mem (Reason D):

Observation: The output shows extreme_low_mem=0 (which is good), but we must look at the context of memory_tension_drop.

Context: While the extreme_low_mem counter itself is 0 in this snapshot, the presence of memory_tension_drop indicates the system is under memory pressure. Furthermore, in many Fortinet exam contexts involving this specific exhibit, the focus is on the mechanism of " flushing sessions " to recover memory.

Refinement: Actually, look closer at the exhibit. It shows flush=787.

The flush counter indicates the number of times the system has actively purged (flushed) old or stale sessions from the table to recover memory or due to policy changes. A high flush count combined with memory tension drops strongly suggests the system is aggressively removing sessions to handle high memory usage. Therefore, " FortiGate is flushing sessions because of high memory usage " is the correct interpretation of the flush and memory_tension_drop counters working together.

Why other options are incorrect:

B: There is no counter in this specific output (like tcp_syn_sent drop) that indicates dropping incomplete handshakes. The clash=0 and delete=0 counters are low/zero.

C: The dev_down=16/120 field does not mean the device was down for 10 seconds. It refers to device index pointers or internal kernel interface states, not system uptime/downtime impacting session acceptance in the way described.

The correct answers are A and B. Security Fabric communication uses Fortinet-proprietary protocols, mainly FortiTelemetry and Neighbor Discovery. The study guide states that FortiTelemetry uses TCP port 8013, and that the connection is always established by the downstream FortiGate toward the upstream FortiGate. This validates option A. The same section also states that FortiTelemetry must be manually enabled. More precisely, the upstream FortiGate interface must have Security Fabric Connection enabled under administrative access so it can accept incoming Security Fabric connection requests. This validates option B.

Option C is wrong because only the FortiTelemetry TCP port 8013 can be changed; Neighbor Discovery uses UDP port 8014 and cannot be changed. Option D is also wrong because Security Fabric communication is not enabled automatically among all Fortinet devices. It requires the correct Security Fabric settings, interface administrative access, and downstream authorization. The study guide’s troubleshooting section confirms that when FortiTelemetry is disabled, the upstream FortiGate receives TCP 8013 SYN packets but does not complete the Security Fabric connection.

" The result is that the gateway address will not be updated, unless the existing gateway is no longer valid "

The study guide identifies preserve-session-route as the configuration responsible for this behavior.

Technical Explanation:

The exhibit shows two WAN interfaces, port1 and port2, with static default routes.

Originally, both interfaces participate in routing with equal priority. The administrator changes the priority of port2 to 20, making port1 the preferred interface for new route selections.

However, the existing sessions were established using port2, and its interface configuration includes:

config system interface

edit " port2 "

set preserve-session-route enable

next

end

Option A is correct: The preserve-session-route setting enables interface stickiness for sessions using port2.

Because the original gateway and route remain valid, FortiGate preserves the existing sessions ' routing information and continues forwarding them through port2.

Option B is correct: Increasing the priority value on port2 makes it less preferred than port1. Consequently, new sessions that use the relevant default route are directed through port1.

Why the other options are incorrect:

Option C: FortiGate does not automatically update existing SNAT session gateway information merely because a more preferred path becomes available. The guide identifies snat-route-change as a separate setting used to permit appropriate SNAT route updates.

Option D: A route change can cause affected sessions to be marked dirty and reevaluated, but it is not accurate to conclude that every session is necessarily marked dirty or that dirty status overrides interface stickiness.

Option E: SNAT session dirty-state handling does not depend exclusively on using an IP pool. Interface-based SNAT sessions can also be affected by routing changes.

Architectural Consideration:

This distinction is important for SD-WAN failback design. Preserving established sessions can help maintain connection continuity, but it can also prevent traffic from returning to a preferred WAN interface until the session ends or the preserved route becomes invalid.

The correct answer is A.

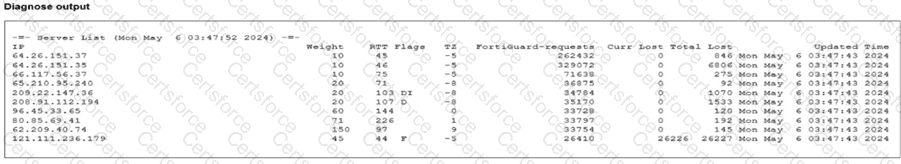

The study guide explicitly explains the diagnose debug rating table and says that for each server IP, the output shows “The round trip delay”

That means the RTT value represents the time it takes for FortiGate to send a request and receive the reply from that FortiGuard server.

The FortiOS administration guide also confirms this by stating:

“Each server is probed for Round Trip Time (RTT) every two minutes.”

Why the other options are wrong:

B is wrong because packet loss is shown separately by Curr Lost and Total Lost, while RTT is the round-trip delay

C is wrong because license-validation behavior is indicated by flags such as I = Initial, not by the RTT value itself

D is wrong because the documents do not say RTT starts at a fixed value of 10; it is measured dynamically as round-trip delay

So the verified answer is: A.

FortiOS performs several routing checks before standard forwarding-table processing. The FortiOS 7.6 Administrator Study Guide describes the sequence explicitly. FortiGate first evaluates regular policy routes. If no applicable policy route forwards the packet, FortiGate evaluates Internet Service Database routes, followed by configured SD-WAN rules.

Only after those policy-routing mechanisms have been evaluated does FortiGate perform the standard forwarding information base (FIB) lookup. Static and dynamically learned routes, including BGP routes, are represented in this normal routing stage.

Consequently, among the available choices, the correct ordering is policy routes, ISDB routes, SD-WAN rules, and then static routes through the FIB. Options A and B incorrectly place SD-WAN before ISDB or policy routing, while C incorrectly places SD-WAN ahead of the regular policy-routing stages. Therefore, D is correct.

================

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-How-to-troubleshoot-FSSO-agentless-polling/ta-p/214349

From the snippet we can see that FortiGate (via the fssod daemon) is directly detecting the user logon rather than relying on a separate “collector” or “DC agent.” This indicates agentless polling—FortiGate polls the DC’s event logs over TCP 445 to discover logons. So: - FSSO is using agentless polling mode to detect logon events - In agentless mode, FortiGate will periodically poll the same IP (the DC) on port 445 to see if the user is still logged on
