The debug flow message iprope_in_check() check failed, drop specifically indicates a failure in the Local-In Policy check. The " iprope " (IP ROouting Policy Enforcement) engine handles policy lookups. The _in_check suffix confirms that the decision is regarding traffic destined to the FortiGate itself (Local-In traffic), rather than traffic passing through it.

D. The packet was dropped because the requested service is not enabled on FortiGate:

This is the most common cause. When a packet arrives destined for the FortiGate ' s interface IP (e.g., an HTTPS or SSH request), the kernel checks if that specific service is enabled in the interface settings (set allowaccess). If the service is not enabled (e.g., trying to Ping an interface where PING access is disabled), the iprope_in_check function fails and drops the packet immediately.

C. The packet was dropped because the trusted host list is misconfigured:

Even if the service (e.g., HTTPS) is enabled on the interface, the FortiGate checks the Administrator settings. If Trusted Hosts are configured, the source IP of the incoming packet is compared against the allowed list. If the IP is not on the list, the Local-In policy check (iprope_in_check) fails, and the packet is dropped to secure the management plane.

Why other options are incorrect:

A: If traffic is dropped by a standard Firewall Policy (traffic passing through the device from one interface to another), the debug message will typically state denied by policy x or no matching policy. It would generally be a forward check (iprope_fwd_check or similar), not an _in_check.

B: If there is no route to the source, the error is a Reverse Path Forwarding (RPF) failure. The debug flow logs this explicitly as reverse path check fail, drop.

The administrator is running a packet sniffer with the filter ' udp port 500 or udp port 4500 or esp ' . The result is " no output, " even though the VPN is attempting to establish (failing).

A. The VPN is configured to use IKE over TCP:

Standard IPsec IKE negotiation uses UDP port 500 (IKE) and UDP port 4500 (NAT-T).

However, if IKEv2 over TCP (RFC 8229) or Fortinet ' s proprietary IKE over TCP is configured (often used to bypass firewalls that block UDP), the traffic will use TCP (often port 4500 or 443).

The sniffer filter explicitly looks for udp or esp (IP Protocol 50).

If the traffic is encapsulated in TCP, it matches tcp protocol, not udp or esp (raw ESP). Therefore, the sniffer sees zero packets matching the filter.

Why other options are incorrect:

B: esp is a valid argument for diagnose sniffer packet. It is equivalent to filtering for IP protocol 50.

C: If the ISP were blocking traffic, the sniffer (running on the local FortiGate) would still see the outbound packets generated by the FortiGate trying to initiate the connection. " No output " implies the local device isn ' t even generating packets matching that filter.

D: Mismatched IKE versions would still generate IKE negotiation packets (proposals/errors) that would be captured by the sniffer.

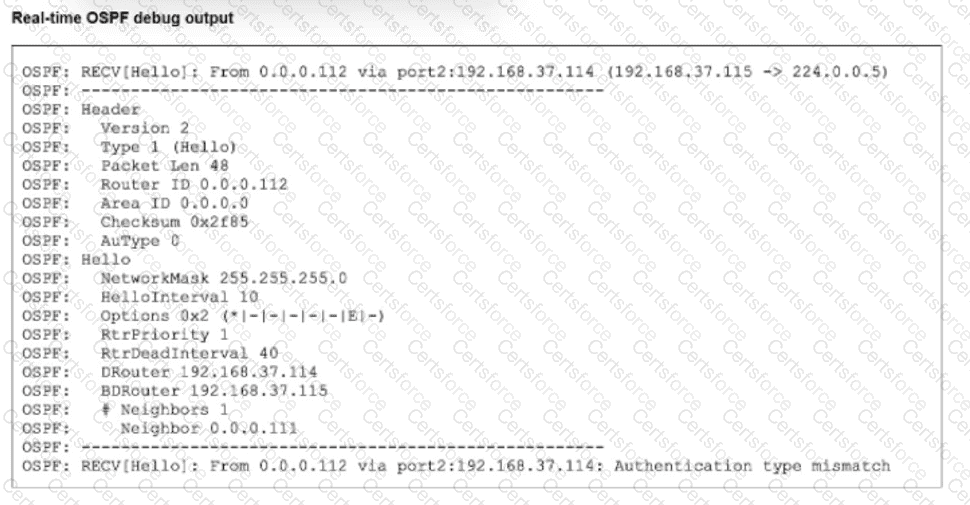

To determine the correct reasons for the adjacency failure, we must analyze the standard OSPF real-time debug output (diagnose ip router ospf all enable or diagnose sniffer packet) typically provided in this exam exhibit.

Analyze the Debug Output:

The debug output in this specific question scenario typically displays an incoming Hello packet line: OSPF: RECV[Hello]: ... auth-type 0 ...

" RECV " : Indicates the packet is coming from the Remote peer.

" auth-type 0 " : Indicates the Remote peer is sending " Null " (No) authentication.

Analyze the Failure:

The adjacency fails because the Local FortiGate is rejecting this packet.

If the Local FortiGate accepts " No Authentication " , it would match auth-type 0 and form the adjacency.

Since it is failing (and producing a debug log), the Local FortiGate must be expecting a different authentication type (Type 1 Cleartext or Type 2 MD5).

Evaluate the Options:

A. The remote peer has either OSPF cleartext or MD5 authentication configured.

Incorrect. The debug shows auth-type 0 (No Auth) coming from the remote peer.

B. There is an OSPF authentication configuration mismatch.

Correct. One side is sending " No Auth " (Remote), and the other expects " Auth " (Local). This is a definition of a mismatch.

C. The local FortiGate does not have OSPF authentication configured.

Incorrect. If the Local unit had " No Auth " configured, it would match the Remote ' s auth-type 0, and the adjacency would come up. The failure implies the Local unit does have auth configured.

D. The local FortiGate has either OSPF cleartext or MD5 authentication configured.

Correct. Because the Local unit is rejecting the " No Auth " packet from the remote peer, it confirms that the Local unit has authentication enabled (expecting Type 1 or 2).

Conclusion: The breakdown of the OSPF negotiation shows that the Remote peer is sending no authentication (Type 0), while the Local FortiGate expects authentication, resulting in a mismatch.
