The correct answers are A and C .

The study guide describes this exact asymmetric ICMP scenario. It states:

“The server sends an echo request to the PC through port2 of the local router, effectively bypassing FortiGate. When it receives the echo request, the PC responds with an echo reply through its default gateway, 10.1.0.2, which is port1 on FortiGate. Because there is no existing session, the echo reply is dropped. All subsequent echo replies are blocked.”

That means the current problem exists because:

the ICMP request bypasses FortiGate

the ICMP reply goes through FortiGate

FortiGate has no matching session , so it drops the reply

The study guide then shows the exact corrective option:

“Allowing asymmetric routing:”

config system settings

set asymroute enable

end

It further explains:

“After the packet passes through the FortiGate CPU, FortiGate forwards the packet using the FIB, even though there are no session matches. FortiGate forwards all subsequent echo replies using the FIB.”

So A is correct.

The other valid fix is to make the traffic symmetric by changing the laptop’s default gateway so the reply no longer goes through FortiGate. In the exhibit, the alternate gateway is 10.1.0.254 , which is the local router on the same subnet. If the laptop uses 10.1.0.254 instead of 10.1.0.2, the ICMP echo reply follows the same bypass path as the echo request, so the server receives it without involving FortiGate session validation. This makes C correct.

Why the other options are wrong:

B is wrong because this is not an RPF problem. The study guide explains RPF as a reverse path lookup used to validate whether a packet arrived on a legitimate interface, mainly for spoofing protection. The issue in this scenario is a missing session due to asymmetric routing , not a strict-versus-feasible RPF failure

D is wrong because FortiGate already has the specific route 10.4.0.0/24 through port3 in the routing table shown in the exhibit, so adding a default static route to port3 is unnecessary and not the reason the echo reply is being dropped

So the verified answers are: A, C .

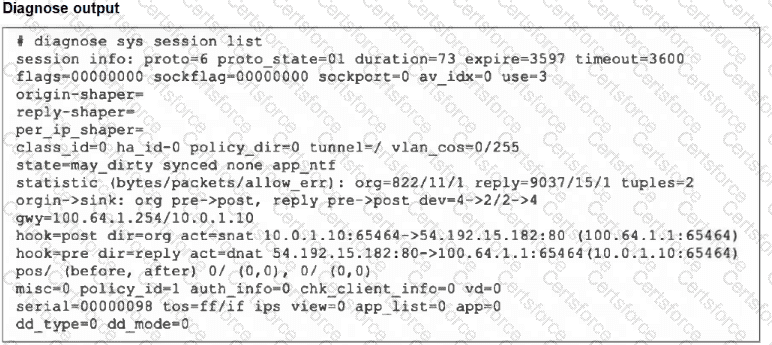

The decisive session-state flag is synced. Fortinet defines this flag as indicating that the session has been synchronized to the other HA members. The session was created on HA member 0, and a synchronized copy is available to the secondary device.

The FortiOS 7.6 Administrator Study Guide states: “When you enable session synchronization, the new primary can resume communication for sessions after a failover event.” It further explains that session pickup allows existing sessions to continue through the newly elected primary with minimal or no interruption. Therefore, the established TCP session remains usable, and the client does not need to establish a new connection.

The may_dirty flag does not mean that the session is currently dirty. It identifies an allowed session that can be marked dirty later if a firewall-policy, routing, or related configuration change requires re- evaluation. The output does not contain the separate dirty flag. Additionally, app_ntf represents block-notification handling; it does not prove that application control is inspecting the session. The fields app_list=0 and app=0 reinforce this.

The allow_err values are session statistics and do not cause session deletion. Although act=snat and act=dnat confirm NAT, the translation tuples are part of the synchronized session state and do not independently require re-evaluation after FGCP failover.

The correct answer is B .

The study guide explicitly states: “IKE version 2 does not interoperate with IKE version 1, but they share enough of the header format that both versions can unambiguously operate over the same UDP port.”

That directly proves B .

Why the other options are wrong:

A is wrong because the study guide shows authentication methods as Asymmetric for IKEv2 and Symmetric for IKEv1

C is wrong because the study guide does not say they use the same TCP port; instead, it specifically says they can operate over the same UDP port

D is wrong because the study guide states: “IKEv2 does not use the concept of phase 1 or phase 2” , even though FortiOS CLI/GUI still uses those terms for configuration purposes

The correct answers are C and D .

The study guide states: “SSL certificate inspection relies on extracting the FQDN of the URL from either: TLS extension server name indication (SNI), SSL certificate common name (CN).” It also says: “When using SSL certificate inspection, FortiGate is not decrypting the traffic. It is only inspecting the server digital certificates and the SNI field, which are interchanged before the encryption.”

This proves the second part of the answer:

under SSL certificate inspection , FortiGate does not decrypt the traffic

therefore, if the traffic is allowed , it still passes without decryption

That makes D correct.

For the SNI mismatch behavior, the FortiOS administration guide describes the default Server certificate SNI check behavior as:

“Enable: If it is mismatched use the CN in the server certificate for URL”

So if the SNI does not match the CN or any SAN, FortiGate falls back to using the CN from the Subject field for URL handling under the default setting. That makes C correct.

Why the other options are wrong:

A is wrong because with the default SNI-check behavior, when the SNI mismatches the certificate identity, FortiGate does not continue using the mismatched SNI . Instead, it uses the CN in the server certificate for the URL .

B is not the best answer in this single pair selection . While certificate inspection does not decrypt traffic, the key default behavior the documents explicitly highlight for this mismatch case is:

use the CN when SNI mismatches , and

certificate inspection does not decrypt allowed HTTPS traffic .

So the verified answers are: C, D .

The correct answer is D. The inbound IPsec SA was copied to the NPU.

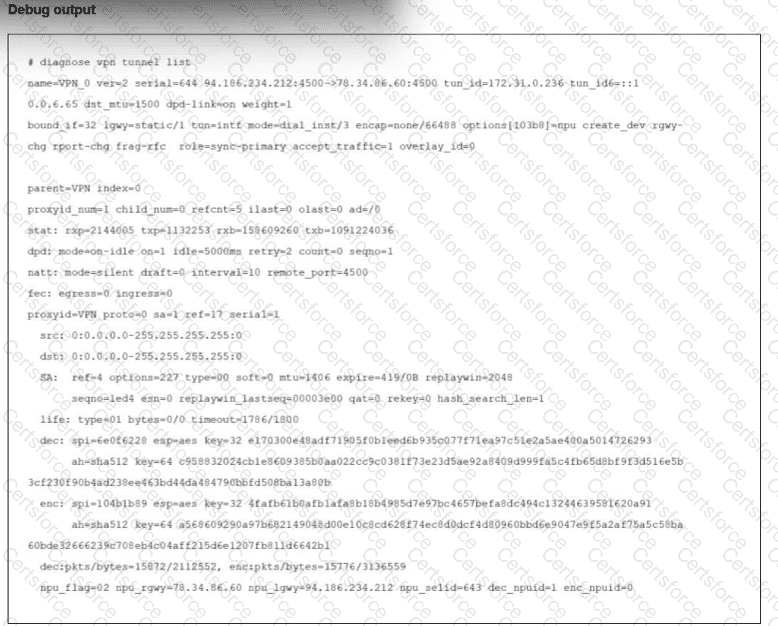

The exhibit shows:

npu_flag=02

dec_npuid=1

enc_npuid=0

The study guide gives the exact meaning of the npu_flag field:

npu_flag=00 = Both IPsec SAs loaded to the kernel

npu_flag=01 = Outbound IPsec SA copied to NPU

npu_flag=02 = Inbound IPsec SA copied to NPU

npu_flag=03 = Both outbound and inbound IPsec SAs copied to NPU

It also explains: “If the first IPsec packet is inbound and can be offloaded, the inbound SA is copied to the NPU and the npu_flag changes to 02. After both SAs are copied to the NPU, the npu_flag changes to 03.”

So with npu_flag=02, only the inbound SA has been copied to the NPU. That makes D correct.

Why the other options are wrong:

A is wrong because outbound-only offload would be npu_flag=01, not 02

C is wrong because both directions offloaded would be npu_flag=03, not 02

B is wrong because dec_npuid=1 identifies the NPU ID used for decryption, but it does not state that the processor is specifically NP6 . The study guide only maps the offload state through the npu_flag values in this context, not the NPU model from this field alone

So the verified answer is: D .

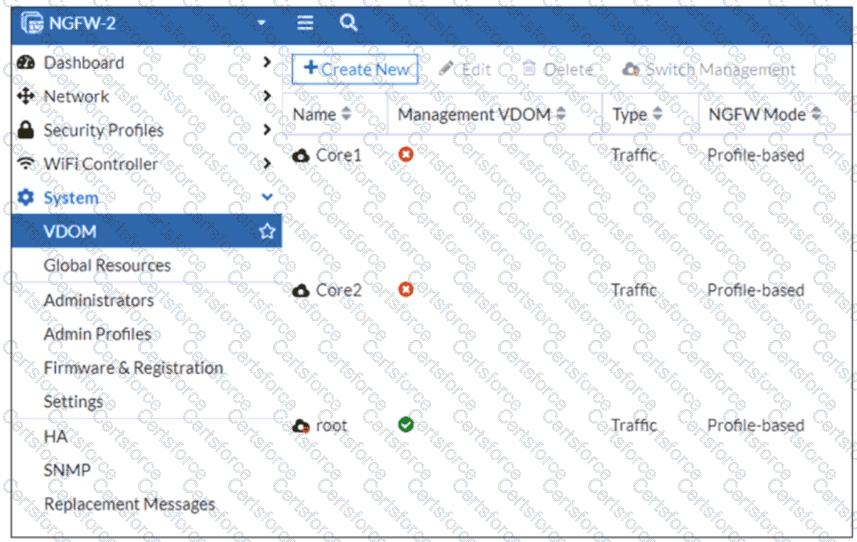

The exhibit identifies the root VDOM as the management VDOM, indicated by the green check mark. The Enterprise Firewall 7.6 Administrator Study Guide explains that the management VDOM handles FortiGuard database downloads, license validation, and FortiGuard rating connectivity on behalf of the entire FortiGate system. It states that FortiGuard updates obtained through the management VDOM “will affect all VDOMs.”

Consequently, the root VDOM must reach either a public Fortinet Distribution Network server or a FortiManager configured as a FortiGuard Distribution Server in an isolated environment. The guide specifically identifies connectivity to “a FortiManager serving as a FortiGuard Distribution Server (FDS) in a closed network” as the alternative to public FortiGuard access. Loss of both paths prevents Core1 and Core2 from using current FortiGuard web-filtering information. Therefore, options A and B are correct.

Core1 and Core2 do not need to become management VDOMs; FortiGate uses one designated management VDOM for these system-level services. A VDOM link is used to route user traffic between VDOMs and is not required for distributing FortiGuard services, eliminating option D.

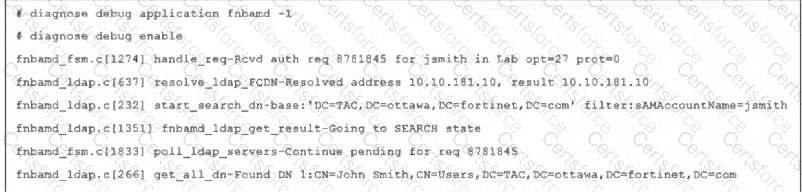

The exhibit includes these key debug lines:

start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith

get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com

The study guide explains that in regular bind , LDAP authentication has four steps , and that during step 2 , FortiGate searches the LDAP tree to find the user’s DN:

“During the second step, FortiGate does a search query in the LDAP database to find the user’s location—in other words, the user’s DN. If the user is found, the server replies with the user’s DN.”

It also states for the real-time debug of step 2:

“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree. This message includes the base branch (distinguished name setting) and the name of the attribute used to locate the user... If the LDAP server finds the user, the output shows the user’s full DN.”

That directly proves:

D is correct because the debug is showing step 2: Search Request

A is correct because the base DN and found DN are under DC=TAC,DC=ottawa,DC=fortinet,DC=com, which corresponds to the LDAP domain/tree root TAC.ottawa.fortinet.com

Why the other options are wrong:

B is wrong because binding with the user’s credentials is step 3 , not the step shown here. The study guide says: “Step 3 – Bind user credentials” and shows that this happens later with fnbamd_ldap_build_userbind_req / __ldap_build_bind_req-Binding to ' CN=John Smith... '

C is wrong because collecting user group information is step 4 , not the step shown in the exhibit. The study guide says: “The last step is to get the user group information” and shows step 4 with Attr query / memberOf search

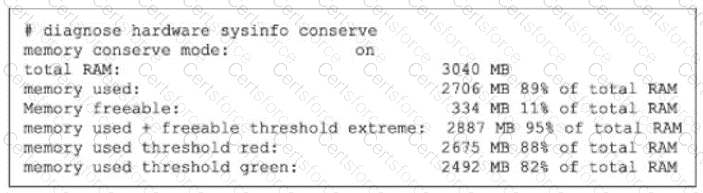

The exhibit shows:

memory conserve mode: on

memory used: 2706 MB 89% of total RAM

memory used threshold red: 2675 MB 88% of total RAM

memory used + freeable threshold extreme: 2887 MB 95% of total RAM

The study guide states that the default thresholds are:

Extreme = 95%

Red = 88%

Green = 82%

So this FortiGate is in conserve mode because memory usage is 89% , which is above the red threshold (88%) , but it has not yet reached the extreme threshold (95%) .

The study guide then explains exactly what happens during conserve mode:

“For traffic that requires proxy-based inspection (and if memory usage has not exceeded the extreme threshold):

config system global

set av-failopen [off | pass | one-shot]

pass (default): All new sessions pass without inspection”

It also says:

“The av-failopen setting also applies to flow-based antivirus inspection.”

And the same page adds:

“If memory usage exceeds the extreme threshold, all new sessions that require inspection (flow-based or proxy-based) are blocked.”

Therefore, with default settings and with memory usage below the extreme threshold , FortiGate is allowing new sessions that require inspection, but bypassing inspection . That matches C .

Why the other options are wrong:

A is wrong because the default behavior is not to block proxy-based inspected sessions; the default is pass , meaning they pass without inspection

B is wrong because if memory rises another 6% , it reaches 95% , which is the extreme threshold . At that point, the study guide says all new sessions that require inspection are blocked

D is wrong because FortiGate blocks all new inspected sessions only when memory usage exceeds the extreme threshold , and the exhibit shows it is currently at 89% , not 95%

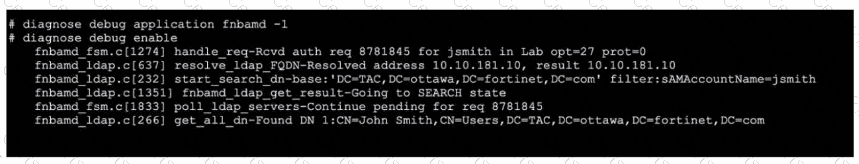

The exhibit shows these key lines:

handle_req-Rcvd auth req ... for jsmith in Lab

start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith

get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com

The study guide explicitly shows the same LDAP real-time debug pattern and says the request line includes the LDAP server object name:

handle_req-Rcvd auth req ... for jsmith in Lab ...

That supports A : Lab is the configured LDAP server name being used for this authentication request.

For the LDAP flow stage, the study guide states:

“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree.” It also says that if the LDAP server finds the user, the output shows the user’s full DN.

That matches the exhibit’s start_search_dn-base ... filter:sAMAccountName=jsmith and Found DN ... CN=John Smith... lines, so D is correct.

Why the other options are wrong:

B is wrong because the exhibit shows FortiOS has found the user DN CN=John Smith,..., but that does not mean the user is already authenticating with that DN in this step. The study guide says this DN is discovered in step 2 , and only in step 3 does FortiGate bind using the user DN.

C is wrong because the exhibit is showing step 2 (Search Request) , not step 3 (Bind Request) . The study guide separates these steps clearly and shows step 3 with fnbamd_ldap_build_userbind_req-Trying DN ... and __ldap_build_bind_req-Binding to ' CN=John Smith,... '
