According to theFortiSwitchOS 7.6 Administration Guideregarding the " Discovery and Management " lifecycle, a FortiSwitch is designed with a specific boot-up and discovery sequence to determine its management mode. By default, a factory-reset FortiSwitch or a new unit out of the box is configured to search for a management entity. This process typically involves looking for aFortiGateviaFortiLink(using DHCP options or LLDP) or attempting to connect toFortiEdge Cloud(formerly FortiLAN Cloud) if cloud management is enabled.

The documentation states that if the FortiSwitch is unable to establish a connection with a FortiGate (FortiLink mode) or successfully register and authenticate with the FortiEdge Cloud, the device does not enter a " failed " state requiring hardware intervention. Instead, itremains in local management mode. In this state, the switch operates as a standalone Layer 2/3 switch. The administrator can access the device ' s local Graphical User Interface (GUI) or Command Line Interface (CLI) directly using the default credentials.

While in local management mode, the switch retains its ability to be manually configured for all standard switching features, such as VLAN tagging, Spanning Tree Protocol (STP), and link aggregation. If a management controller (FortiGate or Cloud) becomes available later, the switch can be transitioned into managed mode, which typically involves the controller pushing a new configuration and potentially overwriting local settings. Therefore, the failure to discover a controller simply results in the switch defaulting to its standalone, locally managed operational state.

In a FortiGate-managed switching deployment usingFortiLink, FortiSwitch devices rely on theirinternal interfaceto establish management connectivity with the FortiGate. According to the FortiSwitchOS 7.6 Administrator Guide, when a FortiSwitch operates in FortiLink mode, theinternal interface must obtain an IP address dynamically via DHCPfrom the FortiGate over the FortiLink interface. This IP address is required for control-plane communication, including CAPWAP-based management messaging.

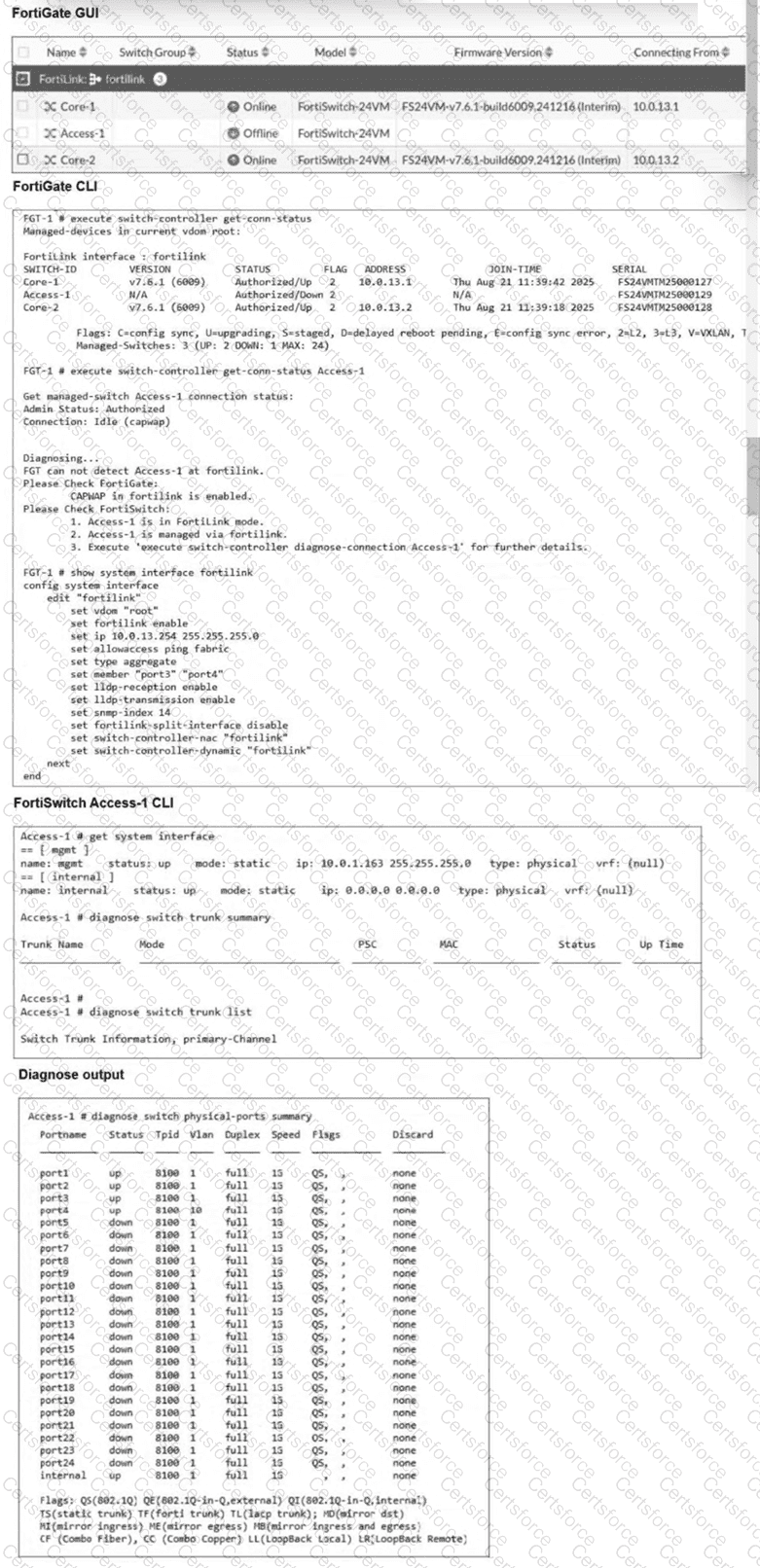

From the exhibit, FortiGate successfully managesCore-1andCore-2, whileAccess-1remains offline. The FortiGate diagnostic output explicitly reports that itcannot detect Access-1 at the FortiLink interface, even though CAPWAP is enabled and the switch is in FortiLink mode. This eliminates CAPWAP configuration (Option B) as the root cause.

Examining the FortiSwitch Access-1 CLI output reveals the key issue:

Theinternal interfaceis configured withmode: staticand an IP address of0.0.0.0.

This configuration prevents Access-1 from obtaining a valid FortiLink management IP address, which is mandatory for FortiGate discovery and authorization. In contrast, FortiSwitch devices managed by FortiGate must have their internal interface set toDHCP, allowing the FortiGate to automatically assign an address from the FortiLink subnet.

Assigning a static IP (Option A) is not recommended or required in FortiLink-managed mode, NTP configuration (Option D) has no impact on discovery, and CAPWAP is already enabled as shown in the FortiGate output.

Therefore, theinitial and required corrective actionis toset the Access-1 internal interface mode to DHCP, makingOption Cthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 documentation.

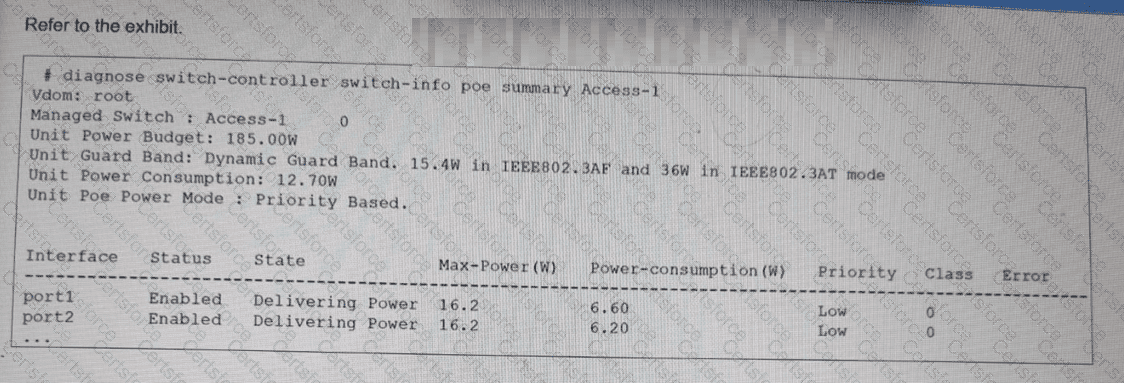

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the primary physical constraint when deploying PoE devices is the total power capacity of the switch ' s internal power supply unit (PSU). The provided exhibit shows the PoE status forAccess-1, highlighting three critical metrics: theUnit Power Budget (185.00W), the currentUnit Power Consumption (12.70W), and theUnit Guard Band.

TheUnit Power Budgetrepresents the maximum amount of power the switch can provide to all connected Powered Devices (PDs) simultaneously. As more devices (such as access points, VoIP phones, or cameras) are connected, the cumulative power draw increases. The most important consideration is ensuring that thetotal PoE consumption does not exceed this budget. If the budget is exceeded, the switch will stop providing power to new devices or, depending on the configuration, may shut down lower-priority ports to protect the system hardware.

In this specific exhibit, theUnit Poe Power Modeis set toPriority Based. This means that if the power consumption approaches the budget limit, the switch will use the configured port priorities (seen as " Low " for port1 and port2) to decide which devices to keep powered. TheGuard Band(set to a dynamic value) also plays a role by reserving a small amount of power to handle spikes when devices initialize, further emphasizing that the power budget is a hard limit that must be actively managed by the administrator.

According to theFortiGate Switch Best Practicesand theFortiSwitch 7.6 FortiLink Guide, the recommended best practice for a scalable and high-performance FortiLink deployment is to use alink aggregation group (LAG)interface, also known as an802.3ad aggregate.3

While ahardware-based switch interface (Option A)offers low latency by switching traffic directly in the ASIC, it has significant limitations regardingscalability and redundancy. Hardware switches are restricted by the number of physical ports on the Integrated Switch Fabric (ISF) and cannot be easily expanded to include additional redundant links as the network grows. Conversely,software-based switch interfaces (Option B)are processed by the system CPU, leading to higher utilization and a lack ofNPU hardware acceleration, which makes them unsuitable for high-performance or growing environments.4

By configuring FortiLink as aLAG (Option C), the administrator ensures that the network can support future growth seamlessly. A LAG interface allows for the addition of multiple physical ports to increase bandwidth between the FortiGate and the switch fabric while providing link-level redundancy.5This configuration is the default for modern FortiOS versions because it supports NPU offloading and serves as the technical prerequisite for more advanced topologies, such asMCLAG (Option D). While MCLAG is an excellent solution for high availability in multi-switch environments, it is a topology feature rather than the primary interface type used to define the FortiLink connection on the FortiGate unit itself. Therefore, starting with an aggregate (LAG) interface provides the most flexible foundation for migrating to more complex infrastructures as additional switches are added.
