" The tool is a Python script that converts the supported settings in a FortiSwitch standalone configuration file to the equivalent FortiOS settings for a managed switch. " Reference: FortiSwitch 7.6 Study Guide, page 349

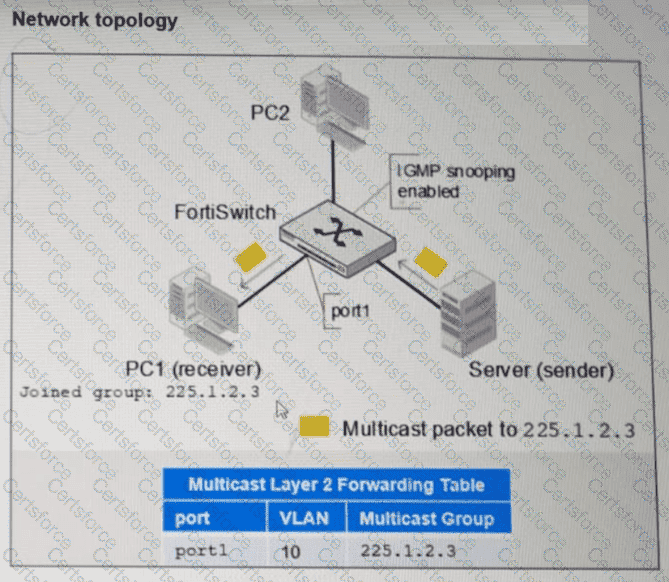

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Internet Group Management Protocol (IGMP) snooping is a Layer 2 mechanism that allows a switch to " listen " to IGMP conversations between hosts and routers to maintain a map of which ports require specific multicast streams. When IGMP snooping is enabled, the switch populates aMulticast Layer 2 Forwarding Table(as shown in the exhibit), which ensures that multicast traffic is only forwarded to ports where a receiver has explicitly requested it (e.g., PC1 on port1).

When IGMP snooping isdisabled, the switch no longer maintains this granular forwarding table. By default, a Layer 2 switch that is not performing IGMP snooping treats multicast traffic as if it werebroadcast traffic. Consequently, instead of being intelligently forwarded only to the interested receiver (PC1), the multicast traffic for group 225.1.2.3 will beflooded to all portswithin the same VLAN (VLAN 10). This means PC2, even if it has not joined the group, will receive the multicast packets at the physical layer, leading to unnecessary bandwidth consumption and increased CPU load on unintended recipients.

The documentation explicitly states that disabling IGMP snooping reverts the switch to a " flood-all " behavior for multicast frames within the broadcast domain. Option A is incorrect because the host (PC1) remains a member of the group; only the switch ' s forwarding logic changes. Option B is incorrect as the switch may still see the messages but will not act on them to prune ports. Option D is incorrect as disabling the feature removes the prune/stop mechanism, causing traffic to flow everywhere rather than stopping.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Multiple Spanning Tree Protocol (MSTP) is built directly upon the foundations ofRapid Spanning Tree Protocol (RSTP), inheriting its mechanisms for fast convergence and fault recovery.12

In a multitier deployment (Access, Aggregation, and Core)3, theprocess for selecting the root bridge (Option A)is a fundamental RSTP feature that MSTP utilizes to create a stable and predictable logical topolog4y. By configuring the Bridge ID (priority and MAC address), administrators can manually ensure that the aggregation or core switches act as the Root Bridge for specific MST instances. This placement is critical for ensuring that traffic follows the most efficient physical paths and that high-bandwidth aggregation links are utilized effectively rather than blocked by suboptimal root selection.

Furthermore, therules for determining port roles (Option D)are essential for achieving the " Rapid " part of the protocol. RSTP/MSTP defines specific port roles such asRoot,Designated,Alternate, andBackup. Unlike legacy STP, which relies on slow listening and learning timers, RSTP uses the Alternate and Backup roles to identify secondary paths that are already in a " blocking " state but ready to transition to " forwarding " immediately through a proposal/agreement handshake if a primary link fails. This mechanism allows for sub-second convergence times in redundant multitier environments. While Option B (recalculating paths) occurs, it is the role-based synchronization process that characterizes the modern protocol ' s speed, making A and D the most relevant " useful features " for predictability and speed in this context.

The correct statement about the quarantine VLAN on FortiSwitch is:

B. Users who fail 802.1X authentication can be placed on the quarantine VLAN.This feature allows network administrators to isolate devices that do not meet the network’s security criteria as determined through 802.1X authentication. Placing these devices in a quarantine VLAN restricts their network access, thereby protecting the network from potential security threats posed by unauthorized or compromised devices.

Option A is incorrect as the presence of a DHCP server in a quarantine VLAN depends on specific network configurations. Option C is incorrect without more context regarding global settings, and option D misstates the functionality of quarantine VLANs, as their primary use is to restrict, not block, devices without additional VLAN configuration changes.

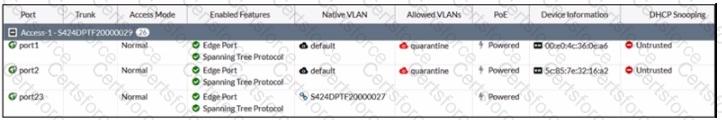

The information in the " Native VLAN " column for port23 on the FortiSwitch indicates that a standalone switch is connected to it. This is because the column displays " $424MPTF20000027, " which matches the format of a Fortinet device serial number.

Here ' s a breakdown of the evidence in the image:

Native VLAN:The " Native VLAN " column typically displays the VLAN ID for untagged traffic on a trunk port. However, in this case, it shows a serial number format ( " $424MPTF20000027 " ).

No Trunk Information:The " Trunk " column is blank for port23, indicating it ' s not configured as a trunk member.

Other Ports:Port1 and port2 show " default " in the " Native VLAN " column, which is the expected behavior for access ports.

Fortinet FortiSwitch devices typically don ' t display the serial number of adjacent FortiSwitch devices in the " Native VLAN " column. This column is reserved for VLAN information on trunk ports.

In FortiSwitchOS 7.6, achieving link-level redundancy and active-active uplink utilization acrosstwo separate FortiSwitch unitsrequires a technology that operates independently of Spanning Tree Protocol (STP). This requirement is fulfilled byMultichassis Link Aggregation Group (MCLAG).

MCLAG allows two FortiSwitch devices to operate as alogical aggregation peer, presenting themselves as a single logical switch to an upstream device such as a FortiGate. With MCLAG, FortiGate can form a singleLACP-based aggregated interfacethat spans both FortiSwitches. This enablessimultaneous use of uplinks on both switches, providing full bandwidth utilization and redundancy without blocking links, which is a fundamental limitation of STP-based designs.

According to the FortiSwitchOS 7.6 Administrator Guide, MCLAG synchronizes control-plane information between the two FortiSwitch peers using inter-switch links (ISLs) and dedicated keepalive mechanisms. This ensures consistent forwarding behavior and loop-free topology while allowing all member links to remain active. If one FortiSwitch fails, traffic continues to flow through the remaining switch with minimal disruption.

The other options do not meet the stated requirement. A standard LAG (Option D) operates only within asingle switchand cannot span multiple FortiSwitch units. Multi-tier topology (Option A) and full mesh HA (Option C) describe architectural layouts or FortiGate HA concepts but do not provide link-level aggregation across switches.

Therefore, the only configuration that allows FortiGate to use uplinks on both FortiSwitches simultaneouslywithout relying on STPisMultichassis Link Aggregation Group (MCLAG), makingOption Bthe correct and fully verified answer.

All hosts behind an authenticated port are allowed access after a successful authentication (A): Once a device on a port successfully authenticates using 802.1X, all other devices connected behind that port also gain network access. This is typical in scenarios where a switch is behind an authenticated port and not each device individually authenticates.

All devices connecting to FortiSwitch must support 802.1X authentication (D): For a network secured with 802.1X, all devices attempting to connect through the FortiSwitch must support and participate in 802.1X authentication to gain access. This ensures that all devices on the network are authenticated before they are allowed to communicate on the network.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health of the Control and Provisioning of Wireless Access Points (CAPWAP) based management tunnel between a FortiGate and a FortiSwitch is maintained through a continuous keepalive mechanism. The provided exhibit captures the fortilinkd process logs, which are essential for verifying the operational status of the FortiLink control plane.

The debug output reveals two critical indicators of a successful connection:

State Transitions:The lines at timestamp 341s show the managed switch (FS24VMTM25000128) has reached theFL_STATE_READYstate. This state indicates that the discovery, authorization, and configuration synchronization phases are complete, and the switch is now fully operational under the FortiGate ' s management.

Heartbeat Mechanism:The entry flp_send_pkt[469]:pkt-sent {type(5)} represents the transmission of aFortiLink heartbeat. TheseType 5 packetsare sent every few seconds to verify that the peer device is still reachable and responsive. In a healthy environment, the FortiGate sends these heartbeats, and the FortiSwitch responds (or vice versa depending on the specific sub-protocol phase), ensuring the management tunnel remains active.

The regular exchange of these messages as shown in the exhibit confirms that the FortiLink connection ishealthy and active. If the switch were unauthorized or stuck in a negotiation phase, the state would be shown as FL_STATE_WAIT_AUTH or FL_STATE_DISCOVERY, and the periodic type(5) heartbeats would either be absent or not acknowledged.

Page 452 of 7.6 study guide, specifically states " Although you can use the sniffer command to capture traffic on switch ports, the types of packets capture by the sniffer are very limited.

The use of the sniffer command on FortiSwitch CLI can be unreliable on port 23 for specific reasons related to the nature of traffic on the port:

D.The switch port might be used as a trunk member.When a switch port is configured as a trunk, it can carry traffic for multiple VLANs. If the sniffer is set up without specifying VLAN tags or a range of VLANs to capture, it may not accurately capture or display all the VLAN traffic due to the volume and variety of VLAN-tagged packets passing through the trunk port. This limitation makes using the sniffer on a trunk port unreliable for capturing specific VLAN traffic unless properly configured to handle tagged traffic.

Active multicast receiver entries are aging on each IGMP query sent on the VLAN (A): When IGMP snooping querier is enabled on a VLAN, it functions to manage multicast traffic within the VLAN by keeping track of multicast group memberships. The IGMP querier sends queries to determine which ports require the multicast traffic. The multicast receiver entries, which are entries that indicate which devices have requested the multicast data, age or time out based on these IGMP queries. Each query refreshes active connections but ages out entries that no longer respond, helping to ensure that multicast traffic is only sent to ports with active receivers.
