According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch Study Guide, Access Control Lists (ACLs) are used to provide granular control over the traffic entering or leaving a switch port. ACLs function by definingclassifiers(to match specific traffic based on criteria like MAC address, IP address, or VLAN ID) and then applying specificactionsto that matched traffic.

The documentation explicitly categorizes ACL actions into three distinct groups:

Traffic Processing:This category includes actions that dictate the physical handling of the frame. Valid actions listed in the official documents under this header includecount(to track packet volume),drop(to block the traffic),redirect(to forward the frame to a specific physical port or interface instead of its original destination), andmirror(to send a copy to a monitoring port).

Quality of Service (QoS):This category focuses on traffic prioritization and bandwidth management. It includes actions such asrate limiting,remarking CoS/DSCP values, andsetting the egress queue(e.g., assigning a packet to a specific queue number from 0 to 7).

VLAN:This allows for modifications such as setting anouter VLAN tagon frames.

The question specifically asks for " traffic processing actions. " Based on the 7.6 documentation,Redirect frames to another port(Option A) andDrop frames(Option D) are explicitly defined under the " Traffic Processing " action header. While " Assign traffic to a high-priority egress queue " (Option B) is a valid action an ACL can perform, it is technically categorized as aQoS action, not a traffic processing action.Encrypt frames(Option C) is not a supported ACL action on FortiSwitch hardware, as encryption is typically handled at higher layers or via dedicated MACsec configurations on specific models.

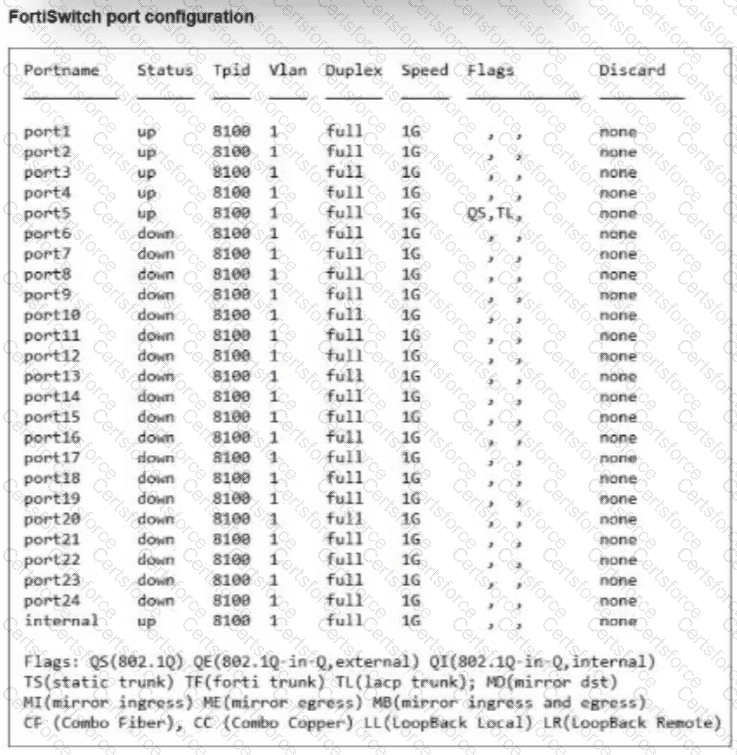

According to the FortiSwitchOS 7.6 Administration Guide and the FortiSwitch 7.6 Study Guide , the diagnose switch physical-ports summary command provides an overview of physical interface states, VLAN memberships, duplex/speed parameters, and port encapsulation flags.

When a FortiSwitch operates in managed mode via FortiLink, two distinct characteristics appear in this command output:

Management VLAN Assignment: The FortiLink control plane automatically establishes a dedicated management VLAN—by default, VLAN 4094 —and assigns it to the internal discovery interfaces and uplinks.

Encapsulation Flags: Interfaces participating in the FortiLink fabric or Inter-Switch Links (ISLs) are assigned the TF (Forti Trunk) flag to indicate proprietary FortiLink management framing.

In the provided exhibit, every single interface (from port1 through port24, as well as the virtual internal interface) is assigned to default Vlan 1 . Furthermore, looking at the Flags column, port5 has QS (standard 802.1Q) and TL (standard LACP trunk), but no TF (Forti Trunk) flag is present on any interface. The absence of VLAN 4094, the complete absence of the TF flag, and the presence of the default factory VLAN 1 mapping confirm that this device is operating in standalone mode (Option C) .

Regarding the incorrect options: Option A is incorrect because port5 is bundled into a standard LACP 802.1Q trunk (QS, TL), not configured purely as an access port. Option B is incorrect because this output reflects Layer 2 switchport properties rather than Layer 3 routing interfaces. Option D is incorrect because managed mode would display FortiLink-specific VLANs and TF trunk flags.

According to theFortiSwitchOS 7.6 FortiLink Guideand theFortiSwitch 7.6 Study Guide, managed FortiSwitch units support a feature calledInter-VLAN Routing Offload. Traditionally, in a FortiLink deployment, traffic between VLANs is " hair-pinned " back to the FortiGate for routing and security inspection. However, to increase performance and reduce latency, the FortiGate can program the managed FortiSwitch to handle Layer 3 routing of trusted traffic locally.

The technical mechanism behind this performance gain is the use of theForwarding Information Base (FIB)programmed directly into the switch ' sASIC (Application-Specific Integrated Circuit). When routing offload is enabled (specifically using the set switch-controller-offload enable command on the VLAN interface), the FortiGate pushes the necessary routing table and gateway information to the switch hardware. This allows the FortiSwitch to perform packet lookups and forwarding decisions at wire speed within the silicon, bypassing the general-purpose CPU and the FortiLink control plane for that specific traffic flow.

The documentation notes that this feature requires anAdvanced Features Licenseon the tier-1 FortiSwitch and is typically applied to the switch closest to the FortiGate.2While dynamic routing (Option B) is supported on FortiSwitch, it is not theonlything offloaded; static routes and inter-VLAN gateway traffic are the primary use cases for this offload mechanism. Therefore, the correct architectural description is that the switch utilizes its hardware-based FIB to accelerate inter-VLAN communication.

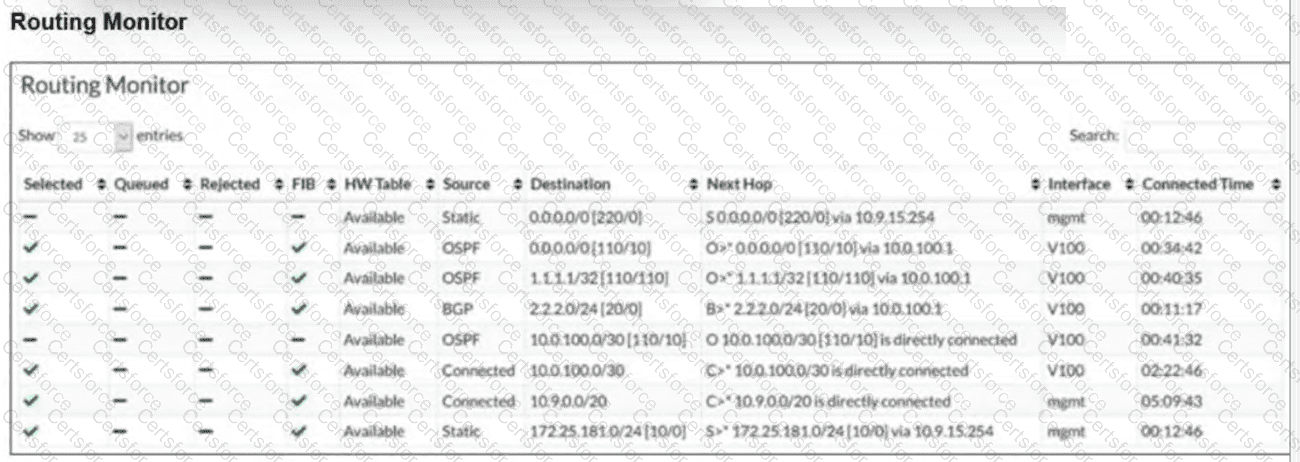

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Information Base (RIB) contains all potential routes discovered by the switch, but theForwarding Information Base (FIB)only includes the " best " active routes used for hardware packet forwarding. When the routing process receives multiple paths to the exact same destination (in this case, the default route 0.0.0.0/0), it must select the most reliable source based on a specific hierarchy.

The primary tie-breaker for routes from different protocols is theAdministrative Distance (AD). AD is a value from 1 to 255 that represents the trustworthiness of the routing source, where alower value is more preferred. In the provided exhibit:

TheOSPFroute has an AD of110(shown as [110/10]).

TheStaticroute has been configured with an AD of220(shown as [220/0]).

Because the OSPF route ' s AD (110) is lower than the Static route ' s AD (220), the system considers the OSPF route to be superior. Consequently, only the OSPF route is " Selected " and installed into theFIB. The static route remains in the RIB as a " backup " or floating static route; it will only be moved to the FIB if the preferred OSPF route becomes unavailable. Option D is incorrect because having identical prefixes is not a " conflict " but a standard part of route selection where AD decides the winner. Option A is incorrect because metric is only compared if the AD is identical.

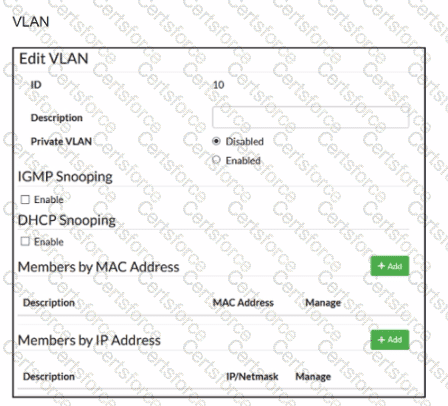

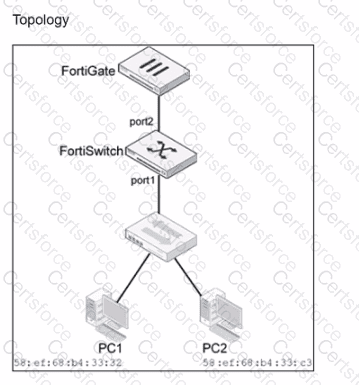

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the way a FortiSwitch handles VLAN tags on egress (outgoing) traffic is governed by the port ' sNative VLANand itsUntagged VLAN list. When traffic for VLAN 10 arrives at port2 (the uplink) and is forwarded to port1, the switch must determine whether to strip the 802.1Q tag before transmission.

Untagged VLAN List (Option B):The documentation explicitly states that the " untagged VLAN list " specifies VLANs for which the port will transmit frameswithout the VLAN tag. By adding VLAN ID 10 to the untagged VLANs on port1, any traffic belonging to VLAN 10 will have its tag stripped at the egress point, ensuring PC1 receives a standard untagged frame.

Configuration Logic (Option C):In FortiSwitch management, moving a VLAN from the " Allowed " list (which typically implies tagged delivery) to the " Untagged " list on a specific interface forces the switch to perform the tag-stripping action. This effectively converts the port from a trunked behavior for that VLAN to an " access " or untagged behavior.

Regarding the incorrect options:Option A (MAC-based assignment)is used primarily foringress classification. While it can assign a device to a VLAN when it sends trafficintothe switch, the documentation notes that by default, egress packets for MAC-based VLANs still include the tag unless the untagged list is configured.Option D(Private VLANs) is a security feature for isolating traffic between ports within the same VLAN and does not address the physical tagging requirements of the endpoint.

Location (C): FortiSwitch uses LLDP-MED (Link Layer Discovery Protocol - Media Endpoint Discovery) to advertise various attributes to IP phones, among which " Location " is crucial in emergency situations. This information helps emergency responders to determine the physical location of the calling device, which is vital for prompt response in critical situations.

When loop guard is enabled on port1 and port2 configured with the same native VLAN (VLAN 10), there are specific scenarios under which port1 can be shut down due to loop guard operation:

A.port1 was shut down by loop guard protection.Loop guard is a specific feature used in network environments to prevent alternative or redundant loops. When loop guard is active, it can shut down a port if it stops receiving BPDU (Bridge Protocol Data Units) on a port that is expected to receive them, assuming a loop or link failure and putting the port into an inconsistent state to prevent potential loops.

B.STP triggered a loop and applied loop guard protection on port1.If the Spanning Tree Protocol (STP) detects a loop or loss of BPDU transmissions while loop guard is enabled, it will proactively shut down the port to prevent network instability or a broadcast storm. This is an essential function of loop guard within the context of STP, providing additional protection against topology changes that could introduce loops.

FortiSwitch determines how traffic is routed by leveraging atwo-tier routing lookup mechanismthat prioritizes hardware-based forwarding before software-based processing. According to theFortiSwitchOS 7.6 Administrator Guide, FortiSwitch first checks thehardware routing table, which is populated with a subset of routes installed from the Forwarding Information Base (FIB) and programmed directly into the switch ASIC.

The hardware routing table contains routes that are eligible for ASIC acceleration. When a packet arrives on a FortiSwitch interface, the switch performs a lookup in this hardware routing table. If a matching route is found, the packet is forwarded at wire speed using ASIC-based forwarding, which provides optimal performance and minimal latency. This process is referred to ashardware-based routing.

If no matching route exists in the hardware routing table, FortiSwitch then performs a lookup in theForwarding Information Base (FIB), which resides in the kernel. Routes in the FIB are handled by the CPU and processed throughsoftware-based routing. This fallback mechanism ensures correct forwarding behavior even when routes cannot be offloaded to hardware.

The FortiSwitchOS documentation explicitly states that the hardware routing table indicates which routes in the FIB are installed in hardware. This confirms that routing decisions are not exclusively offloaded to FortiGate, nor are they limited to CPU-based processing alone. Instead, FortiSwitch uses ahierarchical lookup order: hardware routing table first, followed by the FIB.

Therefore, the correct and fully documented answer isC. FortiSwitch looks up the hardware routing table and then the forwarding information base (FIB).

It provides benefits that can be obtained when using 802.1X authentication (C): MAC, IP, and protocol-based VLANs on FortiSwitch are beneficial in network environments where additional granularity is needed in traffic segmentation and security, similar to what can be achieved through 802.1X authentication. These VLAN types allow for dynamic assignment of ports to VLANs based on the characteristics of the incoming traffic, enhancing both security and network efficiency.
