According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, multi-tenancy in a FortiLink-managed environment allows a central FortiGate to partition a managed FortiSwitch fabric so that different ports can belong to different Virtual Domains (VDOMs). This is essential for Managed Service Providers (MSPs) who need to isolate client traffic at the hardware layer.

The documentation identifies two primary methods for achieving this assignment:

Assign to a VLAN and Perform VDOM Mapping (Option A):This is the most common method. The administrator creates a VLAN on the FortiLink interface and assigns it to a specific VDOM on the FortiGate. By assigning a physical FortiSwitch port to that specific VLAN, the port ' s traffic is logically terminated within the target VDOM. TheVDOM mappingensures that the switch-controller identifies which VDOM " owns " the traffic originating from that specific port/VLAN combination.

Create a Virtual Port Pool (Option B):For more advanced multi-tenancy, administrators can use the FortiGate CLI to create aVirtual Port Pool. This feature allows the FortiGate to " pool " physical switch ports and present them as logical resources that can be distributed across various VDOMs. This method provides greater flexibility in resource allocation without requiring the entire FortiLink interface to be moved.

Regarding the incorrect options:Option Cis incorrect because in a managed environment, the FortiSwitch CLI is not used for VDOM assignments; all orchestration must happen from the FortiGate.Option Dis incorrect because while you can move a FortiLink interface to a VDOM, this would move theentireswitch management and all its ports to that VDOM, which does not support a multi-tenant setup where different ports need to reside in different VDOMs.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Multichassis Link Aggregation (MCLAG) and standard Link Aggregation Groups (LAG) are designed to provide link-level and node-level redundancy while presenting a simplified logical view to the Spanning Tree Protocol (STP).

In the provided topology:

Logical Switch View (Option D):Switch 1 and Switch 2 are configured asMCLAG peersconnected via an Inter-Chassis Link (ICL). From the perspective of downstream devices and STP, these two physical switches act as a single logical entity. This prevents STP from seeing a loop between the two switches and the downstream Switch 3, as the redundant physical paths are bundled into a single logical MCLAG trunk.

Logical Interface View (Option B):The exhibit shows Switch 4 connected to Switch 3 via two physical links bundled into aLAG, and Switch 3 connected to the MCLAG peers via split links. In both cases, STP treats the aggregated physical links as asingle logical interface. Because the multiple physical paths are managed by the Link Aggregation Control Protocol (LACP) as one trunk, STP does not block individual ports to prevent loops; instead, it sees one high-bandwidth path.

Regarding the incorrect options:Option Ais false because Switch 3 is an MCLAGclient, not a peer in the group.Option Cis incorrect because Switch 3 and Switch 4 are separate physical and logical nodes; they are not seen as a single client entity by the core.

" Classification: FortiSwitch maps packets with a given CoS or DSCP marking to an egress queue. There are eight egress queues on each port: queues 0 to 7. "

In Quality of Service (QoS) mechanisms, the process of mapping packets with specific CoS (Class of Service) or DSCP (Differentiated Services Code Point) markings to an egress queue involves two key steps:classificationandqueuing.

Classification: This occurs on the ingress side (incoming traffic). The switch examines the packet headers (e.g., CoS or DSCP values) to determine how the traffic should be treated. Based on this classification, the switch assigns the packet to a specific priority level or queue.

Queuing: Once the packet is classified, it is mapped to an egress queue based on its priority level. The egress queues are used to manage how traffic is transmitted out of the switch.

Option A (Queuing for egress traffic)refers to managing how packets leave the switch, but it does not involve the initial mapping of CoS/DSCP values to a queue.

Option C (Rate limiting for egress traffic)is about controlling the rate of outgoing traffic, which is unrelated to CoS/DSCP mapping.

Option D (Marking for ingress traffic)involves modifying the CoS or DSCP values of packets as they enter the switch, but it does not map them to an egress queue.

Thus,classification for ingress trafficis the mechanism that identifies and maps packets with specific CoS or DSCP markings to an appropriate egress queue.

According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch 7.6 Administrator Study Guide, FortiSwitch supports a multi-stage ACL pipeline that allows for granular traffic control at different points in a packet ' s journey through the switch.1The documentation identifies three primary stages for ACL application:Prelookup,Ingress, andEgress.

Prelookup (Option D):This is the earliest stage in the switching pipeline. The documentation explicitly states thatPrelookup ACLsare processedbefore any Layer 2 or Layer 3 lookupsare performed by the switch hardware. This stage is highly recommended for high-performance security actions, such as dropping unwanted traffic immediately upon arrival, because it prevents the switch from wasting internal resources (CPU and ASIC lookup cycles) on frames that are destined to be discarded anyway.

Ingress (Option A):This stage occursafterthe switch has completed its Layer 2 (MAC table) and Layer 3 (routing table) lookups butbeforethe packet is queued for the egress port. While powerful, actions here occur after initial processing has already taken place.

Egress (Option C):This stage is processed just before the frame leaves the switch through the destination port. It is typically used for final modifications or filtering based on the outgoing interface context.

Therefore, to achieve the goal of applying actionsbeforeany Layer 2 or Layer 3 processing occurs, thePrelookupstage is the technically correct and recommended choice in FortiSwitchOS 7.6.Forwarding (Option B)is a general functional stage of a switch but is not a specific ACL stage type in the FortiSwitch configuration hierarchy.

In a multi-tenancy setup on FortiGate, you can assign a FortiSwitch port to a VDOM in two primary ways:

Switch the FortiLink Interface to the Target VDOM (A): This method involves configuring the FortiLink interface, which is the dedicated interface used to manage FortiSwitch units from FortiGate, to operate within a specific VDOM. This effectively assigns all ports on the FortiSwitch, managed through that FortiLink interface, to the designated VDOM.

Create a Virtual Port Pool on the FortiGate CLI (C): Virtual port pools are created on FortiGate and allow ports from FortiSwitch to be grouped and assigned to a VDOM. This method is more granular and flexible, as it allows specific ports on the FortiSwitch to be dedicated to different VDOMs without requiring the entire switch or FortiLink interface to be dedicated to a single VDOM.

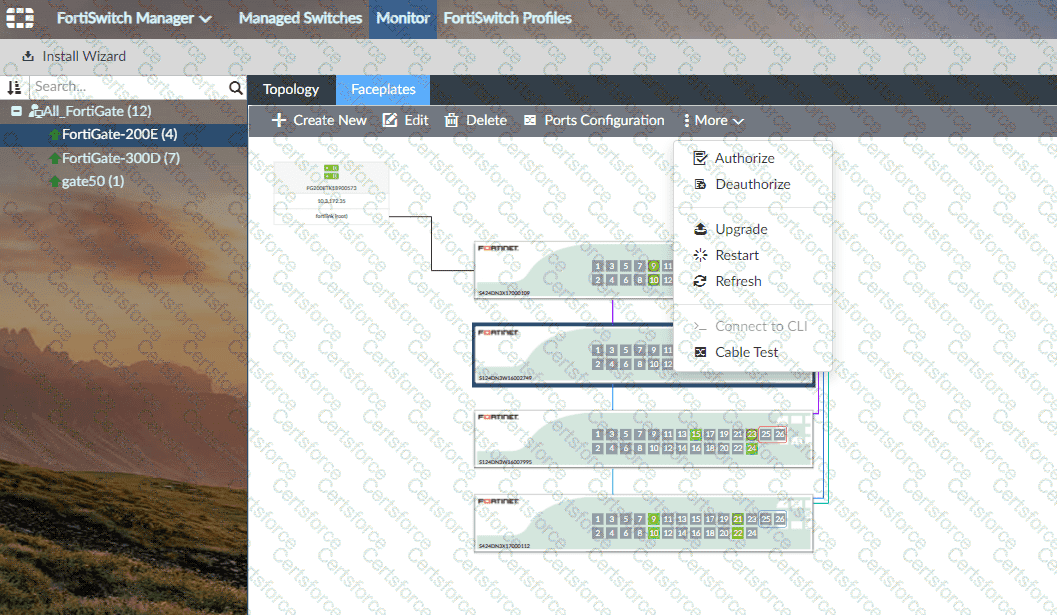

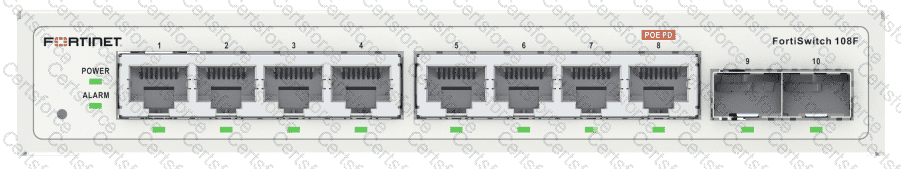

In a FortiLink-managed switching architecture, the FortiGate firewall acts as the centralized controller for downstream FortiSwitch devices. TheFortiSwitch Faceplatesview in the FortiGate GUI provides a physical-style representation of switch ports, including port numbers, operational status, link state, speed, duplex, and connected neighbor information. According to FortiOS 7.6 and FortiSwitchOS 7.6 documentation fromFortinet, this port-level intelligence is derived fromLink Layer Discovery Protocol (LLDP)advertisements received from the FortiSwitch.

LLDP is an IEEE 802.1AB standard protocol used for vendor-neutral Layer 2 neighbor discovery. FortiSwitch periodically sends LLDP frames that include detailed port descriptors such as chassis ID, port ID, port description, system name, system capabilities, and VLAN-related attributes. When FortiGate receives these LLDP advertisements over the FortiLink interface, it correlates the information with the managed FortiSwitch inventory and renders accurate port details in the Faceplates view.

Other options are incorrect for the following reasons. The FortiSwitch model alone is insufficient to populate per-port operational details. Cisco Discovery Protocol (CDP) is a Cisco-proprietary protocol and is not used by FortiGate for Faceplates visualization. FortiLink discovery frames are used to establish and maintain the FortiLink management relationship, but they do not carry the granular per-port metadata required for the Faceplates display.

Therefore, the Faceplates view relies specifically onLLDP advertisements received from the FortiSwitch, making optionCthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 behavior.

Tail-drop mode is a congestion management technique used in network devices, including FortiSwitches, to handle congestion on network ports:

Tail-Drop Mode (A):

Behavior:When a queue reaches its maximum capacity on a congested port, tail-drop mode simply drops any incoming packets that arrive after the buffer is full. This continues until the congestion is alleviated and there is space in the queue to accommodate new packets.

Application:This is a straightforward approach used when the device’s buffer allocated to the port becomes full due to sustained high traffic, preventing buffer overflow and maintaining system stability.

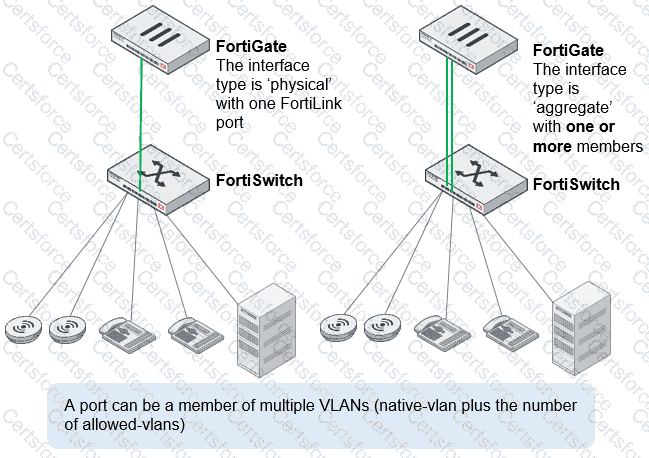

VLAN assignments on FortiSwitch ports must follow certain rules and guidelines to ensure network integrity and proper traffic segregation:

Only Assign One Native VLAN on a Port (C):

Native VLAN Configuration:Each switch port can have only one native VLAN. The native VLAN carries untagged traffic for that port. If the port receives untagged frames, they are assumed to belong to the native VLAN.

Importance of Singular Native VLAN:This is crucial for preventing VLAN hopping attacks and ensures clear and secure VLAN demarcation on each port.

Assign Untagged VLANs Using FortiGate CLI (D):

CLI Configuration:Untagged VLANs, often equivalent to the native VLAN, can be assigned through the FortiGate CLI when managing a FortiSwitch via FortiLink. This allows for central management and configuration of VLANs across connected switches.

Operational Efficiency:Using the CLI ensures that VLAN settings are applied uniformly, reducing the likelihood of misconfigurations that might occur when managing VLANs individually on each switch.

According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 FortiLink Guide, deploying managed switches over a Layer 3 underlay—such as the public internet—requires a specific tunneling mechanism to bridge Layer 2 broadcast domains. Traditional FortiLink relies on a direct Layer 2 connection; however, for remote sites,FortiLink over VXLANis the standard solution.

FortiLink over VXLAN (Option A):Virtual Extensible LAN (VXLAN) is used to encapsulate Layer 2 Ethernet frames into Layer 3 UDP packets, allowing VLAN-tagged traffic to traverse an ISP ' s routable network. This enables the FortiGate to manage remote FortiSwitch " islands " as if they were locally connected, maintaining full VLAN segmentation across the WAN.

Layer 3 Termination (Option E):The FortiGate acts as theVirtual Tunnel Endpoint (VTEP). It must have a reachable Layer 3 interface (such as a WAN port with a public IP or an IPsec tunnel interface) to terminate the VXLAN overlay. Once the VXLAN tunnel is terminated at the FortiGate, the encapsulated VLAN traffic is extracted, and the FortiGate can perform inter-VLAN routing and security inspection.

Regarding the incorrect options:Option Bis incorrect because the FortiGate at the central site handles the routing, eliminating the need for a local L3 device.Option Cis a performance consideration but not a functional requirement for basic connectivity.Option Dis often used for security to encrypt the underlay, but IPsec alone does not provide the Layer 2 extension capabilities required for VLAN segmentation; VXLAN is the specific component that handles the MAC-in-UDP encapsulation.

Fortinet FortiLink Protocol:The FortiLink protocol is Fortinet ' s proprietary mechanism for managing FortiSwitch units from a FortiGate firewall. It simplifies configuration and security policy enforcement across the connected network devices.

Auto-Discovery:FortiLink ' s auto-discovery feature means that by default, all ports on a FortiSwitch will actively send out discovery frames. This allows them to locate a FortiGate device that has a FortiLink interface enabled, streamlining the device management process.

No Configuration Needed:You don ' t have to manually configure individual ports for FortiLink discovery on FortiSwitch devices.
