Dedicated resources (sometimes called single-tenant or bare metal) guarantee that physical hardware is allocated exclusively to one customer and not shared.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Cloud deployment models:

“Dedicated resources ensure data isolation at the hardware level for compliance and security.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud Deployment

CompTIA Exam Objectives 220-1101, Domain 3.7

============

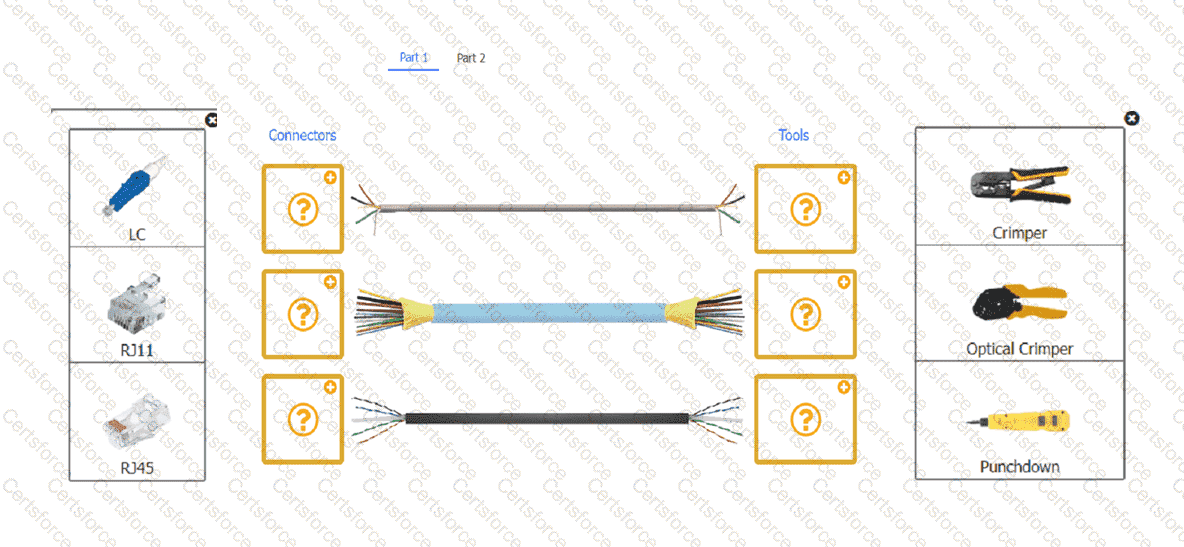

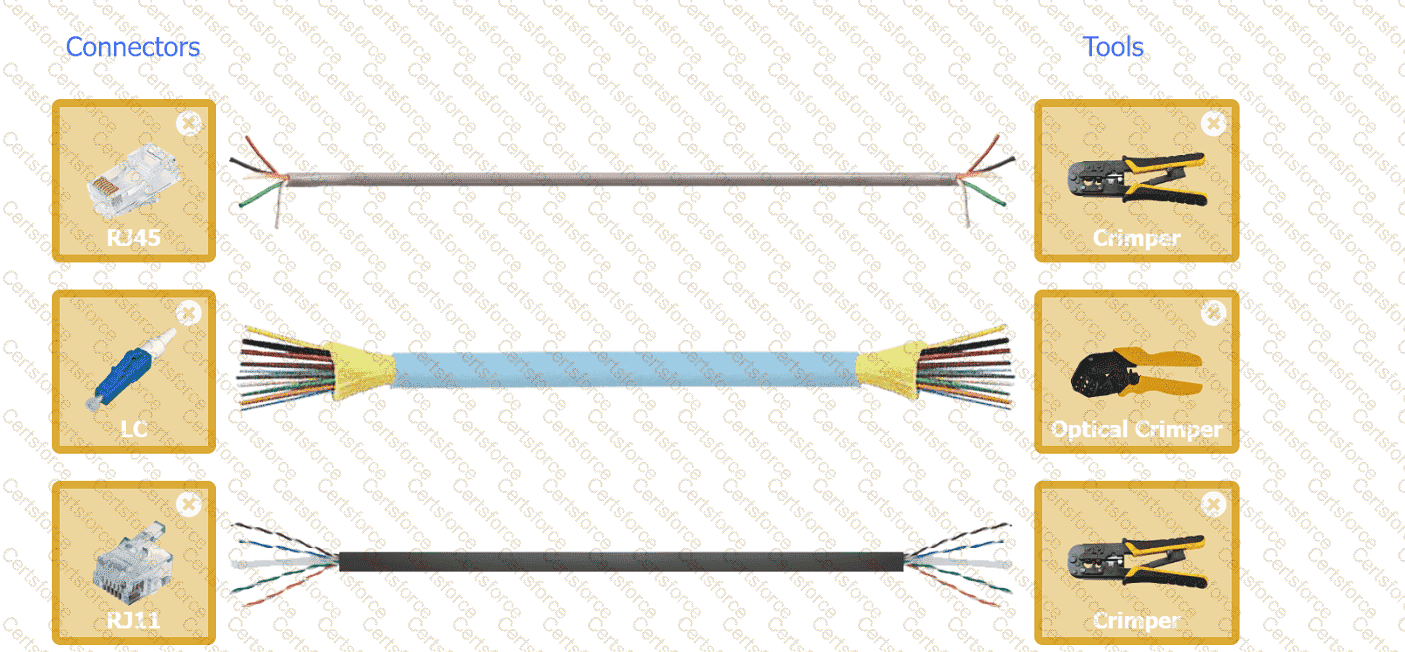

Check the exhibit diagram for both parts.

A close-up of several cables AI-generated content may be incorrect.

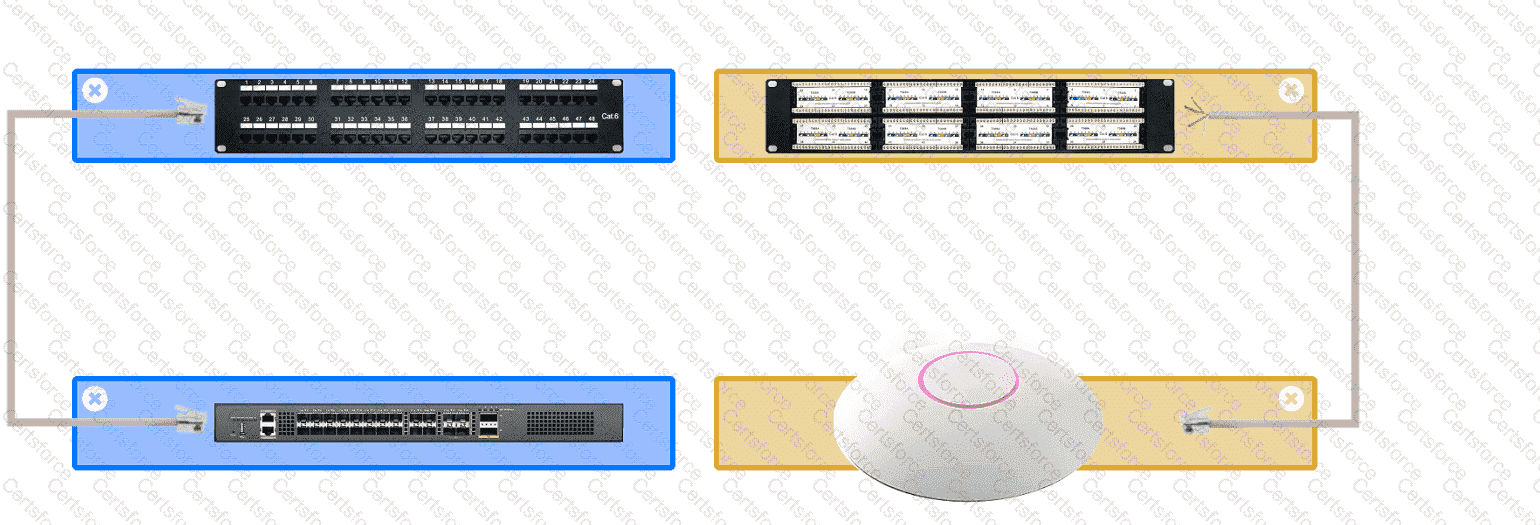

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

The correct answer is B. Switches connect devices within a network; routers connect networks.

According to the CompTIA A+ Core 1 220-1201 networking objectives:

Switches operate at the Data Link layer (Layer 2) and sometimes Layer 3, connecting multiple devices within the same local area network (LAN). They manage data traffic between devices by using MAC addresses to forward frames only to the intended recipient.

Routers operate at the Network layer (Layer 3) and connect different networks together, such as connecting a LAN to the internet. They use IP addresses to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Routers are programmable; switches are not programmable: Both devices can have programmable configurations in enterprise environments, so this is not a defining difference.

C. Switches are programmable; routers are not programmable: Same reasoning as above; not accurate.

D. Routers connect devices within a network; switches connect networks: This reverses the actual roles and is incorrect.

B. Correct the keystone:

A keystone correction adjusts the image shape when a projector is angled either up or down. When a projector is not positioned directly perpendicular to the screen, the image becomes distorted or offset. Correcting the keystone will resolve alignment issues, ensuring that the presentation matches the display.

Incorrect Options:

A. Adjust the color settings: This is used for improving color balance and has no impact on ghosting or mismatched images.

C. Increase the brightness levels: Brightness changes the visibility of the image but does not address ghosting or alignment.

D. Replace the monitor: Replacing the monitor is unnecessary unless there is hardware failure, which is not indicated here.

Key Takeaway: Keystone correction is essential to resolve alignment and distortion issues in projected images.

Since the issue only occurs during scanning and copying (not printing or faxing), the problem is isolated to the document feeder. A vertical line is typically caused by debris or damage on theglass under the ADF (Automatic Document Feeder), not on components related to printing.

Port 3389 is used by the Remote Desktop Protocol (RDP) for remote desktop connections in Windows environments. This port allows remote control and management of systems across the network.

ANetwork Interface Card (NIC)is the hardware responsible for network connectivity. If the NIC is failing or underperforming (e.g., due to a bad driver, hardware fault, or misconfiguration), it can causeslow or unstable network speeds.

Option A (CPU):A failing CPU affects overall system performance but not specifically network speed.

Option C (HDD):A slow hard drive causes application lag, but not poor network performance.

Option D (RAM):Affects multitasking and speed, not network throughput.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to wired and wireless networks.

===========

If newly installed RAM is not fully recognized, the most likely cause is incorrect installation or incompatible slots. Reseating or reinstalling the RAM modules in the correct slots can quickly resolve the issue without extra cost.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.2 – Install and configure PC components:

" If memory is not detected, check installation and reseat modules. Ensure they are placed in the correct, matched slots for dual-channel operation. "

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Memory Installation

CompTIA Exam Objectives 220-1101, Domain 3.2

============

Paper jams and smudging in high-volume printers are often caused bydirty or worn rollers. Rollers are responsible for feeding the paper through the printer. Over time, they accumulate dust, toner residue, or wear out, resulting in misfeeds or jams. Cleaning or replacing them typically resolves this issue.

Option A (Factory reset):A full reset does not directly address mechanical issues like dirty rollers or smudging. It’s a last resort and more relevant to configuration or software-related issues.

Option C (Change toner cartridges):While toner quality can affect print quality, it won’t usually cause jams or widespread smudging unless the cartridge is leaking which is less likely across multiple users.

Option D (Replace the fuser):A damaged fuser could cause smudging, but this is typically after extensive use and is not the first thing to check. Fuser issues also usually present more persistent, uniform smudges.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

Choppy or unintelligible audio is typically caused by issues with the microphone, such as poor quality, hardware defects, or misconfiguration.

Why Not A (Webcam): The webcam handles video, not audio.

Why Not B (Digitizer): A digitizer relates to touchscreens, not audio.

Why Not C (Inverter): Inverters manage power for displays, not audio.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.6, audio troubleshooting​.
