The IPv6 Router Advertisement Guard feature provides support for allowing the network administrator to block or reject unwanted or rogue router advertisement guard messages that arrive at the network device platform. Router Advertisements are used by devices to announce themselves on the link. The IPv6 Router Advertisement Guard feature analyzes these router advertisements and filters out router advertisements that are sent by unauthorized devices.

Certain switch platforms can already implement some level of rogue RA filtering by the administrator configuring Access Control Lists (ACLs) that block RA ICMP messages that might be inbound on “user” ports.

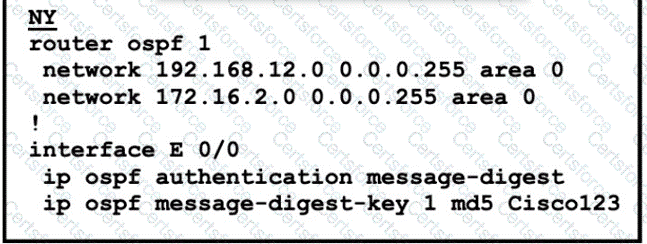

The configuration on NY router is good for OSPF authentication. So we must enable OSPF

authentication on LA router with the following commands:

router ospf 1

area 0 authentication message-digest

interface E0/0

ip ospf message-digest-key 1 md5 Cisco123

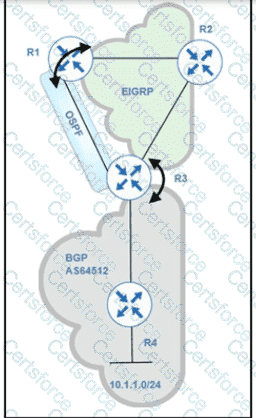

After redistribution, R3 learns about network 10.1.1.0/24 via two paths:+ Internal BGP (IBGP): advertised from R4 with AD of 200 (and metric of 0)+ OSPF: advertised from R1 with AD of 110 (O E2) (and metric of 20)Therefore R3 will choose the path with the lower AD via OSPF

But this is a looped path which is received from R3 -> R2 -> R1 -> R3. So when the advertised route from R4 is expired, the looped path is also expired soon and R3 willreinstall the main path from R4. This is the cause of intermittent connectivity.In order to solve this issue, we can lower the AD of iBGP to a value which is lower than 110 so that it is preferred over OSPF-advertised route.

Once again, Cisco changed the IOS configuration commands required for OSPFv3 configuration. The new OSPFv3 configuration uses the “ospfv3” keyword instead ofthe earlier “ipv6 router ospf” routing process command and “ipv6 ospf” interface commands.

The Open Shortest Path First version 3 (OSPFv3) address families feature enables both IPv4 and IPv6 unicast traffic to be supported. With this feature, users may havetwo processes per interface, but only one process per address family (AF).

https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/23675-27.html

DHCP options 3, 66, and 150 are used to configure Cisco IP Phones. Cisco IP Phones download their configuration from a TFTP server. When a Cisco IP Phone starts, ifit does not have both the IP address and TFTP server IP address preconfigured, it sends a request with option 150 or 66 to the DHCP server to obtain this information.+ DHCP option 150 provides the IP addresses of a list of TFTP servers.+ DHCP option 66 gives the IP address or the hostname of a single TFTP server.

R1(config)#int tunnel 1

R1(config-if) no ip split-horizon eigrp 100

router eigrp 1

!

address-family ipv4 vrf CLIENT1

network 172.16.0.0 0.0.0.255

no auto-summary

autonomous-system 1

exit-address-family

https://www.cisco.com/c/en/us/support/docs/ip/ip-routed-protocols/47121-pbr-cmds-ce.html

After redistribution, R3 learns about network 10.1.1.0/24 via two paths:

+ Internal BGP (IBGP): advertised from R4 with AD of 200 (and metric of 0)

+ OSPF: advertised from R1 with AD of 110 (O E2) (and metric of 20)

Therefore R3 will choose the path with the lower AD via OSPF

But this is a looped path which is received from R3 -> R2 -> R1 -> R3. So when the advertised route

from R4 is expired, the looped path is also expired soon and R3 will reinstall the main path from R4.

This is the cause of intermittent connectivity.

We can solve this problem by denying the 10.1.1.0/24 prefix from being redistributed into OSPF on

R1. So R3 will not learn this prefix from R1.

Or another solution is to place an OSPF distribute-list inbound on R3 to block the 10.1.1.0/24 prefix

from being advertised back to R3.
