LDP multicasts hello messages to a well-known UDP port (646) in order to discover neighbors. Once the discovery is accomplished, a TCP connection (port 646) is established and the LDP session begins. LDP keepalives ensure the health of the session. Thanks to the LDP session, LDP messages create the label mappings required for a FEC. Withdraw messages are used when FECs need to be torn down.

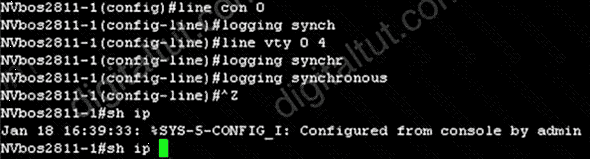

Let’s see how the “logging synchronous” command affect the typing command:

Without this command, a message may pop up and you may not know what you typed if that

message is too long. When trying to erase (backspace) your command, you realize you are

erasing the message instead.

With this command enabled, when a message pops up you will be put to a new line with your

typing command which is very

In the configuration above, the engineer has made a mistake as he was tracking 172.16.35.6 (the backup path) instead of tracking the main path (172.16.35.2). Therefore,when he shut down the main path, the track 1 was still up so traffic still went through the main path -> it failed.

To fix this issue, we just need to correct the tracking interface of the main path.

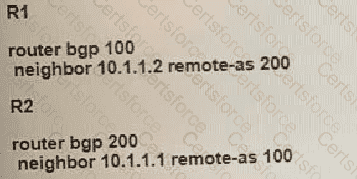

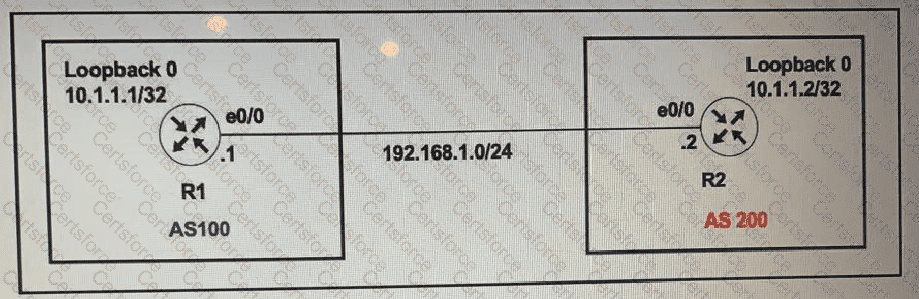

Disable-connected-check enables a directly connected eBGP neighbor to peer using a loopback address without adjusting the default TTL of 1. In disable connected check the router does not decrease the TTL of an IP packet that is destined to itself so it only counts or considers as one hop between the two loopbacks of the routers.

In the debug output, we see that the Authorization (not Authentication) failed so we need to

correct the authorization. In order to enable authorization, we must use the global command

“aaa authorization console” first.

https://www.cisco.com/c/en/us/support/docs/ip/enhanced-interior-gateway-routing-protocol-eigrp/8606-redist.html

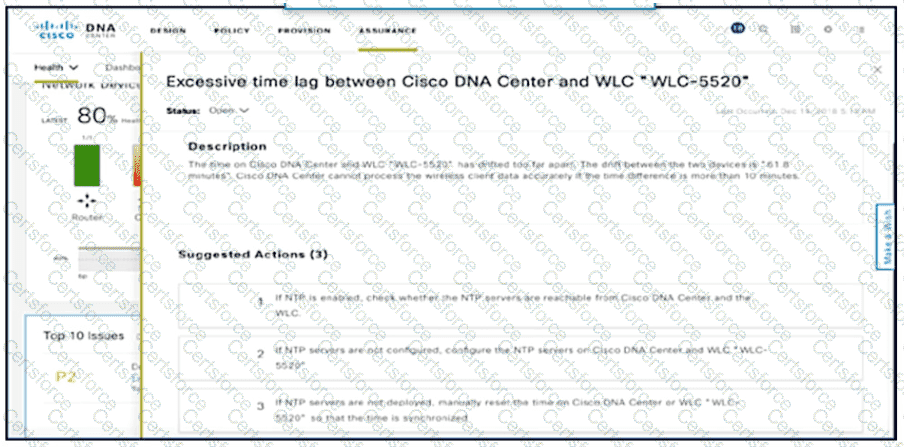

Excessive time lag between Cisco DNA Center and device: The time difference between Cisco DNA Center and the device IP Address has drifted too far apart. CiscoDNA Center cannot process the device data accurately if the time difference is more than 3 minutes.

Required Min RX Interval: This is the minimum interval, in microseconds, between received BFD Control packets that this system is capable of supporting.

https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst2960x/software/15-0_2_EX/security/configuration_guide/b_sec_152ex_2960-x_cg/b_sec_152ex_2960-x_cg_chapter_01001.html

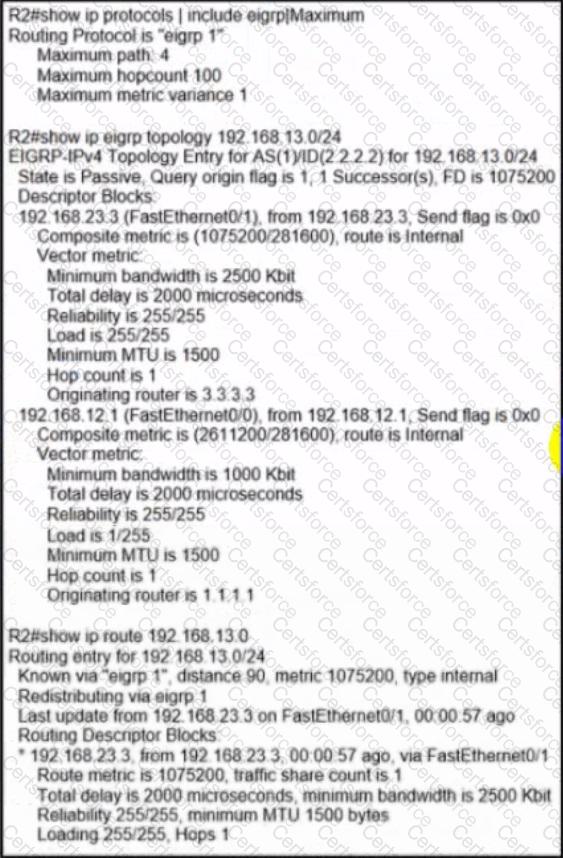

From the output of the “show ip eigrp topology …” command, we notice network 192.168.13.0/24 was learned via two routes:+ From 192.168.23.3 (R3) with FD = 1075200 and AD = 281600+ From 192.168.12.1 (R1) with FD = 2611200 and AD = 281600

From the output of the “show ip route …” command, we learned that the best (and chosen) path is via 192.168.23.3 (R3).

To use both paths (called unequal cost load balancing) with EIGRP, the second path via R1 must satisfy the feasibility condition. The feasibility condition states that, theAdvertised Distance (AD) of a route must be lower than the feasible distance of the current successor route.

In this case, the second path satisfies the feasible condition as its AD (281600) is smaller than the FD (1075200) of the best path. Therefore we can configure loadbalancing with “variance” command.

In other words, EIGRP will install all paths with metric < variance * best_metric into the local routing table, provided that it meets the feasibility condition to preventrouting loop. Therefore we can calculate the variance > metric / best_metric = 2611200 / 1075200 =2.4.

So with a variance greater than 2 (and must be an integer), we can load balance traffic to network 192.168.13.0/24.

Explanation

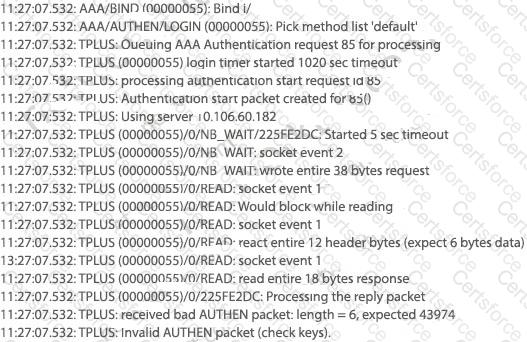

From the last line of the output, we notice that the result was “Invalid AUTHEN packet”. Therefore something went wrong with the username or password.

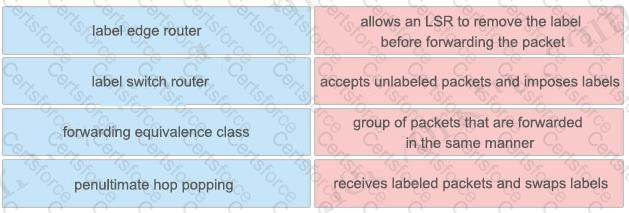

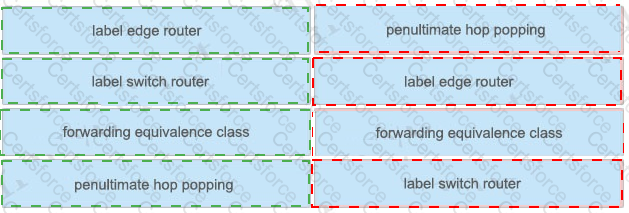

+ allows an LSR to remove the label before forwarding the packet: penultimate hop popping

+ accepts unlabeled packets and imposes labels: label edge router

+ group of packets that are forwarded in the same manner: forwarding equivalence class

+ receives labeled packets and swaps labels: label switch router

Explanation

A label edge router (LER, also known as edge LSR) is a router that operates at the edge of an MPLS network and acts as the entry and exit points for the network. LERspush an MPLS label onto an incoming packet and pop it off an outgoing packet.

A forwarding equivalence class (FEC) is a term
