Cisco 300-410 Exam Questions Free Practice Test

Viewing page 4 out of 13 pages

Viewing questions 46-60 out of questions

Questions # 46:

Which statement about route distinguishers in an MPLS network is true?

Options:

Route distinguishers allow multiple instances of a routing table to coexist within the edge router.

Route distinguishers are used for label bindings.

Route distinguishers make a unique VPNv4 address across the MPLS network.

Route distinguishers define which prefixes are imported and exported on the edge router.

Expert Solution

Questions # 47:

Which command allows traffic to load-balance in an MPLS Layer 3 VPN configuration?

Options:

multi-paths eibgp 2

maximum-paths 2

Maximum-paths ibgp 2

multi-paths 2

Expert Solution

Questions # 48:

Which attribute eliminates LFAs that belong to protected paths in situations where links in a network are connected through a common fiber?

Options:

shared risk link group-disjoint

linecard-disjoint

lowest-repair-path-metric

interface-disjoint

Expert Solution

Questions # 49:

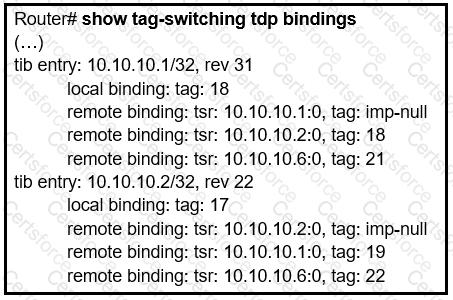

Refer to the exhibit.

Question # 49

What does the imp-null tag represent in the MPLS VPN cloud?

Options:

Pop the label

Impose the label

Include the EXP bit

Exclude the EXP bit

Expert Solution

Questions # 50:

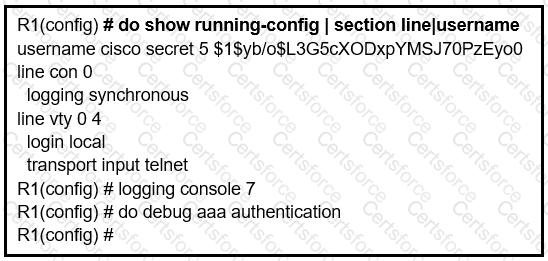

Refer to the exhibit.

Question # 50

An administrator that is connected to the console does not see debug messages when

remote users log in. Which action ensures that debug messages are displayed for remote logins?

Options:

Enter the transport input ssh configuration command.

Enter the terminal monitor exec command.

Enter the logging console debugging configuration command.

Enter the aaa new-model configuration command.

Expert Solution

Questions # 51:

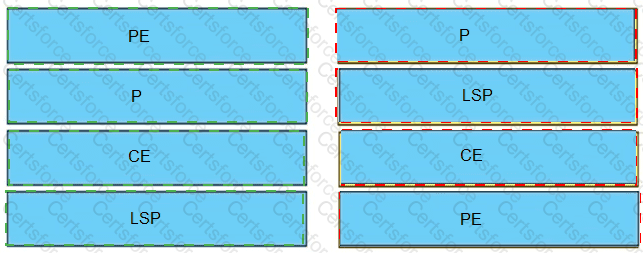

Drag and drop the MPLS terms from the left onto the correct definitions on the right.

Question # 51

Expert Solution

Questions # 52:

Refer to the exhibit.

Question # 52

An engineer is trying to configure local authentication on the console line, but the device is trying to authenticate using TACACS+. Which action produces the desired configuration?

Options:

Add the aaa authentication login default none command to the global configuration.

Replace the capital “C” with a lowercase “c” in the aaa authentication login Console local command.

Add the aaa authentication login default group tacacs+ local-case command to the globalconfiguration.

Add the login authentication Console command to the line configuration

Expert Solution

Questions # 53:

Which protocol is used in a DMVPN network to map physical IP addresses to logical IP addresses?

Options:

BGP

LLDP

EIGRP

NHRP

Expert Solution

Questions # 54:

Which statement about MPLS LDP router ID is true?

Options:

If not configured, the operational physical interface is chosen as the router ID even if a loopback is configured.

The loopback with the highest IP address is selected as the router ID.

The MPLS LDP router ID must match the IGP router ID.

The force keyword changes the router ID to the specified address without causing any impact.

Expert Solution

Questions # 55:

Refer to the exhibit.

Question # 55

Which configuration configures a policy on R1 to forward any traffic that is sourced from

the 192.168.130.0/24 network to R2?

Question # 55

Options:

Option A

Option B

Option C

Option D

Expert Solution

Questions # 56:

A network engineer is investigating a flapping (up/down) interface issue on a core switch that is synchronized to an NTP server. Log output currently does not show the time of the flap. Which command allows the logging on the switch to show the time of the flap according to the clock on the device?

Options:

service timestamps log uptime

clock summer-time mst recurring 2 Sunday mar 2:00 1 Sunday nov 2:00

service timestamps log datetime localtime show-timezone

clock calendar-valid

Expert Solution

Questions # 57:

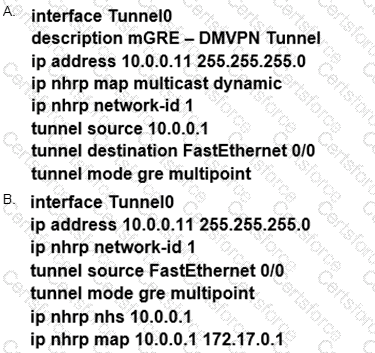

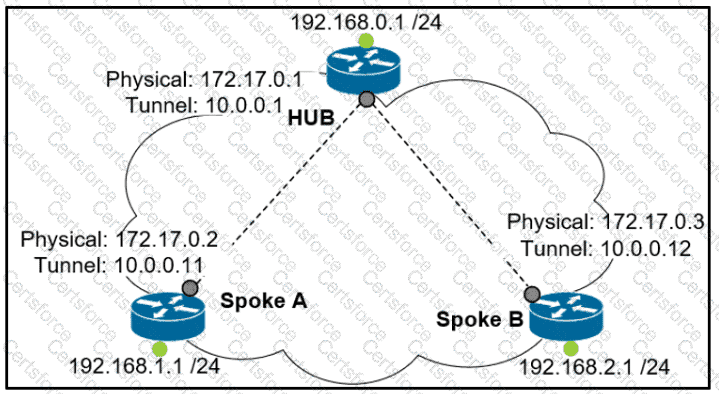

Refer to the exhibit.

Question # 57

Which interface configuration must be configured on the spoke A router to enable a dynamic DMVPN tunnel with the spoke B router?

Question # 57

Options:

Option A

Option B

Option C

Option D

Expert Solution

Questions # 58:

When provisioning a device in Cisco DNA Center, the engineer sees the error message “Cannot select the device. Not compatible with template”.

What is the reason for the error?

Options:

The template has an incorrect configuration.

The software version of the template is different from the software version of the device.

The changes to the template were not committed.

The tag that was used to filter the templates does not match the device tag.

Expert Solution

Questions # 59:

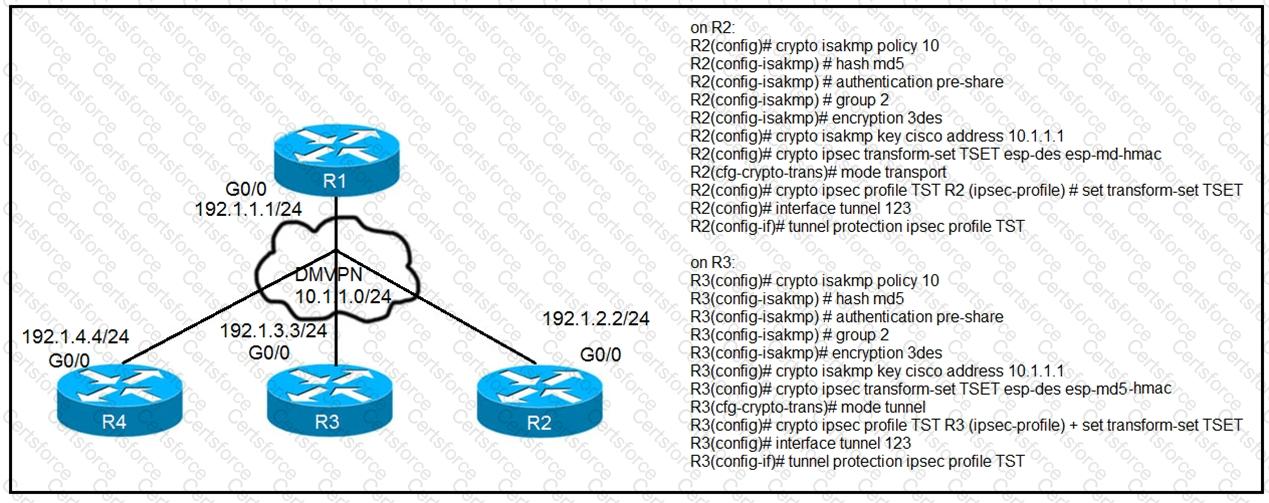

Refer to the exhibit.

Question # 59

After applying IPsec, the engineer observed that the DMVPN tunnel went down, and both

spoke-to-spoke and hub were not establishing. Which two actions resolve the issue? (Choose two.)

Options:

Configure the crypto isakmp key cisco address 192.1.1.1 on R2 and R3

Configure the crypto isakmp key cisco address 0.0.0.0 on R2 and R3.

Change the mode from mode tunnel to mode transport on R3

Change the mode from mode transport to mode tunnel on R2.

Remove the crypto isakmp key cisco address 10.1.1.1 on R2 and R3

Expert Solution

Questions # 60:

What is a prerequisite for configuring BFD?

Options:

Jumbo frame support must be configured on the router that is using BFD.

All routers in the path between two BFD endpoints must have BFD enabled.

Cisco Express Forwarding must be enabled on all participating BFD endpoints.

To use BFD with BGP, the timers 3 9 command must first be configured in the BGP routing process.

Expert Solution

Viewing page 4 out of 13 pages

Viewing questions 46-60 out of questions
