Cisco 300-410 Exam Questions Free Practice Test

Viewing page 3 out of 13 pages

Viewing questions 31-45 out of questions

Questions # 31:

Users were moved from the local DHCP server to the remote corporate DHCP server. After the move,

none of the users were able to use the network.

Which two issues will prevent this setup from working properly? (Choose two)

Options:

Auto-QoS is blocking DHCP traffic.

The DHCP server IP address configuration is missing locally

802.1X is blocking DHCP traffic

The broadcast domain is too large for proper DHCP propagation

The route to the new DHCP server is missing

Expert Solution

Questions # 32:

What is a limitation of IPv6 RA Guard?

Options:

It is not supported in hardware when TCAM is programmed

It does not offer protection in environments where IPv6 traffic is tunneled.

It cannot be configured on a switch port interface in the ingress direction

Packets that are dropped by IPv6 RA Guard cannot be spanned

Expert Solution

Questions # 33:

Which component of MPLS VPNs is used to extend the IP address so that an engineer is able to

identify to which VPN it belongs?

Options:

VPNv4 address family

LDP

Expert Solution

Questions # 34:

What is a role of route distinguishers in an MPLS network?

Options:

Route distinguishers define which prefixes are imported and exported on the edge router

Route distinguishers allow multiple instances of a routing table to coexist within the edge router.

Route distinguishers are used for label bindings.

Route distinguishers make a unique VPNv4 address across the MPLS network

Expert Solution

Questions # 35:

Which protocol does MPLS use to support traffic engineering?

Options:

Tag Distribution Protocol (TDP)

Resource Reservation Protocol (RSVP)

Border Gateway Protocol (BGP)

Label Distribution Protocol (LDP)

Expert Solution

Questions # 36:

Which is statement about IPv6 inspection is true?

Options:

It teams and secures bindings for stateless autoconfiguration addresses in Layer 3 neighbor tables

It learns and secures bindings for stateful autoconfiguration addresses in Layer 3 neighbor tables

It teams and secures bindings for stateful autoconfiguration addresses in Layer 2 neighbor tables

It team and secures binding for stateless autoconfiguration addresses in Layer 2 neighbor tables.

Expert Solution

Questions # 37:

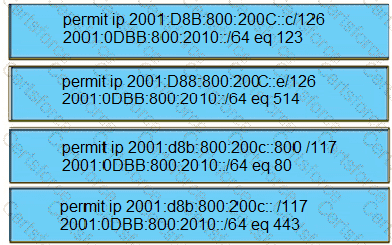

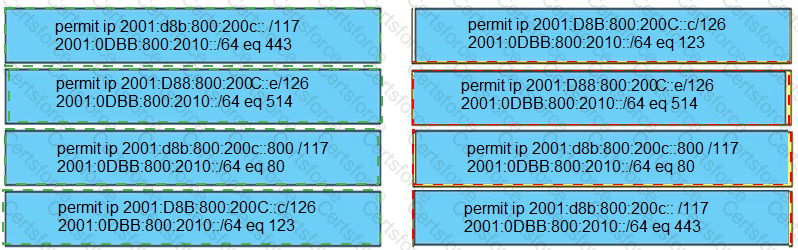

Drag and drop the addresses from the left onto the correct IPv6 filter purposes on the right.

Question # 37

Expert Solution

Questions # 38:

What is the role of a route distinguisher via a VRF-Lite setup implementation?

Options:

It extends the IP address to identify which VFP instance it belongs to.

It manages the import and export of routes between two or more VRF instances

It enables multicast distribution for VRF-Lite setups to enhance EGP routing protocol capabilities

It enables multicast distribution for VRF-Lite setups to enhance IGP routing protocol capabilities

Expert Solution

Questions # 39:

Refer to the exhibit.

Question # 39

An engineer is monitoring reachability of the configured default routes to ISP1 and ISP2. The default route from ISP1 is preferred if available. How is this issue resolved?

Options:

Use the icmp-echo command to track both default routes

Use the same AD for both default routes

Start IP SLA by matching numbers for track and ip sla commands

Start IP SLA by defining frequency and scheduling it

Expert Solution

Questions # 40:

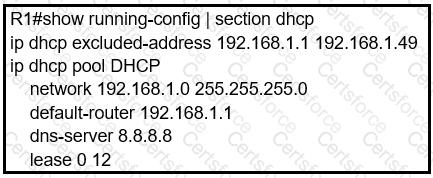

Refer to the exhibit.

Question # 40

Users report that IP addresses cannot be acquired from the DHCP server. The DHCP

server is configured as shown. About 300 total nonconcurrent users are using this DHCP server, but none of them are active for more than two hours per day. Which action fixes the issue within the current resources?

Options:

Modify the subnet mask to the network 192.168.1.0 255.255.254.0 command in the DHCP pool

Configure the DHCP lease time to a smaller value

Configure the DHCP lease time to a bigger value

Add the network 192.168.2.0 255.255.255.0 command to the DHCP pool

Expert Solution

Questions # 41:

Which configuration enabled the VRF that is labeled “Inet” on FastEthernet0/0?

Options:

R1(config)# ip vrf InetR1(config-vrf)#interface FastEthernet0/0R1(config-if)#ip vrf forwarding Inet

R1(config)#router ospf 1 vrf InetR1(config-router)#ip vrf forwarding FastEthernet0/0

R1(config)#ip vrf Inet FastEthernet0/0

R1(config)# ip vrf InetR1(config-vrf)#ip vrf FastEthernet0/0

Expert Solution

Questions # 42:

While troubleshooting connectivity issues to a router, these details are noticed:

Standard pings to all router interfaces, including loopbacks, are successful.

Data traffic is unaffected.

SNMP connectivity is intermittent.

SSH is either slow or disconnects frequently.

Which command must be configured first to troubleshoot this issue?

Options:

show policy-map control-plane

show policy-map

show interface | inc drop

show ip route

Expert Solution

Questions # 43:

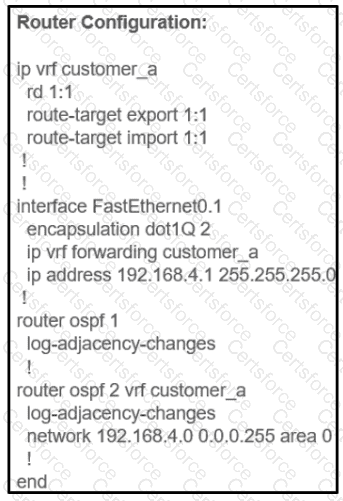

Refer to the exhibit.

Question # 43

The network administrator configured VRF lite for customer A. The technician at the remote site misconfigured VRF on the router. Which configuration will resolve connectivity for both sites of customer_a?

Question # 43

Options:

Option A

Option B

Option C

Option D

Expert Solution

Questions # 44:

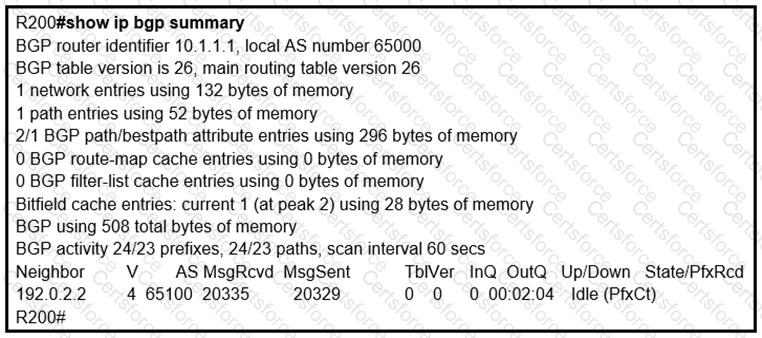

Refer to the exhibit.

Question # 44

In which circumstance does the BGP neighbor remain in the idle condition?

Options:

if prefixes are not received from the BGP peer

if prefixes reach the maximum limit

if a prefix list is applied on the inbound direction

if prefixes exceed the maximum limit

Expert Solution

Questions # 45:

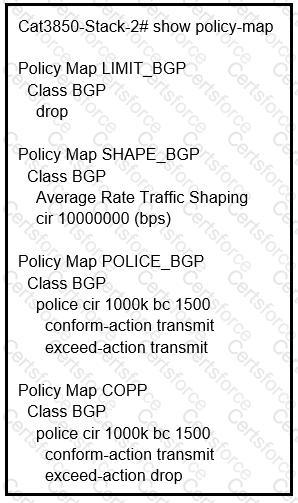

Refer to the exhibit.

Question # 45

Which control plane policy limits BGP traffic that is destined to the CPU to 1 Mbps and

ignores BGP traffic that is sent at higher rate?

Options:

policy-map SHAPE_BGP

policy-map LIMIT_BGP

policy-map POLICE_BGP

policy-map COPP

Expert Solution

Viewing page 3 out of 13 pages

Viewing questions 31-45 out of questions
