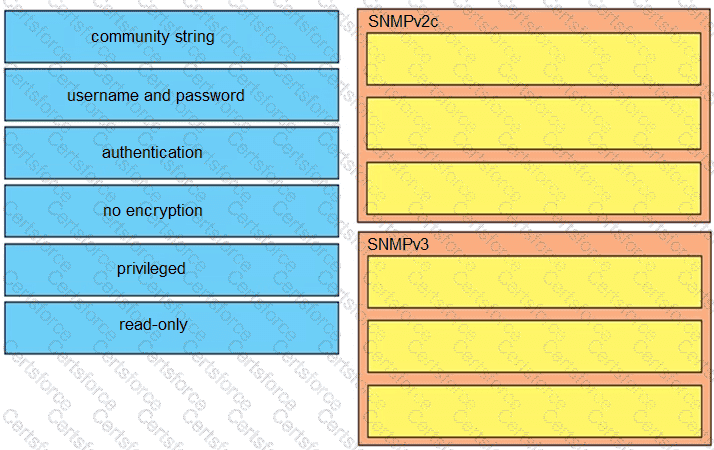

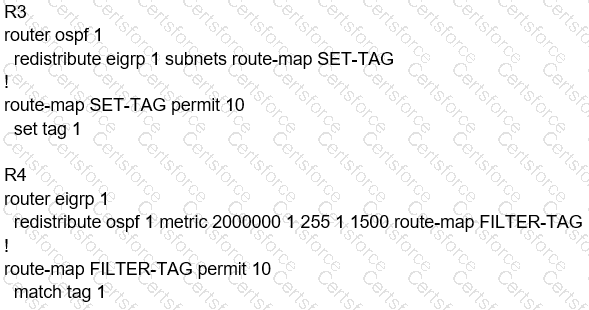

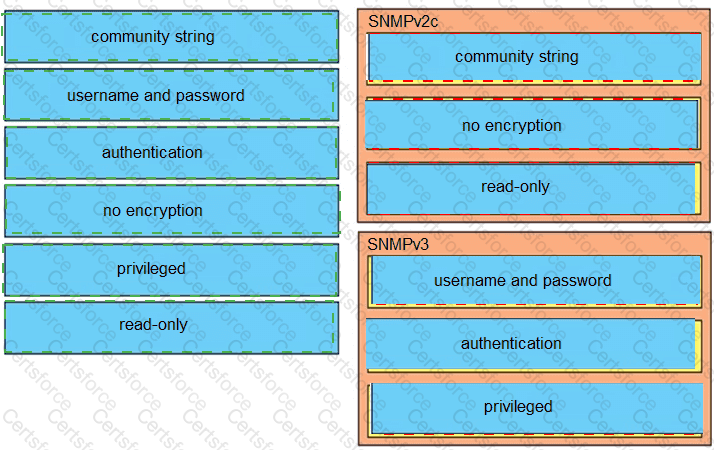

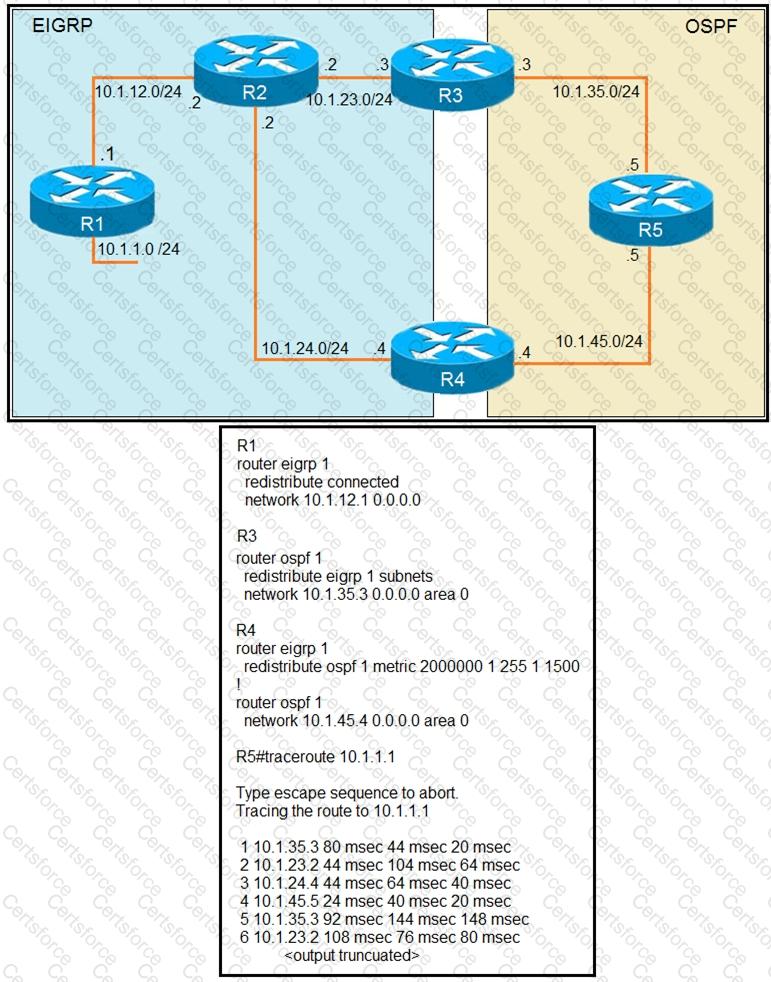

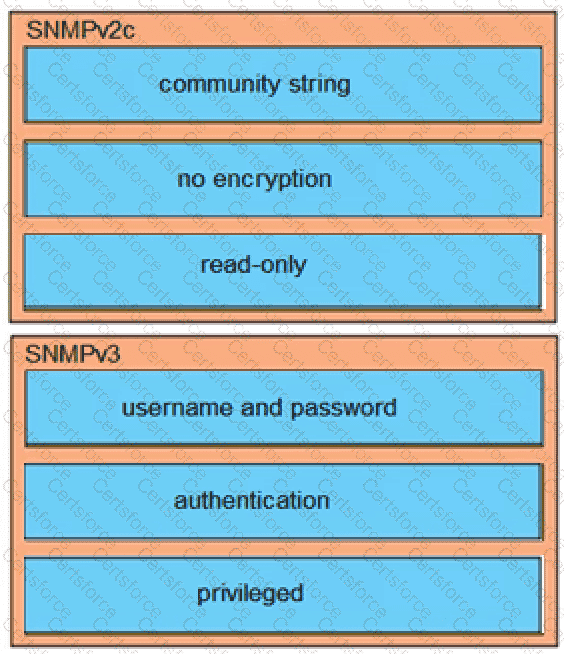

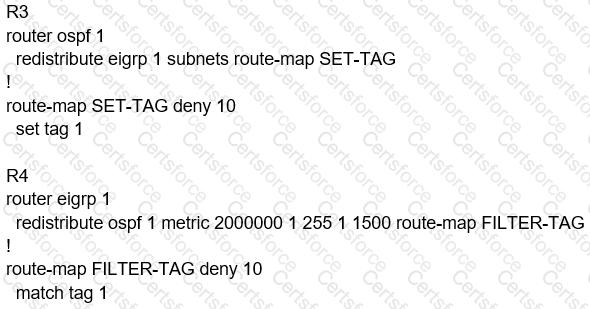

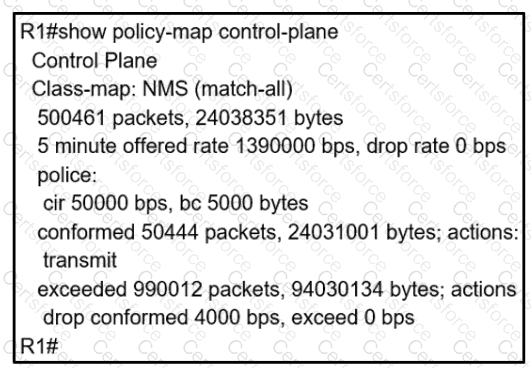

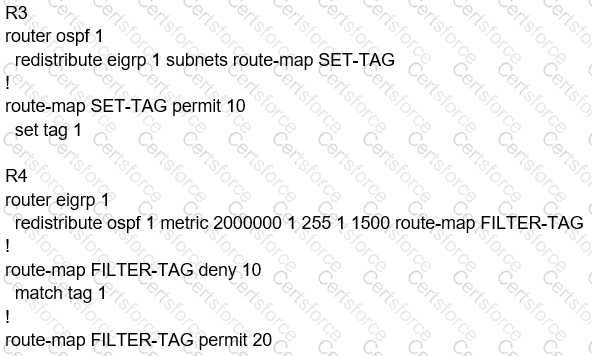

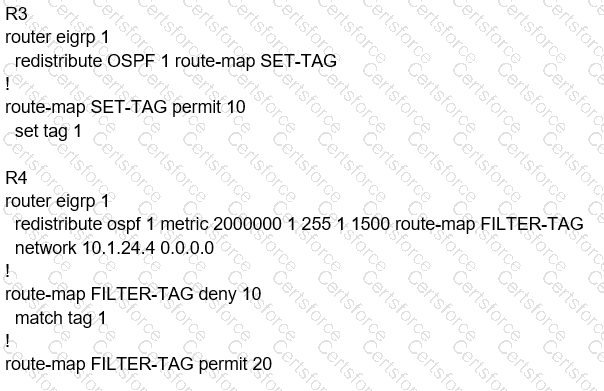

The reason for the loop is that R2 is forwarding the packets destined to 10.1.1.1 to R4, instead of R1. This is because in the redistribute OSPF statement, BW metric has a higher value and delay has a value of 1. So, R2 chooses R4 over R1 for 10.1.1.0/24 subnet causing a loop. Now, R5 learns 10.1.1.0/24 from R3 and advertises the same route to R4, that R4 redistributes back in EIGRP. If R3 sets a tag of 1 while redistributing EIGRP in OSPF, and R4 denies all the OSPF routes with tag 1 while redistributing, it will not advertise 10.1.1.0/24 back into EIGRP. Hence, the loop will be broken.

By default BGP advertises all prefixes to external BGP neighbors. This means that if you are

multi-homed (connected to two or more ISPs) then you might become a transit AS. For example,

ISP 2 in AS 200 can send traffic to your router in AS 100 to reach ISP 3 in AS 300 because you

advertised prefixes in ISP 3 to ISP 2.

This is what will be seen in the BGP routing table of ISP1:

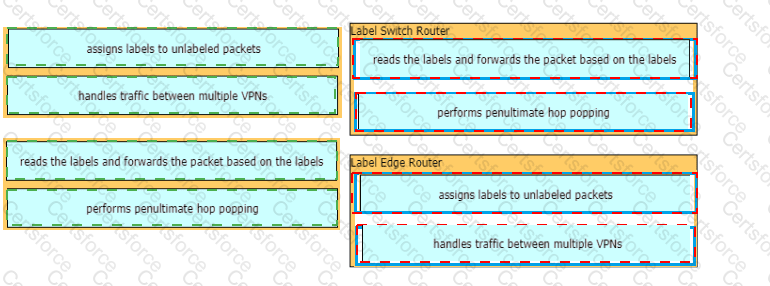

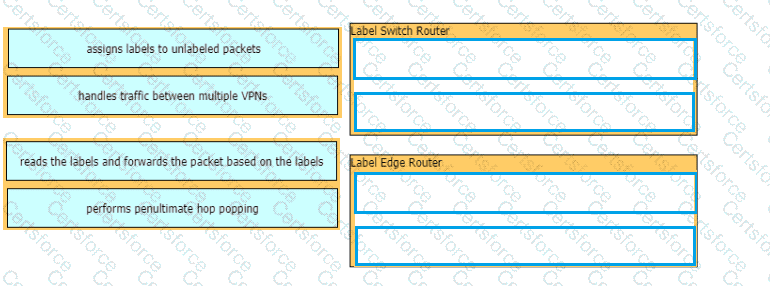

Label Switch Router 1. Reads labels and forwards the packet based on the based on the label.

2. Performs PHP

Label Edge Router: 1 Assigns labels and unlabeled packets.

2. Handles traffic between multiple VPNs

Command Default

Accounting port: 1813

Authentication port: 1812

Accounting: enabled

Authentication: enabled

Retransmission count: 1

Idle-time: 0

Server monitoring: disabled

Timeout: 5 seconds

Test username: test

Test password: test

Graphical user interface, application Description automatically generated

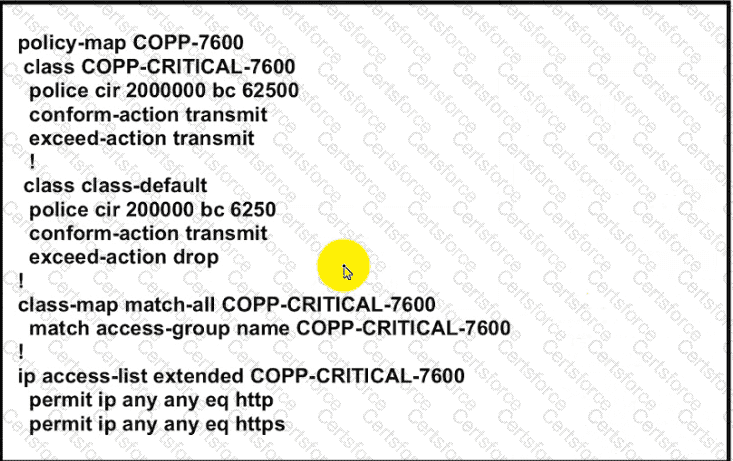

The policy-map COPP-7600 only rate-limit HTTP & HTTPS traffic (based on the ACL

conditions) so any BGP packets will be processed in the class “class-default”, which drops

exceeded BGP packets. Therefore we have two ways to solve this problem:

+ Add BGP to the ACL with the statement “permit tcp any any eq bgp”

+ Configure higher value for CIR in default class as 2Mbps is too low for web traffic (http &

https)

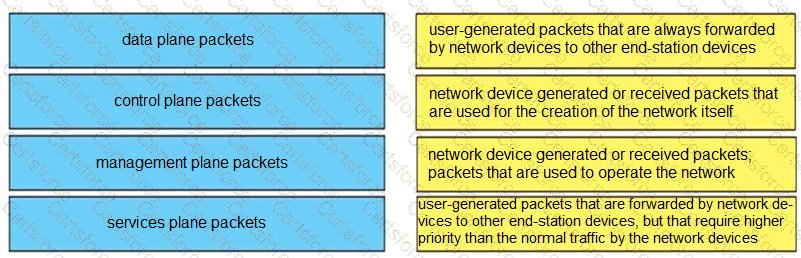

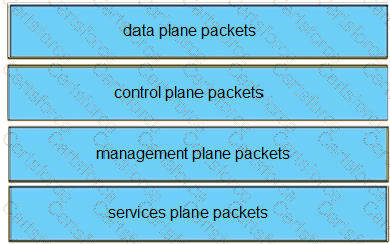

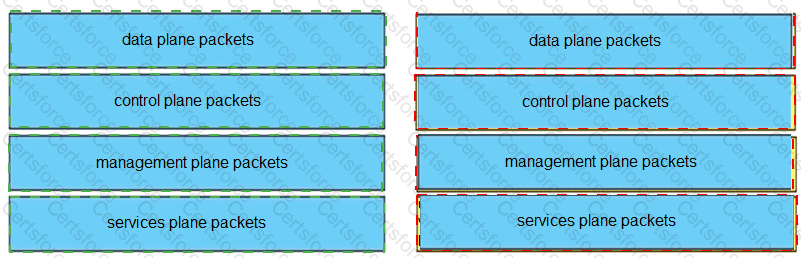

Unlike legacy network technologies such as ISDN, Frame Relay, and ATM that defined separate data and control channels, IP carries all packets within a single pipe. Thus, IP network devices such as routers and switches must be able to distinguish between data plane, control plane, and management plane packets to treat each packet appropriately.From an IP traffic plane perspective, packets may be divided into four distinct, logical groups:1. Data plane packets – End-station, user-generated packets that are always forwarded by network devices to other end-station devices. From the perspective of the network device, data plane packets always have a transit destination IP address and can be handled by normal, destination IP address-based forwarding processes.2. Control plane packets – Network device generated or received packets that are used for the creation and operation of the network itself. From the perspective of the network device, control plane packets always have a receive destination IP address and are handled by the CPU in the network device route processor. Examples include protocols such as ARP, BGP, OSPF, and other protocols that glue the network together.3. Management plane packets – Network device generated or received packets, or management station generated or received packets that are used to manage the network. From the perspective of the network device, management plane packets always have a receive destination IP address and are handled by the CPU in the network device route processor. Examples include protocols such as Telnet,Secure Shell (SSH), TFTP, SNMP, FTP, NTP, and other protocols used to manage the device and/or network.4. Services plane packets – A special case of data plane packets, services plane packets are also user-generated packets that are also forwarded by network devices to other end-station devices, but that require high-touch handling by the network device (above and beyond normal, destination IP address-based forwarding) to forward the packet. Examples of high-touch handling include such functions as GRE encapsulation, QoS, MPLS VPNs, and SSL/IPsec encryption/decryption, etc. From the perspective of the network device, services plane packets may have a transit destination IP address, or may have a receive destination IP address (for example, in the case of a VPN tunnel endpoint).
