Pass the Nokia Nokia Certified Data Center Fabric Professional 4A0-D03 Questions and answers with CertsForce

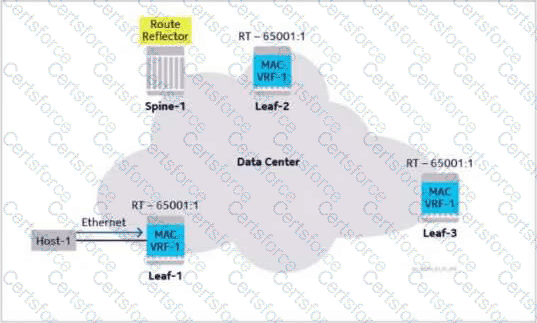

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

The route target is the extended community consistently associated with EVPN updates to control route import and export between EVPN instances. In SR Linux EVPN services, route targets determine which MAC-VRF or IP-VRF should import a received EVPN route. This is essential for tenant separation because multiple tenants may use overlapping MAC or IP address spaces while sharing the same physical fabric and BGP control plane. The AFI/SAFI is not an extended community; it identifies the BGP address family and subsequent address family used to carry EVPN NLRI. The EVPN route type is also not an extended community; it is part of the EVPN NLRI structure and identifies whether the route is RT-1, RT-2, RT-3, RT-4, RT-5, and so on. The VXLAN network ID may be carried or inferred through service and encapsulation-specific attributes, but it is not universally present as the required extended community in every EVPN update. The route target is the mandatory policy element that enables receiving PEs to place EVPN routes into the correct service context. Reference: EVPN extended communities, route-target import/export policy, tenant service identification.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

This setup represents single-active Layer 2 EVPN multi-homing. In single-active mode, the Ethernet Segment is configured so that only one PE acts as the active forwarding node for a given service, while the other remains standby. The ports connecting to the host are associated with ES-1 so the EVPN control plane can perform Ethernet Segment discovery, DF election, and standby behavior. If Leaf1 is the active/DF node for the service, all traffic to and from the host flows through Leaf1 until a failure or DF transition occurs. Option D is false because a host LAG is not required for this single-active topology. A LAG is typically required for all-active L2 multi-homing, where the host must treat multiple physical links toward different leaf routers as one logical bundle. In single-active operation, the host can be connected through separate physical links or active/standby access behavior without requiring LACP bundling. The EVPN PEs enforce the active path selection through DF and ES state rather than relying on host-side LAG hashing. Reference: single-active EVPN multi-homing, Ethernet Segment port association, DF-controlled active forwarding.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics] :

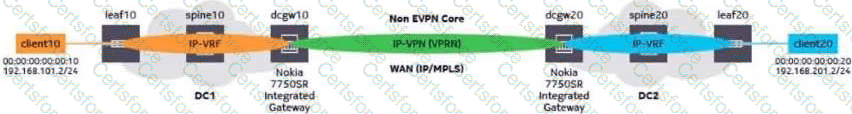

In an integrated gateway-based data center interconnect design, the gateway must interwork between the data center EVPN/VXLAN domain and the WAN VPN transport domain. For Layer 3 VPN connectivity on a Nokia 7750 SR integrated gateway, the base BGP instance must support the relevant VPN address families, such as VPN-IPv4 and EVPN, because the gateway participates in control-plane exchange between the data center and WAN sides. The VPRN must also be associated with the WAN transport, normally through MPLS tunnel binding, and the VRF target must match the corresponding VPRN on the remote gateway so that VPN routes are imported and exported correctly. A routed VXLAN interface, however, is an SR Linux IP-VRF/VXLAN construct used for symmetric L3 EVPN forwarding inside a VXLAN-based data center fabric. In this question, dcgw10 is acting as the integrated WAN gateway for L3VPN connectivity, so a routed VXLAN interface is not the required configuration item on the VPRN instance. Reference: integrated gateway DCI, VPRN over MPLS, EVPN-to-VPN interworking.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Aliasing is an EVPN multi-homing mechanism that allows remote PEs to send traffic to any eligible PE attached to the same Ethernet Segment, even if a specific MAC address was learned and advertised by only one of those PEs. This avoids a traffic bottleneck and enables load-sharing in all-active multi-homing designs. The route type used to implement this behavior is the Ethernet Auto-Discovery per EVI route, commonly referred to as AD per EVI. This route tells remote PEs that a given PE has reachability to a specific Ethernet Segment for a specific EVPN instance. When remote PEs receive these advertisements from multiple PEs for the same ESI and EVI, they can treat those PEs as valid next-hops for traffic toward that Ethernet Segment. Ethernet Segment routes support ES discovery and DF election, while IP/MAC routes advertise host MAC and optionally IP binding information. AD per ES routes are used for broader Ethernet Segment-level procedures, but aliasing at the service level relies on AD per EVI reachability. Reference: EVPN route type 1, AD per EVI, aliasing in all-active multi-homing.

================

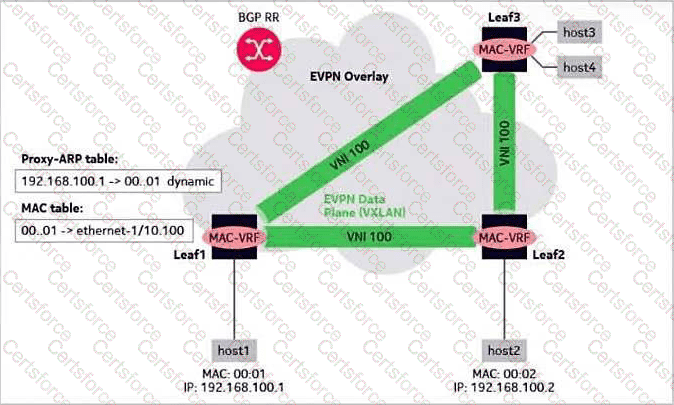

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In a distributed Layer 2 EVPN service, the local leaf learns host reachability from frames received on access interfaces. When a host replies to an ARP request, the local leaf can learn the source MAC address from the Ethernet frame and install it in the MAC forwarding table. If the ARP payload contains an IP/MAC binding, the PE can also use that information for proxy ARP and EVPN MAC/IP advertisement. The local PE then advertises the learned endpoint reachability using EVPN route type 2 to its BGP EVPN peers or route reflector. The false statement is B. The ARP reply is not replicated to every leaf in the flooding list as a normal operation. EVPN's purpose is to reduce unnecessary flooding by distributing endpoint reachability through the control plane. BUM replication is used for broadcast, unknown unicast, and multicast traffic when needed, but a learned ARP reply does not require blind replication to all remote leaves. Instead, the leaf advertises the learned MAC/IP state through MP-BGP EVPN, allowing remote PEs to install accurate forwarding and proxy ARP state. Reference: distributed L2 EVPN operation, ARP learning, EVPN RT-2 advertisement.

================

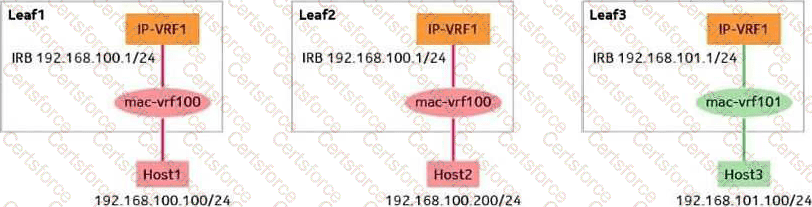

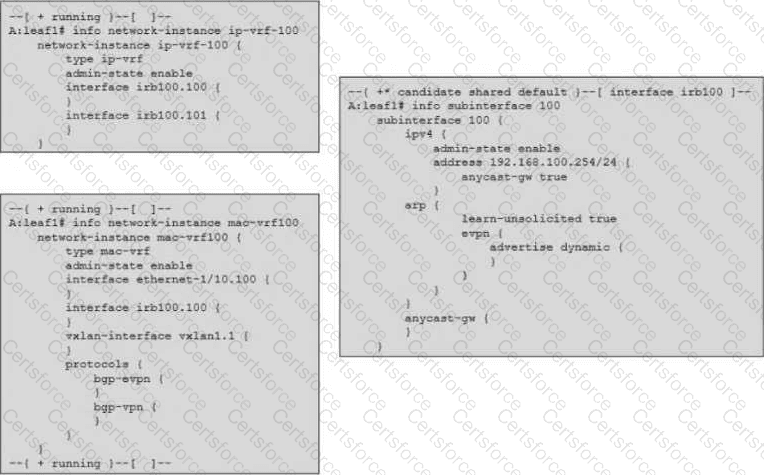

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

An anycast-gateway IRB allows multiple PEs to present the same default-gateway IP address to hosts in the same subnet. This is the mechanism that enables distributed gateway behavior in EVPN fabrics. The same anycast gateway IP may be configured on equivalent IRB subinterfaces across remote PEs participating in the same IP-VRF, allowing hosts to use the nearest leaf as their default gateway without changing their gateway address. SR Linux also associates gateway MAC information with the IRB, including virtual gateway MAC behavior used inside the MAC-VRF forwarding table. Option C is false because the anycast gateway IP is not treated as a normal unique host route that appears in the IP-VRF route table alongside the subnet prefix. The subnet route is installed for the connected network, but the shared anycast gateway address is a gateway function, not a separately advertised host endpoint that should appear as ordinary routed host reachability. Treating the anycast IP as a regular host route would undermine the distributed gateway model and create ambiguous ownership across PEs. Reference: IRB anycast gateway, MAC-VRF/IP-VRF interconnection, distributed default-gateway operation.

================

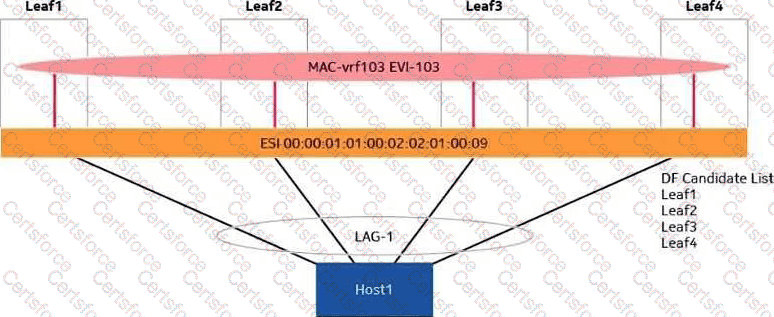

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Designated Forwarder election determines which PE forwards BUM traffic from the EVPN overlay toward a multi-homed Ethernet Segment for a given service. In this scenario, all leaf routers share the same DF candidate list for mac-vrf103, but the election configuration is not identical. Leaf1 and Leaf2 use the default algorithm, while Leaf3 and Leaf4 use the preference-based algorithm. Under preference-based DF election, the candidate with the highest configured preference is selected over lower-preference candidates, assuming the candidate list is valid and consistent. The question states that Leaf3 has the higher preference value compared with Leaf4. Therefore, Leaf3 becomes the DF for mac-vrf103. This is the correct outcome because the preference-based election explicitly overrides simple default behavior by assigning operator-defined priority to a PE. In production designs, this is useful when the operator wants deterministic forwarding placement, maintenance control, or service-specific primary-path selection rather than relying only on the default modulo-based DF selection process. Reference: EVPN DF election, preference-based algorithm, MAC-VRF service forwarding.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In SR Linux BGP configuration, parameters defined at a more specific hierarchy level can override broader protocol-level settings. Therefore, if a `local-as` value is configured within the BGP group used for EVPN MP-BGP route-reflector sessions, that value overrides the AS number configured directly under the BGP protocol for that group's sessions. Option A is correct. Option B is false because the cluster ID is configured on the route reflector, not on every participating client. The cluster ID identifies the RR cluster and helps prevent route-reflection loops. Option C is false because redundant route reflectors normally operate in parallel rather than as strict primary/backup devices; clients can peer with both for resilience. Option D is misleading because EVPN route reflectors are used to avoid a full mesh of overlay MP-BGP EVPN sessions between leaves, not to replace ordinary underlay eBGP leaf-spine routing sessions. In a clean fabric design, the underlay provides IP reachability, while the EVPN overlay uses MP-BGP sessions, often via route reflectors, to distribute tenant reachability. Reference: SR Linux BGP hierarchy, EVPN route reflector sessions, local-AS override, cluster ID behavior.

================

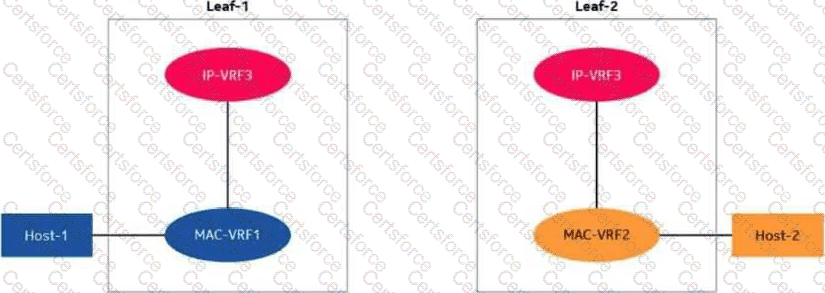

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In interface-less symmetric L3 EVPN routing, hosts in a subnet may be attached to different leaf routers, while inter-subnet forwarding is performed through the IP-VRF using VXLAN routed interfaces. The ingress and egress PEs both participate in L3 forwarding, and the routed VXLAN interface provides the per-IP-VRF overlay data-plane construct needed for symmetric routing. The IRB interfaces on the local MAC-VRFs must advertise learned local host routes so that remote PEs have the necessary host reachability information. The MAC-VRFs also need the appropriate EVPN control-plane configuration so host MAC/IP information can be exchanged, while the IP-VRF participates in L3 VPN-style route exchange for routed reachability. Option A is false because anycast gateway is not optional in this design for Leaf1 and Leaf2. Anycast gateway allows the same default-gateway IP and virtual MAC behavior to exist consistently on multiple leaves serving the same subnet. Without it, host default-gateway behavior would be inconsistent and traffic mobility across the fabric would break expected distributed gateway operation. Reference: interface-less symmetric routing, IRB, anycast gateway, routed VXLAN interface.

================

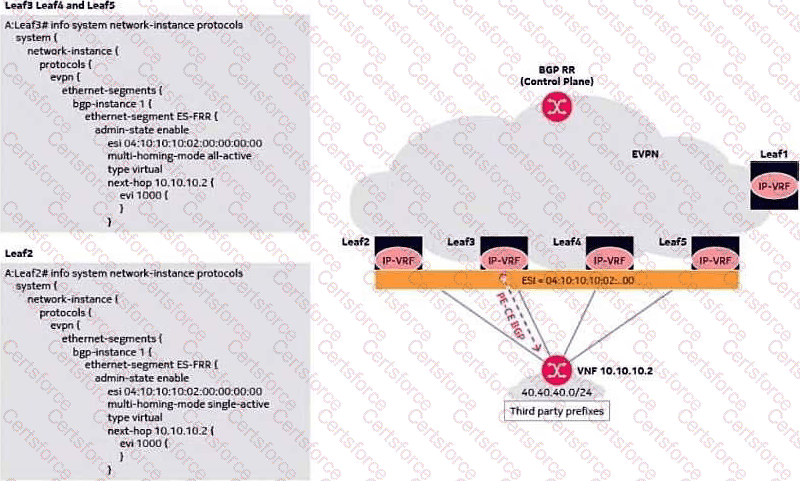

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Layer 3 multi-homing is fundamentally about redundant or load-balanced L3 reachability for external prefixes, not about Layer 2 broadcast-domain flooding toward a host. In single-active L3 multi-homing, DF election determines which attached leaf is active for the Ethernet Segment, and only that leaf advertises or forwards for the attached customer route as required by the redundancy model. In all-active L3 multi-homing, multiple leaf routers can be valid next-hops for the same learned third-party prefix, and remote PEs may load-balance toward them based on the Ethernet Segment association. Learned external prefixes are carried as EVPN route type 5 IP Prefix routes, which is the correct route type for L3 reachability. The Ethernet Segment is associated with the next-hop for those prefixes so that remote PEs understand the multi-homed nature of the path. Option B is false because BUM forwarding is a Layer 2 EVPN concern. In an all-active L3 multi-homing scenario, DF election is not used to identify a BUM-forwarding leaf for host traffic in the same way it is used in Layer 2 multi-homing services. Reference: L3 EVPN multi-homing, RT-5 prefix routes, ES next-hop behavior.

================
