Step-by-Step Guide: Seizing/Transferring the Schema Master Role to DC2

✅ Step 1: Log in to DC2

Use an account that is a member of the Schema Admins, Enterprise Admins, and Domain Admins groups.

✅ Step 2: Register the Schema Snap-in

The Schema snap-in is not loaded by default.

Open Command Prompt as Administrator.

Type the following command to register the schema management DLL:

powershell

Copy

regsvr32 schmmgmt.dll

✅ Step 3: Open MMC (Microsoft Management Console)

Press Windows + R, type mmc, and hit Enter.

In MMC, go to File > Add/Remove Snap-in.

Select Active Directory Schema, then click Add > OK.

✅ Step 4: Connect to DC2

In the Active Directory Schema console, right-click Active Directory Schema and select Change Active Directory Domain Controller.

In the dialog box, select DC2 and click OK.

This will connect the console to DC2.

✅ Step 5: Transfer the Schema Master Role

Right-click Active Directory Schema again and select Operations Master.

In the Change Schema Master dialog box, confirm that DC2 is shown as the target.

Click the Change button to transfer the Schema Master role to DC2.

Click Yes when prompted to confirm the transfer.

✅ Step 6: Verify the Transfer

In the same dialog box, ensure that DC2 is now listed as the Schema Master.

Optionally, run the following command in PowerShell to verify:

netdom query fsmo

The Schema Master should now be DC2.

Objective:

Configure the DHCP server SRV1 to lease IP addresses only to computers with MAC addresses starting with AABB in a specific range.

Step-by-Step Guide

✅ Step 1: Open DHCP Management Console

Log in to SRV1 with Domain Admin or DHCP Admin privileges.

Open DHCP Manager:

Press Windows + R, type dhcpmgmt.msc, and press Enter.

✅ Step 2: Create a New DHCP Scope

In the DHCP console, expand SRV1.

Right-click IPv4 and select New Scope.

The New Scope Wizard opens.

✅ Step 3: Configure the Scope

Name:

Enter a name (e.g., MAC-Filtered Scope).

Click Next.

IP Address Range:

Start IP: 192.168.1.190

End IP: 192.168.1.200

Subnet mask: as appropriate (e.g., 255.255.255.0).

Click Next.

Add Exclusions:

None needed unless you want to reserve certain addresses.

Click Next.

Lease Duration:

Set as needed, default is usually fine.

Click Next.

Configure DHCP Options:

You can skip or configure as needed (gateway, DNS, etc.).

Click Next.

Activate Scope:

Click Yes to activate it.

✅ Step 4: Configure MAC Address Filtering (Allow List)

In the DHCP console, expand the scope you created.

Right-click Filters under the scope and choose New Filter.

Enter the MAC address pattern to match devices with MAC addresses starting with AABB:

MAC Address: AABB*

Description: e.g., Allow devices starting with AABB.

Click Add.

✅ Step 5: Enable Allow Filters

Right-click Filters under the scope and select Enable.

Ensure that only devices matching the AABB pattern will receive leases.

✅ Step 6: Test and Verify

Use a test client with a MAC address starting with AABB to ensure it receives an IP address in the 192.168.1.190–192.168.1.200 range.

Use ipconfig /renew on the client, or check the DHCP leases in the Address Leases section.

The Administering Windows Server Hybrid Core Infrastructure content notes that Microsoft Entra Connect cloud sync uses lightweight agents and supports synchronizing specific OUs from multiple forests into a single tenant. The guide highlights that cloud sync “is designed for multi-forest or cross-organization scenarios and allows scoping to selected OUs and groups,” enabling granular onboarding of just the identities you need. The requirement says “the users in the Marketing OU (in Fabrikam’s forest) must have access to storage1.” Granting access to Azure Files using Entra-based authorization requires that those users exist in the same Entra tenant. Cloud sync enables importing only the Fabrikam Marketing OU into A. Datum’s tenant without establishing full trust for all users. Azure AD Connect in active or staging mode would target the A. Datum forest and isn’t intended for selectively bringing in a separate partner forest OU; AD FS is a federation solution and does not create tenant objects for ACLs on Azure resources like Azure Files. Therefore, implement Microsoft Entra Connect cloud sync and scope it to the Marketing OU to meet the requirement.

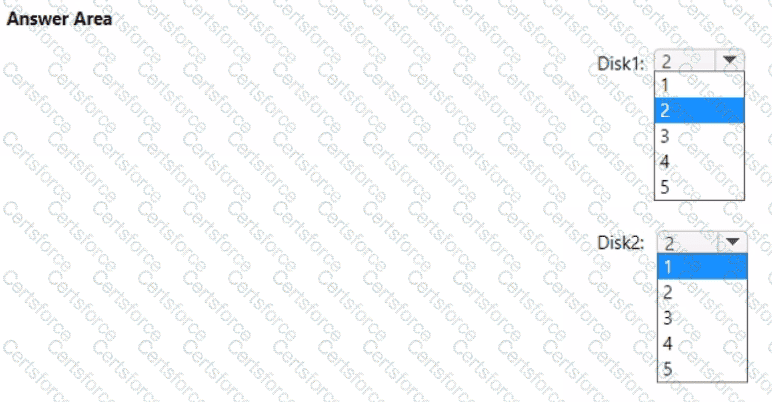

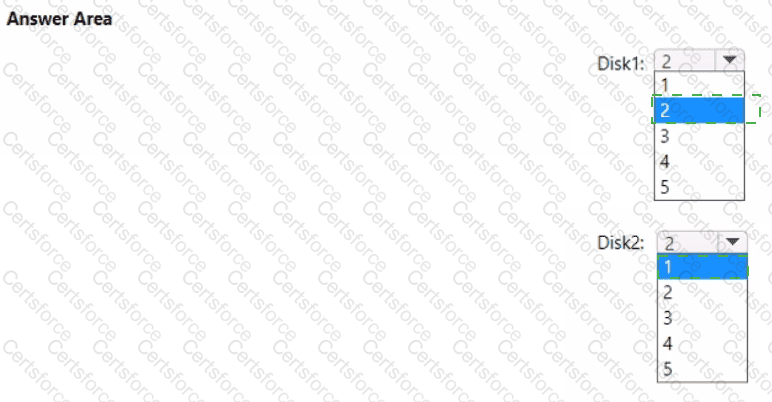

Disk1 (three-way mirror): 2 disks; Disk2 (parity): 1 disk

\In the Administering Windows Server Hybrid Core Infrastructure materials on Storage Spaces resiliency, Microsoft describes how each resiliency type determines simultaneous disk-failure tolerance. The guide explains that mirror spaces keep multiple copies of data: “Two-way mirror writes two copies and can sustain a single disk failure; three-way mirror writes three copies and can sustain the loss of any two disks without data loss.” It also differentiates parity spaces, which stripe data with parity information: “Parity provides capacity efficiency comparable to RAID-5 and tolerates a single disk failure (use dual parity to withstand two failures).”

Applying these to SSPace1:

Disk1 uses a three-way mirror across eight physical disks. By definition, a three-way mirror survives two concurrent disk failures and remains online, satisfying the “always available” requirement.

Disk2 is configured as parity across twelve physical disks. Standard parity (single parity) is equivalent to RAID-5 and survives one disk failure; only dual parity would allow two, but the configuration provided specifies parity (not dual parity).

Therefore, the maximum simultaneous physical disk failures while maintaining availability are 2 for Disk1 and 1 for Disk2.

The AZ-800 materials explain that enabling Microsoft Entra (Azure AD) sign-in to Windows Server running as an Azure VM is done by deploying the Azure AD Login for Windows VM extension. The study guide states that “for Azure VMs, Microsoft Entra sign-in is enabled by installing the AADLoginForWindows extension; once installed, Entra users and groups granted ‘Virtual Machine User/Login’ roles can sign in using Entra credentials.” The required operation is performed from Azure PowerShell with Set-AzVMExtension, providing the publisher Microsoft.Azure.ActiveDirectory, type AADLoginForWindows, and the target VM. Other options are not applicable: Set-AzVM changes VM properties but does not install extensions; New-ADComputer and Add-ADComputerServiceAccount are AD DS cmdlets unrelated to enabling Entra login on an Azure VM. Therefore, to meet the plan “Enable Microsoft Entra users to sign in to Server1,” you must run Set-AzVMExtension to install the AAD Login extension on Server1.

To meet the requirement that VM3 be configured for per-folder quotas, the Windows Server file services module directs you to install File Server Resource Manager (FSRM). The course content explains: “FSRM provides quota management, file screening, and storage reporting. Quotas can be applied to volumes and to specific folders, enabling administrators to control the space consumed.” None of the other features listed deliver folder-level quota capability: Enhanced Storage and Windows Standards-Based Storage Management relate to storage management/SMI-S, and iSNS Server concerns iSCSI discovery services. Therefore, the first step is to install FSRM on VM3; after installation, you can create per-folder quota templates and assignments to enforce the desired limits.

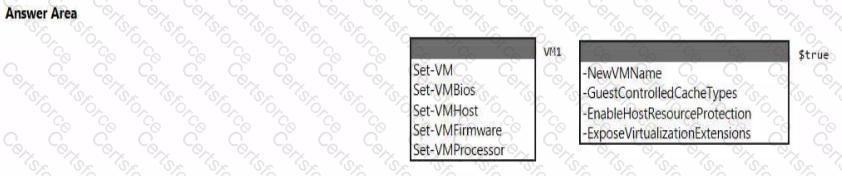

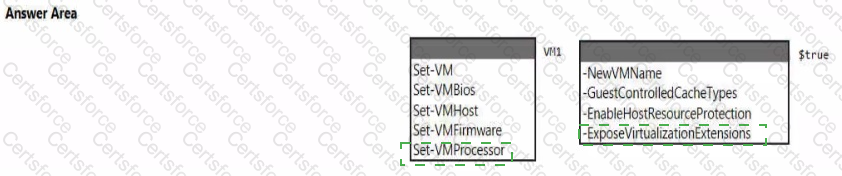

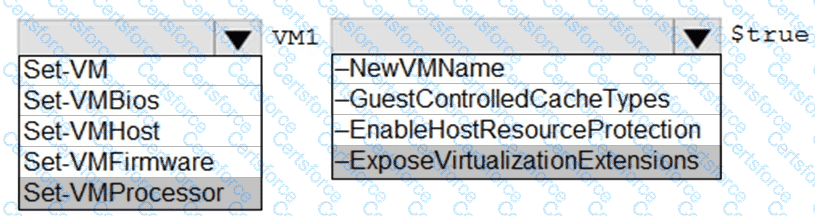

In the Administering Windows Server Hybrid Core Infrastructure objectives for managing Hyper-V, enabling nested virtualization is the required step when you must “run virtual machines inside a virtual machine.” The referenced guidance states that Hyper-V on a VM is supported only when the host exposes hardware virtualization features to the guest. The prescriptive step is: “Turn off the VM and run Set-VMProcessor -VMName <VMName> -ExposeVirtualizationExtensions $true to enable nested virtualization.” The module further notes that this action “passes through Intel VT-x/AMD-V to the guest so the guest OS can install the Hyper-V role and create VMs.” It also clarifies that “the setting is applied on the parent host for the target VM and requires the VM to be powered off before the change is committed.”

Because the technical requirement says “Ensure that you can run virtual machines on VM1”, VM1 must be able to host Hyper-V while itself running as a VM on Server2. The first and essential cmdlet is therefore Set-VMProcessor with the -ExposeVirtualizationExtensions switch set to $true against VM1. Other optional settings (for example, MAC spoofing on the vNIC or static memory) may be configured later if needed, but exposing virtualization extensions is the enabling prerequisite that satisfies the requirement.

The AZ-800 content covering Active Directory Sites and Services clarifies that site, subnet, and site-link objects live in the Configuration partition. The guides emphasize that administration of the Configuration naming context is restricted to Enterprise Admins and to Domain Admins of the forest-root domain. In the context of changing replication topology parameters—such as editing the replication schedule on site links—the documentation notes: “Only Enterprise Admins or administrators in the forest-root Domain Admins group have default permissions to modify site and site-link objects,” because these objects affect replication forest-wide.

Applying this to the scenario:

Contoso\Admin1 (Enterprise Admins) has forest-wide rights to modify site links.

Contoso\Admin2 (Domain Admins in contoso.com, the forest-root domain) also has the required rights to change site-link schedules.

Canada\Admin3 (Domain Admins in canada.contoso.com) does not have default permissions in the Configuration partition for forest-wide site-link administration.

Thus, to meet the technical requirement to change all site links to a 30-minute schedule, the users who can perform the task are Admin1 and Admin2.
