TLV 22, the Extended IS Reachability TLV defined in RFC 5305, is the modern and Junos-preferred mechanism for advertising a router's adjacent neighbors together with the metric associated with each link. It carries the seven-octet system ID and pseudonode number of each neighbor along with a 24-bit wide metric field, and supports an extensible set of sub-TLVs used for traffic-engineering data such as interface and neighbor IP addresses, bandwidth, and administrative groups. The original IS Reachability TLV, TLV 2, defined in the base ISO 10589 standard, carries similar neighbor and metric information but is constrained to a 6-bit narrow metric with a maximum value of 63, which is inadequate for expressing meaningful cost differentiation in modern, high-capacity enterprise and service-provider topologies; consequently, Junos deployments are commonly configured for wide-metrics-only, favoring TLV 22 over the legacy TLV 2 whenever traffic-engineering-capable or simply more granular metric representation is desired. TLV 132, the IP Interface Address TLV, only advertises the IPv4 addresses configured on the originating router's interfaces and carries no neighbor-adjacency or metric information. TLV 129, the Protocols Supported TLV, merely lists which network-layer protocols (such as IPv4 or IPv6) the originating router is capable of routing, and likewise has nothing to do with neighbor reachability or link cost. Reference topics: Junos Enterprise Routing – IS-IS, Extended IS Reachability and Wide Metrics.

OSPF neighbor state progression, as defined in RFC 2328 and displayed by Junos through show ospf neighbor, moves through a well-defined set of named states: Down, Attempt, Init, 2-Way, ExStart, Exchange, Loading, and Full. Down is the initial state, indicating no Hello packets have been recently received from a potential neighbor on that interface; it is a genuine, valid OSPF state and is correctly included here. Init indicates that a Hello packet has been received from the neighbor, but that neighbor has not yet listed the local router's own router ID within its Hello packet, so bidirectional communication has not yet been confirmed; this too is a standard, valid state. Loading occurs after the Exchange state, during which Database Description packets have been fully exchanged and the router is now actively requesting the specific, more-detailed LSAs it identified as missing or outdated from its neighbor via Link State Request packets; it is likewise a standard, valid OSPF neighbor state. 'Established' is not an OSPF state at all — that terminology belongs to BGP's finite state machine, where Established represents the fully operational session state; the OSPF equivalent concept is instead called Full. 'Reject' is not a recognized OSPF neighbor state under any circumstance and does not appear anywhere in the RFC 2328 state machine, making it an invalid distractor as well. Reference topics: Junos Enterprise Routing – OSPF, The OSPF Neighbor State Machine.

RSTP, as defined in IEEE 802.1w, introduces explicit, well-defined port roles that go beyond legacy 802.1D STP's simpler root/designated/blocking model, and the alternate port role is one of RSTP's key refinements. An alternate port is a port that receives BPDUs from a bridge other than the one through which the local switch's actual root port reaches the root bridge — in other words, it represents a second, redundant path toward the root bridge learned from a different upstream bridge than the one currently providing the best (root port) path. Because the existing root port already provides the lowest-cost, actively used path to the root, the alternate port is deliberately held in the discarding (non-forwarding) state during normal, stable operation, functioning purely as a pre-computed, ready-to-use backup; critically, RSTP's major performance advantage over legacy STP is that if the current root port fails, the switch can transition its alternate port directly and almost instantly into the forwarding root port role without needing to pass through the lengthy listening and learning timer-based states that classic STP required, since the alternate port's suitability as a backup was already continuously verified through ongoing BPDU reception. It is not simply 'not receiving BPDUs' (an alternate port receives BPDUs continuously, just inferior ones relative to the current root port), it is not itself the least-cost path (that describes the root port), and it does not forward based on designated-port overload, which is not a concept that exists in RSTP's port-role logic at all. Reference topics: Junos Enterprise Switching – Spanning Tree Protocols, RSTP Port Roles: Alternate and Backup Ports.

A floating static route is a backup static route that remains present in the configuration but stays inactive in the routing table under normal conditions, only becoming active if the primary, preferred route to the same destination is withdrawn or otherwise becomes unavailable. Junos determines which of several competing routes to the same prefix becomes active strictly by comparing each route's preference value (administrative distance), with the numerically lowest preference always winning; every routing protocol and static routes themselves carry a default preference (5 for standard static routes), and this value can be explicitly overridden per route using the preference statement under the static route's configuration. To create a floating static route, the administrator deliberately configures a preference value higher (that is, numerically worse, less preferred) than the preference of the primary route it is meant to back up — for example, a value higher than the 5 default of an ordinary static route, or higher than a dynamic protocol's preference such as OSPF's 10 — ensuring the floating route only becomes active once the more-preferred primary route disappears from the table entirely. This preference-based mechanism is the essential, defining configuration element of a floating static route. Priority is not a valid Junos static-route statement, next-hop simply defines where matching traffic is forwarded without controlling route selection behavior, and qualified-next-hop is a related but distinct mechanism used to assign a per-next-hop preference within a single multi-next-hop static route statement rather than between the standalone static route and its dynamic counterpart. Reference topics: Junos Enterprise Routing – Protocol Independent Routing, Configuring Floating Static Routes with Preference.

IS-IS (Intermediate System to Intermediate System) was designed by ISO as a link-state Interior Gateway Protocol for routing within a single autonomous system, functioning on a hierarchical two-level model conceptually similar to OSPF's areas, which makes the first statement unambiguously correct. Within that hierarchy, Level 1 routers maintain detailed topology information only for their own local area and use a default route toward the nearest Level 2 or Level 1/Level 2 router to reach destinations outside the area; they explicitly do not carry inter-area topology information and therefore cannot route traffic between areas on their own. Routers that participate in both levels simultaneously — Level 1/Level 2 (L1/L2) routers — sit at the area boundary, maintaining a Level 1 database for their local area and a Level 2 database for the backbone, and it is specifically these dual-level routers that stitch inter-area traffic together, forwarding packets from the local area into the Level 2 backbone and vice versa, which confirms the second correct statement. Regarding route preference, Junos assigns distinct default preference (administrative distance) values of 15 for IS-IS Level 1 routes and 18 for IS-IS Level 2 routes — neither of which is 20 — so the preference-value statement is factually incorrect and included as a distractor testing precise knowledge of Junos default protocol preferences. Reference topics: Junos Enterprise Routing – IS-IS, Level 1, Level 2, and L1/L2 Router Roles; Default Route Preference Values.

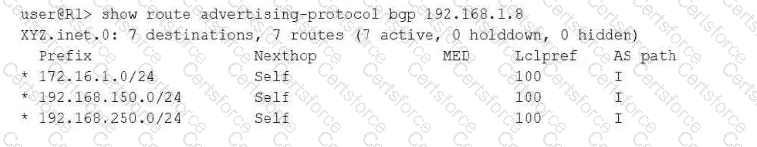

The show route advertising-protocol bgp command displays exactly what would be transmitted to a specific BGP neighbor after all configured export routing policy has already been evaluated and applied, meaning any prefixes shown in this output have successfully passed through the export policy chain — confirming the export routing policy has been processed. The command header explicitly states '7 destinations, 7 routes (7 active, ...)' and every listed prefix is preceded by an asterisk, Junos's standard marker for an active route, confirming all seven displayed routes are active in the local routing table. The routing table name shown, XYZ.inet.0, indicates these routes reside in a named routing instance called XYZ rather than the default master routing instance, whose table would instead be labeled simply inet.0; this rules out the statement claiming the routes belong to the default instance. The AS path column shows only the origin code 'I' (IGP) with no AS numbers prepended ahead of it, meaning the AS path is empty, which indicates these prefixes were originated locally within R1's own AS (through redistribution or local origination) rather than having been learned from and passed through an external AS, ruling out that statement as well. Finally, the Nexthop column explicitly shows 'Self' for every route rather than an actual peer or learned address, confirming R1 is rewriting the next-hop attribute to its own address before advertising — a deliberate next-hop-self policy action typically applied toward IBGP peers. Reference topics: Junos Enterprise Routing – BGP, Verifying Advertised Routes and Export Policy Effects.

The Complete Sequence Number PDU (CSNP) is the IS-IS mechanism used to summarize the entire contents of a router's link-state database, listing the LSP ID, sequence number, checksum, and remaining lifetime for every LSP the sending router currently believes should exist in the database for that level. On broadcast (LAN) circuits, the elected Designated Intermediate System periodically transmits CSNPs to all routers on the segment as a database-synchronization mechanism; any receiving router compares the summarized list against its own local database, and any discrepancy — an LSP it is missing entirely, or one for which it holds an older sequence number — triggers a targeted request for the specific, updated LSP content. On point-to-point circuits, a single CSNP is exchanged once when the adjacency first comes up, serving the identical synchronization purpose without needing periodic repetition. The Partial Sequence Number PDU (PSNP), by contrast, is used to acknowledge receipt of specific LSPs or to explicitly request specific LSPs identified as missing or outdated after a CSNP comparison, making it a partial, targeted PDU rather than a complete database listing. The LSP itself is the PDU that actually carries the detailed topology and reachability information being advertised, rather than a database summary. The IS-IS Hello PDU (IIH) is used purely for neighbor discovery and adjacency maintenance and carries no link-state database summary information whatsoever. Reference topics: Junos Enterprise Routing – IS-IS, CSNP and Link-State Database Synchronization.

A GRE-encapsulated packet consists of the original passenger packet wrapped inside a GRE header and a new outer IP delivery header, and the combined size of these two additions is what constitutes GRE's per-packet overhead. The base GRE header, as defined in RFC 2784 and used in its minimal, non-keyed, non-checksummed form (the default and most common deployment), is exactly 4 bytes in length, containing the flags/version field and the protocol type field identifying the encapsulated payload's ether type. Layered around that GRE header is a completely new outer IPv4 header, which itself consumes a standard 20 bytes, containing the tunnel source and destination addresses used for delivery across the underlying network. Adding these two components together — 4 bytes for the GRE header plus 20 bytes for the new outer IPv4 header — yields a total of exactly 24 bytes of overhead imposed on every encapsulated packet, which is precisely why Junos automatically sets the default protocol MTU on gr- tunnel interfaces to 1476 bytes (1500 minus 24) to prevent oversized, post-encapsulation packets from requiring fragmentation on a standard 1500-byte Ethernet path. The 20-byte figure alone describes only the new IP header in isolation and omits the GRE header itself, while 12 and 32 bytes do not correspond to any standard, non-keyed GRE encapsulation configuration and are included purely as plausible-looking distractors. Reference topics: Junos Enterprise Routing – Tunneling, GRE Header Overhead and MTU Planning.

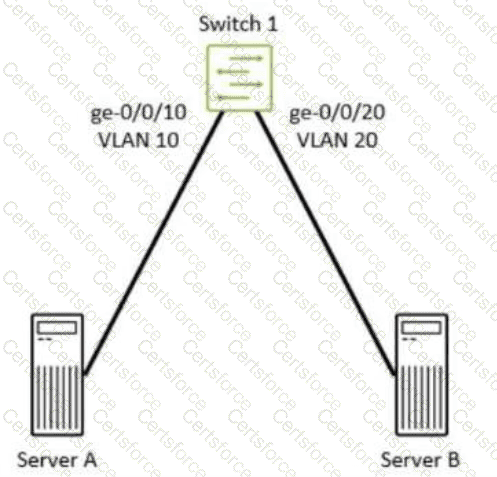

Because Server A resides in VLAN 10 and Server B resides in VLAN 20, traffic between them cannot remain a purely Layer 2 switched flow; it must be routed between the two VLANs, which on Switch 1 means the packet traverses the switch's internal routing engine (via an IRB interface) between the ingress and egress switching stages. Junos processes firewall filters along this path in a strict, layered order that mirrors the packet's actual journey through the device. First, any filter applied at the physical ingress port level (Rx-Port) is evaluated as the frame first arrives on ge-0/0/10. Next, any filter applied to the ingress VLAN (Rx-VLAN, i.e., VLAN 10) is evaluated as the frame is classified into its source broadcast domain. Because the destination subnet requires routing, the packet is then handed to the routing engine, where any input/ingress routed filter (Rx-Router) applied to the receiving IRB interface is evaluated next, followed by any output/egress routed filter (Tx-Router) applied as the now-routed packet is handed from the routing engine back out toward VLAN 20. Finally, the packet passes through any egress VLAN filter (Tx-VLAN, for VLAN 20) and then the egress physical port filter (Tx-Port) on ge-0/0/20 immediately before transmission to Server B. This complete six-stage sequence — Rx-Port, Rx-VLAN, Rx-Router, Tx-Router, Tx-VLAN, Tx-Port — reflects every filter-evaluation checkpoint a routed, inter-VLAN packet passes through on an EX Series Layer 3 switch. Reference topics: Junos Enterprise Switching – Layer 2 Switching and Firewall Filter Processing Order for Routed VLAN Traffic.
