Configuration Analysis:

On R2 , the following configuration has been applied:

acl 200

rule deny source 10.1.0.0 0.0.3.0

rule permit

#

ospf 1

filter-policy 2000 import

This configuration uses ACL 200 to filter routes during import into the OSPF routing table on R2.

Rule deny source 10.1.0.0 0.0.3.0: Blocks routes in the range 10.1.0.0/24 to 10.1.3.0/24 (inclusive).

Rule permit: Allows all other routes to be imported.

Impact of ACL 200 on Route Import:

10.1.0.0/24 to 10.1.3.0/24: These subnets are explicitly denied by ACL 200 and will not appear in R2 ' s routing table.

10.1.4.0/24 and beyond: These subnets are permitted by the rule permit statement and will be imported into R2 ' s routing table.

Routing Table Entries on R2:

Option A (10.1.4.0/24): Exists in R2 ' s routing table because it is permitted.

Option B (10.1.3.0/24): Does not exist because it is denied by ACL 200.

Option C (10.1.2.0/24): Does not exist because it is denied by ACL 200.

Option D (10.1.1.0/24): Does not exist because it is denied by ACL 200.

A (10.1.4.0/24)

 MQC and PBR

MQC (Modular QoS Command-Line Interface) : Applied to interfaces for classifying and controlling traffic.

PBR (Policy-Based Routing) : Used to influence packet forwarding based on policies rather than traditional routing tables.

Both MQC and PBR can be configured on device interfaces to filter incoming/outgoing packets or control their forwarding paths.

 HCIP-Datacom-Core Reference

The use of MQC and PBR on device interfaces is elaborated in the QoS and routing control chapters​​.

Comprehensive and Detailed Step-by-Step Explanation:

1. BGP Attributes Overview:

BGP uses attributes to describe the properties of routes. These attributes are classified into the following categories:

Well-Known Mandatory : Attributes that must be recognized and included in every BGP update. Examples: AS_PATH, ORIGIN, NEXT_HOP.

Well-Known Discretionary : Attributes that must be recognized but are not required in every BGP update. Examples: LOCAL_PREF, ATOMIC_AGGREGATE.

Optional Transitive : Attributes that may or may not be recognized, but must be passed along to other BGP peers. Examples: COMMUNITY.

Optional Non-Transitive : Attributes that may or may not be recognized, and are not passed along to other BGP peers. Examples: MED (Multi-Exit Discriminator).

2. Analysis of Each Option:

Option A: Atomic_Aggregate

Correct .

This is a well-known discretionary attribute. It indicates that the advertised route is an aggregate route that summarizes multiple specific routes.

Option B: Local-Preference

Correct .

This is a well-known discretionary attribute. It is used within an AS to prioritize routes, with higher values being preferred.

Option C: Community

Incorrect .

The COMMUNITY attribute is an optional transitive attribute. It is used to tag routes with specific labels to apply routing policies.

Option D: MED (Multi-Exit Discriminator)

Incorrect .

The MED attribute is an optional non-transitive attribute. It is used to influence the choice of the preferred path when there are multiple entry points into an AS.

3. Summary:

Well-Known Discretionary Attributes : Atomic_Aggregate and Local-Preference.

In an OSPF broadcast or NBMA network with at least two routers, one router must act as the DR (Designated Router), and another as the BDR (Backup Designated Router) to ensure efficient communication and reduce the number of adjacencies. This is a requirement for OSPF operation in such network types ​.

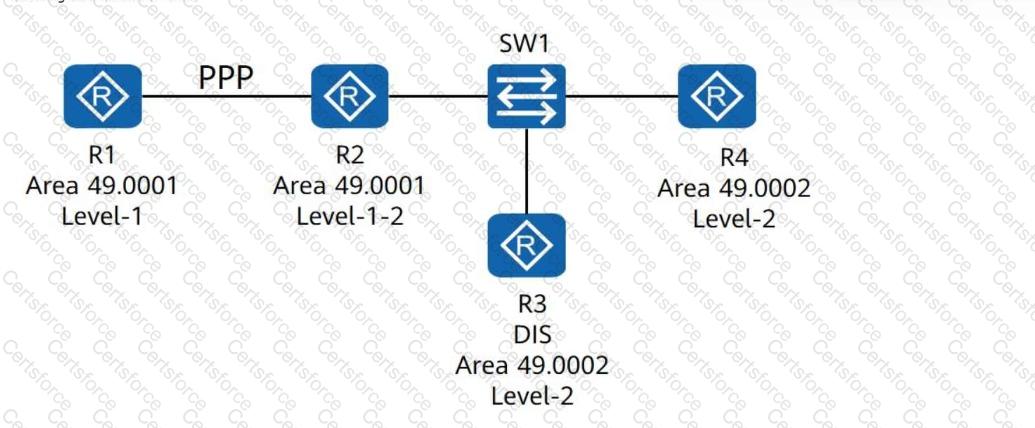

 R3, as the DIS in the Level-2 domain, periodically sends Complete Sequence Number Protocol Data Units (CSNPs) to ensure LSDB synchronization among Level-2 routers.

 R1 and R2 are in a Level-1 domain, and IS-IS requires the receiving router (R2) to acknowledge an LSP from R1 by sending a Partial Sequence Number Protocol Data Unit (PSNP).

 IS-IS LSPs in a broadcast network are sent using multicast, not unicast, making option C incorrect.

 For Level-2 LSPs, acknowledgments are not provided using PSNP by R3; CSNPs are sufficient for synchronization ​.

 ACL Number Ranges

Basic ACLs : Numbered from 2000 to 2999.

Advanced ACLs : Numbered from 3000 to 3999.

Layer 2 ACLs : Numbered from 5000 to 5999.

User-defined ACLs : Numbered from 4000 to 4999.

 HCIP-Datacom-Core Reference

ACL classifications and their number ranges are covered in the ACL principles and configuration chapters​​.

In the given topology, the route from R4 to 10.0.2.2/32 traverses R3, which performs route leaking from Level-2 to Level-1. The cost is calculated as follows: R4 to R3 (40) + R3 to R2 (10) + R2 to the destination (30), resulting in a total cost of 80 ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. Features of Wi-Fi 6:

Wi-Fi 6 (802.11ax) introduces several new technologies to improve network efficiency, reduce latency, and optimize power usage:

OFDMA (Orthogonal Frequency Division Multiple Access): Allows multiple devices to transmit simultaneously, improving concurrency.

TWT (Target Wake Time): Reduces power consumption by scheduling communication times for devices.

High Bandwidth: Supports up to 9.6 Gbps, significantly faster than Wi-Fi 5.

2. Why Zero Latency is Incorrect:

While Wi-Fi 6 reduces latency compared to earlier standards, zero latency is not achievable due to inherent delays in network communication.

The statement " Realizes zero latency " is misleading and technically inaccurate.

3. Analysis of Each Option:

Option A: Uses OFDMA technology to achieve high concurrency.

Correct (True Statement).

OFDMA is a core feature of Wi-Fi 6 that improves concurrent communication.

Option B: Realizes zero latency, ensuring efficient service running.

Incorrect (False Statement).

Wi-Fi 6 reduces latency but cannot eliminate it entirely.

Option C: Provides high bandwidth, up to 9.6 Gbps.

Correct (True Statement).

Wi-Fi 6 supports a theoretical maximum bandwidth of 9.6 Gbps.

Option D: Uses TWT technology to reduce terminal power consumption.

Correct (True Statement).

TWT schedules communication times, allowing devices to enter low-power states and conserve battery life.

4. Summary:

The false statement is B , as Wi-Fi 6 does not achieve zero latency.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding IGMP Version Compatibility:

IGMP (Internet Group Management Protocol) supports multiple versions, such as IGMPv1, IGMPv2, and IGMPv3.

A device running a later version of IGMP is backward-compatible and can identify Report messages from earlier versions.

However, a device running an earlier version of IGMP cannot recognize the newer features or formats of later IGMP versions.

2. Best Practice:

To avoid compatibility issues, the IGMP version configured on the switch should be the same as or later than the version used by the member hosts in the network.

3. Why the Statement is TRUE:

The statement is correct because it describes the compatibility behavior of IGMP versions and advises setting the switch IGMP version appropriately.
