The question indicates that a router performs a lookup in its FIB table for a packet and determines that the tunnel ID in the matching entry is 0, suggesting that the packet needs to be forwarded through a tunnel such as an MPLS tunnel. However, this is a misunderstanding of the FIB functionality.

FIB Table Overview The Forwarding Information Base (FIB) is used to make packet-forwarding decisions. Entries in the FIB include next-hop information, which can be directly linked to an interface or a tunnel.

If the Tunnel ID is 0 , it indicates that the packet is forwarded via a normal routing path and not through a tunnel.

For MPLS or other tunnels, the Tunnel ID would have a non-zero value pointing to the associated tunnel.

MPLS Tunnel Operation When a router forwards packets through an MPLS tunnel, a label-switched path (LSP) is set up. The FIB would reflect specific tunnel identifiers for packets that need such encapsulation.

HCIP-Datacom-Core Reference

Routing Principles and MPLS ​explain the forwarding mechanisms clearly, stating that if a packet is routed normally, the tunnel ID remains 0 .

The section on MPLS​clarifies the encapsulation process and the role of tunnel identifiers.

Hence, the claim in the question is incorrect. A Tunnel ID of 0 implies no tunneling is required, and normal IP forwarding occurs

Comprehensive and Detailed Step-by-Step Explanation:

OSPF Route Summarization:

Route summarization combines multiple specific routes into a single summary route. This reduces the number of LSAs advertised between OSPF areas, especially Type 3 LSAs.

Benefits of Route Summarization:

Reduces the size of the OSPF database and routing table.

Minimizes the processing overhead on routers by decreasing the number of routing entries.

Improves the scalability of the OSPF network.

ASBR Function:

The ASBR advertises external routes into OSPF and can summarize routes at area boundaries or during redistribution.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

OSPF routers establish neighbor relationships and progress through various states during the adjacency formation process. The ExStart state is where routers negotiate the master and slave roles. This negotiation is critical because the master initiates the Data Description (DD) packet exchange process.

Here’s a breakdown of the relevant OSPF states:

ExStart State :

This is the phase where the routers determine which one will act as the master and which will be the slave.

The decision is based on the Router IDs of the two routers. The router with the higher Router ID becomes the master.

Exchange State :

After the master-slave roles are established, the routers exchange DD packets. These packets contain summaries of the LSAs in their respective LSDBs.

2-way State :

This state indicates that bidirectional communication has been established between the two routers, but it occurs before master-slave negotiation.

Init State :

This is an early state where a router has sent a Hello packet to its neighbor but has not yet received a Hello packet in response.

Key Point:

The negotiation of master and slave roles happens exclusively in the ExStart state , making D. ExStart the correct answer.

SSL VPN and Its Functionality :

SSL VPN (Secure Sockets Layer Virtual Private Network) provides secure remote access to a network using SSL/TLS protocols.

SSL VPN operates at the Application Layer of the OSI model. It enables secure communication for applications like web browsers, email clients, and file sharing.

Unlike IPsec VPN, which operates at the Network Layer, SSL VPN focuses on application-specific encryption and authentication.

In Huawei firewalls, the security level of a zone can be reconfigured by an administrator, making the statement that it cannot be changed false. Other statements accurately describe security level restrictions or defaults ​.

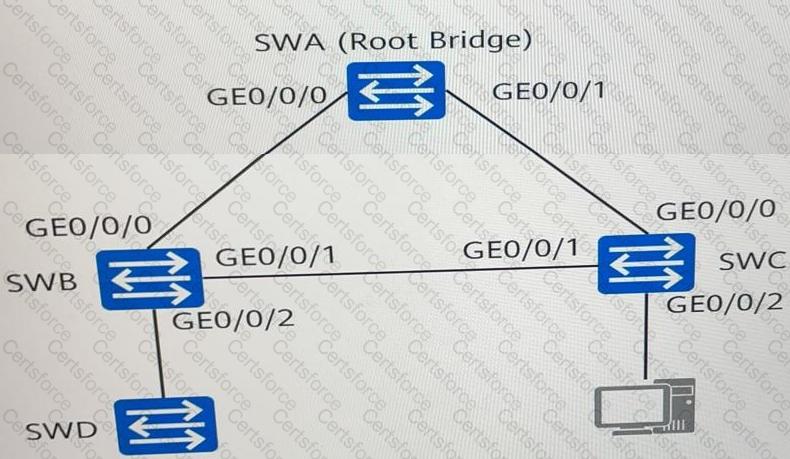

Edge ports are used in RSTP to bypass the spanning tree calculation for ports connected to end devices. By configuring ports like SWD ' s GE0/0/2 and SWC ' s GE0/0/2 as edge ports, they transition directly to the Forwarding state upon activation, ensuring faster convergence. Statement A is incorrect because receiving BPDU invalidates the edge port status ​.

BGP routes have a variety of path attributes that describe their characteristics and influence route selection. These attributes include well-known mandatory attributes like AS-PATH and NEXT-HOP, as well as optional attributes like MED and LOCAL_PREF.

In Huawei devices, there is a Huawei-specific attribute called " preference " , which is a local parameter used to influence BGP route selection on the device.

Key Characteristics of " preference " :

It is valid only locally on the router.

It is not shared with BGP peers.

It helps the router determine the best route when multiple routes exist for the same prefix.

It appears in the BGP routing table output in lowercase as preference.

Thus, the correct answer is preference (entered in lowercase as required).

A is correct – Local attack defense can classify and prioritize packets (e.g., OSPF, BGP, SSH) and ensure critical protocols are processed first by the CPU.

B is correct – The dynamic link protection function ensures session-based applications (like SSH) are not disrupted even during a CPU attack.

C is false – Different protocols have different importance levels , so individual rate limits should be configured, not a uniform one.

D is correct – CPU protection also applies to management interfaces , such as those used for Telnet, SSH, or SNMP.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“Devices support local attack defense by classifying packets, setting priorities, and limiting rates to protect CPU resources. These policies also apply to the management interface.”

(Chapter: Network Security – Section: Local Attack Defense)

Comprehensive and Detailed In-Depth Explanation:

IPsec (IP Security Protocol) establishes Security Associations (SAs) for encrypted communication.

An SA is uniquely identified by a 3-tuple :

SPI (Security Parameter Index) → Identifies the SA.

Destination IP Address → Specifies the receiving device.

Security Protocol ID → Indicates whether AH (Authentication Header) or ESP (Encapsulating Security Payload) is used.

A. Key exchange protocol is not part of the SA 3-tuple . It is used during IKE (Internet Key Exchange) but is not part of the SA itself.

???? Reference: Huawei HCIA-Datacom Study Guide, IPsec Security Association and SA Identification.

OSPF supports both area-level and interface-level authentication. When both are configured, interface authentication takes precedence over area authentication. This hierarchy ensures that specific interface-level configurations override the broader area-level settings when applicable ​.
