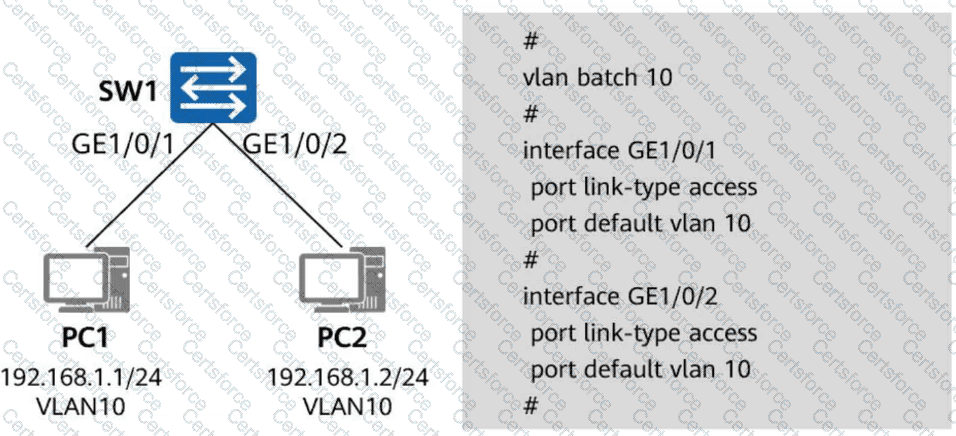

When a switch receives an untagged frame from a user host on an access interface , it associates that frame with the VLAN configured on the interface. In this scenario, PC1 and PC2 are in VLAN 10, and GE1/0/2 is an access interface in VLAN 10. After SW1 receives the frame from PC1, it internally associates the frame with VLAN 10 , so option A is correct in the practical VLAN-processing sense used in HCIA-Datacom questions.

When the frame is forwarded out an access interface toward PC2, the switch sends it without a VLAN tag , because end hosts normally do not process 802.1Q tags. Therefore, option D is correct. Option B is incorrect because both hosts are in the same VLAN and can communicate normally; SW1 does not discard the return traffic for that reason. Option C is not correct in the standard VLAN switching model used by Huawei training, because the switch performs forwarding based on VLAN membership and internally processes the frame as belonging to VLAN 10. This question mainly checks understanding of access/trunk behavior and tag handling on ingress and egress.

The normal DHCPv4 address-allocation exchange is commonly summarized as DORA: Discover, Offer, Request, and Acknowledge. A DHCP client that needs configuration begins by sending DHCPDISCOVER to locate available DHCP servers. A server responds with DHCPOFFER, proposing an address and other parameters. The client then sends DHCPREQUEST to indicate the offered address and server it has selected. Finally, the selected DHCP server sends DHCPACK to confirm the lease and deliver the final configuration. Therefore, DHCPDISCOVER and DHCPREQUEST are client-originated messages in the standard allocation process, while DHCPOFFER and DHCPACK are server-originated messages. DHCP also defines other messages for lease renewal, decline, release, and negative acknowledgment, but those are not among the answer choices. For the options provided, A, DHCPACK, and D, DHCP OFFER, are the messages sent by a DHCPv4 server. The verified answer is A and D. This server-versus-client message direction is fundamental when interpreting DHCP packet captures and troubleshooting address-allocation failures on enterprise campus access networks.

The nat server configuration creates a static mapping so that an internal Telnet server at private address 192.168.1.1 can be reached from the public network using global address 100.0.23.2 on the Telnet TCP port. The purpose of NAT Server is to expose an internal service through a reachable public address and translate incoming packets to the inside host. A public user therefore initiates the connection to the configured global address, for example telnet 100.0.23.2, assuming routing and security policies allow the session. The user does not normally issue telnet 192.168.1.1 from the public network because that is the private inside address and is not the destination on which the public-side NAT mapping is matched. After the packet reaches R1 addressed to 100.0.23.2, R1 translates the destination to 192.168.1.1 and forwards it internally. Thus the configuration can make the private server reachable, but the command stated in the question uses the wrong destination address. The statement is FALSE, option B.

To check OSPF-learned routes in the global IP routing table , the correct command is display ip routing-table protocol ospf , so option A is correct. This command filters the routing table and shows only the routes whose source protocol is OSPF. It is especially useful when verifying whether OSPF-learned routes have been successfully installed into the forwarding table after neighbor establishment and LSDB calculation.

Option B , display ospf peer, is used to check OSPF neighbor information and adjacency states, not the routing table. Option C , display ospf interface, shows OSPF-related parameters on interfaces such as timers, network type, and cost. Option D , display ospf routing, displays OSPF route information maintained by the OSPF process itself, but the question specifically asks about routes in the global routing table , which is the RIB used for actual forwarding decisions. HCIA-Datacom distinguishes between protocol-specific route information and the final routing table seen by the device. Understanding this distinction helps engineers verify whether a protocol has only learned topology information or has actually produced usable forwarding entries.

When two OSPF routers reach the Full state, it means that adjacency establishment has been successfully completed and the routers have synchronized the necessary link-state information for that area. For this to happen, the two routers must have different router IDs, so option A is correct. They must also belong to the same OSPF area on the interfaces used to form the adjacency, making option B correct. Once adjacency reaches Full state, the routers have synchronized their link-state databases for that area, so option D is also correct.

Option C is incorrect because the OSPF process ID is only locally significant on a device. Two neighboring routers do not need to use the same process ID to establish adjacency. HCIA-Datacom teaches that OSPF neighbor formation depends on matching parameters such as area ID, network type, hello/dead timers, authentication settings, and subnet consistency, but not on the locally configured process number. This question is important because many learners mistakenly believe the process ID must match between devices, while in fact OSPF uses protocol parameters exchanged in packets rather than local process labels to form neighbor relationships.

This statement is false . In an Eth-Trunk operating in LACP mode , if the administrator sets the maximum number of active links to 3 and there is 1 standby link, then when one active member fails, LACP can automatically promote the standby member to active status. The purpose of the standby member is to maintain the configured active-link capacity whenever possible.

Therefore, after one active link fails, the normal expectation is not that the active-link count is reduced from 3 to 2 while the standby link remains idle. Instead, the standby link should participate and replace the failed member, so that the Eth-Trunk continues operating with 3 active links if the standby link and negotiation conditions are normal. This reflects the redundancy and fast recovery capabilities of LACP-based aggregation. HCIA-Datacom highlights that compared with manual mode, LACP provides more intelligent link selection, active/standby management, and fault adaptation. The statement is wrong because it ignores the intended behavior of the standby link in maintaining the number of active forwarding links after a failure.

The statement describes the broader evolution of enterprise data centers from isolated, hardware-centric facilities toward cloud-based resource pools and multi-site service architectures. Virtualization and cloud platforms decouple many applications from individual physical servers and allow compute, storage, and network resources to be centrally orchestrated and delivered to internal or external consumers. As service scale and continuity requirements increase, organizations may deploy multiple data centers across sites for disaster recovery, geographic access, capacity expansion, active-active services, or regulatory separation. Network technologies such as VXLAN-based fabrics and data center interconnect mechanisms support this transition by extending or interconnecting services while maintaining segmentation and reachability policies. The exact architecture depends on business requirements, but the direction described in the question—from a single data center toward multi-site, multi-data-center construction as services evolve—is consistent with Huawei Datacom data center design concepts. Therefore, the statement is TRUE and option A is the correct answer.

Huawei network devices use file extensions to distinguish software images, patches, configuration files, and other packages. A patch package uses the .pat extension, so test.pat is the only option that represents a Huawei patch file. A .cc file is normally associated with a VRP system software package rather than a patch. Configuration data is stored in supported configuration formats and is not identified by the .pat extension. An administrator can transfer the patch file to the device by FTP, SFTP, or another supported file-transfer method and then activate or load it according to the platform ' s patch procedure. The purpose of a patch is to correct defects or vulnerabilities without necessarily replacing the complete system software package. Because the question asks specifically for the file that can be uploaded as a patch to remediate a security vulnerability, the filename ending in .pat is the technically correct selection. The source answer B is therefore consistent with Huawei Datacom file-management conventions.

This statement is false because the receiver is one of the fundamental elements of communication. In basic communication theory, a complete communication process requires at least four essential elements: the sender , the information or message content , the transmission medium or channel , and the receiver . If the receiver is missing, communication cannot be completed because there is no endpoint to accept, interpret, or respond to the transmitted information.

In datacom networks, this concept maps directly to real networking scenarios. A source host generates data, the data is carried over some medium such as copper, fiber, or wireless, and a destination host receives the data. Network devices such as switches and routers assist the forwarding process, but the fundamental communication model still includes both communicating endpoints. HCIA-Datacom emphasizes the complete sender-to-receiver process when introducing network communication basics, protocol encapsulation, and forwarding. Therefore, excluding the receiver from the communication elements is conceptually incorrect. The correct understanding is that sender, receiver, information content, and channel together form the essential basis of communication.

This statement is true . When a device has multiple routes to the same destination prefix, route selection is based first on the longest prefix match , and when prefix length is the same, the device compares the route preference or administrative priority associated with each routing source. On Huawei devices, a direct route has a better preference than a static route , so the direct route is selected first when both routes have the same destination and mask.

A direct route is generated automatically when an IP address is configured on an interface and that interface is Up. Because the destination network is directly connected, this route is considered more trustworthy and efficient than a manually configured static route pointing to the same prefix. HCIA-Datacom uses this principle to explain route selection, routing-table generation, and troubleshooting cases where a configured static route does not appear as the active route because a direct or dynamic route has higher priority. This is a basic but important concept in IP forwarding and helps engineers correctly interpret routing tables on Huawei routers and Layer 3 switches.
