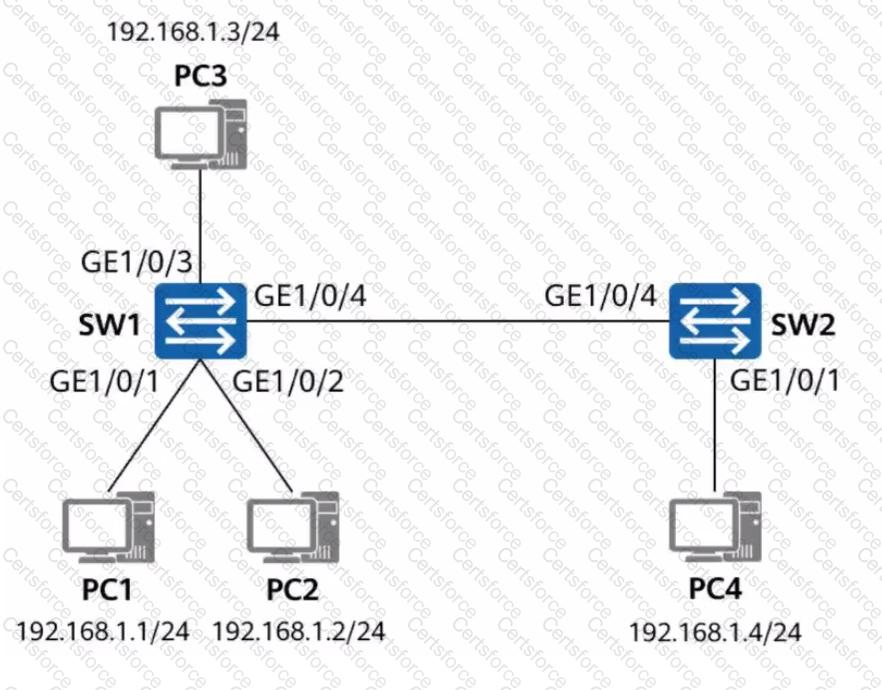

PC1 and PC3 are members of VLAN 2, while PC2 and PC4 are members of VLAN 3. SW1 receives the frame from PC1 on access interface GE1/0/1 and associates it with VLAN 2. Because all switch MAC address tables are initially empty, PC3 ' s destination MAC address is unknown to SW1. The switch therefore floods this unknown unicast frame only through other interfaces that can carry VLAN 2. GE1/0/3 connects to PC3 in VLAN 2, so it is a valid flood port. GE1/0/4 is a trunk that permits VLAN 2 and VLAN 3, so it is also eligible to carry the VLAN 2 frame. SW1 does not send the frame back through GE1/0/1, the ingress interface, and it does not send it through GE1/0/2 because that access port belongs to VLAN 3. Therefore, the interfaces through which SW1 does not send the frame are GE1/0/2 and GE1/0/1, corresponding to A and D.

In STP, the root bridge has all its active ports elected as designated ports on each connected segment. On non-root switches, one port is selected as the root port , and on each LAN segment, one designated port is elected based on the best BPDU. Since SW1 is the root bridge and all links have equal cost, the election depends first on the path cost to the root, then on bridge ID, and then on port ID if needed.

According to the topology, the ports that become designated are GE1/0/2 of SW2 , GE1/0/1 of SW2 , and GE1/0/3 of SW3 , which correspond to option A , B , and C . Option D is not a designated port in this topology because that segment has another port with a superior BPDU and therefore SW4’s port does not win the designated-port election. HCIA-Datacom emphasizes that designated ports are elected per segment , not per switch, and that every non-root switch must compare received BPDUs to determine root and designated roles. This question tests the ability to apply STP election logic rather than simply memorizing port-role definitions.

This statement is true . In the leader AP networking architecture, one AP acts as the leader AP , taking on controller-like functions similar to those of a WAC for a small or medium-sized WLAN deployment. It can centrally manage other Fit APs and deliver unified wireless configurations such as SSIDs, security settings, and radio parameters. CAPWAP is used for management and control communication between the leader AP and the managed Fit APs.

This architecture is useful in scenarios where deploying a dedicated WAC is unnecessary or uneconomical, but centralized AP management is still desired. It provides a balance between simplicity and control and is commonly used in branch offices, small campuses, and similar environments. HCIA-Datacom explains leader AP networking as an intermediate solution between fully autonomous AP deployment and full WAC + Fit AP enterprise architecture. The key point is that the leader AP behaves as the management node for the other APs and enables unified configuration and control. Therefore, the statement correctly describes both the role of the leader AP and the use of CAPWAP in this architecture.

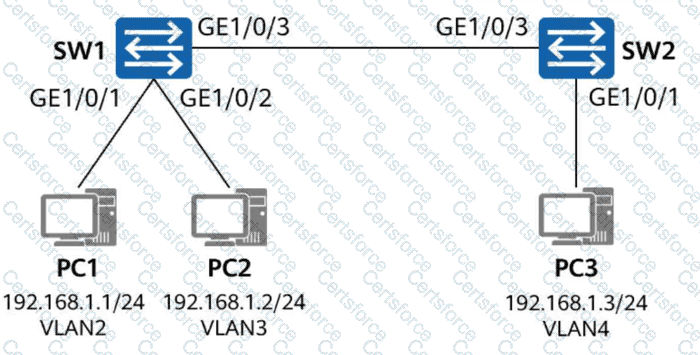

This statement is true . ARP is a Layer 2 broadcast-based protocol used to resolve an IPv4 address into a MAC address within the same broadcast domain. If two PCs are connected to the same switch but cannot learn each other’s ARP entries, one likely reason is an incorrect VLAN configuration .

For example, if PC1 and PC2 are placed in different VLANs, or if one interface is configured with the wrong access VLAN, ARP broadcast frames from one PC will not reach the other PC because VLANs separate Layer 2 broadcast domains. As a result, the ARP request will not be received by the peer, and the MAC address cannot be resolved. Other causes may also exist, such as incorrect IP addressing, port isolation, or security policies, but VLAN misconfiguration is a very common and valid cause in campus switching scenarios. HCIA-Datacom teaches that ARP communication depends on correct Layer 2 domain membership, and VLAN planning or interface configuration errors often directly affect host-to-host communication even when both hosts are physically connected to the same switch.

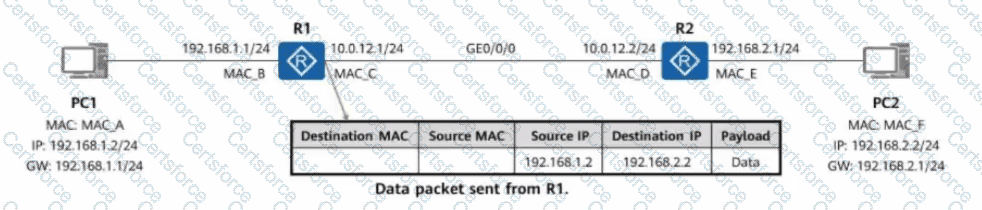

This question tests the difference between Layer 3 addressing and Layer 2 encapsulation during routing. The IP packet originated by PC1 keeps PC1 ' s IP address as its source IP and PC2 ' s IP address as its destination IP as it traverses the routers. Ethernet MAC addresses, however, are rewritten at every routed hop. When R1 forwards the packet across the link toward R2, R1 builds a new Ethernet frame on its outgoing interface. According to the exhibit, R1 ' s outgoing interface on the R1-R2 link uses MAC_C, so MAC_C is the source MAC address. The next-hop device on that link is R2, whose receiving interface uses MAC_D, so MAC_D is the destination MAC address. MAC_A belongs to PC1 and was relevant only on the first local Ethernet segment. MAC_F belongs to PC2 and is used on the final Ethernet segment from R2 to PC2, not on the R1-R2 link. Therefore the correct statements are B and D. The uploaded key B, C is incorrect.

On a non-root bridge, the root port is the port that receives the best BPDU toward the root bridge. STP selects the root port by comparing several parameters in order. The first important parameter is the root path cost (RPC) , so option B is correct. If multiple ports have the same RPC, the switch then compares the bridge ID (BID) of the upstream device sending the BPDU, making option C correct. If those are still equal, the switch compares the port ID (PID) of the upstream sending port, so option D is also correct.

If all of those values remain identical from the switch’s perspective, the device can finally compare the local port ID to determine which local interface becomes the root port, so option A is also correct. HCIA-Datacom teaches this comparison logic as part of STP election rules. The process ensures deterministic selection of a single root port on every non-root switch. Understanding the comparison sequence is essential for predicting STP topology behavior and for influencing port roles through path cost tuning or bridge-priority adjustments during campus network design and troubleshooting.

In the standard TCP/IP forwarding model, transport-layer headers such as TCP and UDP headers are added by the source host and are mainly interpreted by the destination host. Routers that forward packets between the source and destination operate primarily at the network layer , using the destination IP address in the IP header to make forwarding decisions. Therefore, under normal routing behavior, routers do not process transport-layer header information when deciding how to forward packets.

This is a key concept in layered communication. The source host encapsulates application data with a transport-layer header, then with an IP header, and finally with a data-link header. Each router along the path removes only the Layer 2 frame header, checks the Layer 3 destination IP information, decrements TTL, recalculates the IP header checksum when required, and forwards the packet. The transport-layer content remains unchanged in normal forwarding. HCIA-Datacom uses this principle to explain end-to-end communication and layer responsibilities. Although advanced devices may inspect higher-layer information for security or policy purposes, standard router forwarding in the basic TCP/IP model does not depend on transport-layer processing.

All four options are possible causes of FTP login failure, so the correct answer is A, B, C, and D.

Option A is correct because if the FTP server function is not enabled on the Huawei device, the device cannot provide FTP services and the client cannot log in. Option B is also correct because if the authorized directory is not specified for the FTP user, the user may not be able to complete login or access file services properly, depending on the FTP user configuration requirements. Option C is correct because an FTP user account must be configured with the required username and password; otherwise, authentication cannot succeed. Option D is also correct because if the network between the FTP client and the device is unreachable, the client cannot establish the FTP connection at all.

In HCIA-Datacom troubleshooting, FTP login failure is usually checked from four aspects: service enablement, user configuration, permission or directory authorization, and network connectivity. This question tests standard remote maintenance troubleshooting logic for file transfer services on Huawei network devices.

The correct statements are B and C . Option B is true because general-purpose computing data center networks focus heavily on stability, reliability, service continuity, and flexible VM deployment. Technologies such as M-LAG improve gateway and uplink redundancy and support fast failover, while VXLAN enables large-scale Layer 2 extension for VM mobility and resource flexibility.

Option C is also true because intelligent computing networks, especially those serving AI training and distributed GPU clusters, require an extremely low-loss or lossless forwarding environment. Technologies such as PFC and ECN are standard methods used to build such networks and reduce congestion-related packet loss. Option A is not selected because modern general-purpose data center networks do not necessarily require the traditional core-aggregation-access three-layer architecture ; contemporary data centers commonly use leaf-spine fabrics instead. Option D is not selected because although intelligent computing networks do require ultra-low latency and RoCE helps reduce network communication latency, the wording about “latency of data transmission within a compute node” is not the standard network-side requirement emphasized in HCIA-Datacom. The focus is mainly on inter-node network transport efficiency and lossless forwarding.

The source key marks this statement TRUE, but the topology makes that answer technically incorrect. R1 is shown with interface address 10.0.12.1/24, which automatically installs a directly connected route to 10.0.12.0/24. On Huawei VRP, a direct route has preference 0, whereas a static route has preference 60 unless another value is configured. The two commands do configure two static routes with the same preference, and equal-preference static routes can support load balancing when they are the best routes to a destination. Here, however, both static routes are for the same prefix that R1 already owns as a connected network. The direct route has a higher priority because its preference value is smaller, so it is selected in the active IP routing table instead of the two preference-60 static routes. Therefore the assertion that R1 has two active equal-cost routes to 10.0.12.0/24 is FALSE as the question and exhibit are written. The verified answer is B, and the original source key A should be corrected.
