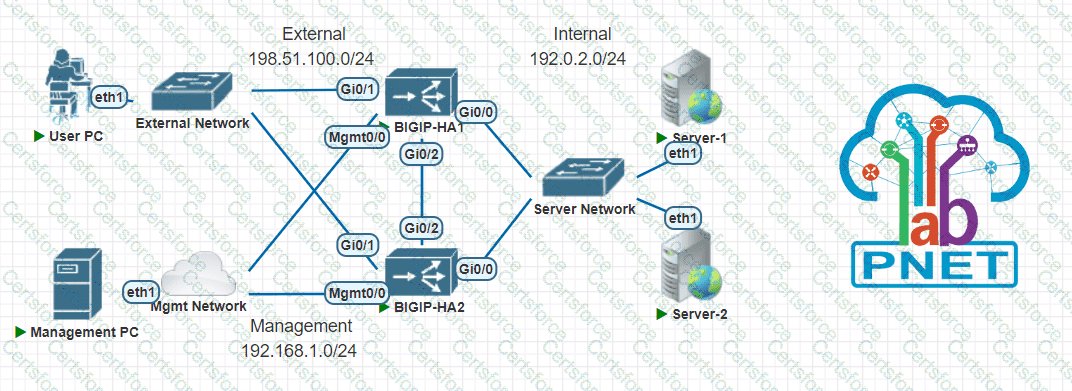

The F5 BIG-IP upgrade process for HA pairs requires a specific " staggered " approach to maintain uptime.

Version Mismatch: When one unit is upgraded to a newer version of TMOS (e.g., from 15.1 to 16.1), it enters a 26 " Version Mismatch " 27 state with its peer.

Configuration Sync: Because the configuration schemas between different versions are often incompatible, ConfigSync should not be performed . Attempting to sync a newer configuration to an older system (or vice-versa) can cause configuration corruption or system instability.

Failover Capability: Generally, a pair with a version mismatch can still fail over to ensure traffic continuity during the upgrade window, but administrative changes and syncs must be paused until both units are on the same version.

The appropriate configuration for emulating conventional stateless IP routing is a Forwarding (IP) virtual server using a FastL4 profile .

A Forwarding (IP) virtual server does not select an application-server pool in the normal load-balancing sense. Instead, BIG-IP forwards the packet toward the destination address originally specified by the client and uses the system ' s routing table to determine the serverside path. This makes the Forwarding (IP) virtual server the BIG-IP virtual-server type designed to provide router-like Layer 3 forwarding behavior.

BIG-IP processing is inherently stateful, so to approximate stateless router behavior, F5 uses specific FastL4 profile settings with the IP forwarding virtual server. FastL4 is supported with Forwarding (IP) virtual servers and provides efficient Layer 4 packet processing.

Option C is deceptive. BIG-IP does have a virtual server type called Stateless , but F5 documents that this type applies specifically to UDP traffic , requires a default pool, and has significant configuration restrictions. It is therefore not the general mechanism used to emulate stateless IP routing.

A Standard virtual server performs full-proxy processing, while Performance (Layer 4) is primarily used for high-performance Layer 4 application delivery and can use pools. Neither is the intended router-emulation configuration.

Study Guide References/Topics: Forwarding (IP) Virtual Servers; FastL4 Profile; Routing Table Processing; Stateful versus Stateless Forwarding; Virtual Server Types.

A Forwarding (IP) virtual server is unique because it does not perform load balancing in the traditional sense.

No Pool Members: Unlike a Standard virtual server, which requires a pool to direct traffic, a Forwarding (IP) virtual server typically has no pool assigned .

Destination-Based Routing: The BIG-IP system looks at the destination IP address in the original packet header sent by the client. It then consults the BIG-IP system ' s local routing table to determine where to send the packet.

Transparency: It acts as a high-performance router/gateway, often used to forward traffic from internal servers to the internet or across different subnets while still allowing the BIG-IP to apply features like SNAT or bandwidth controllers.

Stateful Tracking: While it forwards traffic based on the routing table, it still creates an entry in the connection table to track the flow (unless it is a Stateless virtual server).

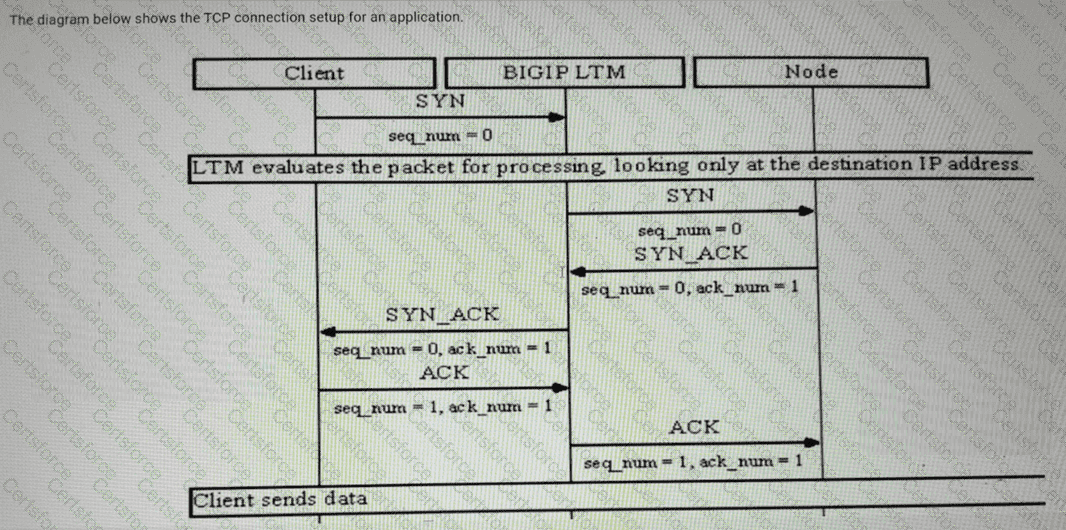

The diagram illustrates a specific TCP handshake sequence where the BIG-IP system acts as a transparent forwarder rather than a full proxy. The key indicators that identify this as a Forwarding (IP) virtual server are as follows:

Initial Packet Processing : The diagram explicitly states that the LTM evaluates the packet looking only at the destination IP address . This is the fundamental characteristic of a Forwarding IP virtual server, which uses the system ' s routing table to make forwarding decisions instead of load balancing to a pool of members.

Handshake Sequence : Unlike a Standard virtual server, which completes the three-way handshake with the client (SYN, SYN-ACK, ACK) before initiating a separate connection to the server, the Forwarding IP virtual server passes the client ' s original SYN packet directly to the destination node.

Response Timing : The BIG-IP system waits for the SYN-ACK from the destination node before it sends a SYN-ACK back to the client. It essentially " passes through " the handshake signals while still maintaining a state entry in the connection table to track the flow.

Packet-by-Packet Logic : While it tracks the state, it does not perform address translation (unless SNAT is specifically configured) or deep packet inspection like a full proxy would.

Why other options are incorrect:

Standard virtual server : A Standard virtual server is a " full proxy. " It would finish the handshake with the client first and only then open a second, independent TCP connection to the backend server.

Stateless virtual server : A stateless virtual server does not track connections in the connection table. The diagram shows the system meticulously passing sequence numbers ($seq\_num$) and acknowledgment numbers ($ack\_num$) between the two sides, which requires stateful tracking of the TCP flow.

A Self IP is an IP address on the BIG-IP system that you associate with a specific VLAN .

VLAN Association: A Self IP cannot exist independently; it must be bound to a VLAN to define which network segment the BIG-IP can communicate with.

Layer 2 to Layer 3 Mapping: While a VLAN is associated with physical interfaces or trunks (Layer 2), the Self IP provides the Layer 3 identity for the BIG-IP on that VLAN.

Traffic Processing: Self IPs are used by the BIG-IP for health checking backend servers, acting as a default gateway for servers, and for HA heartbeat communication.

On BIG-IP systems, physical interface bandwidth is fixed by the link speed (for example, 1GbE or 10GbE). When traffic demand exceeds the capacity of a single interface, BIG-IP provides link aggregation through trunks .

Key concepts involved:

Interfaces A single physical interface (such as 1.1) is limited to its negotiated link speed. You cannot exceed this capacity through software tuning alone.

Trunks (Link Aggregation) A trunk combines multiple physical interfaces into a single logical interface.

BIG-IP supports LACP and static trunks.

Traffic is distributed across member interfaces, increasing aggregate bandwidth and providing redundancy .

VLANs are then assigned to the trunk , not directly to individual interfaces.

Why option B is correct:

Creating a trunk with two interfaces allows BIG-IP to use both physical links simultaneously.

This increases total available bandwidth (for example, two 10Gb interfaces → up to 20Gb aggregate capacity).

This is the documented and supported method for scaling bandwidth on BIG-IP.

Why the other options are incorrect:

A. Increase the MTU MTU changes affect packet size and efficiency, not total bandwidth capacity .

C. Assign two interfaces to the VLAN BIG-IP does not support assigning a VLAN to multiple interfaces directly. VLANs must be associated with one interface or one trunk .

D. Set the media speed manually Media speed can only be set up to the physical capability of the interface and connected switch port. It cannot exceed the hardware limit.

Conclusion:

To increase total available bandwidth on BIG-IP when a single interface is insufficient, the administrator must create a trunk object with multiple interfaces and move the VLAN onto the trunk. This aligns directly with BIG-IP data plane design and best practices.

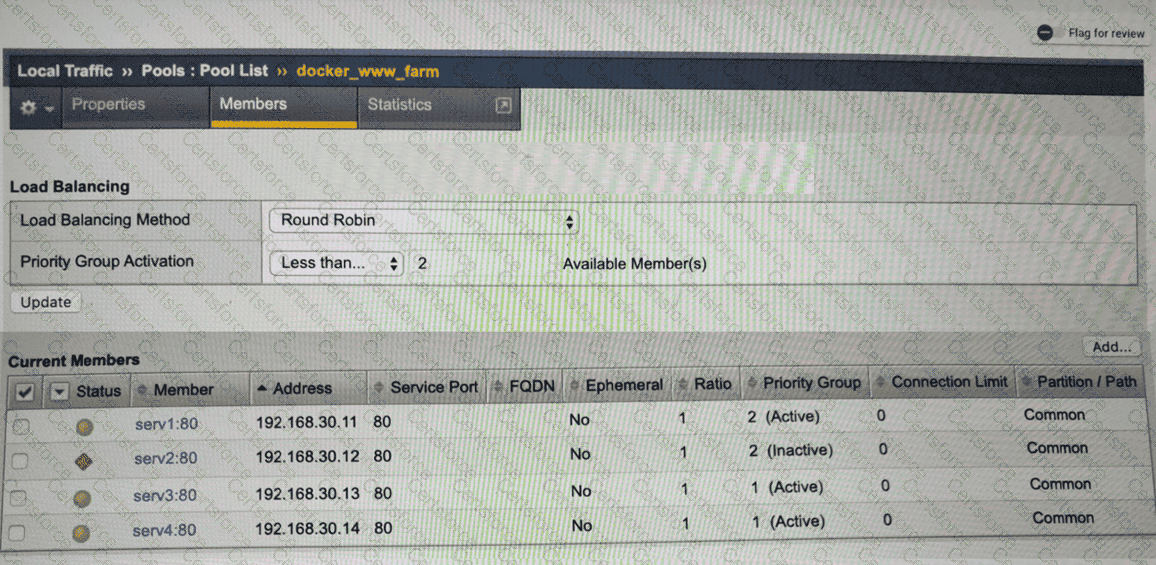

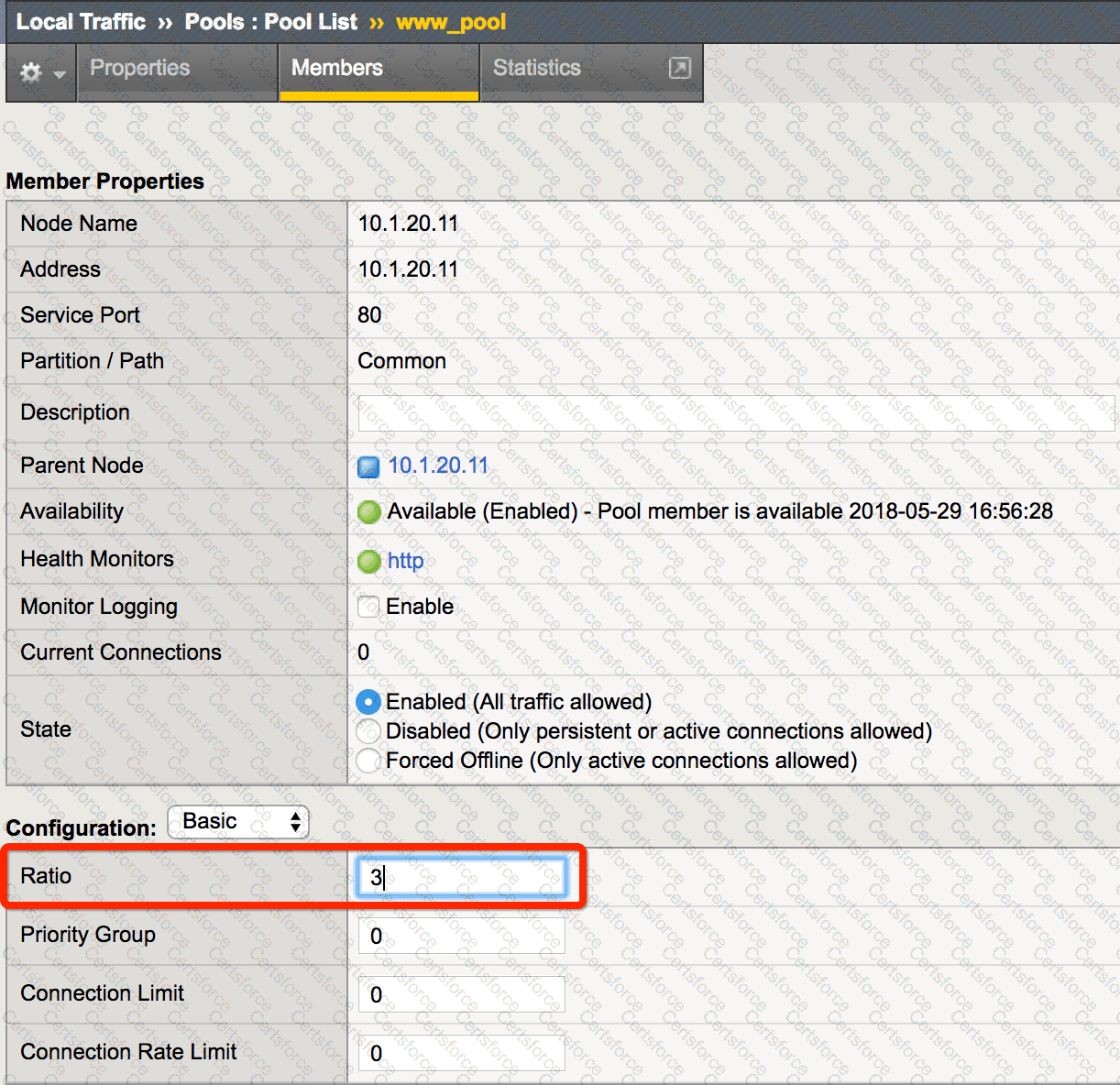

In a BIG-IP environment, load balancing and persistence work together but serve different purposes. While a load balancing method like Least Connections attempts to distribute traffic based on current connection counts, a persistence profile overrides this logic for returning clients.

Persistence Overrides Load Balancing: When a persistence profile (such as Source Address or Cookie persistence) is applied to a Virtual Server, the BIG-IP system tracks which client was sent to which backend member.

Sticky Sessions: If a client with a valid persistence record returns, the BIG-IP will send that client to the same pool member it was previously assigned to, regardless of the load balancing algorithm ' s current preference.

Uneven Distribution: If certain clients generate significantly more traffic or stay connected longer than others, the persistence table will " lock " those high-volume flows to specific members, resulting in an uneven distribution of connections across the pool.

SNAT Automap is a feature that automatically selects a self-IP address to use as the source address for translated packets. The selection logic follows a strict hierarchy to ensure that traffic is routable back to the BIG-IP:

Egress VLAN Priority: The BIG-IP first looks at the VLAN through which the traffic is exiting toward the pool member (the egress VLAN).

Floating Self-IP Preference: If the egress VLAN has a floating self-IP address , the BIG-IP will always prefer it for SNAT Automap. This is critical for High Availability (HA) because, during a failover, the floating IP moves to the new active device, allowing existing connections to be maintained or correctly timed out.

Non-Floating Fallback: If no floating self-IP is available on the egress VLAN, the system will use a floating self-IP from a different VLAN. If no floating IPs exist at all, it will then fall back to the non-floating self-IP.

Key Data Plane Concept:

The management IP is never used for data plane traffic. In this scenario, since the administrator has configured a floating self-IP, that specific address becomes the source for all SNAT Automap traffic leaving that VLAN to ensure symmetric routing during HA events.

In BIG-IP high availability (HA) configurations, MAC Masquerade is used to speed up failover by allowing traffic-group-associated Self IPs to retain the same MAC address when moving between devices. This prevents upstream switches and routers from having to relearn ARP entries during a failover event, resulting in near-instant traffic recovery.

By default, MAC masquerade applies one MAC address per traffic group, regardless of how many VLANs the traffic group spans. This can create problems in some network designs because the same MAC address appearing on multiple VLANs may violate network policies or confuse switching infrastructure.

To address this, BIG-IP provides Per-VLAN MAC Masquerade, enabled by the database variable:

`tm.macmasqaddr_per_vlan = true`

When this feature is enabled:

BIG-IP derives a unique MAC address per VLAN

The base MAC address configured on the traffic group remains the first four octets

The last two octets are replaced with the VLAN ID expressed in hexadecimal

The VLAN ID is encoded in network byte order (high byte first, low byte second)

### VLAN ID Conversion:

VLAN ID: 1501 (decimal)

Convert to hexadecimal:

1501₁₀ = 0x05DD

High byte: 05

Low byte: DD

### Resulting MAC Address:

Base MAC: `02:12:34:56:00:00`

Per-VLAN substitution → last two bytes = `05:DD`

Final MAC address:

`02:12:34:56:05:dd`

### Why the Other Options Are Incorrect:

A (01:15) – Incorrect hexadecimal conversion of 1501

B (dd:05) – Byte order reversed (little-endian, not used by BIG-IP)

D (15:01) – Uses decimal values instead of hexadecimal

### Key BIG-IP HA Concept Reinforced:

Per-VLAN MAC Masquerade ensures Layer 2 uniqueness per VLAN while preserving the fast failover benefits of traffic groups, making it the recommended best practice in multi-VLAN HA deployments.

When troubleshooting performance and latency issues on BIG-IP, especially under peak load conditions, it is critical to identify which Virtual Servers are consuming the most resources . This is a core data plane analysis task .

BIG-IP provides multiple views of configuration and status, but only certain areas expose real-time and historical traffic statistics that correlate directly with CPU usage and throughput.

Why Option C Is Correct:

Statistics > Module Statistics > Local Traffic > Virtual Servers provides:

Real-time and cumulative statistics per Virtual Server

Metrics such as:

Bits in / Bits out

Packets in / Packets out

Current connections

Connection rate

Total requests

The ability to identify high-traffic or high-connection Virtual Servers , which are the most likely contributors to elevated CPU utilization

These statistics allow the administrator to objectively determine which Virtual Servers are the top consumers of system resources and therefore good candidates for migration to a dedicated BIG-IP device.

Why the Other Options Are Incorrect:

A. Local Traffic > Virtual Servers > Virtual Server List

Primarily a configuration view

Does not provide sufficient performance or utilization statistics to identify CPU-heavy Virtual Servers

B. System > Platform

Displays hardware-level information such as CPU cores, memory, disk, and platform type

Does not break down utilization by Virtual Server

D. Local Traffic > Network Map

Provides a logical topology view of Virtual Servers, pools, and pool members

Useful for understanding relationships, but not for identifying high-utilization Virtual Servers

Key Data Plane Concept Reinforced:

To diagnose performance problems and plan traffic redistribution, BIG-IP administrators must rely on Module and object-level statistics , not configuration screens. The Virtual Server statistics view is the authoritative location for identifying traffic hotspots that directly impact CPU and latency during peak events such as Black Friday.

===========
