In the BIG-IP system object hierarchy, health monitors can be applied at three levels: Node, Pool, and Pool Member.

Pool Level (Properties): Applying a monitor at the Pool > Properties level is the most common and efficient administrative practice. When applied here, the monitor is inherited by all members of that pool. If the monitor fails for a specific member, that member is marked "down" specifically for that pool.

Node Level: If a monitor is applied at the Node level (Local Traffic > Nodes), it checks the health of the physical IP address itself. If it fails, that node (and all pool members associated with it) is marked down globally across the entire system.

Member Level: Applying a monitor at the Pool > Members level allows for specific "per-member" monitoring, which is usually only done if different members in the same pool require different health checks.

The Specific Case: For a standard database pool like DB_Pool, the administrator should navigate to Local Traffic > Pools > DB_Pool > Properties and select the appropriate monitor (e.g., a custom TCP or Oracle monitor) from the "Health Monitors" configuration section.

For BIG-IP to send or receive traffic on a VLAN, that VLAN must be bound to a physical interface or a trunk. Creating a VLAN object and a Self IP alone is not sufficient to establish data-plane connectivity.

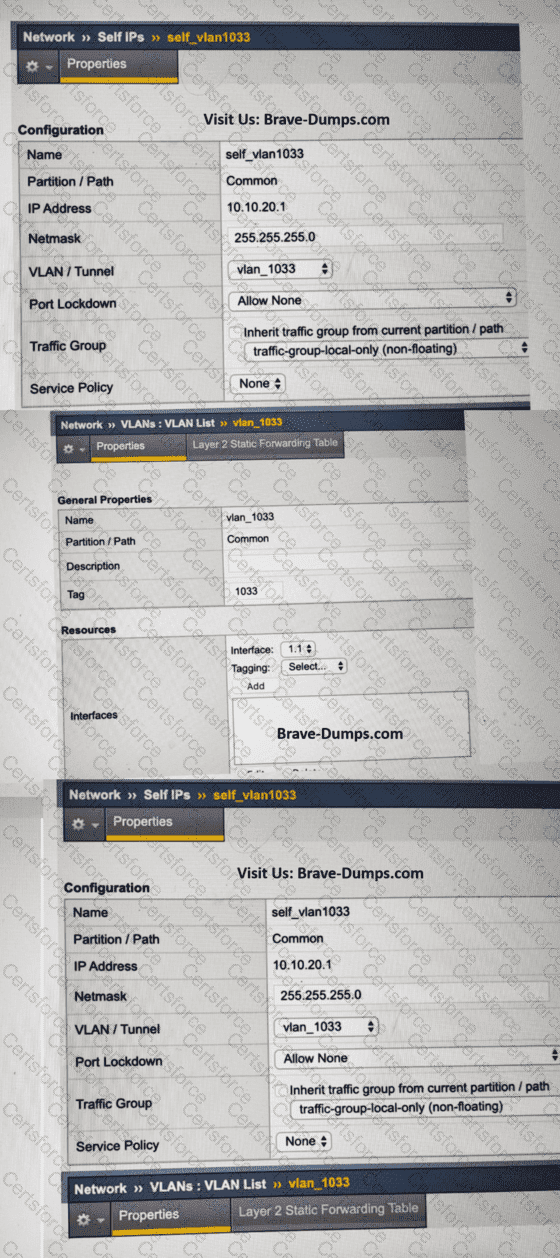

From the exhibit:

The VLAN (vlan_1033) exists and has a tag defined.

A Self IP is configured and associated with the VLAN.

However, traffic cannot reach servers on that VLAN.

This indicates a Layer 2 connectivity issue, not a Layer 3 or HA issue.

Why assigning a physical interface fixes the problem:

BIG-IP VLANs do not carry traffic unless they are explicitly attached to:

A physical interface (e.g., 1.1), or

A trunk

Without an interface assignment, the VLAN is effectively isolated and cannot transmit or receive frames, making servers unreachable regardless of correct IP addressing.

Why the other options are incorrect:

A. Set Port Lockdown to Allow AllPort Lockdown controls which services can be accessed on the Self IP (management-plane access), not whether BIG-IP can reach servers on that VLAN.

B. Change Auto Last Hop to enabledAuto Last Hop affects return traffic routing for asymmetric paths. It does not fix missing Layer 2 connectivity.

D. Create a Floating Self IP addressFloating Self IPs are used for HA failover. They do not resolve reachability issues on a single device when the VLAN itself is not connected to an interface.

Conclusion:

The servers are unreachable because the VLAN has no physical interface assigned. To restore connectivity, the BIG-IP Administrator must assign a physical interface (or trunk) to the VLAN, enabling Layer 2 traffic flow.

According to F5 BIG-IP documentation regarding High Availability and MAC Masquerade behavior, the system allows for more granular control over Layer 2 addresses during failover events.

Standard MAC Masquerade: By default, when a traffic group is assigned a MAC masquerade address (like 02:12:34:56:00:00), the BIG-IP system uses that exact MAC address for all traffic associated with that traffic group across all VLANs. This ensures that upstream switches do not need to relearn ARP entries for the Virtual IP, but it can cause issues in environments where multiple VLANs share the same physical infrastructure or monitoring tools that flag identical MACs across segments.

Per-VLAN MAC Masquerade: When the system database variable tm.macmasqaddr_per_vlan is set to true, the BIG-IP system calculates a unique MAC address for each VLAN. It does this by taking the base MAC masquerade address configured in the traffic group and adding the VLAN ID (tag) to it.

Calculation Logic:

Base MAC: 02:12:34:56:00:00

VLAN ID: 1501

To find the suffix, the VLAN ID is converted from decimal to hexadecimal:

$1501$ in decimal = 05DD in hex.

The system then applies this offset to the last two octets of the base MAC address.

00:00 + 05:DD = 05:DD.

Result: The final MAC address for VLAN 1501 becomes 02:12:34:56:05:dd.

This ensures that every VLAN has a unique Layer 2 identity while still reaping the benefits of "gratuitous ARP-less" failover provided by MAC masquerading.

This question focuses on connection behavior when pool members transition from down to up, which is a classic data plane consideration in BIG-IP environments.

What problem is being solved?

When a pool member:

Recovers from a failure

Is enabled after maintenance

Transitions from inactive to active

…it can suddenly receive a large burst of new connections, especially when using load-balancing methods such as Least Connections. This sudden surge can overload the server.

Why Slow Ramp Time is the correct solution:

Slow Ramp Time is a pool-level setting that:

Gradually increases the number of connections sent to a newly available pool member

Prevents sudden spikes in traffic

Allows the server to warm up (application cache, JVM, DB connections, etc.)

From BIG-IP Administration Data Plane Concepts:

Slow Ramp Time controls the rate at which BIG-IP increases load to a pool member that has just become available

During the ramp period, BIG-IP artificially increases the member’s connection count, making it appear “busier” and therefore less attractive for new connections

This directly satisfies the requirement to avoid overloading pool members when they become active.

Why the Other Options Are Incorrect:

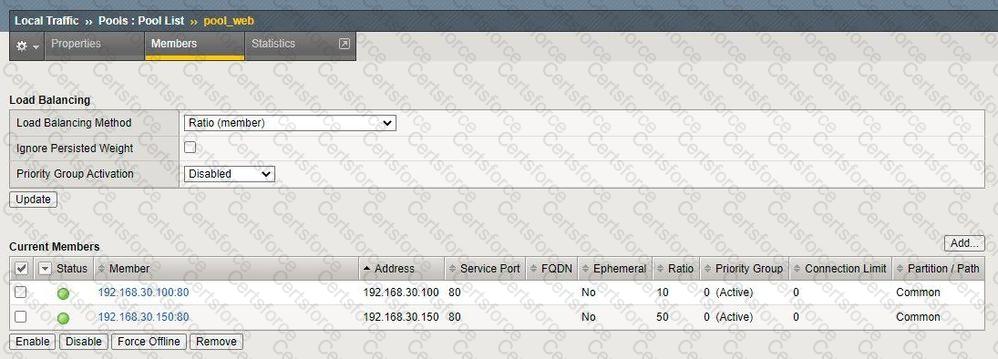

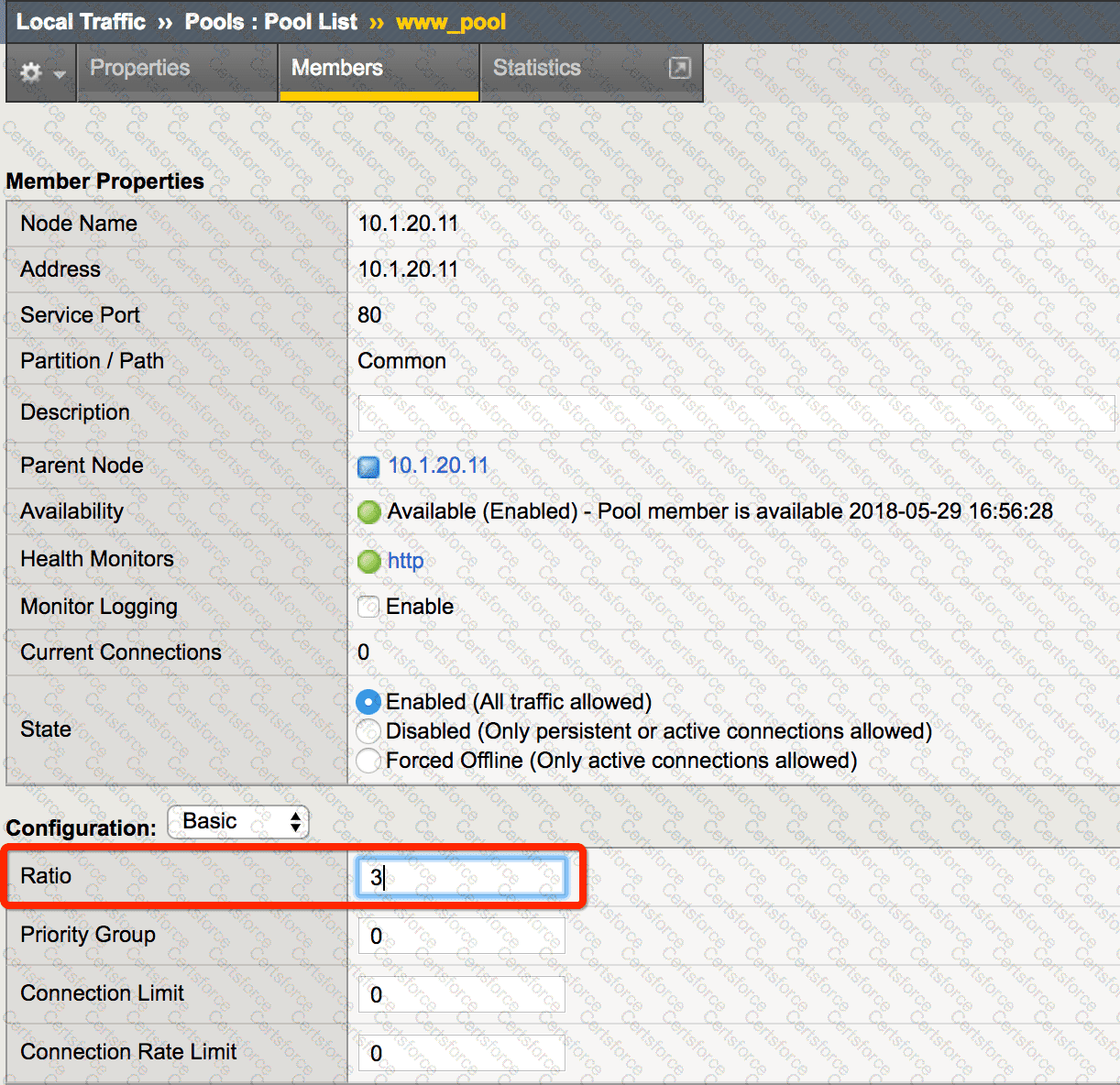

B. Different Ratio for each member

Ratios control relative distribution under normal operation

They do not prevent a sudden surge when a member becomes active

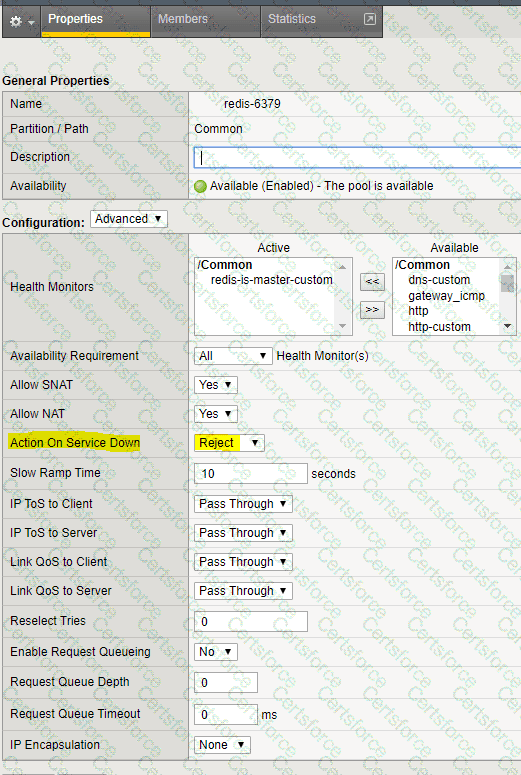

C. Action On Service Down to Reselect

Controls persistence behavior when a member goes down

Has no impact on connection ramp-up when a member comes back online

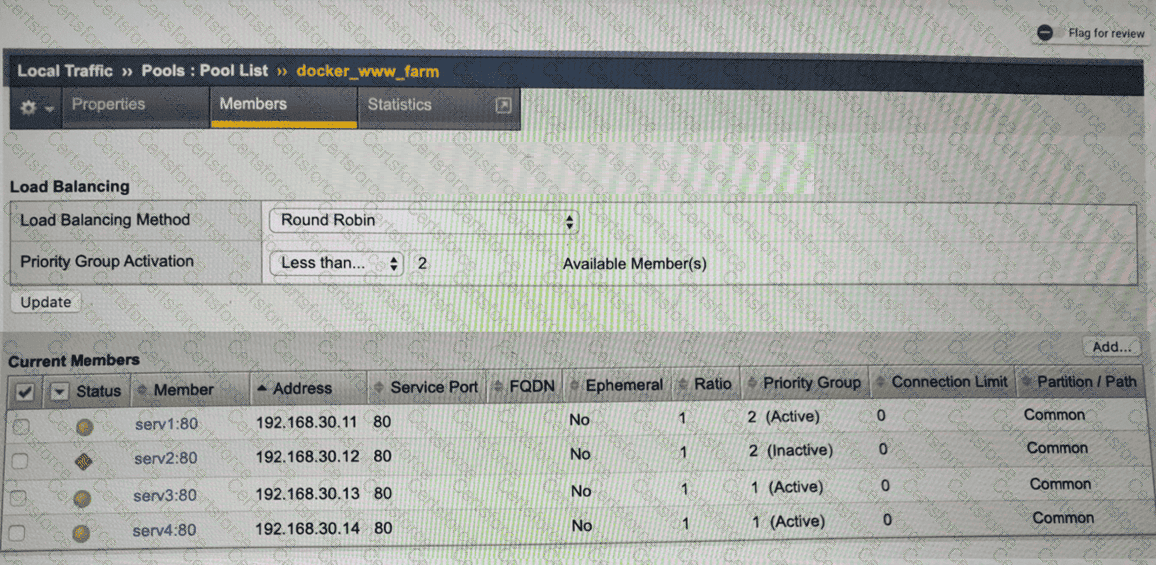

D. Same Priority Group to each member

Affects failover logic between priority groups

Does not control connection rate or ramp-up behavior

Key Data Plane Concept Reinforced:

To protect backend servers during recovery events, BIG-IP provides Slow Ramp Time, ensuring graceful reintroduction of traffic and preventing connection storms that can occur during high-load scenarios.

===========

In a BIG-IP device service cluster, configuration objects such as virtual servers, pools, profiles, and iRules are maintained through configuration synchronization (config-sync).

Key BIG-IP concepts involved:

Device Service Cluster (DSC)A cluster is a group of BIG-IP devices that share configuration data. One device is typically used to make changes, which are then synchronized to the rest of the group.

Config-Sync Direction Matters

Changes are made on a local device

Those changes must be pushed to the group

The correct operation is “Sync Device to Group”

Why C is correct:

The virtual server was created only on device 1

Other devices in the cluster do not yet have this object

To propagate the new virtual server to all cluster members, the administrator must synchronize device 1 to the group

Why the other options are incorrect:

A. Synchronize the settings of the group to device 1This would overwrite device 1’s configuration with the group’s existing configuration and may remove the newly created virtual server.

B. Create a new cluster on device 1The cluster already exists. Creating a new cluster is unnecessary and disruptive.

D. Create a new virtual server on device 2This defeats the purpose of centralized configuration management and risks configuration drift.

Conclusion:

After creating a new virtual server on a BIG-IP device that is part of a cluster, the administrator must synchronize the configuration from that device to the group so all devices share the same ADC application objects.

In BIG-IP high availability (HA) configurations, MAC Masquerade is used to speed up failover by allowing traffic-group-associated Self IPs to retain the same MAC address when moving between devices. This prevents upstream switches and routers from having to relearn ARP entries during a failover event, resulting in near-instant traffic recovery.

By default, MAC masquerade applies one MAC address per traffic group, regardless of how many VLANs the traffic group spans. This can create problems in some network designs because the same MAC address appearing on multiple VLANs may violate network policies or confuse switching infrastructure.

To address this, BIG-IP provides Per-VLAN MAC Masquerade, enabled by the database variable:

`tm.macmasqaddr_per_vlan = true`

When this feature is enabled:

BIG-IP derives a unique MAC address per VLAN

The base MAC address configured on the traffic group remains the first four octets

The last two octets are replaced with the VLAN ID expressed in hexadecimal

The VLAN ID is encoded in network byte order (high byte first, low byte second)

### VLAN ID Conversion:

VLAN ID: 1501 (decimal)

Convert to hexadecimal:

1501₁₀ = 0x05DD

High byte: 05

Low byte: DD

### Resulting MAC Address:

Base MAC: `02:12:34:56:00:00`

Per-VLAN substitution → last two bytes = `05:DD`

Final MAC address:

`02:12:34:56:05:dd`

### Why the Other Options Are Incorrect:

A (01:15) – Incorrect hexadecimal conversion of 1501

B (dd:05) – Byte order reversed (little-endian, not used by BIG-IP)

D (15:01) – Uses decimal values instead of hexadecimal

### Key BIG-IP HA Concept Reinforced:

Per-VLAN MAC Masquerade ensures Layer 2 uniqueness per VLAN while preserving the fast failover benefits of traffic groups, making it the recommended best practice in multi-VLAN HA deployments.

When troubleshooting performance and latency issues on BIG-IP, especially under peak load conditions, it is critical to identify which Virtual Servers are consuming the most resources. This is a core data plane analysis task.

BIG-IP provides multiple views of configuration and status, but only certain areas expose real-time and historical traffic statistics that correlate directly with CPU usage and throughput.

Why Option C Is Correct:

Statistics > Module Statistics > Local Traffic > Virtual Servers provides:

Real-time and cumulative statistics per Virtual Server

Metrics such as:

Bits in / Bits out

Packets in / Packets out

Current connections

Connection rate

Total requests

The ability to identify high-traffic or high-connection Virtual Servers, which are the most likely contributors to elevated CPU utilization

These statistics allow the administrator to objectively determine which Virtual Servers are the top consumers of system resources and therefore good candidates for migration to a dedicated BIG-IP device.

Why the Other Options Are Incorrect:

A. Local Traffic > Virtual Servers > Virtual Server List

Primarily a configuration view

Does not provide sufficient performance or utilization statistics to identify CPU-heavy Virtual Servers

B. System > Platform

Displays hardware-level information such as CPU cores, memory, disk, and platform type

Does not break down utilization by Virtual Server

D. Local Traffic > Network Map

Provides a logical topology view of Virtual Servers, pools, and pool members

Useful for understanding relationships, but not for identifying high-utilization Virtual Servers

Key Data Plane Concept Reinforced:

To diagnose performance problems and plan traffic redistribution, BIG-IP administrators must rely on Module and object-level statistics, not configuration screens. The Virtual Server statistics view is the authoritative location for identifying traffic hotspots that directly impact CPU and latency during peak events such as Black Friday.

===========

The F5 BIG-IP upgrade process for HA pairs requires a specific "staggered" approach to maintain uptime.

Version Mismatch: When one unit is upgraded to a newer version of TMOS (e.g., from 15.1 to 16.1), it enters a26 "Version Mismatch" 27state with its peer.

Configuration Sync: Because the configuration schemas between different versions are often incompatible, ConfigSync should not be performed. Attempting to sync a newer configuration to an older system (or vice-versa) can cause configuration corruption or system instability.

Failover Capability: Generally, a pair with a version mismatch can still fail over to ensure traffic continuity during the upgrade window, but administrative changes and syncs must be paused until both units are on the same version.

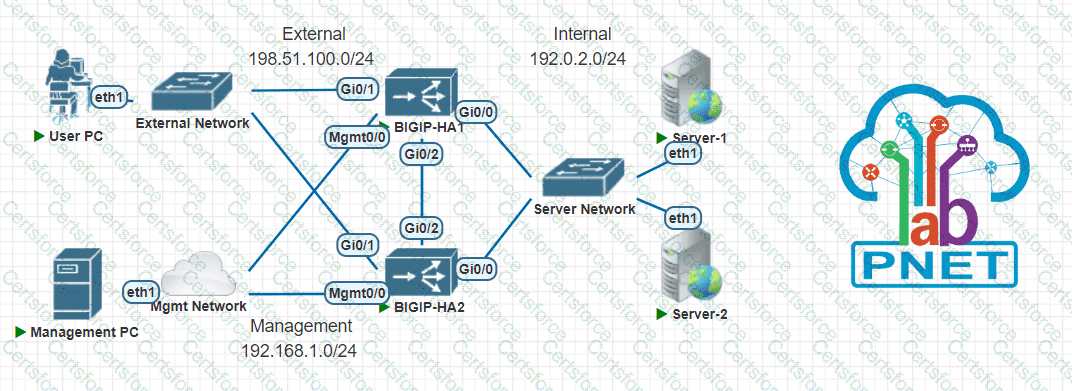

When establishing a redundant pair, each device must know where to send its health heartbeats and sync data.

The Peer IP: The Failover Peer IP is the IP address belonging to the other BIG-IP device in the HA pair. This is typically a34 Self-IP on a dedicated "HA" or "Internal" VLAN, or the Management IP.

Purpose: It identifies the destination for the "Heartbeat" (the "Are you alive?" check).

Setup Context: During the initial setup, you tell Device A to look for Device B at its "Failover Peer IP," and you tell Device B to look for Device A at its respective "Failover Peer IP."

In BIG-IP, a trunk is a Layer 2 network object used to aggregate multiple physical interfaces into a single logical link. This aggregation provides increased bandwidth and link resiliency, commonly in conjunction with LACP.

Key concepts that apply here:

Trunks are managed under the /net trunk tmsh hierarchy

Physical interfaces are added or removed using the modify command

The create command is used only when defining a brand-new trunk, not when updating an existing one

Because the trunk already exists and the goal is to add interfaces, the correct operation is:

tmsh modify /net trunk trunk_A interfaces add {1.3 1.4}

This command:

Modifies the existing trunk named trunk_A

Adds interfaces 1.3 and 1.4 to the trunk

Immediately increases available bandwidth and redundancy

Why the Other Options Are Incorrect

B uses the /sys hierarchy, which is not used for trunks

C attempts to create a trunk that already exists

D uses an incorrect hierarchy and an incorrect operation
