Within the VMware vSAN framework embedded inside the Dell VxRail infrastructure, certain storage efficiency features are structurally bound to the underlying media types. Specifically, deduplication and compression (Choice D) is a core space-saving technology that fundamentally requires an all-flash cluster deployment when utilizing the Original Storage Architecture (OSA). In an all-flash configuration, vSAN executes deduplication and compression at the block level during the destaging phase, as data transitions from the caching tier to the capacity tier.

Because these hashing and block-matching algorithms impose intensive mathematical processing overhead and demand rapid, random read/write lookups to maintain throughput without introducing system latency, VMware restricts this capability entirely to solid-state drives across both storage tiers. Attempting to run deduplication and compression on a hybrid node configuration utilizing spinning magnetic disks for capacity is structurally barred because traditional HDDs cannot support the high-performance random I/O required for metadata manipulation. In contrast, security and orchestration features such as data-at-rest encryption, data-in-transit encryption, and storage policy-based management (SPBM) are software-defined storage abstractions that operate uniformly across both hybrid and all-flash cluster environments.

Within a VxRail cluster operating on the Original Storage Architecture (OSA), optimizing storage capacity is driven by software-defined data efficiency policies. Starting with vSphere 7.0 Update 1, vSAN introduced the option to enable "Compression Only" as a distinct toggle from the combined "Deduplication and Compression" feature set. A fundamental architectural distinction between these two mechanisms lies in their operational scope and data reduction boundaries.

When the compression-only feature is active, data reduction algorithms execute strictly on a per-disk basis. This means blocks are evaluated and compressed locally before being written directly to that specific capacity drive, avoiding structural dependencies on adjacent drives or affecting the broader disk group cache-to-capacity relationship. In contrast, deduplication inherently requires a cross-device scope because it eliminates redundant data blocks across a larger logical boundary; hence, deduplication is applied to the entire disk group. For deduplication to occur, the hashing algorithms must track data signatures across all capacity drives tied to a specific caching drive within that given disk group. Consequently, deduplication carries a wider failure domain and distinct architectural requirements compared to localized per-disk compression profiles.

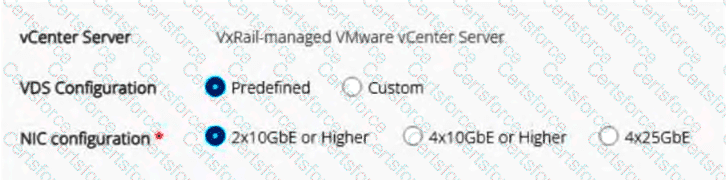

In a VxRail deployment where the "Predefined" virtual distributed switch (VDS) configuration is selected alongside a "2x10GbE or Higher" dual-NIC layout, the automated installer applies deterministic network load-balancing and failover policies. Because a 2-NIC profile aggregates all foundational infrastructure traffic—including Management, vMotion, vSAN, and Virtual Machine networks—onto a single pair of physical uplinks (Uplink 1 and Uplink 2), logical segregation is critical to prevent contention and ensure data path reliability.

To achieve this, the predefined architecture utilizes an explicit failover ordering mechanism rather than a standard active/active load-balancing state across the uplinks. For the vSAN port group, which carries high-throughput storage synchronization traffic, the network design configures Uplink 1 as Standby and Uplink 2 as Active. This configuration maps directly to a Standby/Active setup. Conversely, the Management port group operates in an inverse fashion, utilizing Uplink 1 as Active and Uplink 2 as Standby. This layout optimizes bandwidth usage across both physical connections during standard operations, while guaranteeing that full path redundancy remains maintained if an upstream switch link failover event occurs.

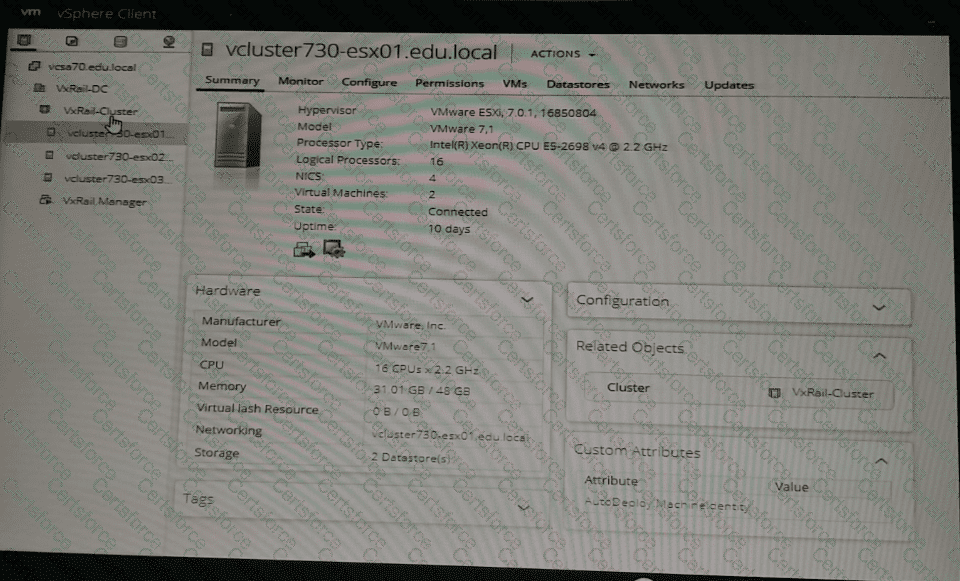

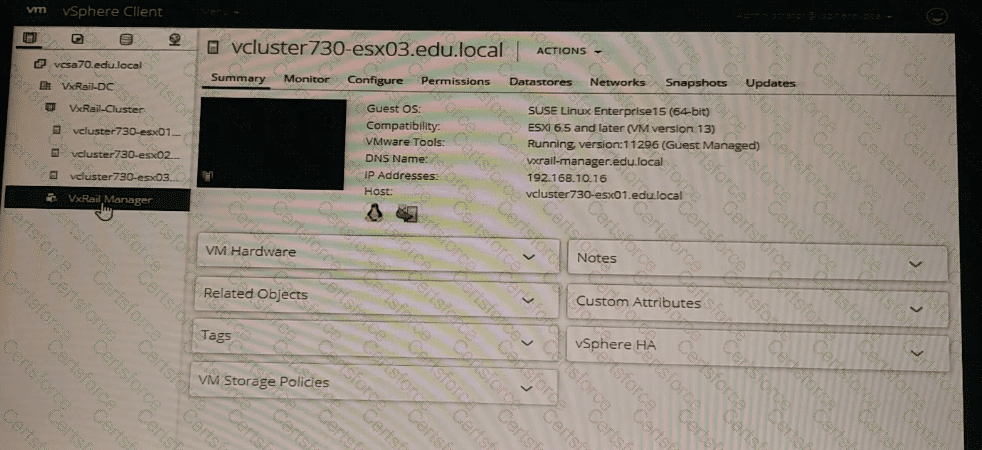

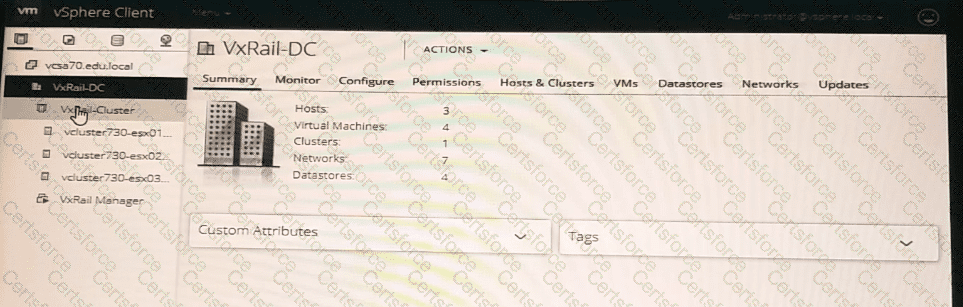

When an organization opts to deploy a VxRail cluster using a customer-supplied (external) vCenter Server instead of the embedded VxRail-managed virtual appliance, specific architectural and licensing boundaries must be accommodated during the design and planning phase. First, this model dictates that the customer must provide a separate, valid VMware vCenter Server license (Choice C), as the automated, bundled license included with the embedded deployment model is non-transferable to external management entities.

Second, because the infrastructure services are completely decoupled, the environment requires a fully functional, external DNS server (Choice B) with pre-established forward and reverse lookup records for all node management components, ESXi hosts, and the incoming VxRail Manager instance prior to initialization. Third, the long-term maintenance paradigm shifts completely; the cluster uses customer-defined procedures for vCenter software upgrades (Choice D). This means the customer is independently responsible for patching and upgrading the external vCenter Server instance using standard VMware utilities like the vCenter Server Appliance Management Interface (VAMI) before initiating updates on the VxRail cluster components, effectively separating the external management platform from the automated VxRail Manager lifecycle management (LCM) framework.

The Dell VxRail HCI System Software is a proprietary suite of integrated management, automation, and orchestration capabilities designed to simplify the operational lifecycle of hyperconverged infrastructure. Within this architectural ecosystem, VxRail Manager serves as the core software virtual appliance that contains and delivers these software capabilities.

VxRail Manager integrates directly with VMware vCenter Server to extend standard virtual environment oversight, offering an embedded control plane that manages automated hardware discovery, node additions, drive replacements, and non-disruptive software upgrades. While solutions like VMware Cloud Foundation or VMware Tanzu can be layered onto or integrated with the VxRail platform to provide cloud operating models and container orchestration, they are standalone VMware product portfolios rather than native software components of the core VxRail HCI system software suite itself. The automation and orchestration capabilities represent functional attributes delivered directly by the primary software component, which is the VxRail Manager appliance. Therefore, VxRail Manager represents the explicit internal engine driving the system software layer.

The VxRail REST API classifies orchestration tasks into separate operational boundaries, explicitly distinguishing between Day 1 (initialization and deployment) and Day 2 (ongoing lifecycle management) requests. Day 1 operations are exclusively bound to the automated processes required to bring a fresh, unconfigured set of bare-metal nodes up to a fully realized hyperconverged cluster infrastructure. This includes executing a discovery scan across the physical network segment to locate candidate nodes, invoking the deployment engine to programmatically apply the system design specification, and programmatically monitoring the initialization build sequence.

Specifically, the corresponding VxRail API endpoints utilized during this architectural phase include queries to discover unconfigured nodes on the local fabric, POST /v1/system/initialize to launch the automated deployment, and GET /v1/system/initialize/status to track execution milestones. Alternative operations, such as expanding an operational cluster by adding nodes or executing automated software runtime upgrades, are explicitly classified as Day 2 lifecycle management workflows. These Day 2 tasks require a pre-existing, fully initialized production environment and an active integration with the vCenter management layer.

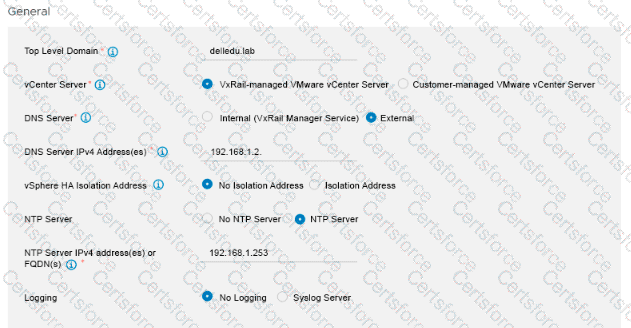

The exhibit illustrates the "General" settings section within the VxRail Deployment Wizard, where foundational infrastructure parameters are defined. Crucially, the radio button for "VxRail-managed VMware vCenter Server" is explicitly selected. In a VxRail deployment topology, choosing an internal, VxRail-managed vCenter server fundamentally changes how lifecycle management (LCM) operations are orchestrated for the cluster.

When a cluster is deployed with a VxRail-managed vCenter, the vCenter Server virtual appliance is tightly coupled with the VxRail Manager platform. This deep architectural integration guarantees that all future patch cycles, security definitions, and major platform upgrades for the vCenter Server are natively included within the unified VxRail composite update bundles. When an administrator applies an update package through the VxRail Manager dashboard, the orchestration engine automatically conducts pre-checks and applies the software versions to both the VxRail Manager and the vCenter Server in a fully automated, validated sequence. Conversely, infrastructure services configured as "External," such as the designated DNS or NTP servers, reside outside the VxRail ecosystem and are not targeted by VxRail lifecycle payloads. Therefore, the vCenter Server is the specific component captured in future update packages.

Before initiating the automated VxRail Deployment Wizard, specific network and administrative configuration steps must be executed immediately following the physical racking and cabling of the hardware nodes. First, the administrator must configure the iDRAC network settings (Choice C). This involves setting static IP addresses, updating default credentials, ensuring the interface is assigned to the dedicated management port, and enabling IPMI over LAN. Establishing the iDRAC network path allows deployment engineers to monitor hardware initialization states and perform out-of-band node validation tasks before the VxRail Manager cluster orchestrator takes control.

Second, the administrator must validate the private management network VLAN (Choice B) on the physical Top-of-Rack switches. VxRail uses an isolated VLAN—by default VLAN 3939—to run the Loudmouth discovery protocol using IPv6 multicast frames. If the switches are not properly tagged or trunked to allow this multicast domain traffic to pass between the nodes and the VxRail Manager, host discovery will fail. Manually installing ESXi via a VMware ISO is unnecessary as nodes ship with a factory-installed hypervisor image, and component firmware updates are natively orchestrated during or after initialization by the validated VxRail composite upgrade packages.
