Which OSPF design consideration, with regards to simplicity and address preservation, must be considered when connecting two Layer 3 switches directly using 10 GBASE-T cabling and formatting an OSPF neighbor adjacency?
Refer to the exhibit.
This Layer 2 ring has 10 VLANs with 1000 MAC addresses in each VLAN. Which protocol or mechanism provides the shortest traffic outage if the link marked with “X” fails?

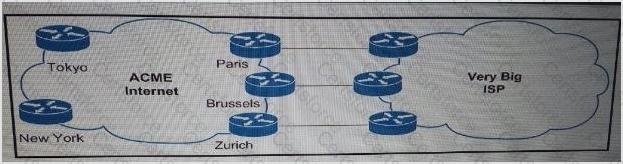

Refer to the exhibit.
Service provider ACME Internet just added a 100 GB/s peering in Paris that it wants to use by default for outbound traffic to Big ISP. Which routing policy achieves the desired outcomes?
You are performing a BGP design review for a service provider that offers MPLS-based services to their end customers. The network is comprised of several PE routers that run iBGP with a pair of route reflectors for all BGP address families. Which two options about the use of Constrained Route Distribution for BGP/MPLS VPNs are true? (Choose two.)
You are redesigning a single-level IS-IS network with 500 routers, which have short-haul and long-haul links Most of the time the routing domain is stable, but periodically interfaces on long-haul links bounce for a short period of time , causing 10 to 20 flaps in a few minutes. The probable cause is local road construction. Although fast convergence important, the client has concerns about taxing CPU cycles on the older routing platforms. What change should you recommend that both protects the CPU of the older routers during the short periods of excessive flapping, yet does not have an impact on fast convergence for all interface failures?
You are designing a solution to connect a primary data center to a disaster recovery site, The hosted applications will be web and email servers that are provided through a virtualized environment. Which connectivity technology should you consider for this design?
Which two options are reasons for designing a large OSPF network with multiple areas connected to the backbone? (Choose two)
In an Ethernet link containing five routers with OSPF network interface type configured as broadcast, how many OSPF adjacencies are established on this Ethernet link?

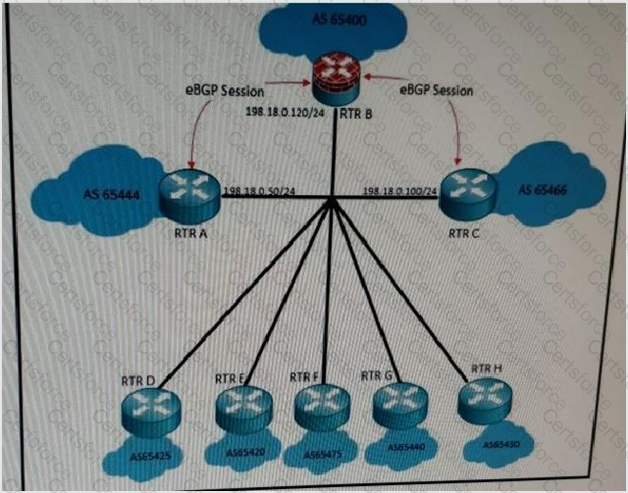

Refer to the exhibit.
Transit traffic in this large enterprise campus network passes the eBGP core. Per security policy, traffic coming from AS 65444 destined for AS 65466 and vice-versa must pass through AS 65400. An audit discovers that traffic between 65444 and 65466 did not pass through 65400, instead it is communicating directly. How must you design BGP to ensure that the traffic from AS 65444 destined for AS 65466 passes through AS65400 on this broadcast network?
When designing a network .Which method can be used to control the exit point for traffic an autonomous system, at the layer 3 control plane?
