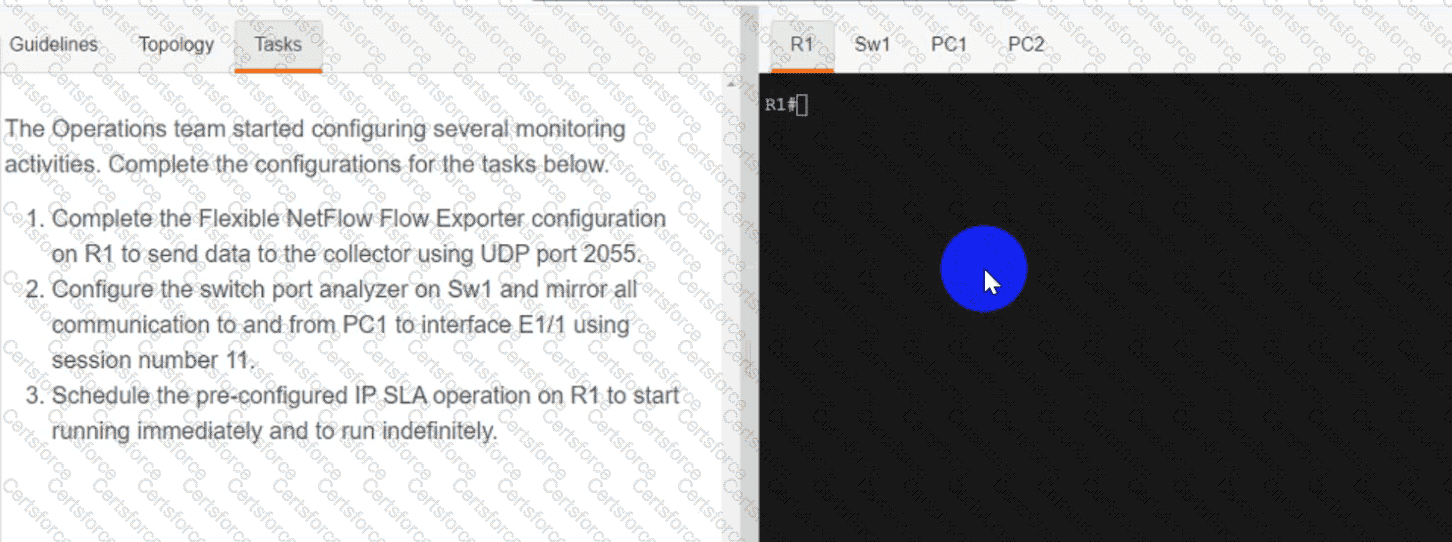

Solution:

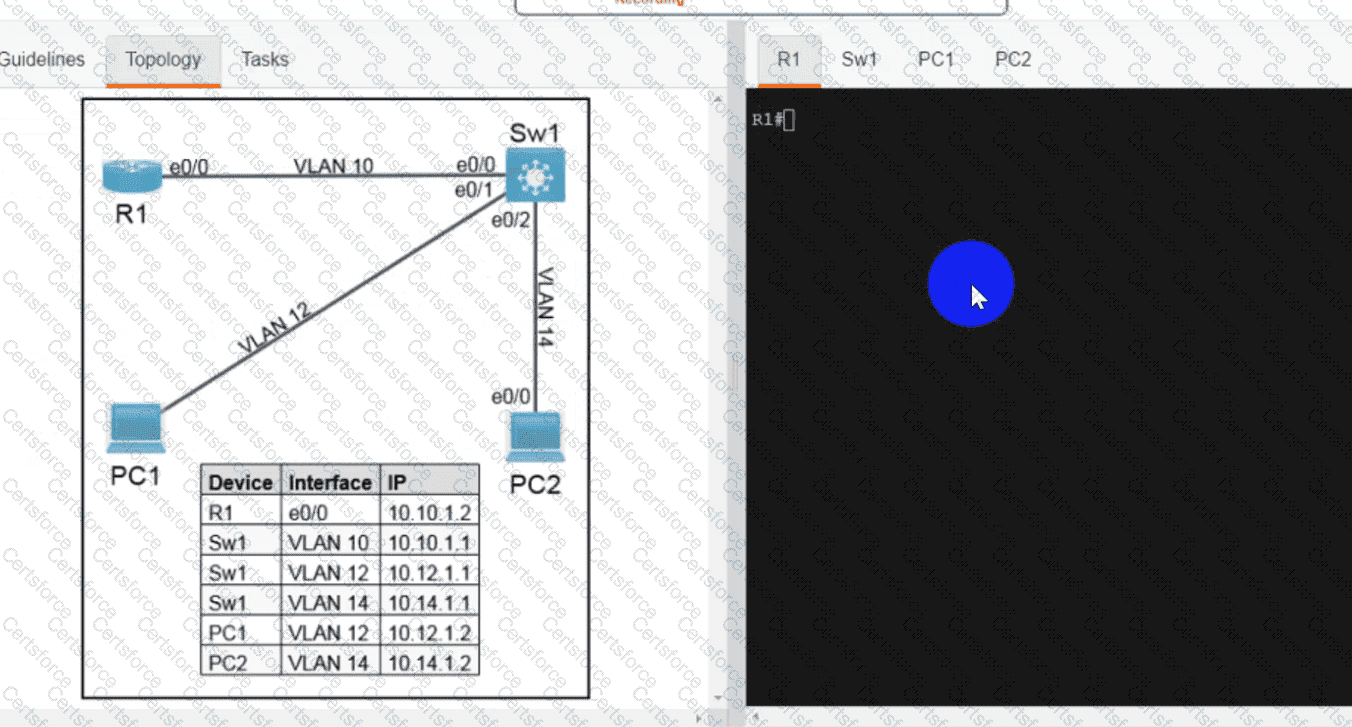

R1

config

flow exporter Export-NetFlowENCOR

transport udp 2055

ip sla schedule 100 life forever start-time now

wr

Sw1

monitor session 11 source interface e0/2

monitor session 11 destination interface et1/1

wr

OR

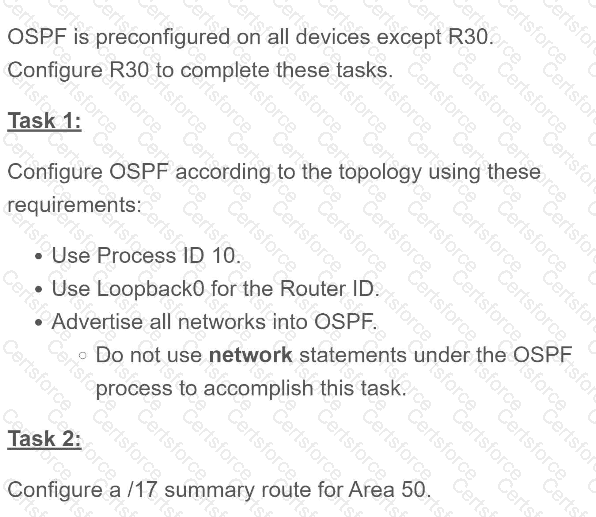

Solution:

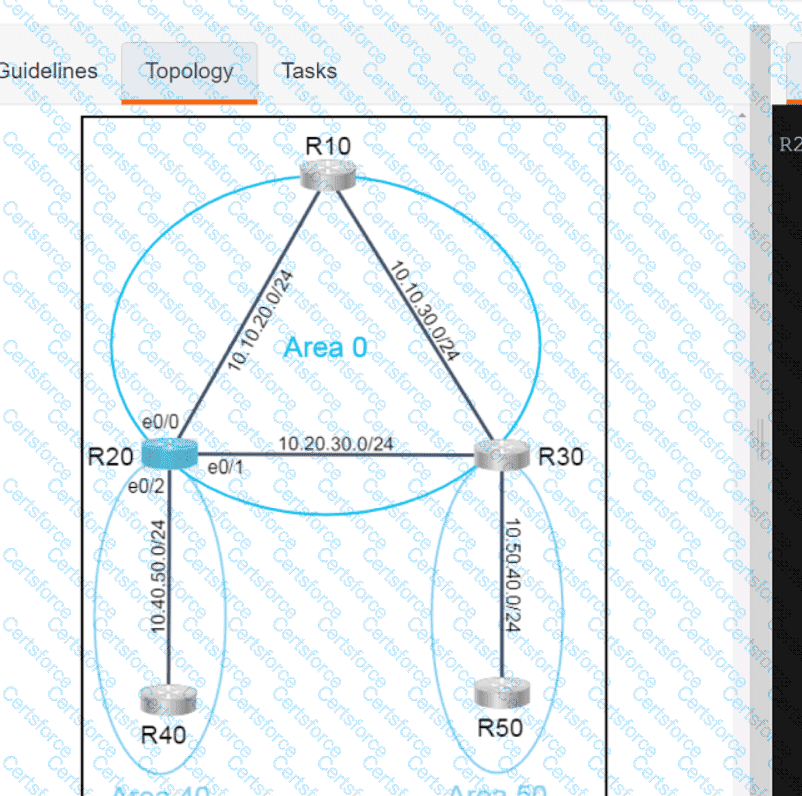

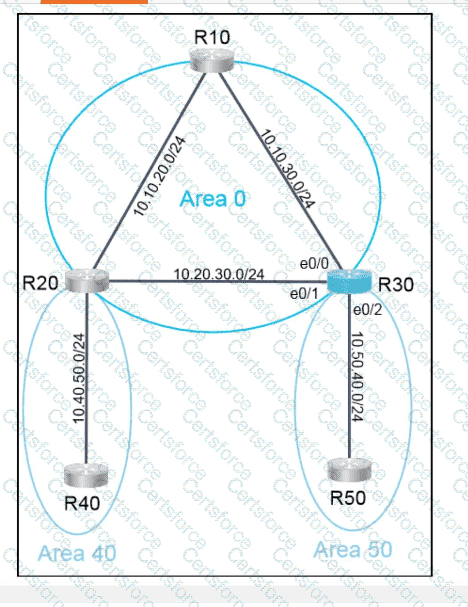

R30

Config t

router ospf 10

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 10 a 0

exit

int et0/2

ip ospf 10 a 50

exit

router ospf 10

area 50 range 10.10.0.0 255.255.128.0

area 50 range 10.50.0.0 255.255.128.0

end

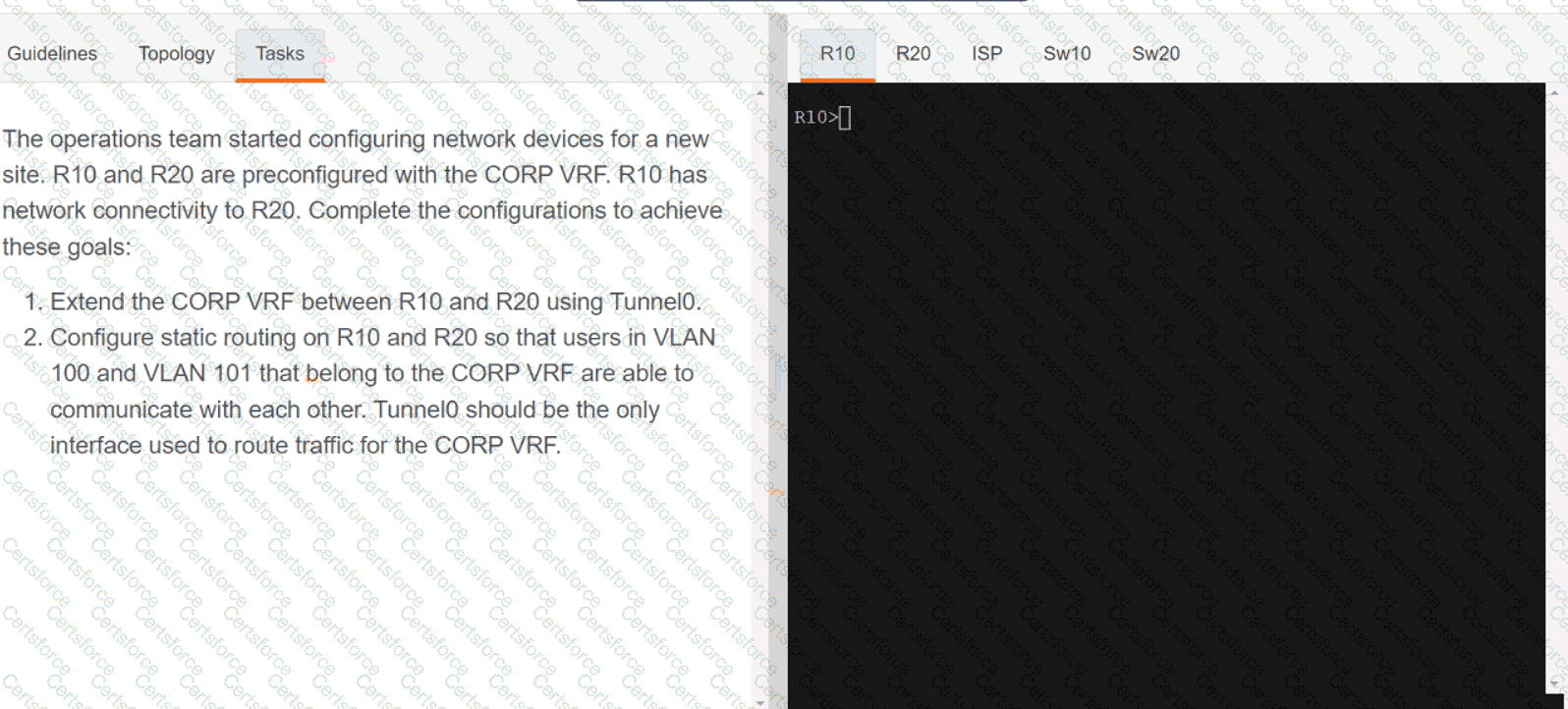

Solution:

R10

Copy run start

R20

Copy run start

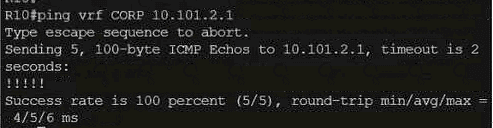

Verification:

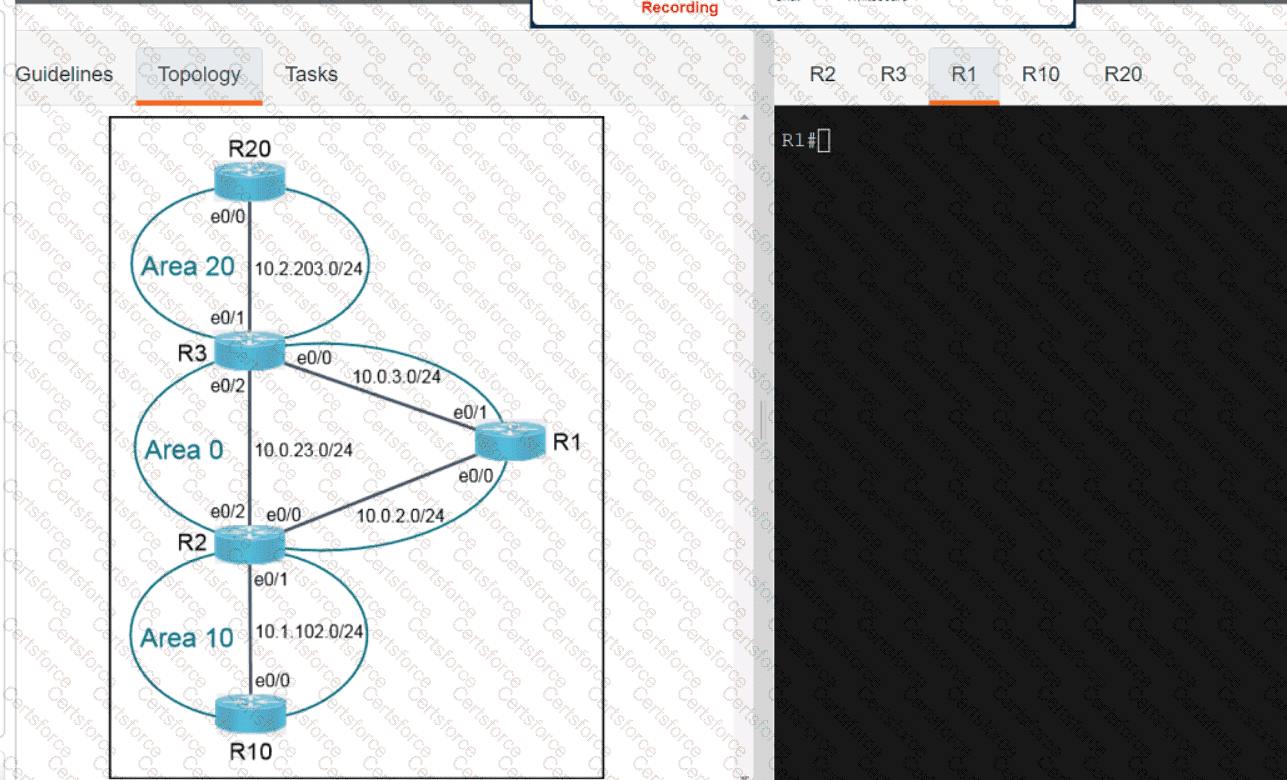

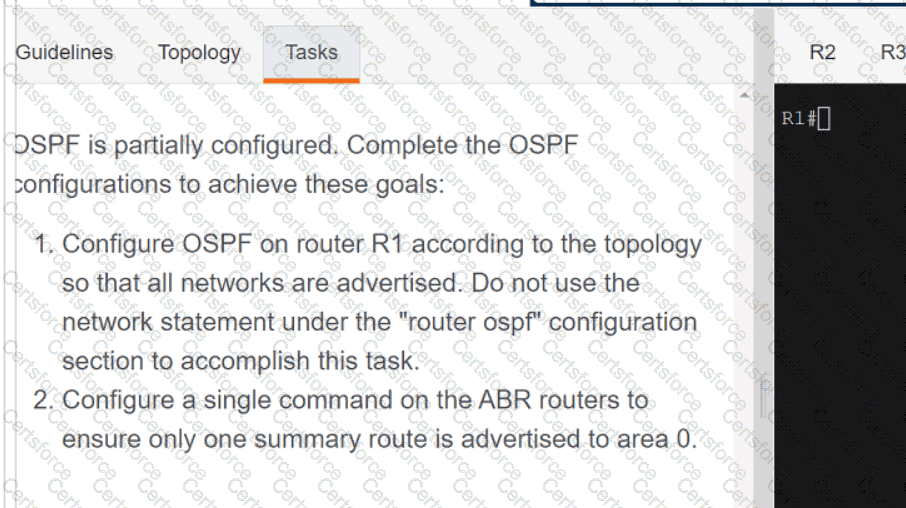

Solution:

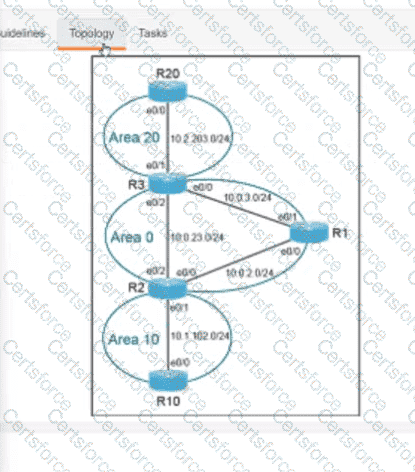

R1

en

Conf t

Router ospf 10

Router-id 10.x.x.x – lo0 address

Int range lo0, e0/0-1

Ip ospf 10 area 0

Exit

wr

R2

Router ospf 10

Area 10 range 10.1.0.0 255.255.0.0

exit

wr

R3

Router ospf 10

Area 10 range 10.2.0.0 255.255.0.0

Exit

Wr

OR

Solution: -

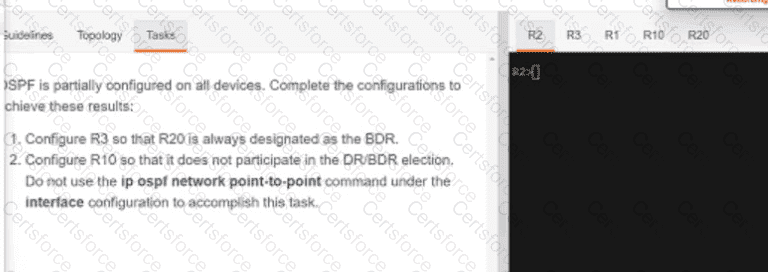

Solution:

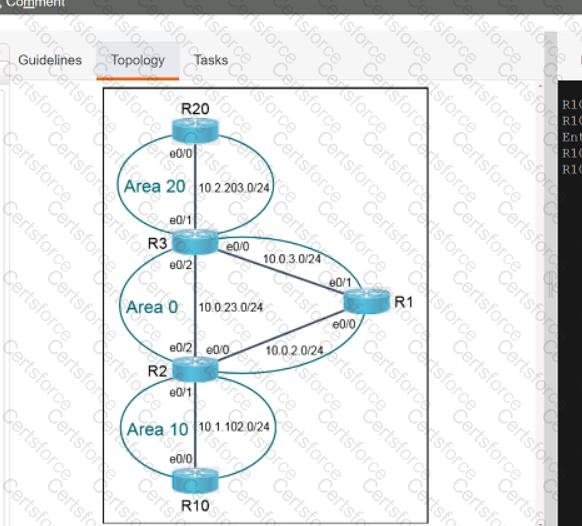

R3

Config#int et0/1

config-if#ip ospf priority 255

wr

R20

clear ip ospf process

yes

R10

int et0/0

ip ospf priority 0

wr

R2

clear ip ospf process

yes

Solution:

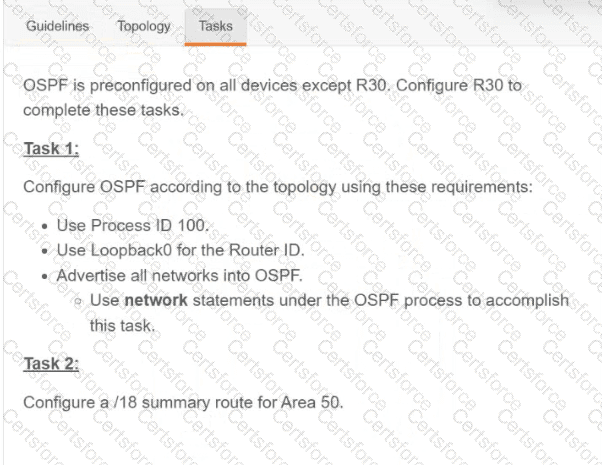

R30

Config t

router ospf 100

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 100 a 0

exit

int et0/2

ip ospf 100 a 50

exit

router ospf 30

area 50 range 10.10.0.0 255.255.192.0

area 50 range 10.50.0.0 255.255.192.0

end

wr

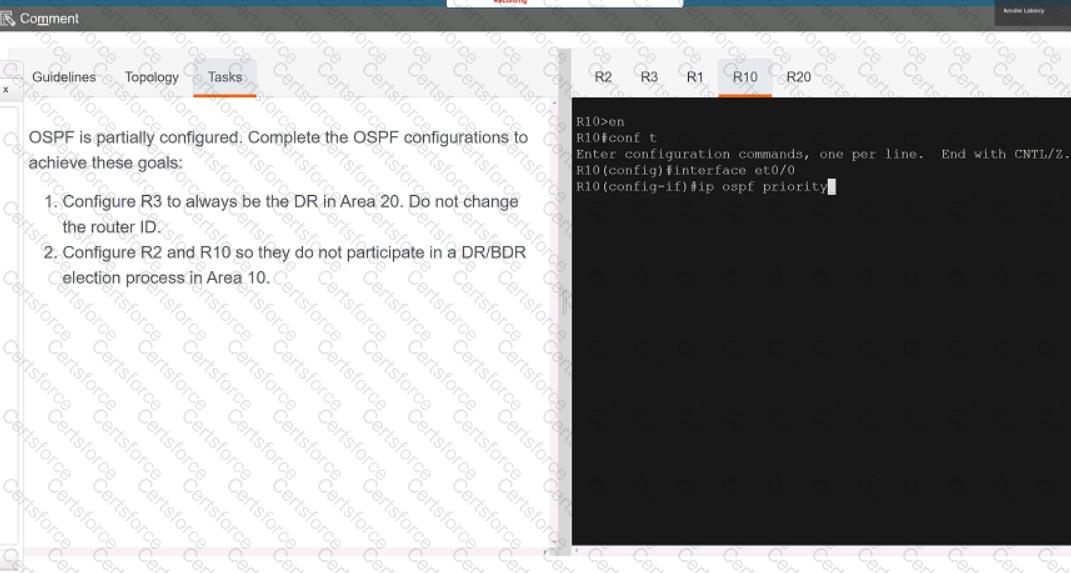

Solution:

R3

Int e0/1

Ip ospf priority 255

End

Copy run start

R2

Int e0/1

Ip ospf network point-to-point

End

Copy run start

R10

Int e0/0

Ip ospf network point-to-point

End

Copy run start

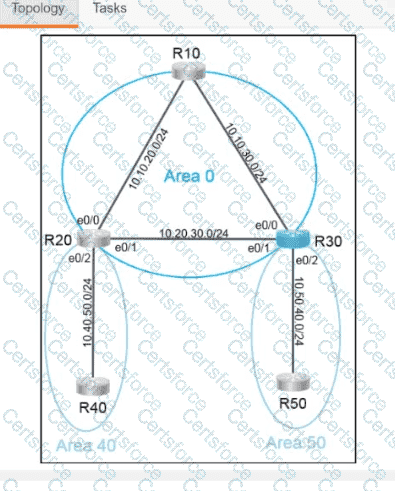

Solution:

R30

Config t

router ospf 100

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 100 a 0

exit

int et0/2

ip ospf 100 a 50

exit

router ospf 30

area 50 range 10.10.0.0 255.255.192.0

area 50 range 10.50.0.0 255.255.192.0

end

wr

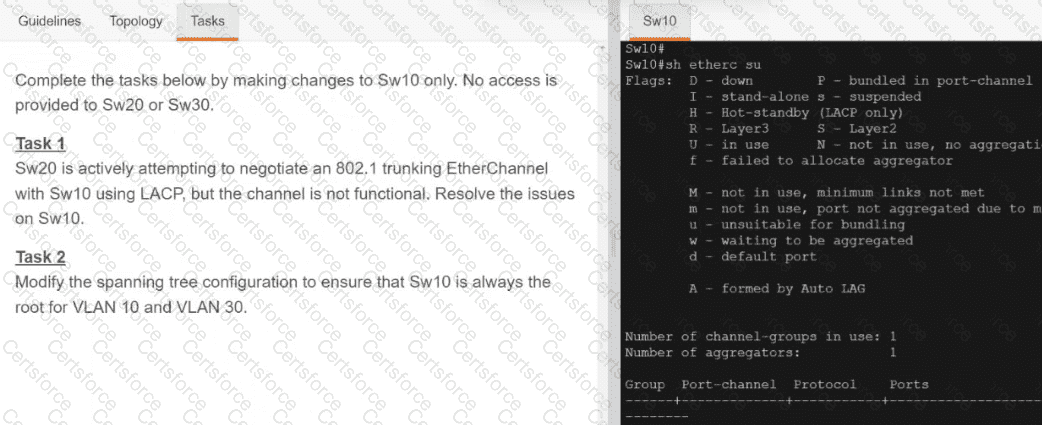

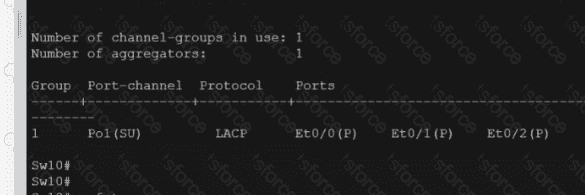

Sw10

Config t

no int po1

default int ran et0/0-2

int ran e0/0-2

switchport trunk encap dot1q

switchport mode trunk

channel-group 1 mode active

no shut

wr
