Solution:

R1

config

flow exporter Export-NetFlowENCOR

transport udp 2055

ip sla schedule 100 life forever start-time now

wr

Sw1

monitor session 11 source interface e0/2

monitor session 11 destination interface et1/1

wr

OR

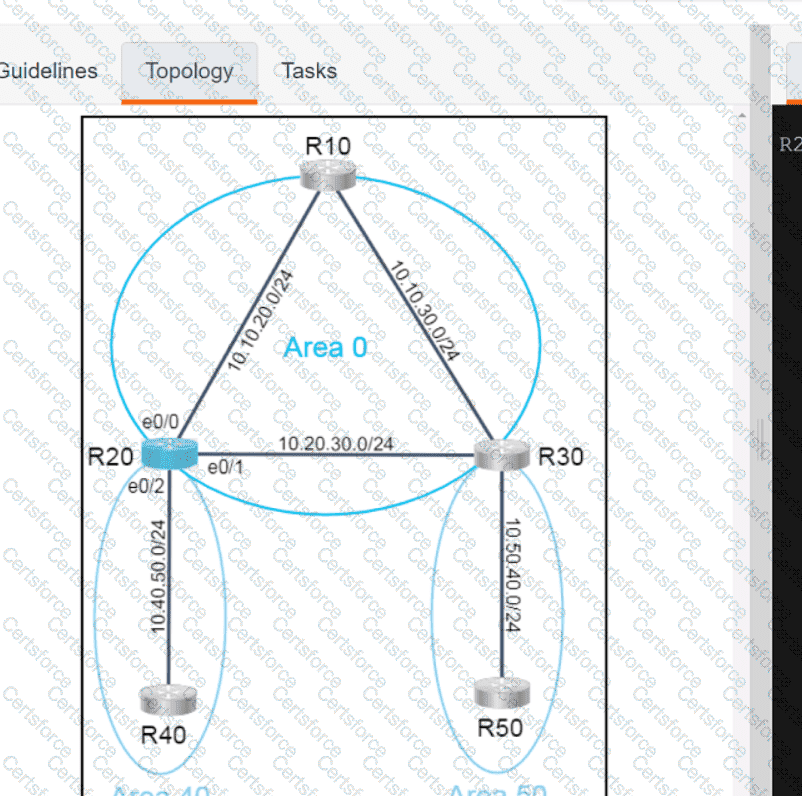

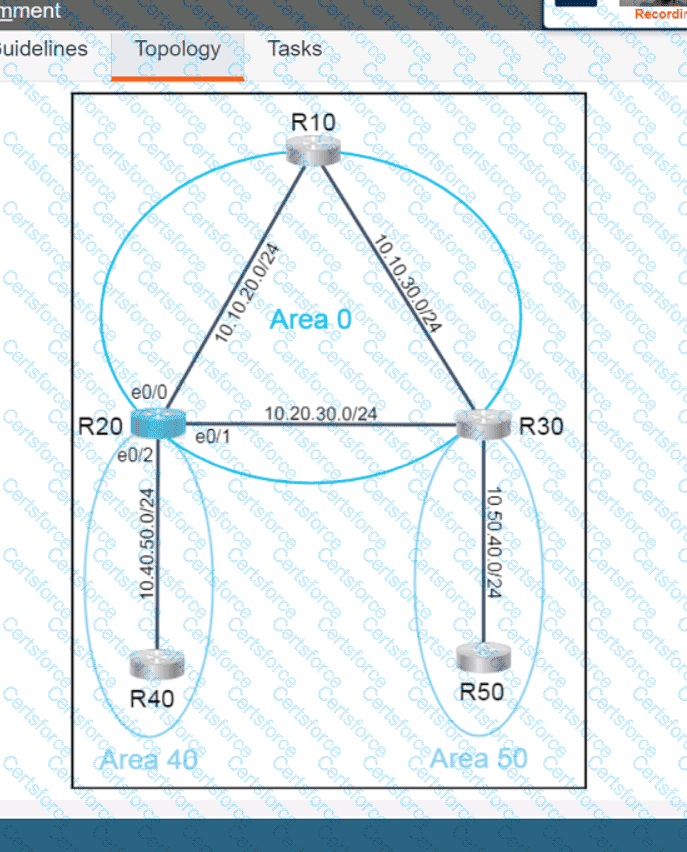

Solution:

R30

Config t

router ospf 100

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 100 a 0

exit

int et0/2

ip ospf 100 a 50

exit

router ospf 30

area 50 range 10.10.0.0 255.255.192.0

area 50 range 10.50.0.0 255.255.192.0

end

wr

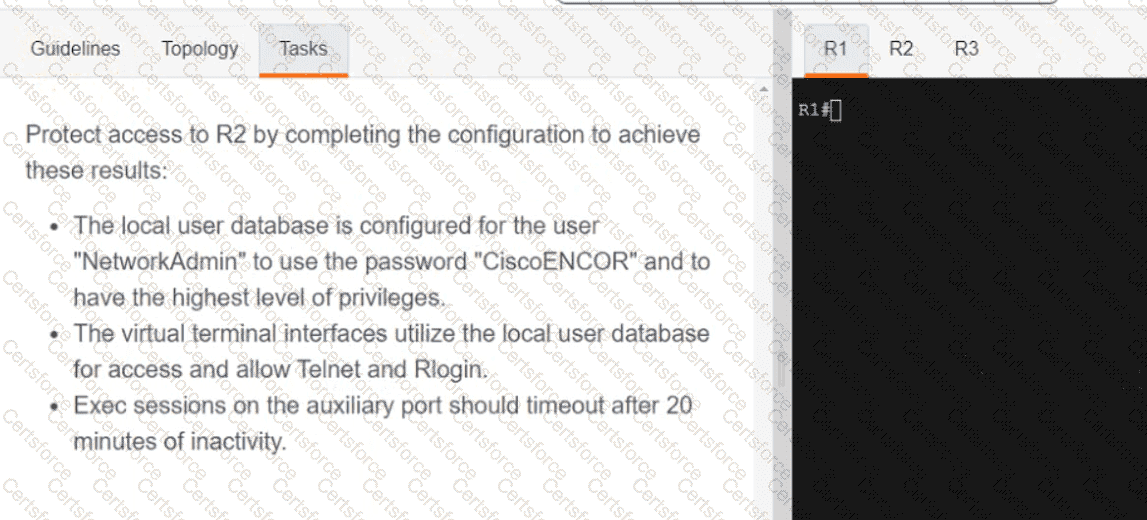

Solution:

R2

config t

username NetworkAdmin privilege 15 password CiscoENCOR

line vty 0 4

login local

transport input telnet rlogin

exec-timepit 20

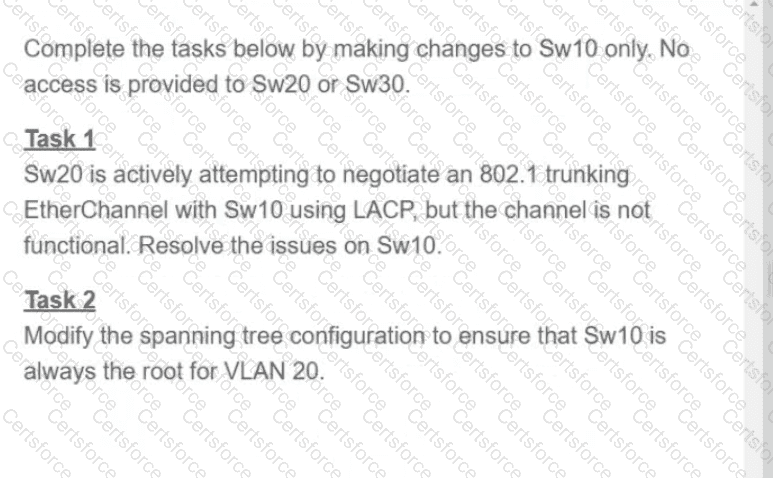

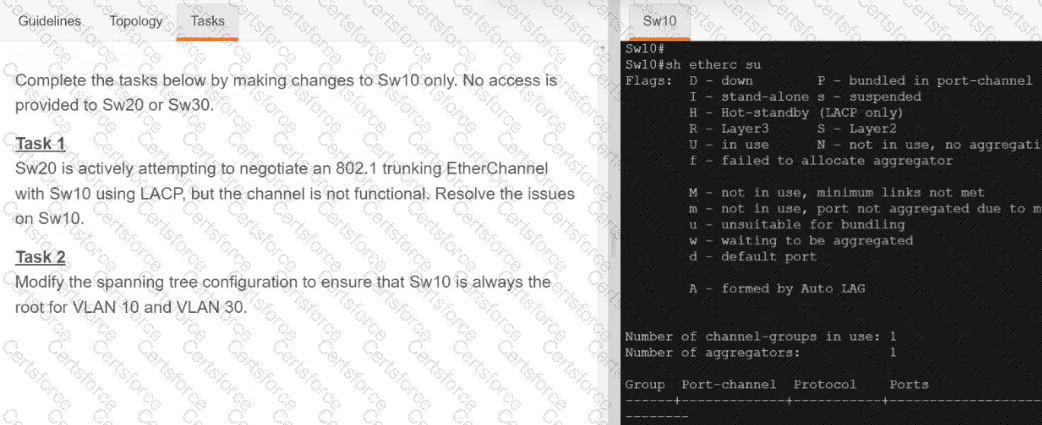

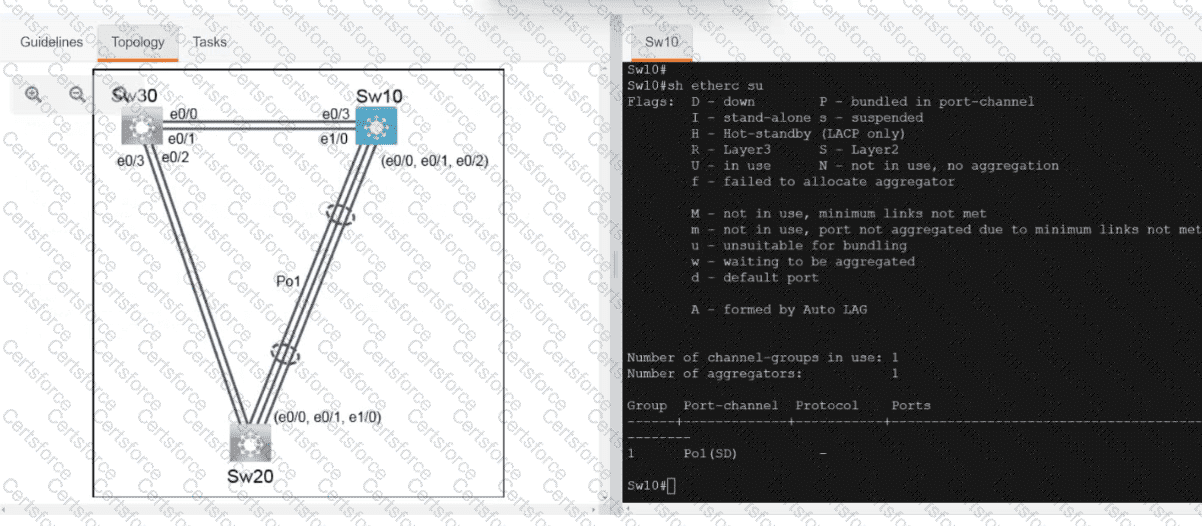

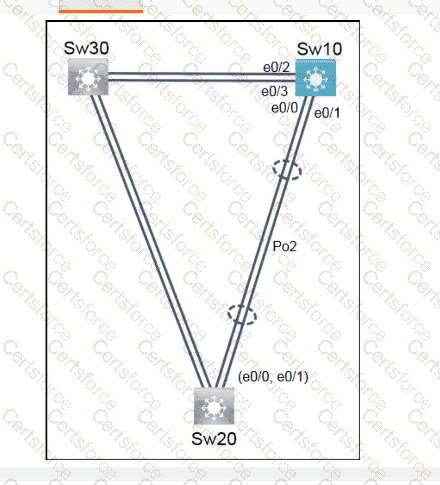

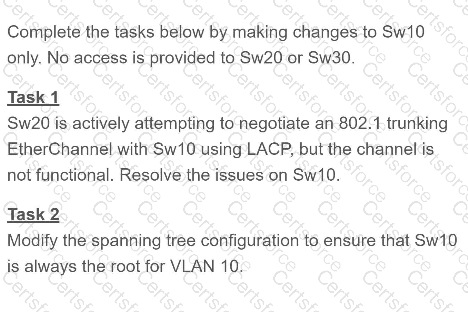

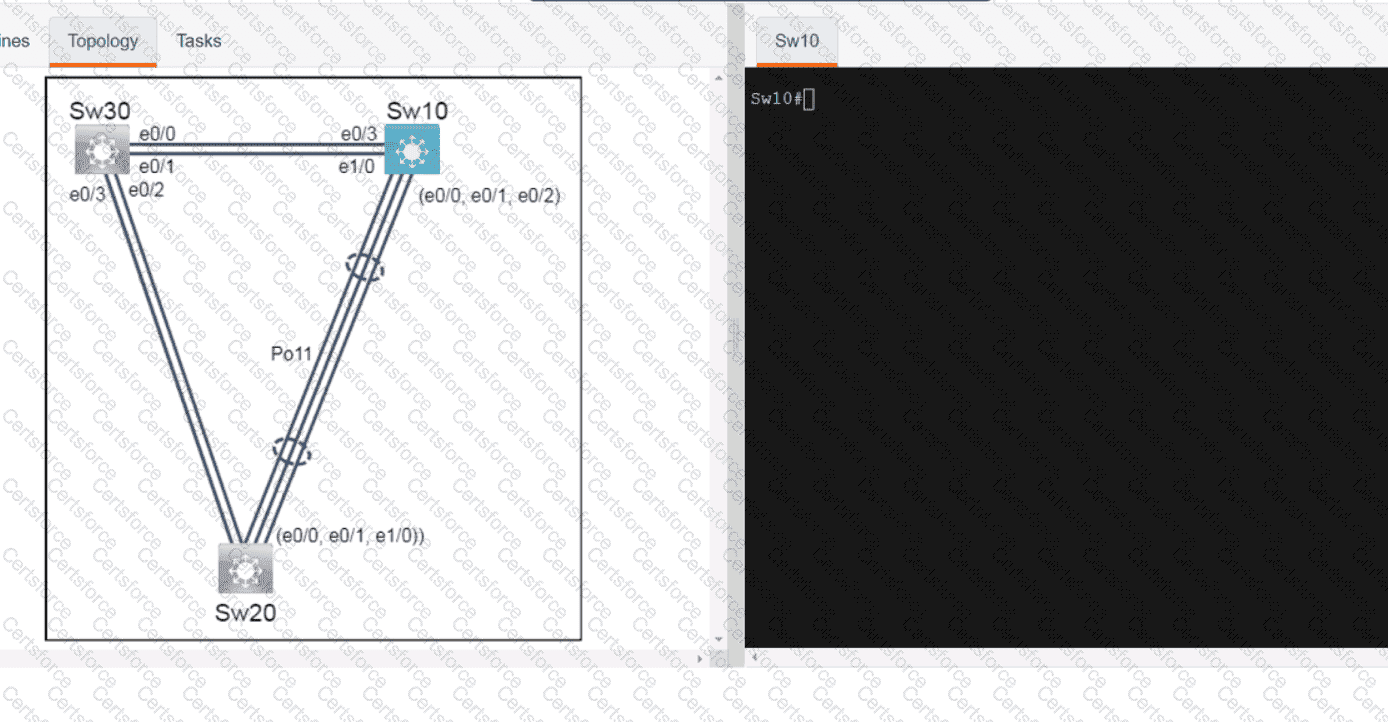

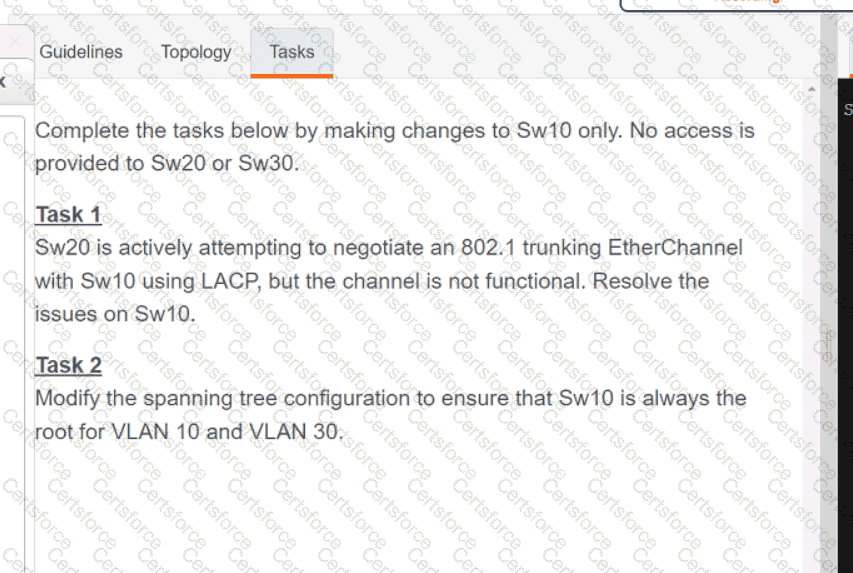

Solution:-

Default int range et0/0-1

Int range e0/0 – 1

Sw trunk encap dot1

Switch mode trunk

Channel-group 2 mode passive

No shut

Spanning-tree vlan 10 priority 0

Spanning-tree vlan 30 priority 0

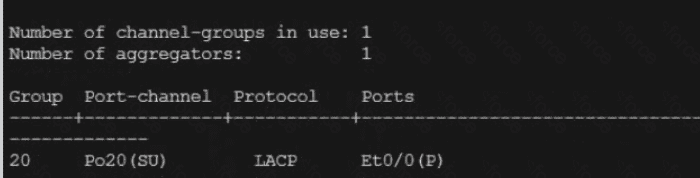

Solution:

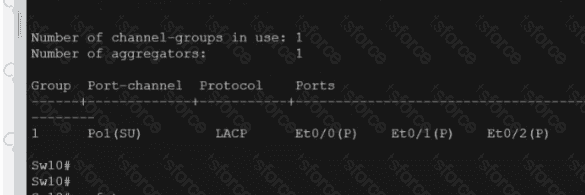

VERIFICATION: -

OR

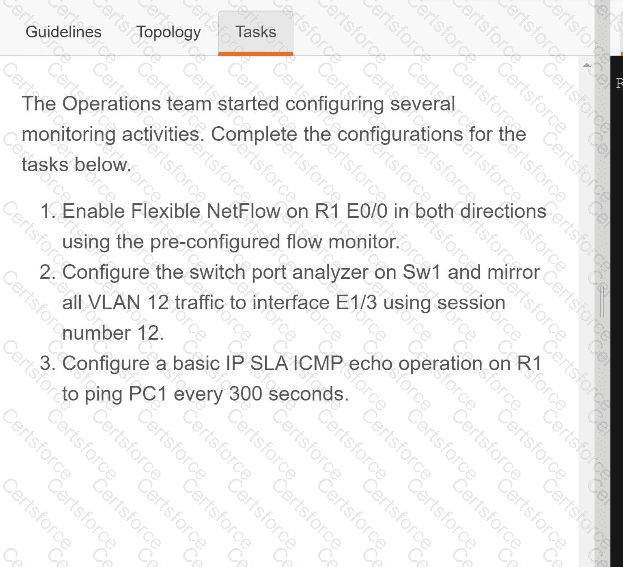

Solution:

R1

Config t

Int et0/0

Ip flow monitor Monitor-R1Flow input

Ip flow monitor Monitor-R1Flow output

Exit

Ip sla 1

Icmp-echo 10.12.1.2

Freq 300

Ip sla schedule 1 life foreve start-time now

Sw1

Config t

Monitor session 12 source vlan 12

Monitor session 12 destination interface et1/3

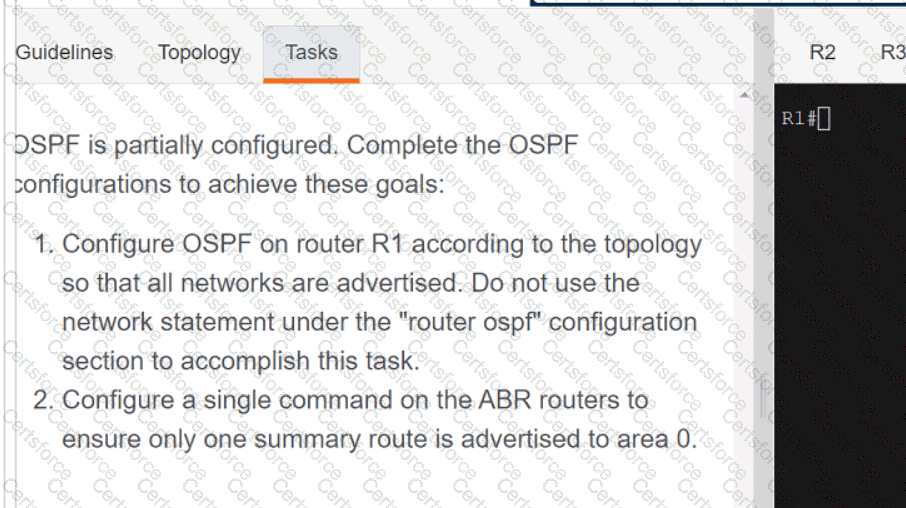

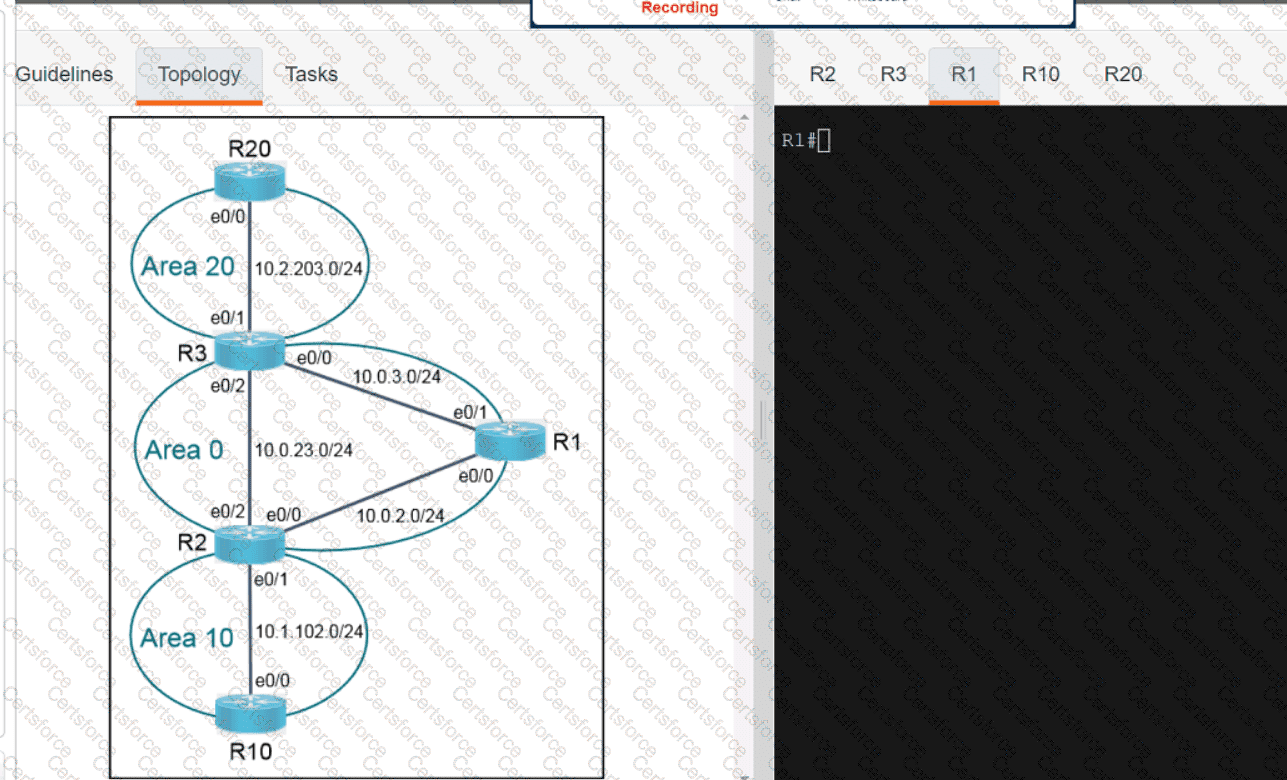

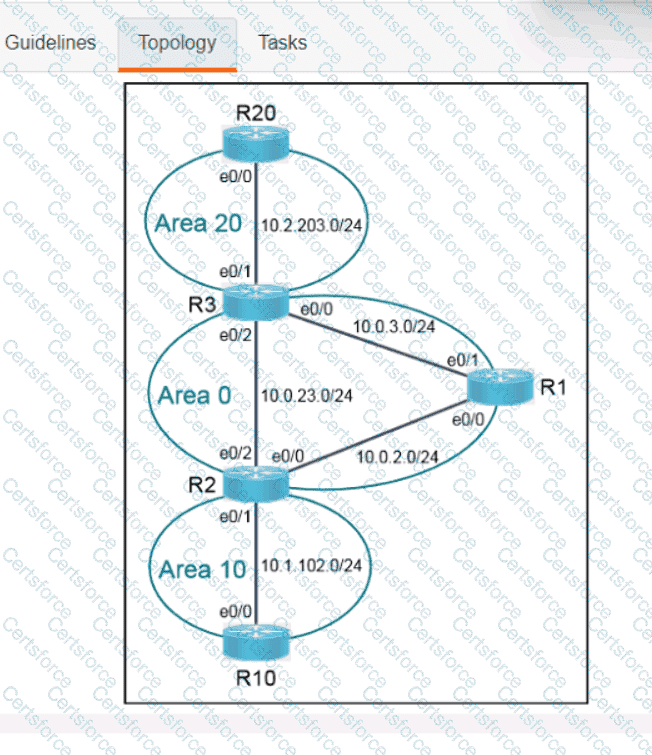

Solution:

R1

en

Conf t

Router ospf 10

Router-id 10.x.x.x – lo0 address

Int range lo0, e0/0-1

Ip ospf 10 area 0

Exit

wr

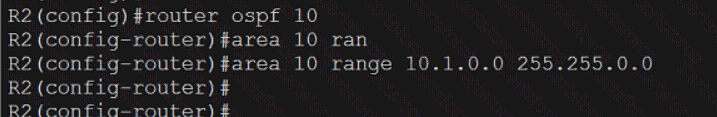

R2

Router ospf 10

Area 10 range 10.1.0.0 255.255.0.0

exit

wr

R3

Router ospf 10

Area 10 range 10.2.0.0 255.255.0.0

Exit

Wr

OR

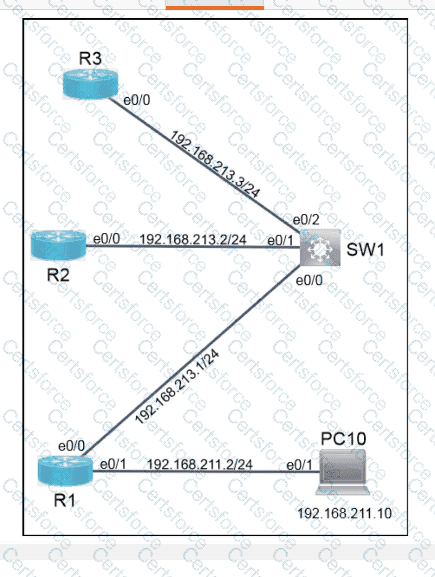

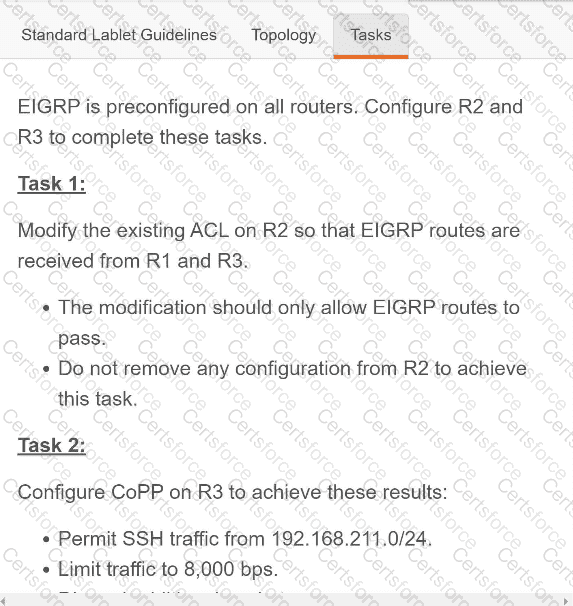

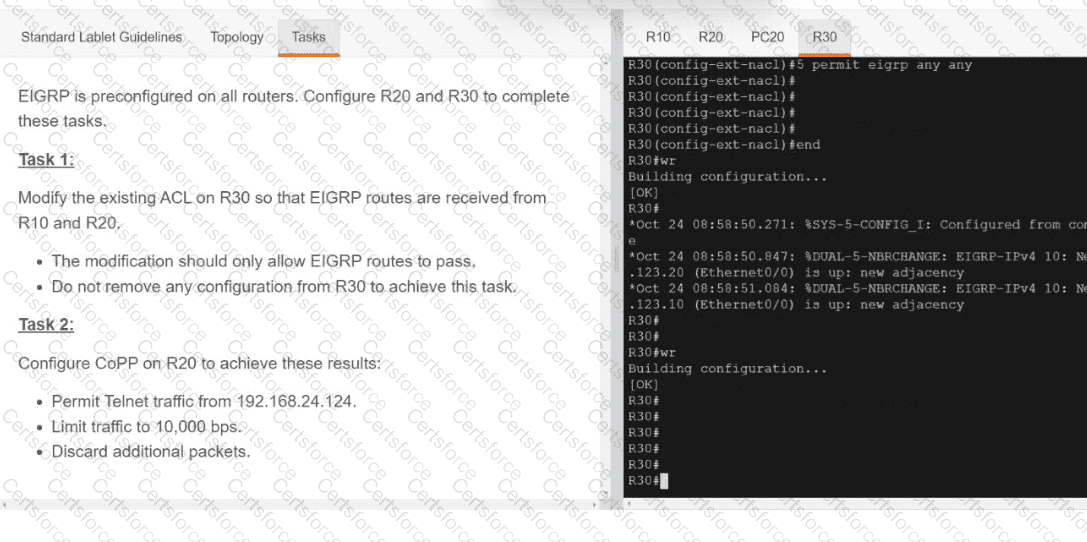

Solution:

R30

show ip access-list

config t

ip access-list extended 120

5 permit eigrp any any

wr

R20

config t

ip access-list extended 100

permit tcp 192.168.25.0 0.0.0.255 any eq 23

class-map match-any TELNET

match access-group 100

policy-map CoPP

class TELNET

police 10000 conform-action transmit exceed-action drop

control-plane

service-policy input CoPP

wr

Solution:

R1

Config t

Flow exporter Export-NetFlowENCOR

destination 10.10.1.110

transport udp 2055

exit

flow moni Monitor-NetFlowENCOR

exit

ip sla 1

http gethttp://10.10.1.100

frequ 300

exit

ip sla schedule 1 life forever start-time now

wr

SW1

Config t

Monitor session 7 source interface e0/0

Monitor session 7 destination interface e1/1

End

Wr

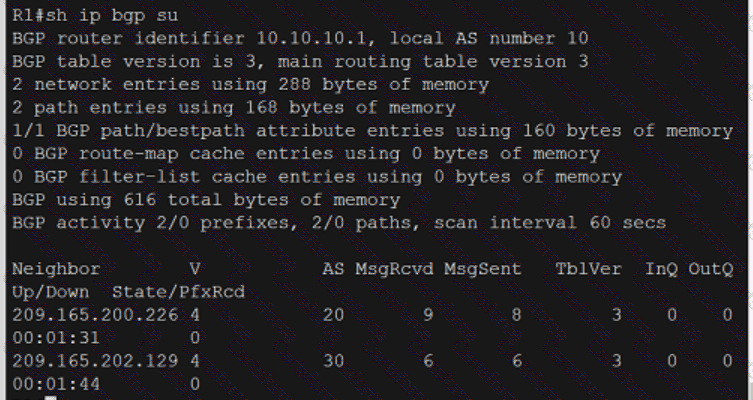

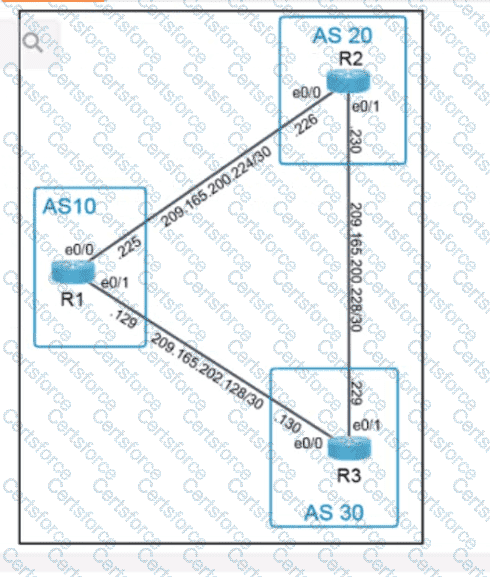

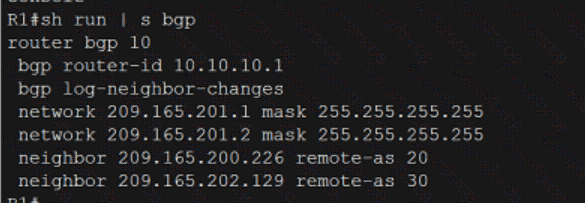

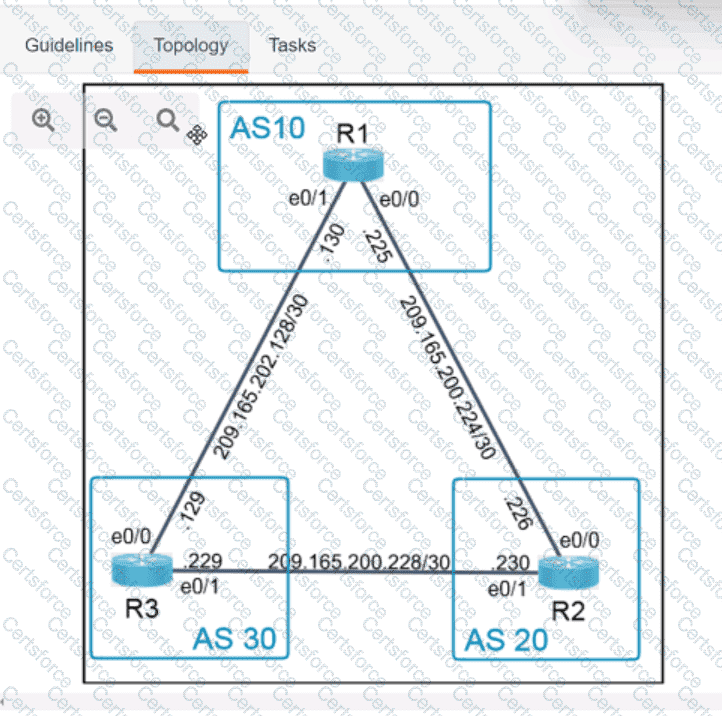

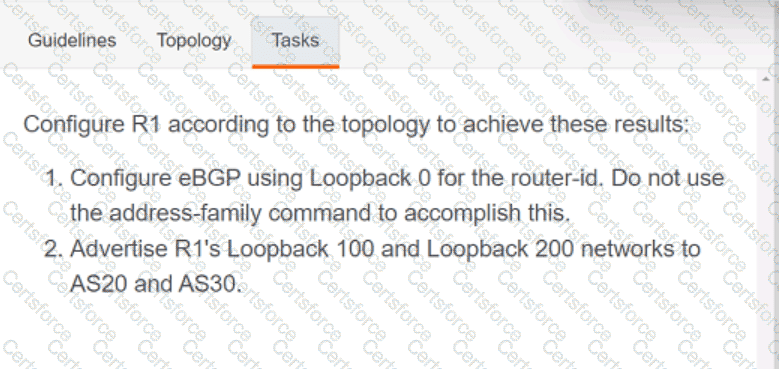

Solution:

router bgp 10

bgp router-id 10.1.1.111

no bgp defa ipv4-unicast

nei 209.165.200.226 remote-as 20

nei 209.165.202.130 remote-as 30

address-family ipv4

neigh 209.165.200.226 activate

neigh 209.165.202.130 activate

network 10.1.1.10 mask 255.255.255.255

network 209.165.201.10 mask 255.255.255.255

network 209.165.201.20 mask 255.255.255.255

wr
