Viewing page 7 out of 13 pages
Viewing questions 91-105 out of questions
Questions # 91:

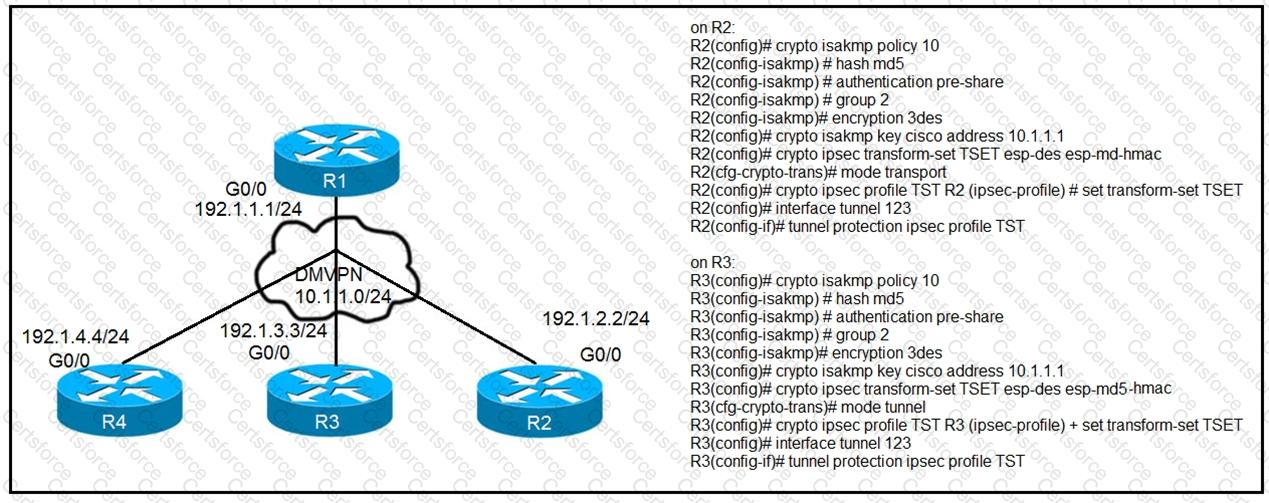

Refer to the exhibit.

Question # 91

After applying IPsec, the engineer observed that the DMVPN tunnel went down, and both

spoke-to-spoke and hub were not establishing. Which two actions resolve the issue? (Choose two.)

Options:
A.

Configure the crypto isakmp key cisco address 192.1.1.1 on R2 and R3

B.

Configure the crypto isakmp key cisco address 0.0.0.0 on R2 and R3.

C.

Change the mode from mode tunnel to mode transport on R3

D.

Change the mode from mode transport to mode tunnel on R2.

E.

Remove the crypto isakmp key cisco address 10.1.1.1 on R2 and R3

Expert Solution
Questions # 92:

An engineer configured the wrong default gateway for the Cisco DNA Center enterprise interface during the install. Which command must the engineer run to correct the configuration?

Options:
A.

sudo maglev-config update

B.

sudo maglev install config update

C.

sudo maglev reinstall

D.

sudo update config install

Expert Solution
Questions # 93:

Which two statements about redistributing EIGRP into OSPF are true? (Choose two)

Options:
A.

The redistributed EIGRP routes appear as type 3 LSAs in the OSPF database

B.

The redistributed EIGRP routes appear as type 5 LSAs in the OSPF database

C.

The administrative distance of the redistributed routes is 170

D.

The redistributed EIGRP routes appear as OSPF external type 1

E.

The redistributed EIGRP routes as placed into an OSPF area whose area ID matches the EIGRPautonomous system number

F.

The redistributed EIGRP routes appear as OSPF external type 2 routes in the routing table

Expert Solution
Questions # 94:

Which two methods use IPsec to provide secure connectivity from the branch office to the headquarters office? (Choose two.)

Options:
A.

DMVPN

B.

MPLS VPN

C.

Virtual Tunnel Interface (VTI)

D.

SSL VPN

E.

PPPoE

Expert Solution
Questions # 95:

Which two protocols can cause TCP starvation? (Choose two)

Options:
A.

TFTP

B.

SNMP

C.

SMTP

D.

HTTPS

E.

FTP

Expert Solution
Questions # 96:

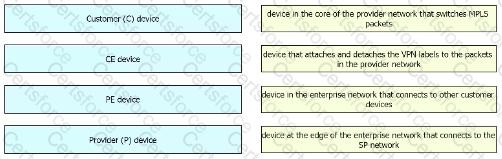

Drag and drop the MPLS VPN device types from me left onto the definitions on the right.

Question # 96

Expert Solution
Questions # 97:

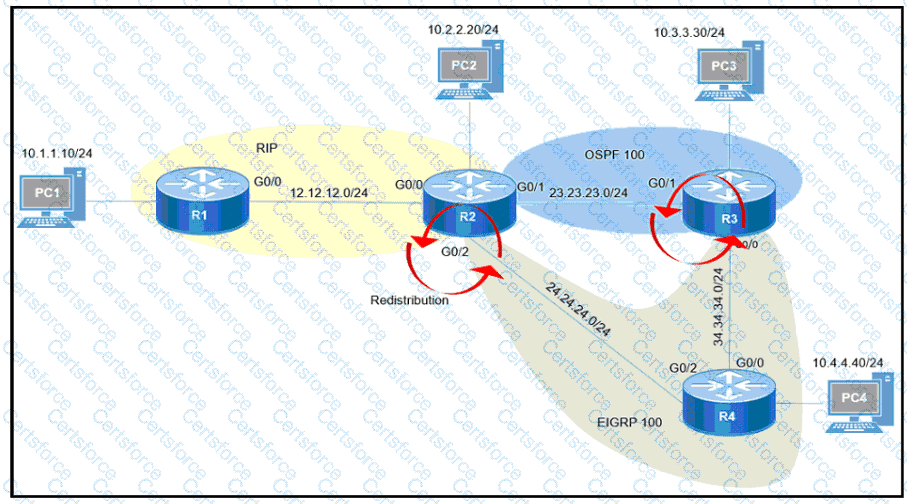

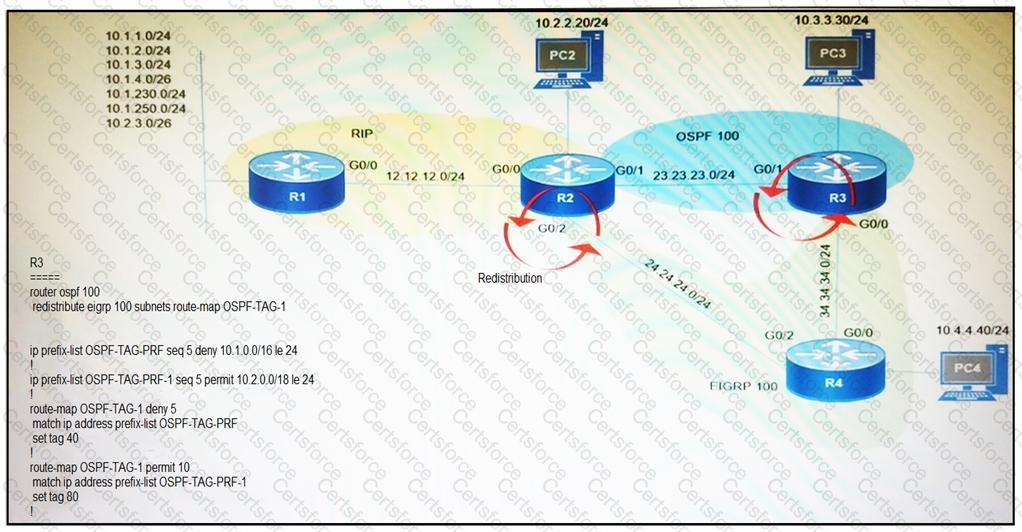

Refer to the exhibit.

Question # 97

After redistribution is enabled between the routing protocols; PC2, PC3, and PC4 cannot reach PC1. Which action can the engineer take to solve the issue so that all the PCs are reachable?

Options:
A.

Set the administrative distance 100 under the RIP process on R2.

B.

Filter the prefix 10.1.1.0/24 when redistributed from OSPF to EIGRP.

C.

Filter the prefix 10.1.1.0/24 when redistributed from RIP to EIGRP.

D.

Redistribute the directly connected interfaces on R2.

Expert Solution
Questions # 98:

Which attribute eliminates LFAs that belong to protected paths in situations where links in a network are connected through a common fiber?

Options:
A.

shared risk link group-disjoint

B.

linecard-disjoint

C.

lowest-repair-path-metric

D.

interface-disjoint

Expert Solution
Questions # 99:

Refer to the exhibit.

Question # 99

Why is user authentication being rejected?

Options:
A.

The TACACS+ server expects “user”, but the NT client sends “domain/user”.

B.

The TACACS+ server refuses the user because the user is set up for CHAP.

C.

The TACACS+ server is down, and the user is in the local database.

D.

The TACACS+ server is down, and the user is not in the local database.

Expert Solution
Questions # 100:

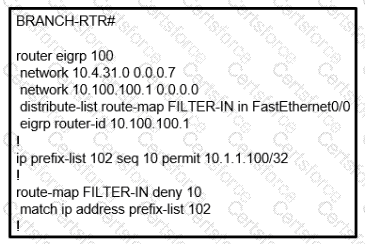

Refer to the exhibit.

Question # 100

A junior engineer updated a branch router configuration. Immediately after the change, the engineer receives calls from the help desk that branch personnel cannot reach any network destinations. Which configuration restores service and continues to block 10.1.1.100/32?

Options:
A.

route-map FILTER-IN deny 5

B.

ip prefix-list 102 seq 15 permit 0.0.0.0/32 le 32

C.

ip prefix-list 102 seq 5 permit 0.0.0.0/32 le 32

D.

route-map FILTER-IN permit 20

Expert Solution
Questions # 101:

Users were moved from the local DHCP server to the remote corporate DHCP server. After the move,

none of the users were able to use the network.

Which two issues will prevent this setup from working properly? (Choose two)

Options:
A.

Auto-QoS is blocking DHCP traffic.

B.

The DHCP server IP address configuration is missing locally

C.

802.1X is blocking DHCP traffic

D.

The broadcast domain is too large for proper DHCP propagation

E.

The route to the new DHCP server is missing

Expert Solution
Questions # 102:

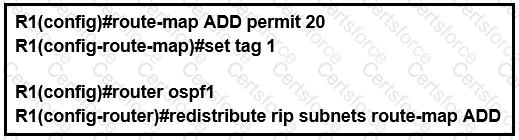

Refer to the exhibit.

Question # 102

Which statement about R1 is true?

Options:
A.

OSPF redistributes RIP routes only if they have a tag of one.

B.

RIP learned routes are distributed to OSPF with a tag value of one.

C.

R1 adds one to the metric for RIP learned routes before redistributing to OSPF.

D.

RIP routes are redistributed to OSPF without any changes.

Expert Solution
Questions # 103:

Refer to the exhibit.

Question # 103

An engineer has configured R1 as EIGRP stub router. After the configuration, router R3 failed to reach to R2 loopback address.

Which action advertises R2 loopback back into the R3 routing table?

Options:
A.

Add a static route for R2 loopback address in R1 and redistribute it to advertise to R3.

B.

Use a leak map on R1 that matches the required prefix and apply it with the distribute list command toward R3.

C.

Use a leak map on R3 that matches the required prefix and apply it with the EIGRP stub feature.

D.

Add a static null route for R2 loopback address in R1 and redistribute it to advertise to R3.

Expert Solution
Questions # 104:

Refer to the exhibit.

Question # 104

An administrator must configure the router with OSPF for IPv4 and IPv6 networks under a single process. The OSPF adjacencies are not established and did not meet the requirement. Which action resolves the issue?

Options:
A.

Replace OSPF process 10 on the interface with OSPF process 1, and configure an additional router ID with IPv6 address.

B.

Replace OSPF process 10 on the interface with OSPF process 1, for the VPv6 addressma nd remove process route ID with IPv6 address.

C.

Replace OSPF process 10 on the interface with OSPF process 1, and remove process 10 from the global configuration.

D.

Replace OSPF process 10 on the interface with OSPF process 1 for the IPv4 address, and remove process 10 from the global configuration.

Expert Solution
Questions # 105:

What must a network architect consider for RTs when planning for a single customer full-mesh VPN m an MPLS Layer 3 network?

Options:
A.

RT must be globally unique within the same VPN

B.

RT must be globally identical within the same VPN

C.

RT values must be Afferent from the RD values in the same VPN

D.

Each RT value must be identical to an RD value within the same VPN.

Expert Solution
Viewing page 7 out of 13 pages
Viewing questions 91-105 out of questions
