In VCF 9.0, ingress is described as part ofVKS cluster networking. The documentation’s VKS Cluster Networking table lists“Cluster ingress”and identifies its role asrouting inbound pod traffic. It further clarifies that this function is delivered by athird-party ingress controller, and explicitly namesContouras an example (“you can use any third-party ingress controller, such as Contour”).

That mapping is exactly what optionAdescribes: Contour is deployed to provideingresscapabilities so that inbound requests from outside the cluster can be routed to Kubernetes services and pods according to ingress rules. In other words, Contour is not a storage component (that would align to CSI/CNS/pvCSI), not a node lifecycle manager (that is handled by VKS/Cluster API/VM Service), and not an infrastructure health monitoring tool (that would be metrics/observability tooling). VCF 9.0 positions Contour specifically within theingresspart of the networking feature set, makingAthe correct answer.

VCF 9.0 describes Supervisor networking with NSX as a model whereNSX provides network connectivity to Supervisor control plane VMs, services, and workloads, and where the Supervisor can use either the NSX Load Balancer or the Avi Load Balancer. In the NSX + Avi design, the documentation identifies theAvi Load Balancer Controlleras a core infrastructure element: the Controller “interacts with vCenter to automate the load balancing for the VKS clusters,” and is responsible for provisioning and coordinating Service Engines and exposing operational interfaces.

Also, the Supervisor itself is anchored by theSupervisor control plane virtual machines. VCF 9.0 explains you deploy the Supervisor with one or three control plane VMs, and in a three-zone Supervisor the control plane VMs are distributed across zones for high availability.

Finally, because the requirement explicitly calls for a unified networking/security model throughNSX, theNSX Manager virtual machineis foundational to the NSX-based Supervisor design, as shown in the documented architecture and component descriptions for NSX-backed Supervisor deployments.

VCF 9.0 defines VKS as an upstream Kubernetes offering that isbuilt for vSphereand delivered with “well-thought-out defaults” to reduce operational burden. It states VKS provides an“opinionated installation of Kubernetes”with defaults “optimized for vSphere,” which “reduce[s] the amount of time and effort” typically spent deploying and running an enterprise Kubernetes cluster—this directly supportssimplified management and operations (A).

VCF 9.0 also emphasizes VKS is“integrated with the vSphere infrastructure”(storage, networking, authentication) and is built on a Supervisor that maps to vSphere clusters, creating a “unified product experience.” This supportsconsistent Kubernetes deployment on vSphere (B)because clusters are provisioned and operated in a standardized, vSphere-native way.

Finally, VCF 9.0 states VKS clusters “use open source Linux-based” components from VMware by Broadcom and notes key integrations (for example, CNI options) are open source—supportingleveraging open-source technologies (D).

OptionsCandEare not VKS benefits as stated: VKS targets VKS-provisioned upstream Kubernetes clusters (not “any distribution”), and “pods directly on ESXi” is described asvSphere Pods(Workload Management), not a defining benefit of VKS clusters.

In Kubernetes RBAC, cluster-wide permissions are defined withClusterRoleand granted to a user, group, or service account by creating aClusterRoleBinding. The VCF 9.0 documentation for VKS cluster access describes the RBAC workflow used to grant access: first you “define a Role or ClusterRolefor the user or group,” and then you “create a RoleBinding or ClusterRoleBindingfor the user or group and apply it to the cluster.” This wording reflects the RBAC distinction:RoleBindingis scoped to a namespace, whereasClusterRoleBindingis used when the permissions must apply at thecluster scope(cluster-wide resources and/or across namespaces).

VCF 9.0 further illustrates the purpose of ClusterRoleBinding in a token-auth example: it lists the required objects, including “ClusterRole: This defines the access to the Kubernetes cluster” and “ClusterRoleBinding: This binds the created Service Account with the defined ClusterRole.” That binding step is what grants the subject the cluster-level privileges defined in the ClusterRole, makingClusterRoleBindingthe correct object for permissions to cluster-wide resources.

A ReplicaSet is a core Kubernetes workload controller used in VKS clusters to maintainavailability and steady-state capacityfor stateless applications. Its primary purpose is to ensure that adesired number of identical pod replicasare running continuously. If a pod is deleted, crashes, or is evicted because a node fails, the ReplicaSet detects that the current number of matching pods has dropped below the target and immediately creates replacement pods to restore the requested replica count. Conversely, if too many matching pods exist (for example, due to manual creation or a transient surge), it scales down by deleting excess pods to return to the desired state.

This behavior makes ReplicaSets foundational to reliable, self-healing application operation in Kubernetes and therefore in VKS. In practice, administrators and DevOps teams usually interact with ReplicaSets indirectly through higher-level controllers likeDeployments, which manage rolling updates and revisions while using ReplicaSets underneath to enforce the replica count for each version of an application. Options A, B, and D map to other Kubernetes objects (Service, StatefulSet, and DaemonSet respectively), not ReplicaSet.

In a vSphere Kubernetes Service (VKS) environment, resource management follows aDeclarative Model. When an administrator uses kubectl edit deployment to manually scale a running workload from 5 to 10 replicas, they are modifying thelive stateof the deployment. However, thesource of truthfor a Tanzu Kubernetes cluster in VCF 9.0 is theCluster YAML specificationmaintained by the Cluster API (CAPI) provider within the Supervisor.

If the administrator redeploys the cluster or if the Supervisor’s controller performs a reconciliation loop, it refers back to the original configuration file. If that cluster YAML file still defines the replica count as 5, the Supervisor will terminate the 5 " extra " pods to match the desired state defined in the configuration. This is a common administrative pitfall; for changes to be persistent across redeployments or updates in VCF 9.0, the underlying manifest (the " Desired State " ) must be updated. Manually editing the live object only provides a temporary change that will be overwritten during the next synchronization or lifecycle event because the cluster YAML file was not updated to reflect the requested increase.

VCF 9.0 describes a vSphere Namespace as the control point where administrators defineresource boundariesfor workloads, explicitly stating that vSphere administrators can create namespaces and “configure them with specified amount ofmemory, CPU, and storage,” and that you can “set limits forCPU, memory, storage” for a namespace. This directly supports stepAas a day-2 control to keep multi-tenant clusters governed and prevent resource contention across different teams and workload types.

For monitoring and optimization, VCF 9.0 explains that day-2 operations include visibility into utilization and operational metrics for VKS clusters, noting that application teams can use day-2 actions and gain insights intoCPU and memory utilizationand advanced metrics (including contention and availability) for VKS clusters. In addition, VCF 9.0 monitoring guidance for VKS clusters states thatTelegraf and Prometheusmust be installed and configured on each VKS cluster before metrics and object details are sent for monitoring, and that VCF Operations supports metrics collection for Kubernetes objects (namespaces, nodes, pods, containers) via Prometheus. Since the Prometheus stack commonly includes Grafana dashboards for visualization, deployingPrometheus + Grafanamatches the required monitoring/optimization outcome inC.

When you build Kubernetes-aware policy constructs, “groups” are commonly used to collect objects so you can apply consistent controls (security posture, traffic rules, observability scope, etc.) to a set of endpoints. In VCF 9.0 documentation, the Kubernetes member types that can be used for group-based collection includeKubernetes NodeandKubernetes Serviceas supported member object categories. Nodes represent the worker compute endpoints that run workloads, while Services represent stable networking front-ends for sets of pods (and are often the anchoring object for policy and routing decisions at the Kubernetes layer). Using Node-based grouping helps apply policies to the infrastructure execution points where workloads run, and Service-based grouping helps apply policies consistently to application entry points and east-west communication targets, regardless of pod churn. This combination is especially useful in Kubernetes-centric operational models because it aligns policy scope with both (1) where workloads execute (nodes) and (2) how workloads are exposed and discovered (services).

A service mesh is an application communication layer that standardizesservice-to-service trafficinside Kubernetes. Instead of each development team building custom logic for retries, timeouts, encryption, and telemetry, the mesh provides these capabilities consistently across workloads. This is typically done by inserting a data plane (often sidecar proxies or node-level proxies) that intercepts inbound and outbound traffic for each microservice, plus a control plane that distributes configuration and identity material.

The key outcomes align directly to optionB: communication becomespossible(reliable connectivity patterns),structured(consistent routing rules, policies, and identity), andobservable(metrics, logs, and distributed tracing for east-west traffic). A service mesh commonly adds controls such asmTLS encryption, fine-grainedtraffic policy(allow/deny, rate limits, circuit breaking), and progressive delivery patterns (canary/blue-green) without changing application code.

By contrast, service discovery (A) is usually a built-in Kubernetes function, load balancing/autoscaling across sites (C) is not the primary definition of a service mesh, and a single centralized global routing table (D) is not how meshes are typically described or implemented.

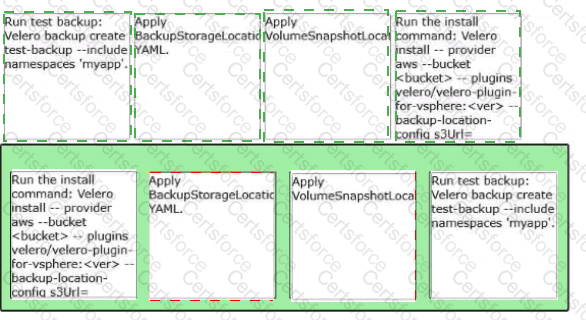

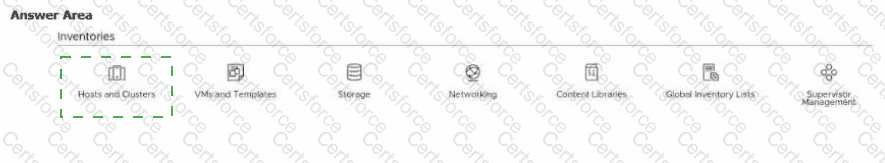

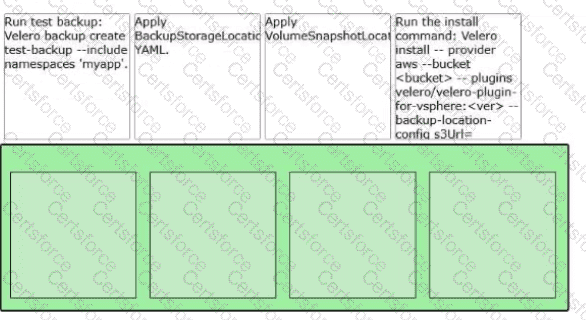

In VCF 9.0 Workload Management, workload backup for VKS clusters (and vSphere Pods) is performed using Velero, specifically theVelero Plugin for vSpherefor Supervisor/VKS scenarios. The documentation describes that you must firstprovide an S3-compatible object storeas part of installing and configuring the Velero Plugin for vSphere, because backup data (Kubernetes metadata and volume snapshot data movement) relies on object storage rather than “namespace storage.” The backup workflow further indicates that when you create a backup, the system uploadsKubernetes metadata to the object store, and persistent volume snapshot handling is coordinated through the plugin components (Snapshot/Upload custom resources).

Therefore, the correct configuration pattern is to point Velero’s backup target (BackupStorageLocation) at anS3-compatible object storeendpoint so metadata and snapshot payloads have a durable destination. This aligns with the documented prerequisite that object storage is required to enable backup/restore operations for persistent workloads, and it is the mechanism Velero uses to store backup artifacts for later restore operations in VKS environments.
