Explanation

Correct answer is MuleSoft-hosted Anypoint Platform control plane Customer-hosted runtime plane in each datacenter There are two things to note about the question which can help us figure out correct answer.. * Business data must be exchanged over these private network connections which means we can not use MuleSoft provided Cloudhub option. So we are left with either customer hosted runtime in external cloud provider or customer hosted runtime in their own premises. As customer does not use AWS at the moment. Hence that don't have the immediate option of using Customer-hosted runtime plane in multiple AWS regions. hence the most suitable option for runtime plane is Customer-hosted runtime plane in each datacenter * Metadata has no limitation to reside in organization premises. Hence for control plane MuleSoft hosted Anypoint platform can be used as a strategic solution.

Hybrid is the best choice to start. Mule hosted Control plane and Customer hosted Runtime to start with.

Once they mature in cloud migration, everything can be in Mule hosted.

Explanation

* Organization should continue to use SCM system of their choice, in addition to keeping source code for these asset types in Anypoint Exchange, thereby enabling parallel development, branching.

* Reason is that Anypoint exchange is not full fledged version repositories like GitHub.

* But at same time it is tightly coupled with Mule assets

Explanation

Correct answer is EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker. Each of the four CloudHub workers can be expected to process some item VM messages In Cloudhub, each persistent VM queue is listened on by every CloudHub worker - But each message is read and processed at least once by only one CloudHub worker and the duplicate processing is possible - If the CloudHub worker fails , the message can be read by another worker to prevent loss of messages and this can lead to duplicate processing - By default , every CloudHub worker's VM Listener receives different messages from VM Queue Referenece: https://dzone.com/articles/deploying-mulesoft-application-on-1-worker-vs-mult

To automate the API lifecycle in a CI/CD pipeline efficiently, leveraging Anypoint Platform's capabilities is crucial. Anypoint CLI (Command Line Interface) and Anypoint Platform REST APIs provide robust tools for managing various aspects of the API lifecycle, such as publishing, sharing, discovering, registering, applying policies, and deploying APIs. By using these tools with a scripting language like Groovy, you can script and automate these tasks to reduce manual intervention, ensuring consistency and efficiency.

Anypoint CLI allows you to interact with the Anypoint Platform from the command line, enabling automated deployments, management of APIs, and configuration of policies. The Anypoint Platform REST APIs provide comprehensive programmatic access to the platform’s functionalities, allowing for seamless integration into CI/CD pipelines. By combining these with a scripting language, you can create scripts that automate repetitive tasks, streamline processes, and ensure that your API lifecycle management is both efficient and reliable.

Explanation

Correct answer is Use a Batch job scope to bulk insert records into the database

* Batch Job is most efficient way to manage millions of records.

A few points to note here are as follows :

Reliability: If you want reliabilty while processing the records, i.e should the processing survive a runtime crash or other unhappy scenarios, and when restarted process all the remaining records, if yes then go for batch as it uses persistent queues.

Error Handling: In Parallel for each an error in a particular route will stop processing the remaining records in that route and in such case you'd need to handle it using on error continue, batch process does not stop during such error instead you can have a step for failures and have a dedicated handling in it.

Memory footprint: Since question said that there are millions of records to process, parallel for each will aggregate all the processed records at the end and can possibly cause Out Of Memory.

Batch job instead provides a BatchResult in the on complete phase where you can get the count of failures and success. For huge file processing if order is not a concern definitely go ahead with Batch Job

Explanation

When an operation in a Mule application fails to connect to an external server, the default behavior is for the operation to fail immediately and return a connectivity error. You can modify this default behavior by configuring a reconnection strategy for the operation. You can configure a reconnection strategy for an operation either by modifying the operation properties or by modifying the configuration of the global element for the operation. The following are the available reconnection strategies and their behaviors: None Is the default behavior, which immediately returns a connectivity error if the attempt to connect is unsuccessful Standard (reconnect) Sets the number of reconnection attempts and the interval at which to execute them before returning a connectivity error Forever (reconnect-forever) Attempts to reconnect continually at a given interval

Explanation

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API

Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.

Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API

Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.

Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

Explanation

* Scatter-Gather is used for parallel processing, to improve performance. In this scenario, input files are coming from different vendors so mostly at different times. Goal here is to minimize the impact of future change. So scatter Gather is not the correct choice.

* If we use 1 API to receive all files from different Vendors, any new vendor addition will need changes to that 1 API to accommodate new requirements. So Option A and C are also ruled out.

* Correct answer is Create an API that receives the file and invokes a Process API with the data contained in the file, then have the Process API process the data using a MuleSoft Batch Job and other System APIs as needed. Answer to this question lies in the API led connectivity approach.

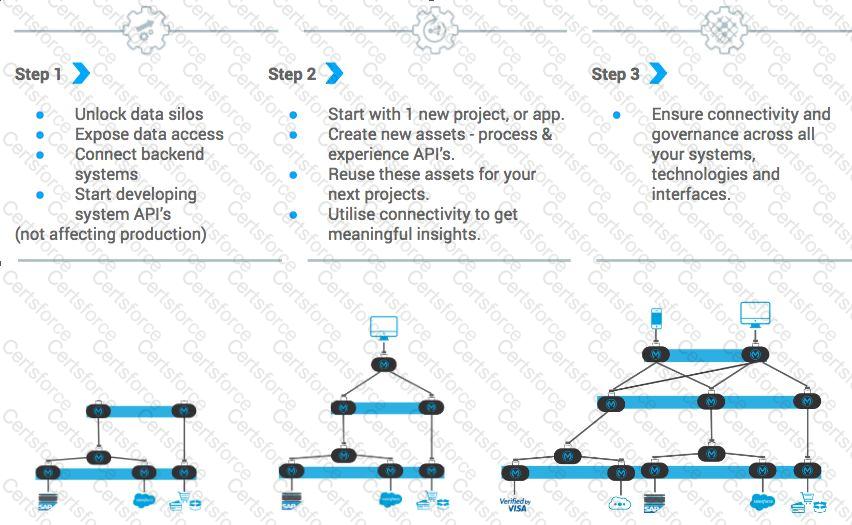

* API-led connectivity is a methodical way to connect data to applications through a series of reusable and purposeful modern APIs that are each developed to play a specific role – unlock data from systems, compose data into processes, or deliver an experience. System API : System API tier, which provides consistent, managed, and secure access to backend systems. Process APIs : Process APIs take core assets and combines them with some business logic to create a higher level of value. Experience APIs : These are designed specifically for consumption by a specific end-user app or device.

So in case of any future plans , organization can only add experience API on addition of new Vendors, which reuse the already existing process API. It will keep impact minimal.

Diagram Description automatically generated

A design-first approach in API development focuses on creating a detailed API specification before any implementation begins. This specification acts as a contract that defines the API's endpoints, request/response formats, and error codes. By developing this specification early, potential consumers can provide feedback, and testing can be conducted against mock implementations to ensure the API meets their needs. This approach helps identify issues early in the development process, improving the likelihood of successful implementation and adoption.

Explanation

Correct answer is Batch-triggered ETL Within a Mule application, batch processing provides a construct for asynchronously processing larger-than-memory data sets that are split into individual records. Batch jobs allow for the description of a reliable process that automatically splits up source data and stores it into persistent queues, which makes it possible to process large data sets while providing reliability. In the event that the application is redeployed or Mule crashes, the job execution is able to resume at the point it stopped.
