Explanation

* When you create an Anypoint VPC, the range of IP addresses for the network must be specified in the form of a Classless Inter-Domain Routing (CIDR) block, using CIDR notation.

* This address space is reserved for Mule workers, so it cannot overlap with any address space used in your data center if you want to peer it with your VPC.

* To calculate the proper sizing for your Anypoint VPC, you first need to understand that the number of dedicated IP addresses is not the same as the number of workers you have deployed.

* For each worker deployed to CloudHub, the following IP assignation takes place: For better fault tolerance, the VPC subnet may be divided into up to four Availability Zones.

* A few IP addresses are reserved for infrastructure. At least two IP addresses per worker to perform at zero-downtime.

* Hence in this scenario 2048 IP's are required to support the requirement.

A MuleSoft developer should use API Designer to create an API specification prior to building the API implementation. API Designer is a component of Anypoint Platform that provides a web-based interface for designing and documenting APIs. It supports API modeling languages such as RAML and OAS, enabling developers to define the structure, resources, and operations of an API before proceeding with implementation. This approach aligns with the design-first methodology, ensuring a well-defined contract for the API.

To meet the reliability requirements for Mule applications deployed to a Runtime Fabric (RTF) cluster, where data needs to be shared across application replicas and persist through restarts, the best approach is to use Anypoint Object Store v2. This service is designed to provide persistent storage that can be shared among different application instances and across restarts. Steps include:

Configure Object Store v2: Set up Anypoint Object Store v2 in the Mule application to handle data storage needs.

Persistent Data Handling: Ensure that the configuration allows data to be shared and persist, meeting the requirements for reliability and consistency.

This solution leverages MuleSoft's cloud-based storage service optimized for these use cases, ensuring data integrity and availability.

References

MuleSoft Documentation on Object Store v2

Configuring Persistent Data Storage in MuleSoft

MUnit and Test Recorder:

MUnit is MuleSoft's testing framework designed to create automated tests for Mule applications.

Test Recorder in Anypoint Studio allows capturing live processing flows and events to automatically generate test cases.

Core Consideration:

While using Test Recorder, it is essential to consider how errors within the flows are handled.

If Mule errors are raised within the flows, Test Recorder will not be able to create tests for these flows, even if the errors are managed by On-Error Continue error handlers.

This limitation requires careful design and error handling strategies to ensure test cases can be recorded and executed effectively.

Error Handling in MUnit:

MUnit allows simulating error scenarios using mocks and spies.

Proper error handling within the application flow ensures robustness and reliable test creation.

However, the inability to create tests when errors are raised during recording indicates a need for alternative approaches to manage errors during test case generation.

Scatter-Gather sends a request message to multiple targets concurrently. It collects the responses from all routes, and aggregates them into a single message.

For handling millions of requests per day with high performance and reliability, JMS (Java Message Service) transactions are the most suitable method. JMS transactions ensure that messages are processed reliably and can be rolled back in case of failures, providing transactional integrity. This is crucial for a trading company where reliable message processing is critical.

Using JMS transactions within Mule clusters allows for the decoupling of message producers and consumers, improving scalability and fault tolerance. JMS provides built-in mechanisms for handling transactional messaging, ensuring that messages are processed once and only once, even in the event of system failures.

To achieve efficient caching and reduce redundant database transactions, the following strategy can be implemented:

On Table Row Listener: Implement an "On Table Row" trigger on the employees' table. This trigger will monitor changes (inserts, updates, deletes) in the employee records.

Invalidate Cache: Upon detecting changes in the employees' table, the trigger will call a flow to invalidate the current cache.

Object Store for Caching: Utilize MuleSoft's object store to cache the employee data. This store can hold the data for quick retrieval.

Set Expiration Interval: Configure the expiration interval for the cached data to ensure it is cleared when necessary. For this scenario, since we are invalidating cache on actual data changes, setting the expiration interval to empty can be suitable.

Return Cached Data: If there are no updates, the cached response is returned, reducing database load.

When using MUnit's test recorder in Anypoint Studio to create unit tests, consider the following points:

A. Tests for flows cannot be created with Mule errors raised inside the flow or already existing in the incoming event:

Explanation: The test recorder cannot record flows if Mule errors are raised during the flow execution or if the incoming event already contains errors. This limitation requires users to handle or clear errors before recording the flow to ensure accurate test creation.

D. A recorded flow execution ends successfully but the result does not reach its destination because the application is killed:

Explanation: If the application is killed before the recorded flow execution completes, the recorder captures the flow up to the point of termination. However, the final result may not be reached or recorded. This scenario should be avoided to ensure complete and reliable test recordings.

These considerations help ensure the accuracy and reliability of tests created using the test recorder.

Explanation

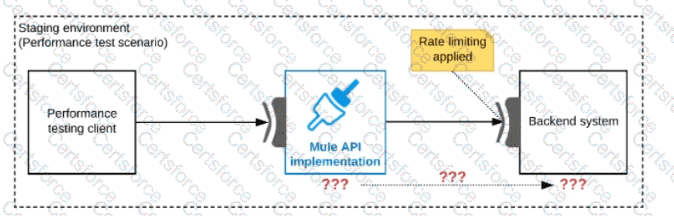

Correct answer is Create a mocking service that replicates the backend system’s production performance characteristics. Then configure the API implementation to use the mocking service and conduct the performance tests

* MUnit is for only Unit and integration testing for APIs and Mule apps. Not for performance Testing, even if it has the ability to Mock the backend.

* Bypassing the backend invocation defeats the whole purpose of performance testing. Hence it is not a valid answer.

* Scaled down performance tests cant be relied upon as performance of API's is not linear against load.

To discover which API specifications have been created within the organization before starting a new project, a developer can use Anypoint Exchange. Anypoint Exchange is a centralized repository on the Anypoint Platform where developers can find, share, and collaborate on API specifications, connectors, templates, and other reusable assets.

In Anypoint Exchange, developers can browse the currently released API specifications, try them out using the built-in testing tools, and access documentation and other resources. This facilitates the reuse of existing APIs and ensures that the new project aligns with the organization's API strategy.

References

MuleSoft Documentation on Anypoint Exchange

Best Practices for API Reuse and Discovery
