The vserver fcp wwpn-alias set command is used to set or modify the World Wide Port Name (WWPN) aliases for Fibre Channel (FC) ports in a NetApp ONTAP environment. This command allows you to apply a company-wide naming policy to FC ports, ensuring consistent and easily identifiable naming conventions across your storage infrastructure.

For further details, you can refer to:

NetApp Documentation on FC Management

NetApp Community Discussion on WWPN Aliases

Selective LUN Mapping (SLM) is the feature that presents LUNs only within the HA pair. SLM allows administrators to control which LUNs are visible to which hosts, ensuring that LUNs are only accessible through the designated HA pair, thus improving security and manageability.

For more information, see:

NetApp Documentation on Selective LUN Mapping

NetApp Community on LUN Mapping

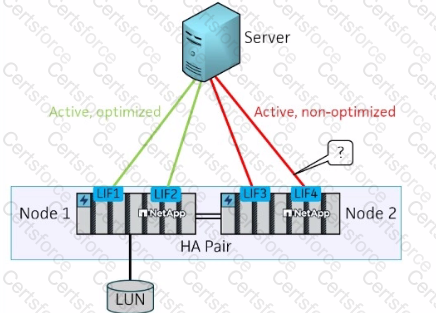

In the scenario where a storage failover is performed on Node 1 in an HA pair, the path marked in the exhibit would becomeActive/Nonoptimized. After the failover, the LIFs from Node 1 that were activeand optimized will switch to Node 2. Paths that were previously optimized will become nonoptimized because they are now served through the partner node.

For more details, see:

NetApp Documentation on ALUA

In a multitenant environment where a user needs access only to perform replication within a specific SVM to another cluster, the default rolevsadmin-backupis appropriate. This role provides thenecessary permissions to manage backup and replication tasks without granting broader administrative rights.

For more details, see:

NetApp Documentation on User Roles

NetApp Community Discussion on Roles

For a small remote site with two ESXi servers requiring SAN storage and no switches, the recommended protocol isiSCSI. iSCSI allows for direct connectivity between the servers and the NetApp ONTAP storage system using standard Ethernet infrastructure, which is suitable for environments without Fibre Channel switches.

For more information, see:

NetApp iSCSI Configuration Guide

When adding 40 more hosts to a two-node NetApp ONTAP cluster that is already hosting 64 SAN hosts, the following actions are necessary to avoid potential performance problems:

Configure additional FC target ports: Increasing the number of Fibre Channel (FC) target ports on the storage nodes will help distribute the I/O load more evenly, reducing the risk of bottlenecks.

Configure additional SAN LIFs: Adding more SAN Logical Interfaces (LIFs) will ensure that the increased number of hosts can connect efficiently, improving load balancing and path management.

These actions help maintain optimal performance and prevent congestion in the SAN environment.

For more detailed guidance, refer to:

NetApp SAN Host Configuration Overview

NetApp Best Practices for SAN​ (NetApp)​​ (NetApp)

When using Fibre Channel Protocol (FCP), the minimum number of FC switches needed to redundantly attach three ESXi hosts is 2. This setup ensures that each host has multiple paths to the storage, providing high availability and fault tolerance. Each ESXi host should be connected to both switches, allowing for continuous operation even if one switch fails.

For more information, refer to:

NetApp Documentation on FC Switch Configurations

NetApp Community Discussion on Redundant FC Setup

For a two-node cluster serving iSCSI LUNs, it is recommended to createtwo iSCSI LIFs per node. This configuration provides redundancy and load balancing, ensuring that each node can handle failover scenarios effectively and maintain high availability for the iSCSI connections.

For more details, see:

NetApp Documentation on iSCSI LIF Configuration

After deleting a LUN, if the space does not show as available, performing space reclamation is necessary. Space reclamation involves identifying and reclaiming unused space on the storage system, making it available for new data. This process ensures that the deleted LUN's space is properly freed up and reflected in the available storage capacity.

For more details, refer to:

NetApp Documentation on Space Reclamation

NetApp Community on Free Space Reclamation
