Explanation

Correct Answers:

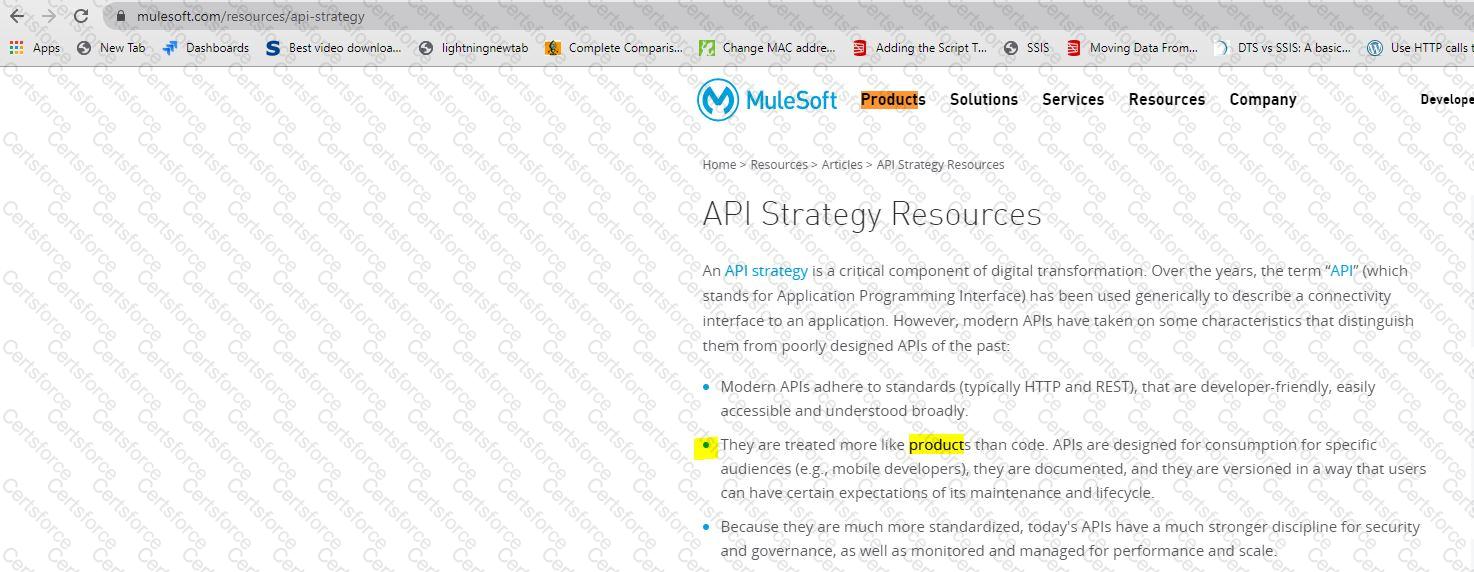

1. Each modern API must be treated like a product and designed for a particular target audience (for instance mobile app developers)

*****************************************

Bottom of Form

Top of Form

Explanation

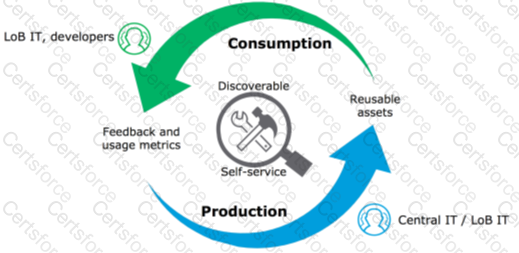

Correct Answer: Create reusable assets, Make them discoverable so that LOB teams can self-serve and browse the APIs, Get active feedback and usage metrics.

*****************************************

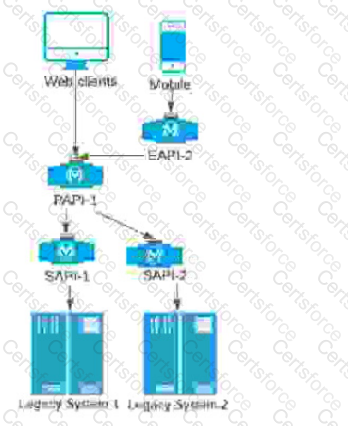

Diagram, arrow Description automatically generated

To achieve the goal of exposing financial data to a new mobile application while following MuleSoft’s best practices, the company should follow an API-led connectivity approach. This approach ensures minimal disruption to existing clients, maximizes reusability, and respects the separation of concerns across API layers.

Explanation of Solution:

Experience APIs for Client-Specific Requirements:

Create two new Experience APIs (EAPI-1 and EAPI-2) for the mobile application, tailored to meet the specific data and format requirements of the mobile application. These APIs encapsulate the client-specific needs and provide a custom interface without impacting other clients.

Process API Layer for Data Transformation:

By adding Mobile PAPI-2, we allow the mobile application to access the required subset of data, formatted according to the mobile application’s requirements. This approach ensures that data transformation and aggregation are handled in the Process layer, maintaining consistency and reusability across different applications.

Reuse of System APIs:

Both the new Mobile PAPI-2 and existing PAPI-1 access data from System APIs (SAPI-1 and SAPI-2), which continue to expose data from each legacy system in a consistent, reusable manner. This avoids duplicating logic and ensures that data access remains centralized and manageable.

Why Option A is Correct:

Option A aligns with MuleSoft’s best practices by isolating client-specific requirements in the Experience layer, utilizing Process APIs for data orchestration and transformation, and maintaining reusable System APIs for backend access.

This approach also ensures that the current API clients are not impacted, as new clients (e.g., the mobile app) interact with newly defined Experience APIs without modifying the existing API setup.

Explanation of Incorrect Options:

Option B: This option seems similar but lacks clarity on the separation of mobile-specific requirements and does not explicitly mention data transformation, which is essential in this scenario.

Option C: Creating a single mobile Experience API that exposes a subset of PAPI endpoints directly adds unnecessary complexity and may violate the separation of concerns, as transformation logic should not be in the Experience layer.

Option D: Deploying a new PAPI and using an API Proxy to redirect existing endpoints would add unnecessary complexity, disrupt the current API clients, and increase maintenance efforts.

ReferencesFor additional guidance, refer to MuleSoft documentation on API-led connectivity best practices and best practices for structuring Experience, Process, and System APIs​​.

Explanation

Correct Answer: Apply a basic authentication - LDAP policy; the internal Active Directory will be configured as the LDAP source for authenticating users.

*****************************************

>> IP Whitelisting does NOT fit for this purpose. Moreover, the users workstations may not necessarily have static IPs in the network.

>> OAuth 2.0 enforcement requires a client provider which isn't in the organizations system components.

>> It is not an effective approach to let every user create separate client credentials and configure those for their usage.

The effective way it to apply a basic authentication - LDAP policy and the internal Active Directory will be configured as the LDAP source for authenticating users.

For organizations with established CI/CD practices, the Mule Maven plugin is the recommended tool for automating packaging and deployment across multiple environments, including CloudHub, on-premise Mule runtimes, and Anypoint Runtime Fabric. Here’s why:

Automation with Maven:

The Mule Maven plugin allows for CI/CD integration by supporting automated build and deployment processes. It is commonly used in CI/CD pipelines to handle application packaging and deployment directly through Maven commands, making it ideal for teams that want consistent deployment automation across different MuleSoft environments.

Supported Deployment Targets:

The Mule Maven plugin supports deployment to various targets, including CloudHub, Runtime Fabric, and on-premises servers, thus meeting the needs of environments with diverse deployment destinations.

Why Option B is Correct:

The Mule Maven plugin is specifically designed for CI/CD pipelines and integrates with Jenkins, GitLab, and other CI/CD tools to facilitate continuous deployment. It is the most efficient MuleSoft-provided tool for this purpose.

Explanation of Incorrect Options:

Option A (Anypoint Runtime Manager) provides deployment management but does not automate CI/CD processes.

Option C (Anypoint Platform CLI) can script deployments but lacks direct integration with CI/CD tools.

Option D (Anypoint Platform REST APIs) requires custom scripting for deployment, which can be more complex than using the Mule Maven plugin.

ReferencesFor more details, refer to MuleSoft documentation on using the Mule Maven plugin for CI/CD​​.

Explanation

Correct Answer: 8082

*****************************************

>> 8091 and 8092 ports are to be used when keeping your HTTP and HTTPS app private to the LOCAL VPC respectively.

>> Above TWO ports are not for Shared AWS VPC/ Shared Worker Cloud.

>> 8081 is to be used when exposing your HTTP endpoint app to the internet through Shared LB

>> 8082 is to be used when exposing your HTTPS endpoint app to the internet through Shared LB

So, API invocations should be sent to port 8082 when calling this HTTPS based app.

References:

https://docs.mulesoft.com/runtime-manager/cloudhub-networking-guide

https://help.mulesoft.com/s/article/Configure-Cloudhub-Application-to-Send-a-HTTPS-Request-Directly-to-Another-Cloudhub-Application

https://help.mulesoft.com/s/question/0D52T00004mXXULSA4/multiple-http-listerners-on-cloudhub-one-with-port-9090

In a CloudHub deployment with a single worker/replica located in a specific Availability Zone (AZ), if an AZ experiences an outage, here’s what happens:

Worker Availability: Since the application is deployed in a single AZ, CloudHub does not automatically redeploy the application in a different zone or region during an outage. Thus, if the current AZ is unavailable, the application will be offline.

Auto-Restart upon AZ Recovery: Once the affected AZ is back online, CloudHub will auto-restart the worker in the same AZ without manual intervention. This ensures that as soon as the AZ is functional, the application resumes automatically.

Explanation of Correct Answer (B):

Option B accurately describes the situation, as the API will remain unavailable until the original AZ is restored.

CloudHub does not currently support automatic failover across regions or other availability zones within the same region for single-worker deployments on the shared cloud.

Explanation of Incorrect Options:

Option A (auto-redeployment in the U.S. East region) is incorrect, as CloudHub does not migrate across regions automatically.

Option C (redeployment in another AZ within the U.S. West) is not a feature for single-worker deployments.

Option D (manual redeployment triggered by an admin) is unnecessary as CloudHub handles restarts automatically when the AZ is back online.

ReferencesRefer to MuleSoft CloudHub’s availability and disaster recovery documentation for more information on how CloudHub manages availability in shared environments​.

Explanation

Correct Answer: Drive consumption as much as production of assets; this enables developers to discover and reuse assets from other projects and encourages standardization

*****************************************

>> The main motto of the new IT Operating Model that MuleSoft recommends and made popular is to change the way that they are delivered from a production model to a production + consumption model, which is done through an API strategy called API-led connectivity.

>> The assets built should also be discoverable and self-serveable for reusablity across LOBs and organization.

>> MuleSoft's IT operating model does not talk about SDLC model (Agile/ Lean etc) or MDM at all. So, options suggesting these are not valid.

References:

https://blogs.mulesoft.com/biz/connectivity/what-is-a-center-for-enablement-c4e/

https://www.mulesoft.com/resources/api/secret-to-managing-it-projects

Explanation

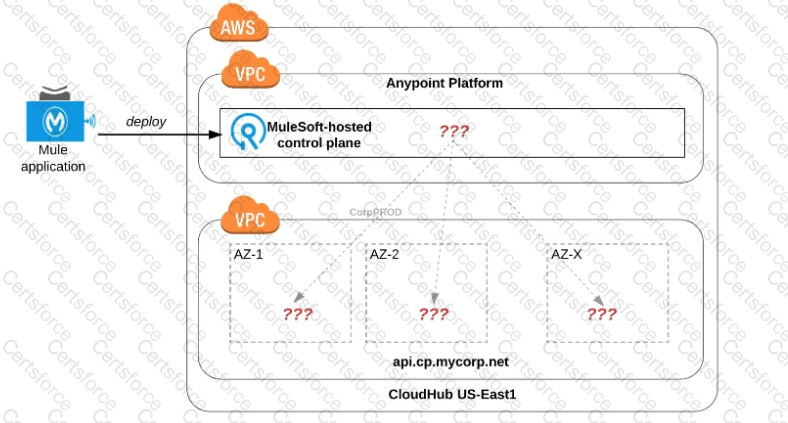

Correct Answer: Workers are randomly distributed across available AZs within that region.

*****************************************

>> Currently, we only have control to choose which AWS Region to choose but there is no control at all using any configurations or deployment options to decide what Availability Zone (AZ) to assign to what worker.

>> There are NO fixed or implicit rules on platform too w.r.t assignment of AZ to workers based on environment or application.

>> They are completely assigned in random. However, cloudhub definitely ensures that HA is achieved by assigning the workers to more than on AZ so that all workers are not assigned to same AZ for same application.

Explanation

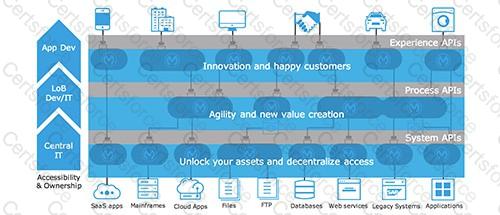

Correct Answer:

1. App Developers owns and focuses on Experience Layer APIs

2. LOB IT owns and focuses on Process Layer APIs

3. Central IT owns and focuses on System Layer APIs

References:

https://blogs.mulesoft.com/biz/api/experience-api-ownership/

https://blogs.mulesoft.com/biz/api/process-api-ownership/

https://blogs.mulesoft.com/biz/api/system-api-ownership/
