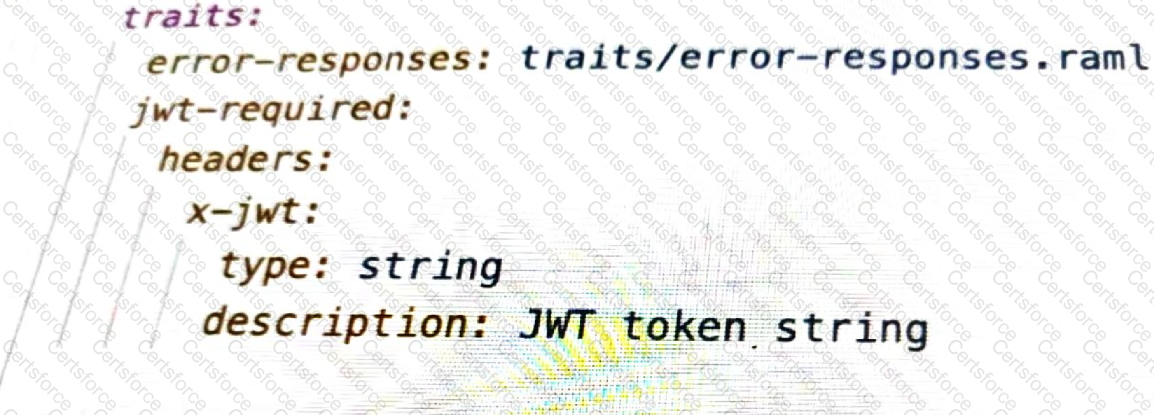

The data format shown in the exhibit is YAML (YAML Ain't Markup Language). YAML is a human-readable data serialization standard that is commonly used for configuration files and data exchange between languages with different data structures. In the exhibit, the indentation and the use of colons to define key-value pairs are characteristic of YAML.

JSON (JavaScript Object Notation) and XML (eXtensible Markup Language) have different syntax structures, and CSV (Comma-Separated Values) is a flat file format that uses commas to separate values. The format shown in the exhibit fits the structure and style of YAML.

References

YAML Specification Documentation

MuleSoft Documentation on Supported Data Formats

Explanation

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

Below are the typical characteristics of unit testing.

-- Unit tests do not require deployment into any special environment, such as a staging environment

-- Unit tests san be run from within an embedded Mule runtime

-- Unit tests can/should be implemented using MUnit

-- For read-only interactions to any dependencies (such as other APIs): allowed to invoke production endpoints

-- For write interactions: developers must implement mocks using MUnit

-- Require knowledge of the implementation details of the API implementation under test

In Anypoint Exchange, policies are the asset type that represents configuration modules extending the functionality of an API and enforcing capabilities such as security. Policies can be applied to APIs to control access, apply throttling, manage security, and other aspects that modify or extend the behavior of APIs.

Rulesets, REST APIs, and connectors serve different purposes within the Anypoint Platform. Rulesets are used for validation or routing decisions. REST APIs define the endpoints and methods for API interactions, and connectors enable connectivity to various systems and services. Only policies are specifically designed to enforce additional capabilities on APIs.

References

MuleSoft Anypoint Platform Documentation on API Policies

Anypoint Exchange Overview

Explanation

* Correct answer is To directly reference one shared and customized log4j2.xml file from multiple Mule applications. Key word  to note in the answer is directly.

* By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. This specifies the CloudHub appender to write logs to the CloudHub logging service.

* You cannot modify CloudHub log4j2.xml file to add any custom appender. But there is a process in order to achieve this. You need to raise a request on support portal to disable CloudHub provided Mule application log4j2 file.

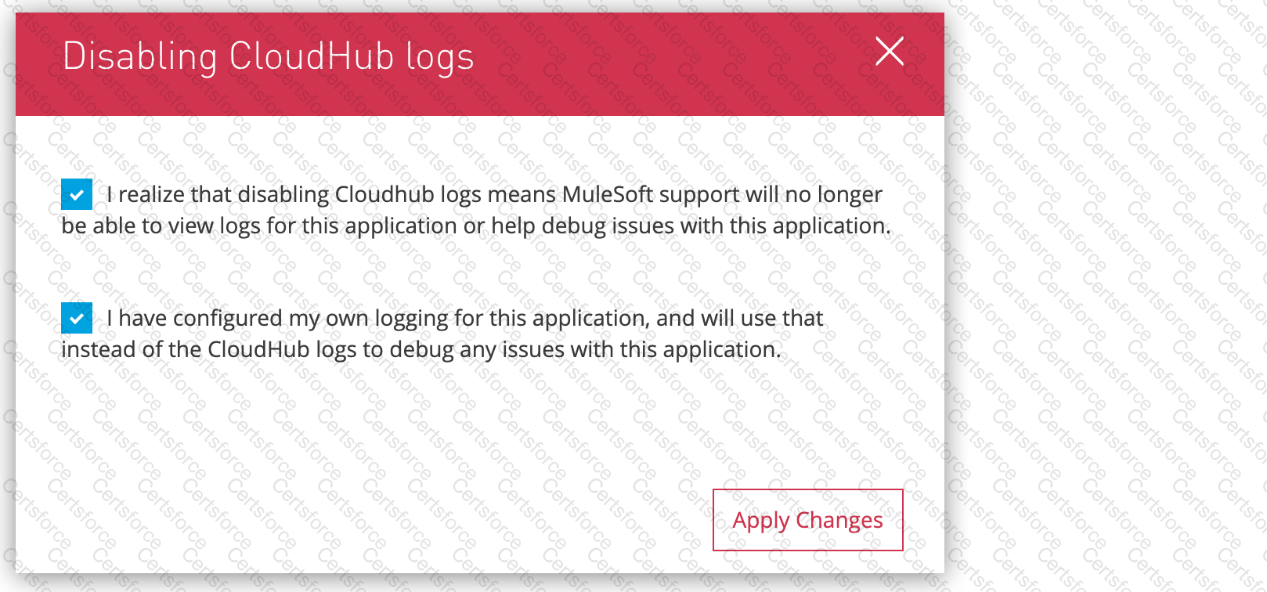

Graphical user interface, application, Word Description automatically generated

* Once this is done , Mule application's log4j2.xml file is used which you can use to send/export application logs to other log4j2 appenders, such as a custom logging system MuleSoft does not own any responsibility for lost logging data due to misconfiguration of your own log4j appender if it happens by any chance.

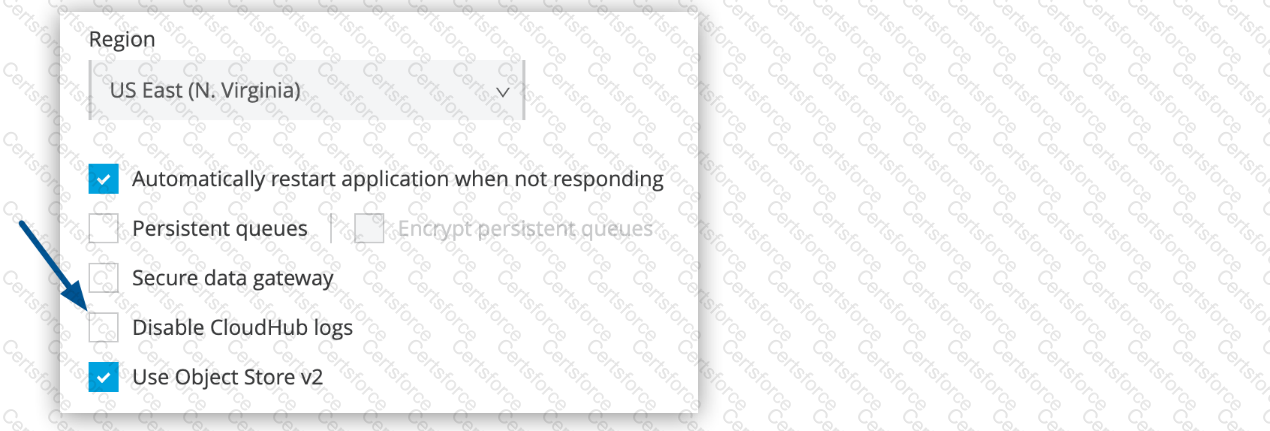

Graphical user interface, text, application, email Description automatically generated

* One more difference between customer-hosted Mule runtimes and CloudHub deployed mule instance is that

- CloudHub system log messages cannot be sent to external log management system without installing custom CH logging configuration through support

- where as Customer-hosted runtime can send system and application log to external log management system

MuleSoft Reference:

https://docs.mulesoft.com/runtime-manager/viewing-log-data

https://docs.mulesoft.com/runtime-manager/custom-log-appender

Explanation

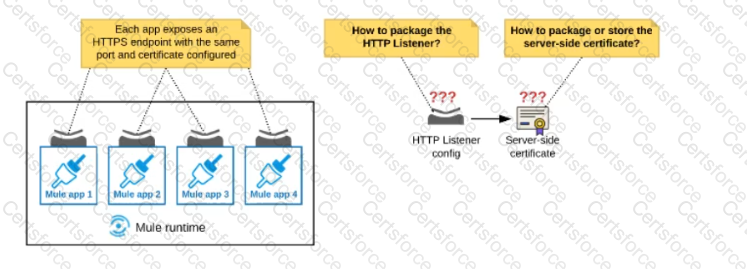

In this scenario, both A & C will work, but A is better as it does not require repackage to the domain project at all.

Correct answer is Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint. Store the server-side certificate in a shared filesystem location in the Mule runtime’s classpath, OUTSIDE the Mule DOMAIN or any Mule APPLICATION.

What is Mule Domain Project?

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

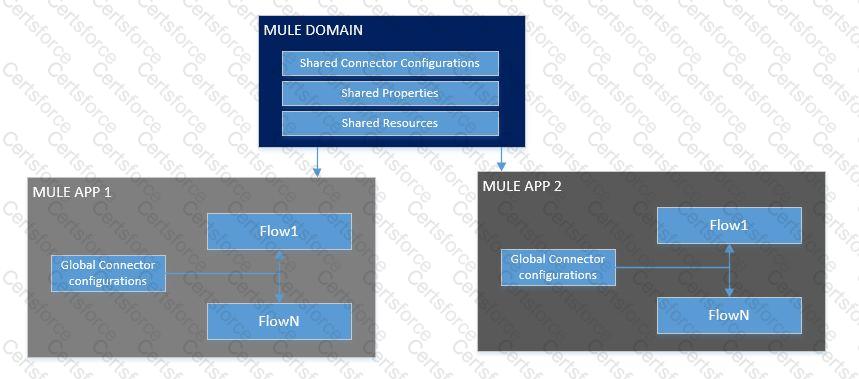

Graphical user interface Description automatically generated

Use a certificate defined in already deployed Mule domain Configure the certificate in the domain so that the API proxy HTTPS Listener references it, and then deploy the secure API proxy to the target Runtime Fabric, or on-premises target. (CloudHub is not supported with this approach because it does not support Mule domains.)

Explanation

Correct answer is Only MuleSoft provided certificates can be used for server side certificate

* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.

* You would need to use dedicated load balancer which can enable you to define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication.

* To use a dedicated load balancer in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

Additional Info on SLB Vs DLB:

Table Description automatically generated

Explanation

* Option B shouldn't be used unless extremely needed, if RAML is changed, client needs to accommodate changes. Question is about minimizing impact on Client. So this is not a valid choice.

* Option C isn't valid as Business can't stop for consumers acknowledgment.

* Option D again needs Client to accommodate changes and isn't viable option.

* Best choice is A where RAML definition isn't changed and underlined functionality is changed without any dependency on client and without impacting client.

The described approach of gathering all requirements upfront and proceeding through sequential, non-repeating phases is characteristic of the Waterfall methodology. Waterfall is a linear project management approach where each phase must be completed before the next one begins, and there is typically no going back to a previous phase once it is completed. This methodology is well-suited for projects with well-defined requirements and deliverables, but it can be inflexible if changes or new requirements arise during the project.

References:

Waterfall Model

Waterfall vs. Agile: Which is the Right Development Methodology for Your Project?

Explanation

Correct answer is "Compile, package, unit test, validate unit test coverage, deploy" Explanation : Anypoint Platform supports continuous integration and continuous delivery using industry standard tools Mule Maven Plugin The Mule Maven plugin can automate building, packaging and deployment of Mule applications from source projects Using the Mule Maven plugin, you can automate your Mule application deployment to CloudHub, to Anypoint Runtime Fabric, or on-premises, using any of the following deployment strategies • CloudHub deployment • Runtime Fabric deployment • Runtime Manager REST API deployment • Runtime Manager agent deployment MUnit Maven Plugin The MUnit Maven plugin can automate test execution, and ties in with the Mule Maven plugin. It provides a full suite of integration and unit test capabilities, and is fully integrated with Maven and Surefire for integration with your continuous deployment environment. Since MUnit 2.x, the coverage report goal is integrated with the maven reporting section. Coverage Reports are generated during Maven’s site lifecycle, during the coverage-report goal. One of the features of MUnit Coverage is to fail the build if a certain coverage level is not reached. MUnit is not used for integration testing Also publishing to Anypoint Exchange or to create associated API instances in API Manager is not a part of CICD pipeline which can ne achieved using mulesoft provided maven plugin

Explanation

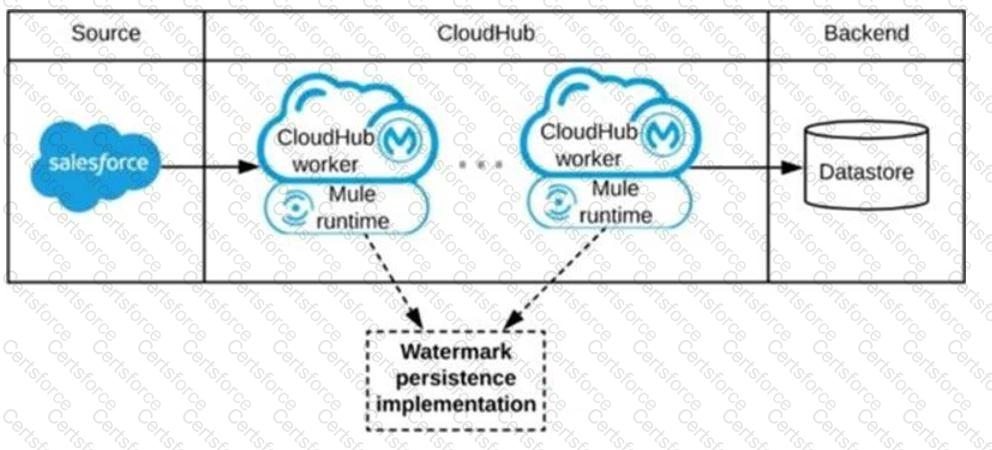

Architecture mentioned in the question can be diagrammatically put as below. Persistent Object Store is the correct answer .

* Mule Object Stores: An object store is a facility for storing objects in or across Mule applications. Mule uses object stores to persist data for eventual retrieval.

Mule provides two types of object stores:

1) In-memory store – stores objects in local Mule runtime memory. Objects are lost on shutdown of the Mule runtime. So we cant use in memory store in our scenario as we want to share watermark within all cloudhub workers

2) Persistent store – Mule persists data when an object store is explicitly configured to be persistent. Hence this watermark will be available even any of the worker goes down

Diagram Description automatically generated
